Description

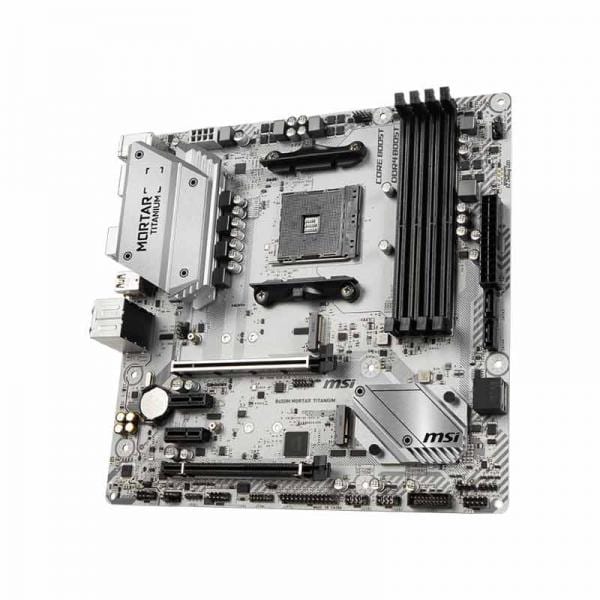

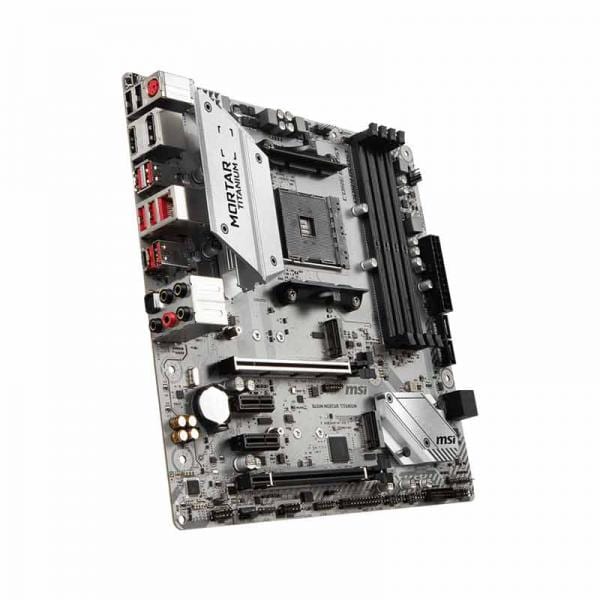

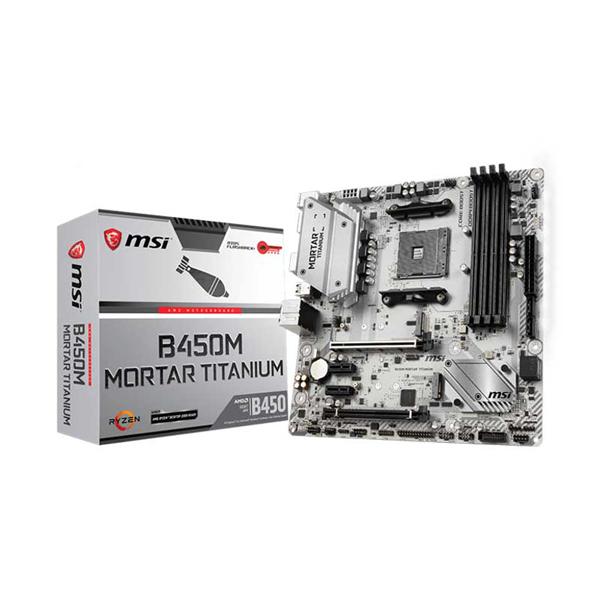

Features Of MSI B450M Mortar Titanium DDR4 AMD
- Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
- MSI B450M Mortar Titanium DDR4 Memory, up to 3466(OC) MHz
- Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.1 GEN2, Store MI technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
- MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire™
- Mystic Light and Mystic Light Sync: 16.8 million colors / 10 effects in one click. Synchronize RGB strips and other RGB solutions for customization.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
- In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
- EZ Debug LED: The easiest way to troubleshoot.
FIRE YOUR IMAGINATION
Create your own unique stickers! MSI Arsenal GAMING motherboards are now available for personalization. With various design offered by MSI or design from your own inspiration, you are able to easily customize heatsink cover by using stickers in your favorite styles.
PERSONALIZE YOUR GAMING RIG
Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!
STAY COOL WHILE GAMING
Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
YOUR IN-GAME ADVANTAGE
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.
BE THE FIRST ON THE BATTLEFIELD
This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.
Specifications Of MSI B450M Mortar Titanium DDR4 AMD
| PROCESSOR | Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4 |
| CHIPSET | AMD® B450 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 64GBSupports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
| SLOTS |
1 x PCIe 3.0 x16 slot (PCI_E1)Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 2 x PCIe 2.0 x1 slots2 PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot. PCI_E2 slot will be unavailable when an expansion card is installed in the PCI_E3 slot. |
| ONBOARD GRAPHICS |
1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2 Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors Maximum shared memory of 2048 MB |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
AMD® B450 Chipset 4 x SATA 6Gb/s ports1 1 x M.2 slot (M2_2, Key M)1Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devicesAMD® CPU 1 x M.2 slot (M2_1, Key M)1Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devicesPCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot. |
| RAID |
AMD® B450 Chipset Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe RAID |
| USB |
AMD® B450 Chipset 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel 2 x USB 3.1 Gen1 (2 ports available through the internal USB 3.1 Gen1 connectors) 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel) |
| AUDIO |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1 x Realtek® RTL8111H-CG Gigabit LAN controller |
| INTERNAL CONNECTORS |
1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (support additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector |
| BACK PANEL PORTS |
BIOS FLASHBACK Button PS/2 Combo Port DisplayPort LAN Port USB 3.1 Gen2 Type A HD Audio Connectors USB 2.0 Port HDMI Port USB 3.1 Gen1 USB 3.1 Gen2 Type C Optical S/PDIF OUT |
| DIMENSIONS |
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) Micro-ATX Form Factor |
| MOUNTING | 8 mounting holes |
| OPERATING SYSTEM |
Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
