Description

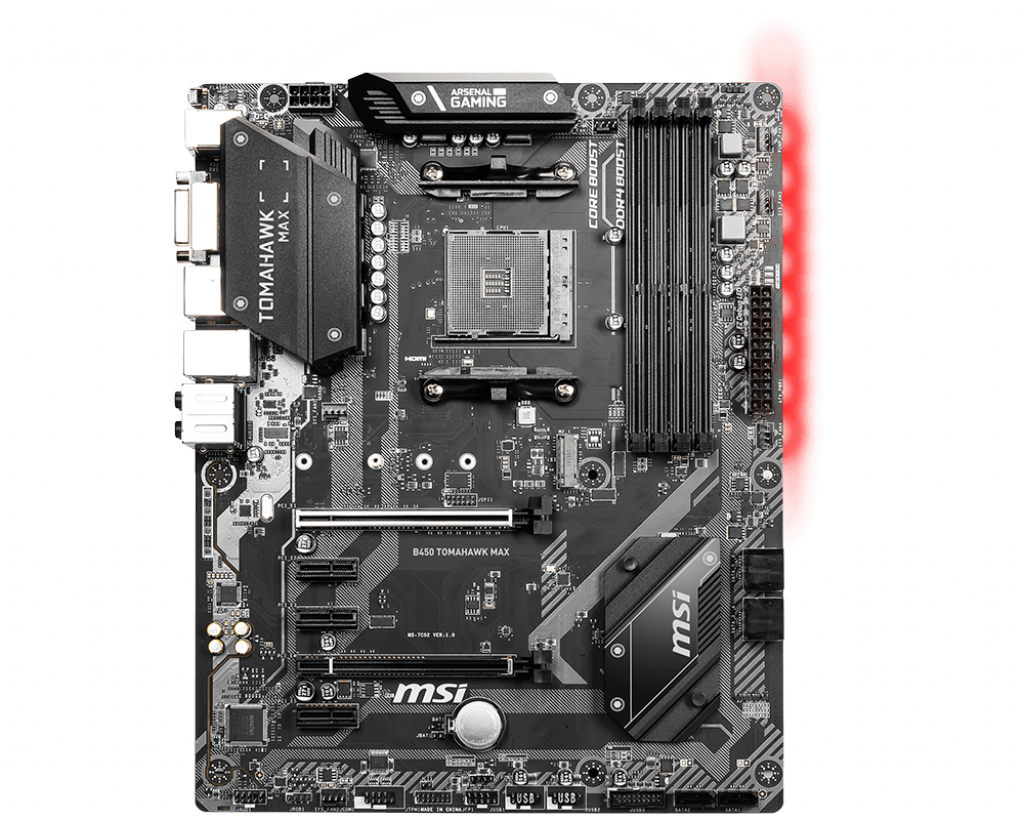

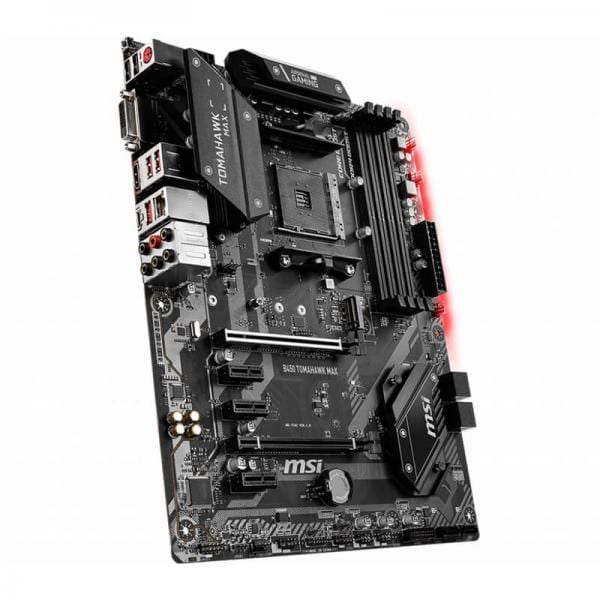

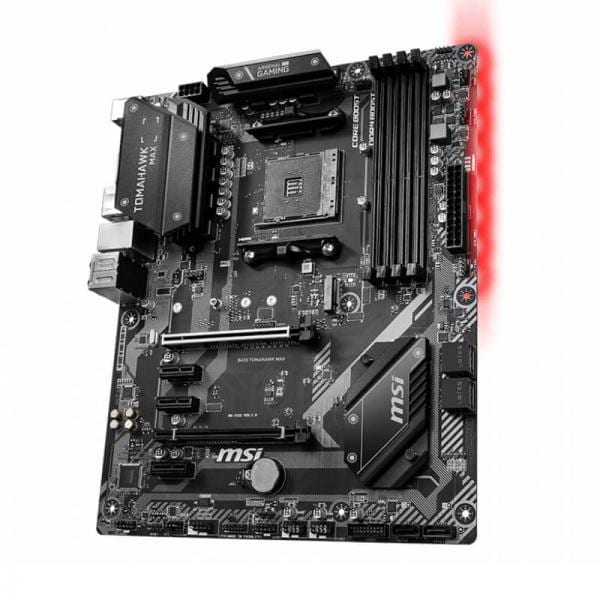

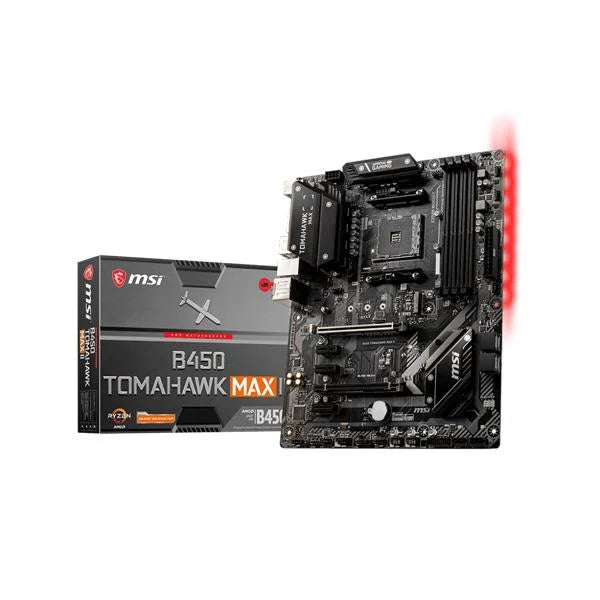

Features Of MSI B450 Tomahawk Max DDR4 AMD
Now provide better performance by supporting more cores as the MSI B450 Tomahawk Max comes with a digital power design and premium layout. For the best gaming experience, MSI B450 Tomahawk Max comes with a DDR4 boost to deliver the best data signals. Supports two-way AMD Crossfire with steel armor PCI-E slots. This helps to set up multi GPU build.MSI B450 Tomahawk Max gives the most immersive audio experience as it comes with studio sound quality. No need to install a CPU, memory, or graphics card. Now flash any BIOS within seconds by simply using a USB key. No need to install a CPU, memory, or graphics card.
- Military-style with extended heatsink design for better thermal solution, plus DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connector
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Extended Heatsink Design : MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Lightning Fast Game experience : 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
- Core Boost : With premium layout and fully digital power design to support more cores and provide better performance.
- DDR4 Boost : Advanced technology to deliver pure data signals for the best gaming performance and stability.
- MULTI-GPU : With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
- Audio Boost : Reward your ears with studio grade sound quality for the most immersive audio experience.
- Flash BIOS Button : Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Specifications Of MSI B450 Tomahawk Max DDR4 AMD
| PROCESSOR | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| CHIPSET | AMD® B450 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 64GBSupports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)For AMD Other CPUSupports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
| SLOTS |
1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen™ processors support x16 speed Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors support x8 speed1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 3 x PCIe 2.0 x1 slots PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot. |
| ONBOARD GRAPHICS |
1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors Maximum shared memory of 2048 MB |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
AMD® CPU 2 x SATA 6Gb/s ports 1 x M.2 slot (Key M)Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280/ 22110 storage devicesAMD® B450 4 x SATA 6Gb/s ports SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot. |
| RAID |
AMD® B450 Supports RAID 0, RAID1 and RAID 10 for SATA storage devices |
| USB |
AMD® B450 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| AUDIO |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Realtek® 8111H Gigabit LAN controller |
| INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors |
| BACK PANEL PORTS |

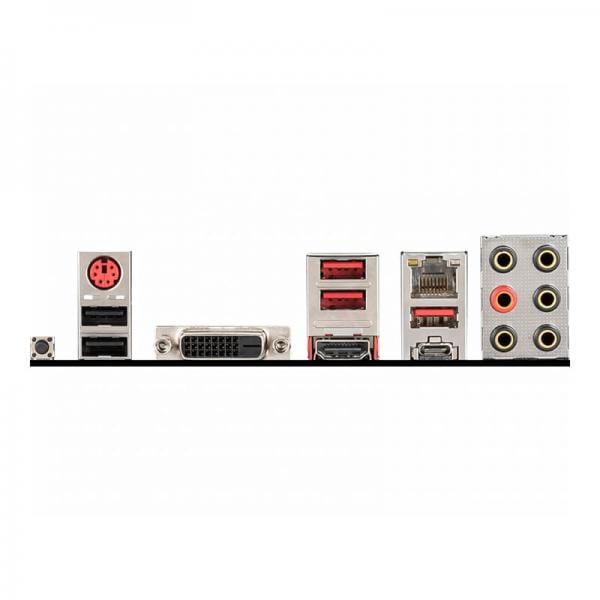

Flash BIOS Button PS/2 Combo Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 Port DVI-D Port HDMI Port USB 3.2 Gen2 Type A C |
| DIMENSIONS |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM |
Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
