Description
Features Of MSI B450 Tomahawk Max II DDR4 AMD Motherboard
- MSI B450 Tomahawk Max II Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- B450 Tomahawk Max II Supports DDR4 Memory, up to 4133(OC) MHz
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- DDR4 Boost:Advanced technology to deliver pure data signals for the best gaming performance and stability.
- MULTI-GPU:Supports 2-Way AMD Crossfire™. By STEEL ARMOR PCI-E slot & STEEL PCI-E slot.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Specifications Of MSI B450 Tomahawk Max II DDR4 AMD Motherboard
| Processor | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD® B450 Chipset |
| Memory |
4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)For AMD Other CPUSupports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
| Slots |
1 x PCIe 3.0 x16 slot (PCI_E1)1st, 2nd and 3rd Gen AMD Ryzen™ processors support x16 speed Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors support x8 speed1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 3 x PCIe 2.0 x1 slots1 PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot. |
| Onboard Graphics |
1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 12 1 x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160@60Hz 123 Maximum shared memory of 16GB Only available when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors. Graphics specifications may vary depending on the CPU installed. |
| Multi-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| Storage |
AMD® CPU 2 x SATA 6Gb/s ports1 1 x M.2 slot (Key M)1Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280/ 22110 storage devicesAMD® B450 4 x SATA 6Gb/s ports SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot. |
| RAID |
AMD® B450 Supports RAID 0, RAID1 and RAID 10 for SATA storage devices |
| USB |
AMD® B450 1x USB 3.2 Gen 2 10Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-A port on the back Panel 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio |
Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Realtek® 8111H Gigabit LAN controller |
| Internal connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors |
| Back panel ports |

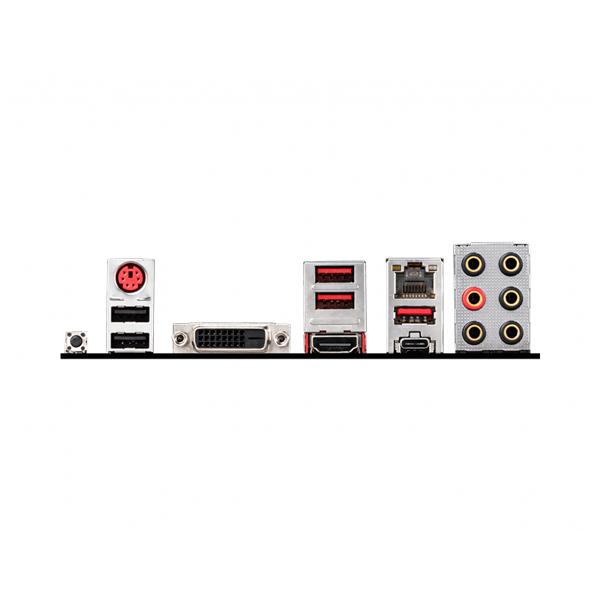

Flash BIOS Button PS/2 Combo Port USB 3.2 Gen 1 5Gbps Type-A ports LAN Port HD Audio Connectors USB 2.0 Port DVI-D Port HDMI Port USB 3.2 Gen 2 10Gbps Type-A+C ports |
| Dimensions |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
| Mounting | 9 mounting holes |
| Operating System |
Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
