Description

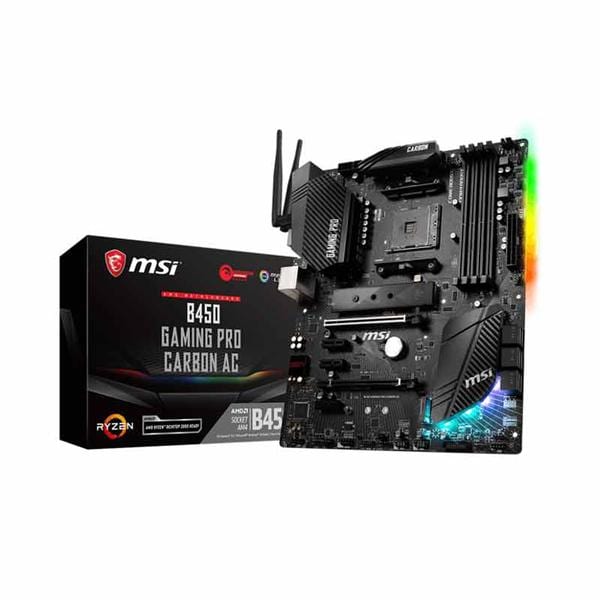

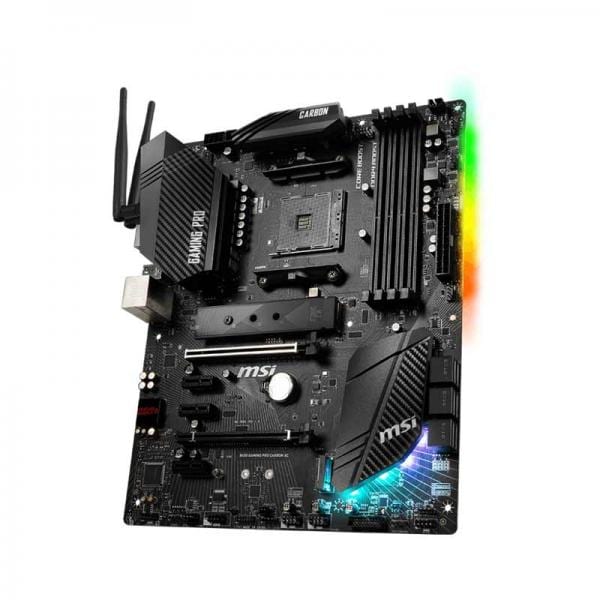

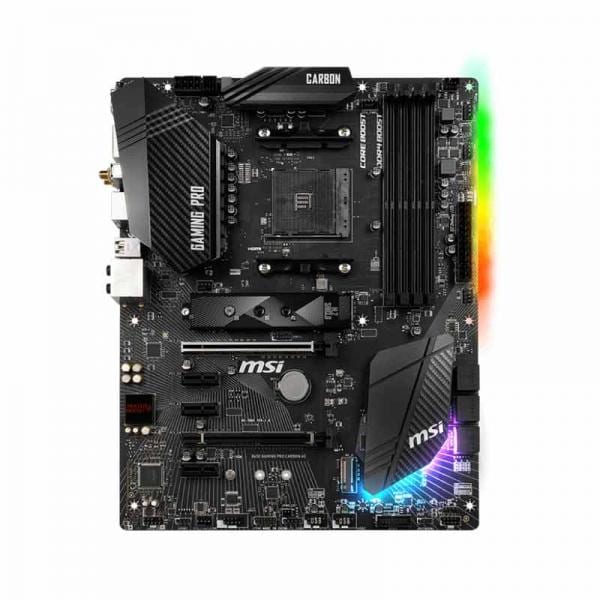

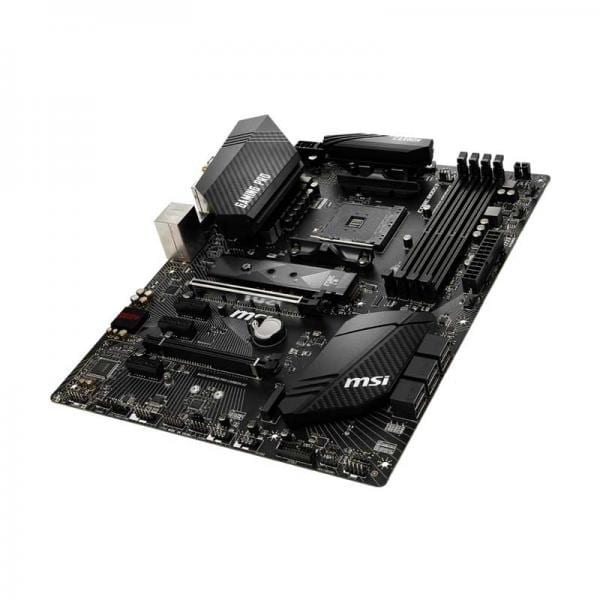

Features Of MSI B450 Gaming Pro Carbon AC Wifi DDR4
-
- Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
- MSI B450 Gaming Pro Carbon AC DDR4-3466(OC) Memory
- Mystic Light and Mystic Light Sync: 16.8 million colors / 17 effects in one click. Synchronize RGB/RAINBOW strips and other RGB solutions for customization.
- Lightning Fast Game experience: TURBO M.2 with M.2 Shield, StoreMI, AMD Turbo USB 3.1 GEN2
- Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Extended Heatsink Design
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
- GAMING LAN and Wireless support, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
- MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
- BIOS FLASHBACK+: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
- In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
- GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players
DIY FRIENDLY
B450 Gaming Pro Carbon AC motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.
IN-GAME ADVANTAGE
B450 Gaming Pro Carbon AC motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one.
ENHANCED PERFORMANCE
B450 Gaming Pro Carbon AC motherboards feature all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
Specifications Of MSI B450 Gaming Pro Carbon AC Wifi DDR4
| PROCESSOR | Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4 |
| CHIPSET | AMD® B450 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 64GB1Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
| SLOTS |
1 x PCIe 3.0 x16 slot (PCI_E1)Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1,2 3 x PCIe 2.0 x1 slots2 PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot. PCI_E4 will run x1 speed when installing devices in any PCIe 2.0x1 slot. |
| MULTI-GPU |
Ryzen™ Desktop Processors Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
AMD® B450 Chipset 4 x SATA 6Gb/s ports1 1 x M.2 slot (M2_2, Key M)1Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devicesAMD® CPU 1 x M.2 slot (M2_1, Key M)1Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices2 x SATA 6Gb/s ports1 PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot. SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1 slot. |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe RAID |
| ONBOARD GRAPHICS |
1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz*1 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz2 Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors Maximum shared memory of 2048 MB |
| USB |
AMD® B450 Chipset 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU 2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| AUDIO |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| WIFI & BLUETOOTH |
Intel® Dual Band Wireless-AC 92601 Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 1.73 Gbps speed. Supports Dual Mode Bluetooth 2.1, 2.1 EDR, 3.0, 4.0, BLE,4.2, 5.0 1 x M2_3 slot with E key (Wi-Fi mode) Only support windows 10 64-bit |
| LAN | 1 x Intel® I211AT Gigabit LAN controller |
| INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 1 x 2pin LED Power connector 2 x 5050 RGB LED strip 12V connectors (JRGB1~2) 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1) 1 x CORSAIR connector (JCORSAIR1) |

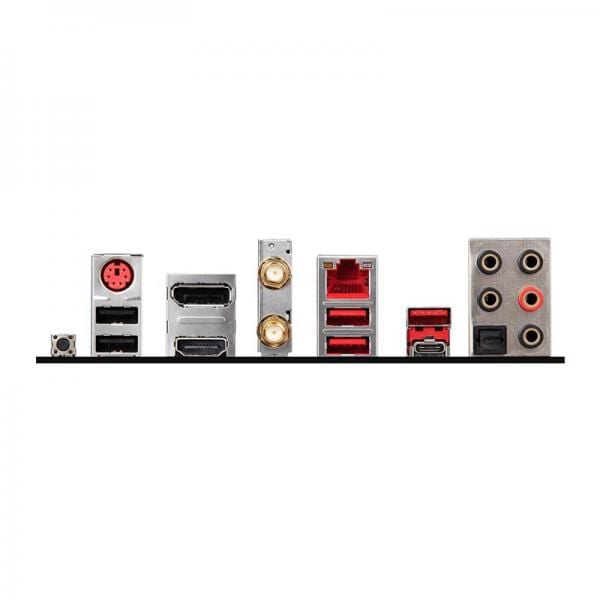

| BACK PANEL PORTS |
PS/2 Combo Port DisplayPort Wi-Fi / Bluetooth LAN Port HD Audio Connectors BIOS Flashback Button USB 2.0 Port HDMI Port USB 3.1 Gen1 USB 3.1 Gen2 Type-A C Optical S/PDIF OUT |
| DIMENSIONS |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM |
Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
