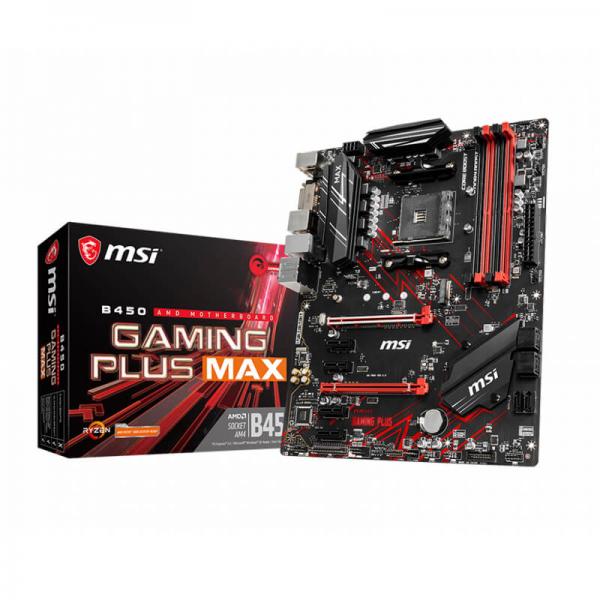

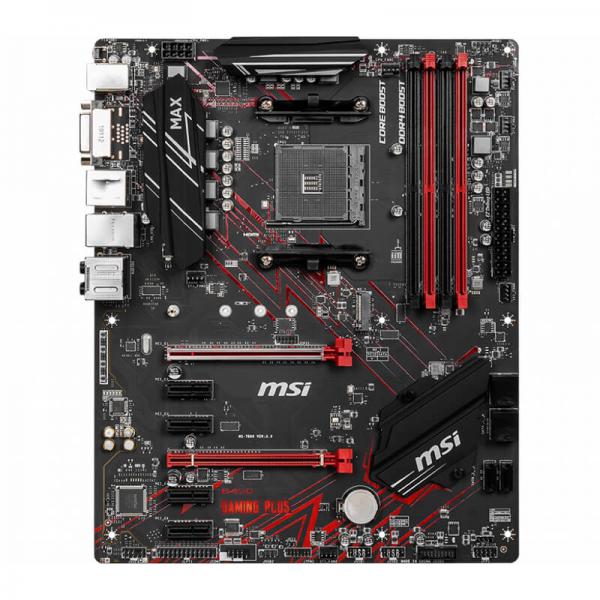

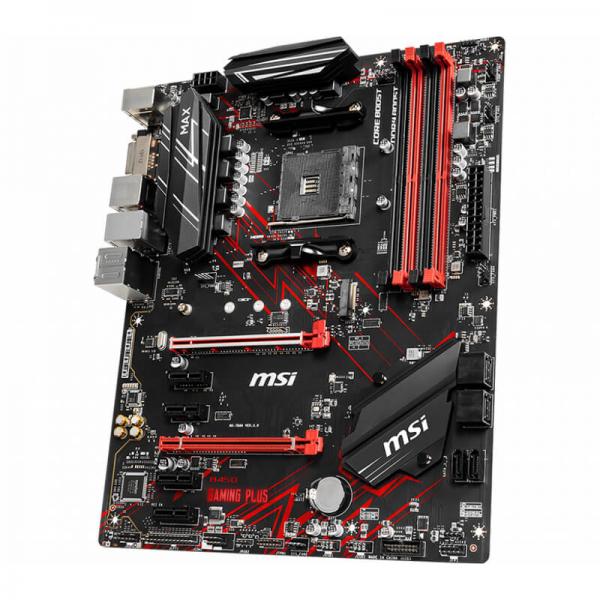

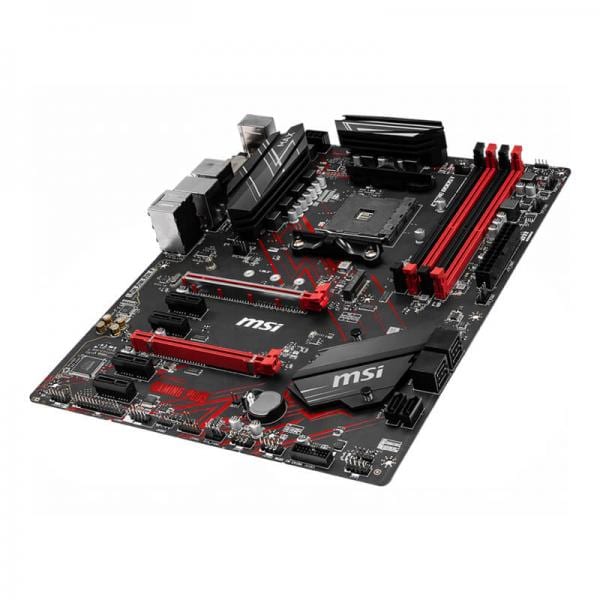

Features OF MSI B450 Gaming Plus Max DDR4
Satisfying gamers with what they really need, B450 GAMING PLUS MAX is equipped with Core boost, Turbo M.2, DDR4 Boost, USB 3.2 Gen2 Connector
- MSI B450 Gaming Plus Max Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- B450 Gaming Plus Max Supports DDR4 Memory, up to 4133(OC) MHz
- Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card
DIY FRIENDLY
MSI B450 Gaming Plus Max motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
COOLING
Cooling is essential for a high performance PC to sustain intense workloads. MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable processor power delivery.
COMPATIBILITY
MSI motherboards are designed with both physical and device compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices.
ENHANCED PERFORMANCE
MSI motherboards feature all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
CPU
High-quality power supply components and intelligent fans optimize CPU cooling performance, which is a key factor in ensuring stable and high-speed operation of the system.
Specifications OF MSI B450 Gaming Plus Max DDR4
| PROCESSOR | Supports 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| CHIPSET | AMD® B450 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 64GBSupports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)For AMD Other CPU Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
| SLOTS |
1 x PCIe 3.0 x16 slot (PCI_E1)1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode Athlon™ with Radeon™ Vega Graphics support x4 mode1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 4 x PCIe 2.0 x1 slots PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot. |
| ONBOARD GRAPHICS |
1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors Maximum shared memory of 2048 MB |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
AMD® CPU 2 x SATA 6Gb/s ports 1 x M.2 slot (Key M)Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devicesAMD® B450 Chipset 4 x SATA 6Gb/s ports SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot. |
| RAID |
AMD® B450 Chipset Supports RAID 0, RAID1 and RAID 10 for SATA storage devices |
| USB |
AMD® B450 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| AUDIO |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Realtek® 8111H Gigabit LAN controller |
| INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors |

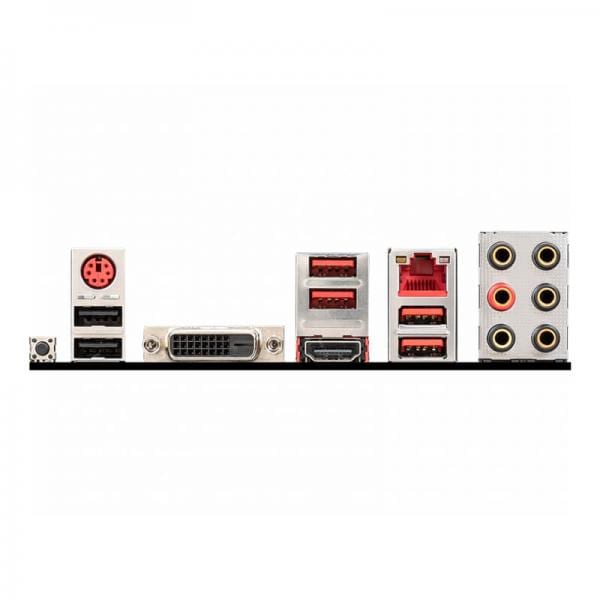

| BACK PANEL PORTS |
PS/2 Combo Port USB 3.2 Gen1 LAN Port HD Audio Connectors Flash BIOS Button USB 2.0 Ports DVI-D Port HDMI Port USB 3.2 Gen2 |
| DIMENSIONS |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM |
Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
