Description

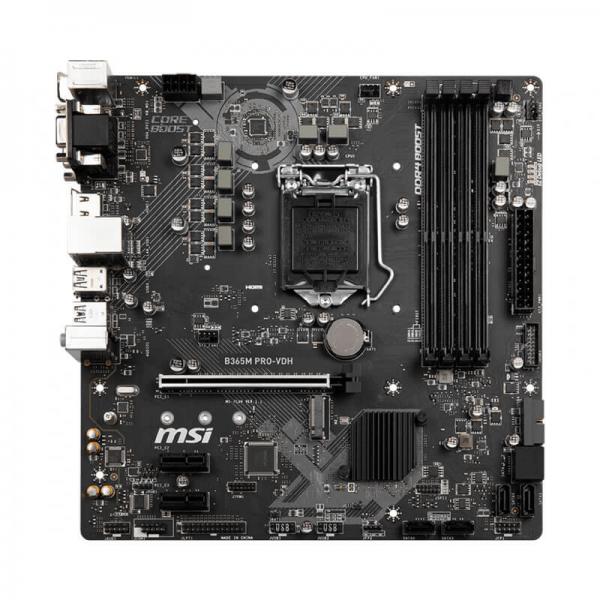

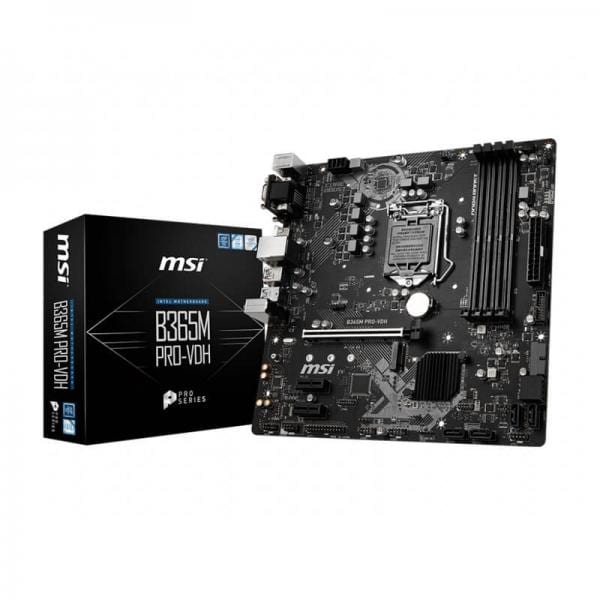

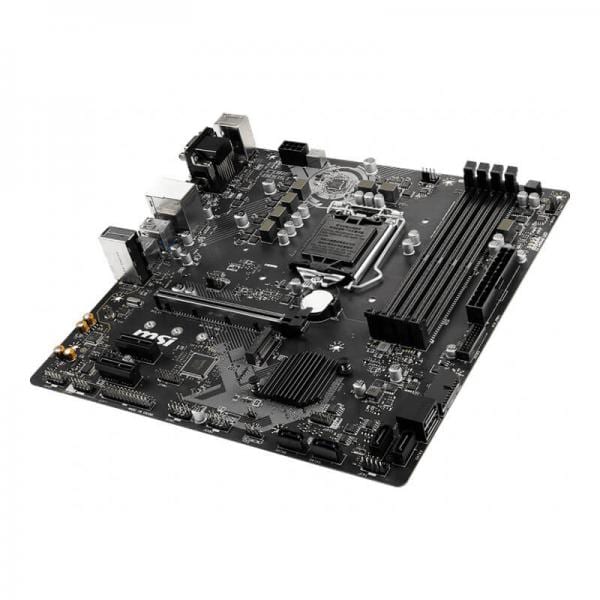

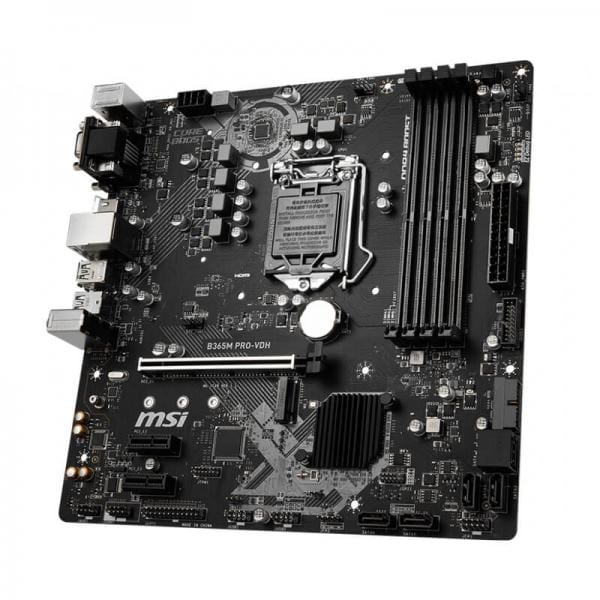

Feature of MSI B365M Pro-VDH DDR4
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666 MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- Audio Boost: Reward your ears with studio grade sound quality.
- EZ Debug LED: Easiest way to troubleshoot.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
9th and 8th Processors Support
MSI B365M Pro-VDH DDR4 motherboards perfectly support Intel 9th and 8th processors, so you can still enjoy latest MSI motherboard technology if you use 8th processors. Combining MSI Core Boost, you can release maximum performance no matter what CPU you use.
Extreme Stability & Compatibility Testing
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
Fortify Your System with PCI-E Steel Armor
MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, preventing any damage due to heavy-weight graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference for a pure gaming experience and even higher overclocking.
Super Stable Gaming with the Highest Quality Components
MSI uses the high quality components , which are shielded by the best protection to make sure your system runs smoothly under the most extreme conditions.
Solid Cap
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.
Dark Choke
A special core design allows the Dark Choke to run at a lower temperature offering better power efficiency and stability.
Ultimate Motherboard Protection
We’ve made sure you can enjoy your system endlessly. MSI motherboards feature Double ESD protection with double layer grounding around the motherboard mounting holes, preventing Electrostatic discharge (ESD) surges from damaging the motherboard.
Unmatched Memory Performance
Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4 BOOST.
Easy XMP
Enable Intel Extreme Memory Profile with ease using a single option in the BIOS to gain performance and create a perfectly stable system.
Keep Out Zone
MSI motherboards circuitry ensures the case standoff keep out zones are pure and clean, preventing any component contact or damage to the motherboard.
Load-Line Calibration
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.
Specifications of MSI B365M Pro-VDH DDR4
| CPU | Supports 9th/8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Chipset | Intel® B365 Chipset |
| Memory Support |
4x DDR4 memory slots supporting up 64GB Supports DDR4-2666 Memory (Max) Support Dual-Channel mode Support non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) * Please refer www.msi.com for more information on compatible memory |
| Onboard Graphics |
1x HDMITM port, supports a maximum resolution of 4096x2160@30Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz,1920x1200@60Hz |
| Storage |
Intel® B365 Chipset 6x SATA 6Gb/s ports 1x M.2 port, supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm/ 11cm length SSD cards. SATA1 port will be unavailable when installing the M.2 SATA module in M.2 slot. Supports Intel® Rapid Storage Technology Intel® OptaneTM Memory Ready Intel® B365 Express Chipset |
| Expansion Slots |
1x PCIe 3.0 x16 slot (From CPU) 2x PCIe 3.0 x1 slots (From PCH) |
| USB |
Intel® B365 Chipset 8x USB 3.1 Gen1 (4 ports on the back panel, 4 ports available through the internal USB connectors) 6x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors |
| Audio |
Realtek® ALC887 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek 8111H Gigabit LAN controller |

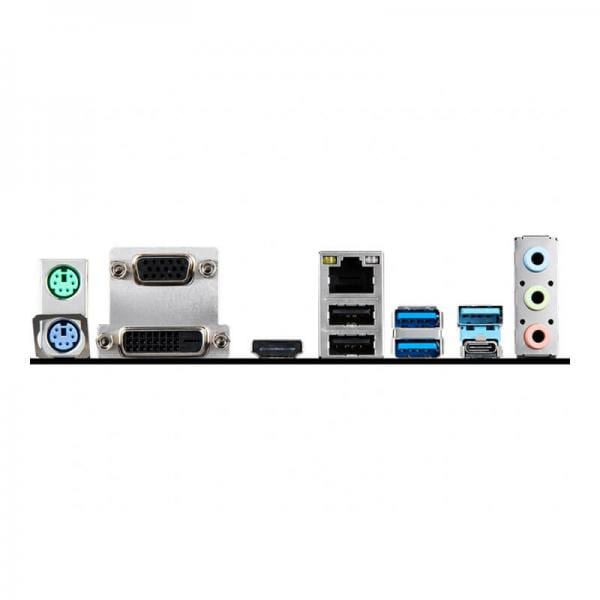

| Back Panel Connectors |
1x PS/2 keyboard port 1x PS/2 mouse port 1x HDMITM port 1x VGA port 1x DVI-D port 1x LAN(RJ45) port 3x USB 3.1 Gen1 Type-A ports 1x USB 3.1 Gen1 Type-C port 2x USB 2.0 Type-A ports 3x audio jacks |
| Internal Connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (Key M) 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU Fan connector 2x 4-pin system Fan connectors 2x Front panel connectors 1x Front panel audio connector 1x TPM module connector 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector 1x Clear CMOS jumper 1x RGB LED connector 4x EZ Debug LED |
| I/O Controller | NUVOTON NCT6797D Controller Chip |
| Hardware Monitor |
CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control |
| BIOS Features |
Single BIOS 1x 128 Mb flash UEFI AMI BIOS ACPI 6.1 , SMBIOS 2.8 Multi-language |
| PRO Series Features |
Audio Audio Boost Network Realtek LAN with Network Genie Storage Turbo M.2 Fan Smart Fan Control LED Mystic Light (RGB) Mystic light SYNC EZ DEBUG LED Protection PCI-E Steel Armor Performance DDR4 Boost Stability 7000 Quality Test VR VR Ready BIOS Click BIOS 5 |
| Software features |
DRAGON CENTER Hardware Monitor Eyerest Live Update Mystic Light (LED) CPU-Z MSI GAMING Intel® Extreme Tuning Utility Google Chrome™, Google Toolbar, Google Drive Norton™ Internet Security Solution |
| Form Factor |
mATX 243.84mm x 243.84mm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
