Description

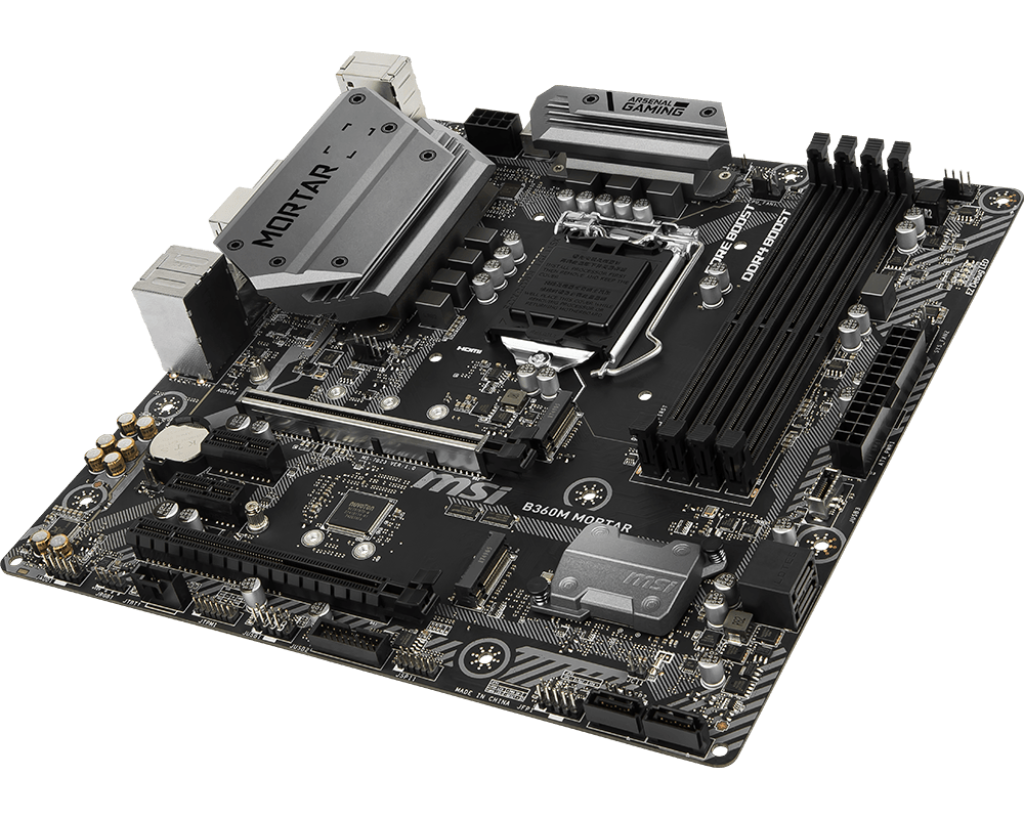

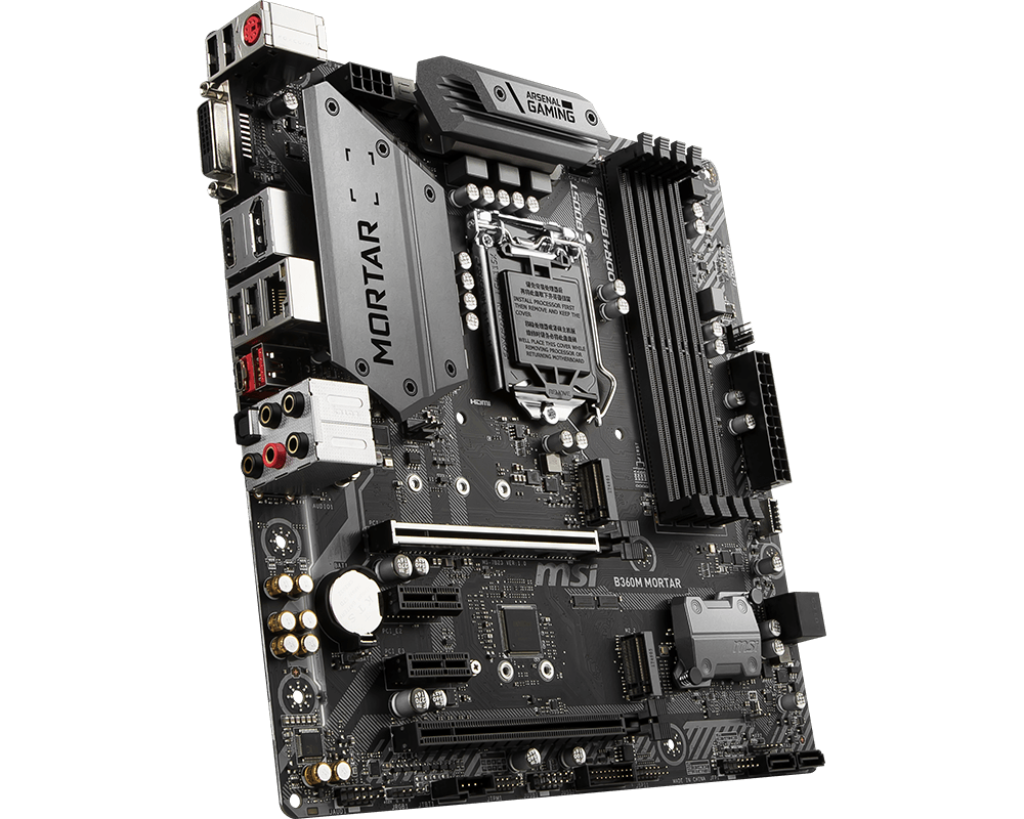

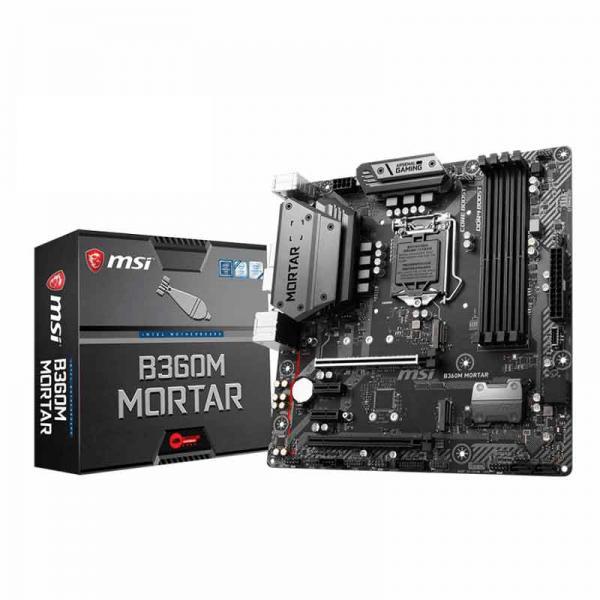

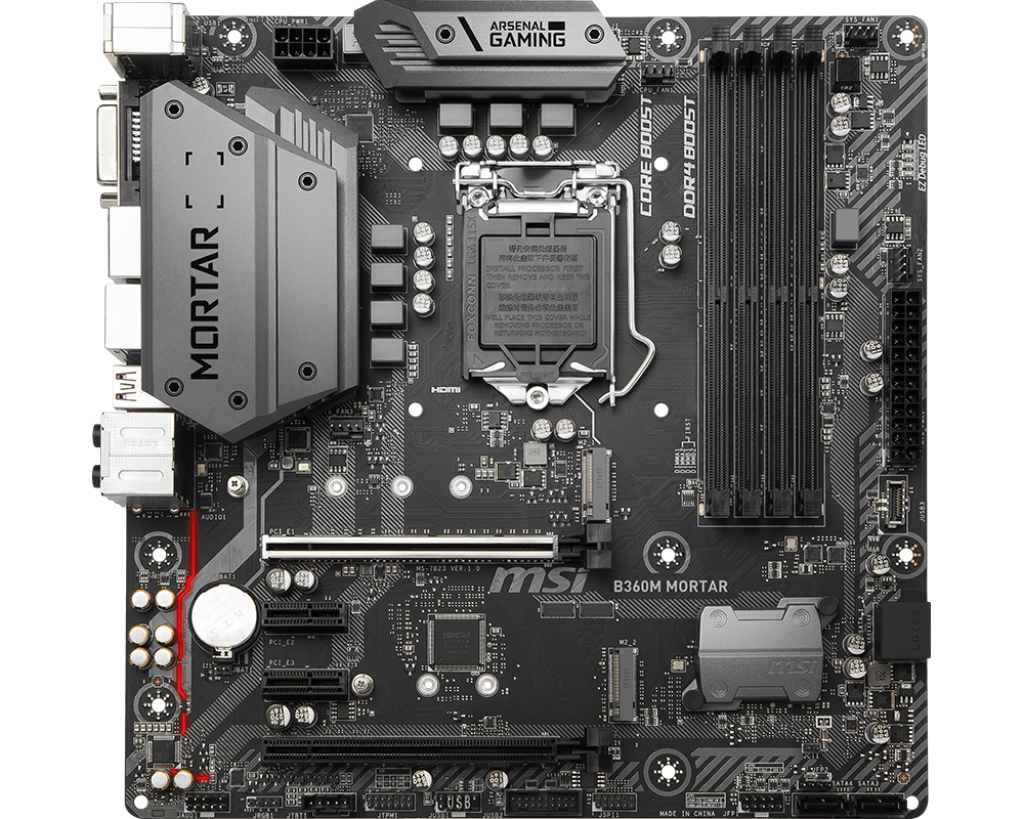

Features of MSI B360M Mortar Motherboard
MSI B360M MORTAR supports intel 8th gen and 9th gen Core, Pentium Gold, and Celeron processors. The MSI B360M MORTAR has an LGA1151 socket with support for DDR4 RAM up to 2666MHz. The Twin-turbo M.2 slots running at PCI-E Gen3 maximizes performances for the NVME M.2 SSDs. the intel turbo USB 3.1 Gen2 allows the MSI B360M MORTAR to ensures an uninterrupted connection with a stable connection and faster USB speeds. The heatsink design of the B360M MORTAR has been extended with a PWM and enhanced circuit design that ensures the high-end processors to run at full speed. The MSI B360M MORTAR has the support for high-performance DDR4 to deliver the best gaming performance and stability with higher overclockable headroom.
The B360M MORTAR support multiple GPU with STEEL ARMOR PCI-E slot. Cooling the PC while gaming is essential for reliable performance and MSI includes enough fan headers to allow to cool the system. The MSI B360M MORTAR comes with the most immersive sound when gaming. MSI audio boost delivers the highest quality sound by using premium quality audio components. The MSI B360M MORTAR Gaming LAN features the highest quality components tuned to deliver the best online gaming experience without lag. The ability to transfer games, music, and movies over USB made portability better and the USB 3.1 ports of the MSI B360M MORTAR delivers lightning-fast transfer speeds up to 10Gb/s. Gamers’ BIOS of the MSI B360M MORTAR lets the user fine-tune the setting to deliver maximum reliable performance.
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666 MHz
- Twin Turbo M.2: With 2 x M.2 slots. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Intel Turbo USB 3.1 Gen2: Powered by Intel, ensure an uninterrupted connection with more stability and fastest USB speeds.
- Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Core Boost: With premium layout optimized power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
- GAMING LAN: Experience smooth online gaming experience by reducing CPU overhead and offer long-term network usage.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience
- MULTI-GPU: With STEEL ARMOR PCI-E slot. Supports 2-Way AMD Crossfire™
- EZ Debug LED: Easiest way to troubleshoot.
Specifications of MSI X399 Gaming Pro Carbon DDR4 AMD Motherboard
| PROCESSOR | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® B360 Chipset |
| MEMORY |
4 x DDR4 memory slots, support up to 64GBSupports DDR4 2666/ 2400/ 2133 MHz
Dual channel memory architecture |
| SLOTS |
2 x PCIe 3.0 x16 slots (support x16/x4 modes) 2 x PCIe 3.0 x1 slots |
| ONBOARD GRAPHICS |
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x DisplayPort, supports a maximum resolution of 4096X2304@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz *No Display support when using the Processor model with suffix “F” |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
Intel® B360 Chipset 4 x SATA 6Gb/s ports 2 x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1 M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices**2 Intel® Optane™ Memory Ready ,supported on M2_2 3SATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot. M2_2 slot will be unavailable when installing a PCIe device in PCI_E4 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| USB |
Intel® B360 Chipset 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector) 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector) |
| AUDIO |
Dual Realtek® ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1 x Intel I219-V Gigabit LAN controller |
| INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen2 Type-C port 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x 5050 RGB LED strip 12V connector 1 x Thunderbolt add-on card connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |

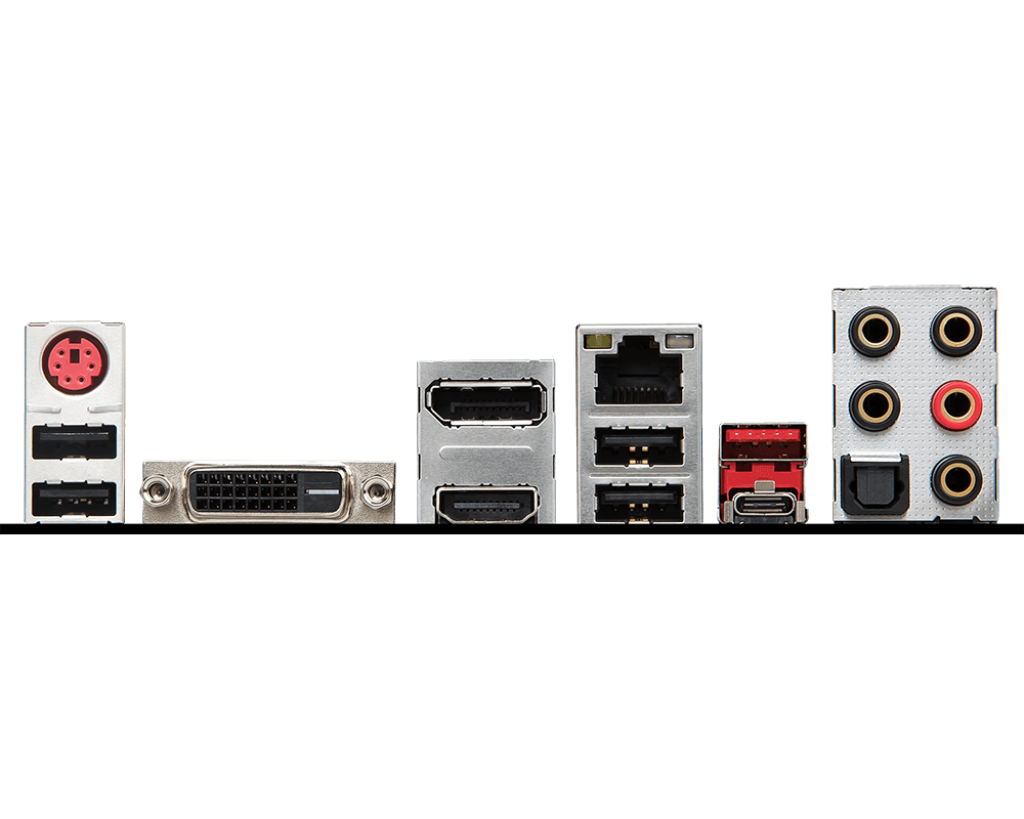

| BACK PANEL PORTS |
PS/2 Combo Port DisplayPort LAN Port USB 3.1 Gen2 Type A HD Audio Connectors USB 2.0 Port DVI-D Port HDMI Port USB 2.0 Port USB 3.1 Gen2 Type C Optical S/PDIF OUT |
| DIMENSIONS |
9.6 in. x 9.6 in. (24.3 cm x 24.3 cm) Micro-ATX Form Factor |
| MOUNTING | 8 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
