Features of MSI A320M Pro-VH DDR4 AMD
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 3200(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software that integrates all MSI exclusive tools with a user-friendly user interface
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
EASY OVERCLOCKING WITH A-XMP PROFILE
Choose from a preset A-XMP profile in CLICK BIOS 5 and automatically overclock compatible DDR memory.
The MSI OC lab has tested and certified these settings for speed and stability.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Specifications of MSI A320M Pro-VH DDR4 AMD
| CP |
Supports 1st, 2nd and 3rd Gen AMD® Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD® Ryzen™ with Radeon™ Graphics, Athlon™ with Radeon™ Vega Graphics, A-series and Athlon™ X4 Desktop Processors for Socket AM4
|
| Chipset | AMD A320 Chipset |
| Memory |
2x DDR4 memory slots, support up to 32GB
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE) Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory |
| Expansion Slot |
1x PCIe 3.0 x16 slot Supports x16 speed 1st, 2nd and 3rd Gen AMD Ryzen™ Supports x8 speed Ryzen™ with Radeon™ Vega Graphics 2nd Gen AMD Ryzen™ with Radeon™ Graphics A-series Athlon™ X4 Supports x4 speed AMD® Athlon™ with Radeon™ Vega Graphics 1x PCIe 2.0 x1 slot |
| Onboard Graphics |
1x VGA port, supports a maximum resolution of 2048x1280 @60Hz1
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz2 1)Only support when using the processor with Graphics 2)Maximum shared memory of 2048 MB |
| Storage |
AMD A320 Chipset
4x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1x M.2 slot (Key M) Supports PCIe 3.0 x4 and SATA 6Gb/s 1st, 2nd and 3rd Gen AMD Ryzen™ Ryzen™ with Radeon™ Vega Graphics 2nd Gen AMD Ryzen™ with Radeon™ Graphics Supports PCIe 3.0 x2 and SATA 6Gb/s AMD® Athlon™ with Radeon™ Vega Graphics A-series Athlon™ X4 Supports 2242/ 2280/ 22110 storage devices |
| USB |
6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors |
| Audio |
Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek®8111H Gigabit LAN controller |
| Internal connectors |
1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper |

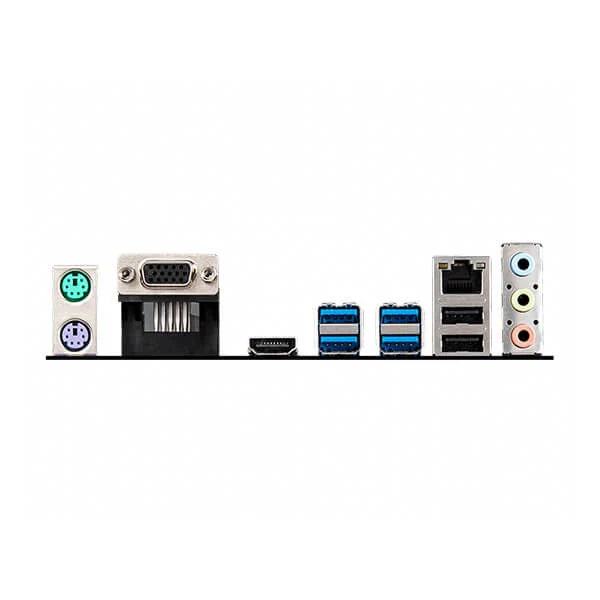

| Back panel ports |
Mouse VGA LAN HD Audio Connectors Keyboard HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 |
| Dimensions |
M-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm) |
| MOUNTING | 6 mounting holes |
| Warranty | 3 Years |
| Note |
***Features, Price and Specifications are subject to change without notice.
|
