Description

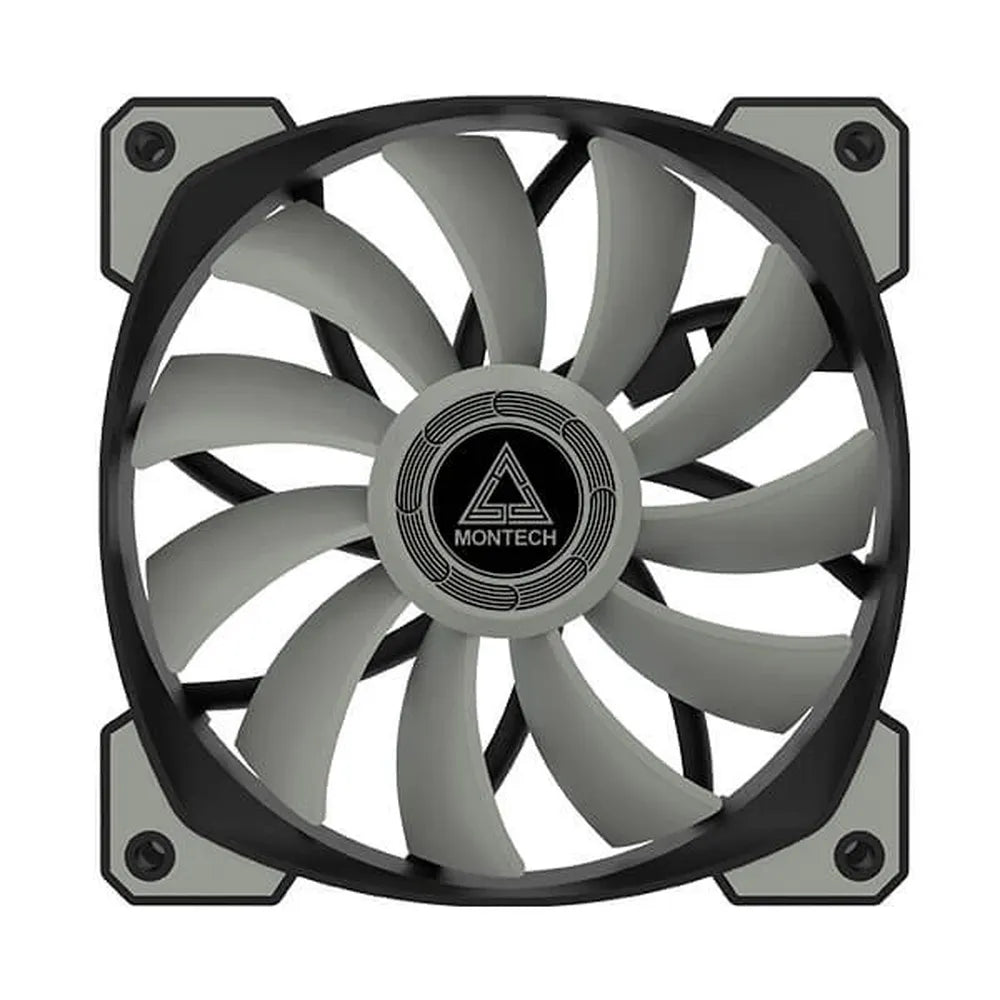

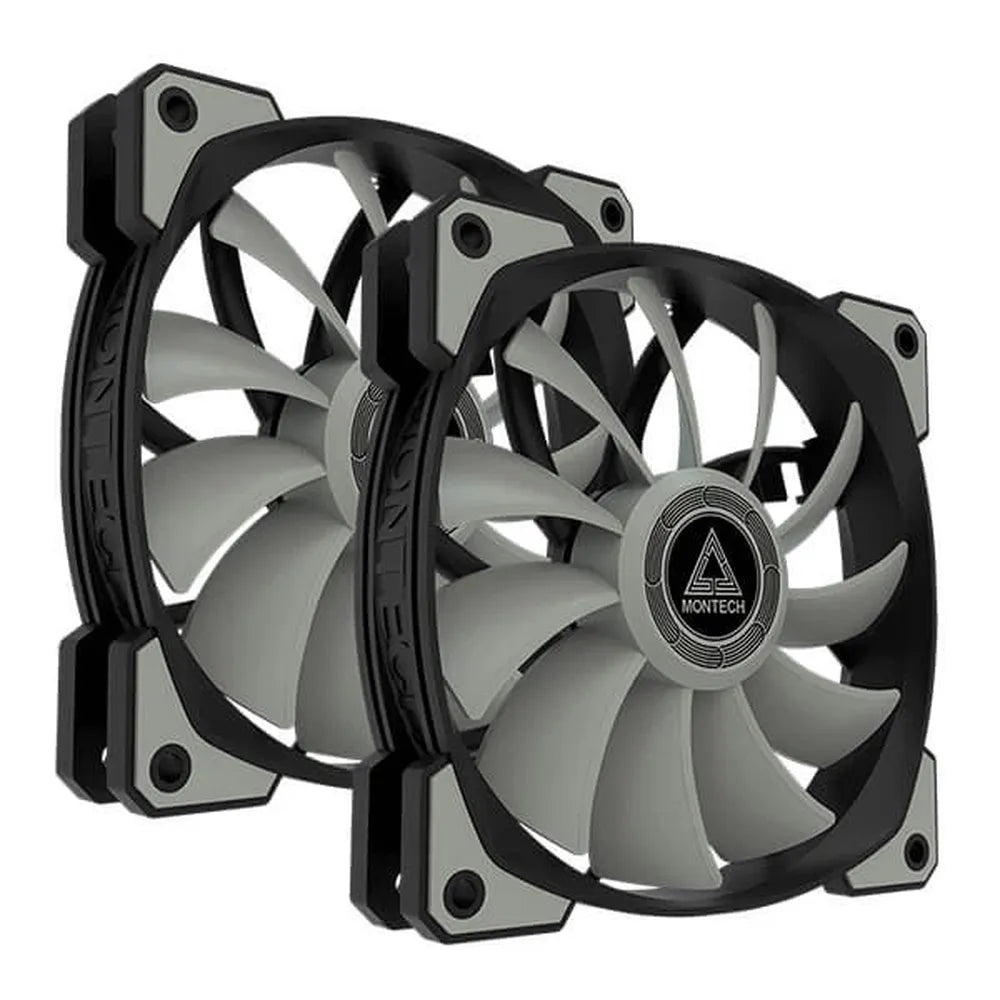

Feature of MONTECH Air Fan P120 120mm Cabinet Fan (Black) (Dual Pack)
- 4Pin PWM Design
- Durable Low Noise FDB Bearing System
- High Cooling Performance Low Noise
- High Performance Fan Blades
- Proprietary Enhanced Fan Frame
- 2 in 1 Solution
Premium Cooling Capability
Unmatched Cost Per Performance
The Air Fan P120 is Montech's definitive cooling solution for those not looking for RGB lighting and all focuses on performance, low noise and quality.
Our proprietary Enhance Fan Frame and High Performance Fan Blade's deliver substantial cooling capability but also limits noise emission to reasonable levels. Together with the highly durable low noise FDB bearing system the Air Fan P120 is a perfect match for liquid cooling, air cooling and case cooling systems.
PWM Smart Temp Control
The MONTECH Air Fan P120 uses smart PWM control, fan speeds will regulate based on system temperature. It Spins faster when heat is higher and lowers RPM under lower loads to effectively and efficiently balance noise and performance only when needed.
High Performance Fan Blades
The Air Fan P120 has taken a large step in fan blade optimization. The outcome is a higher airflow and air pressure blade design.
While at the same time the blades keeps windshear noise controlled and reasonable.
- Max RPM — 1,500 RPM
- Max Airflow — 73 CFM (ft3 /mm)
- Max Noise — 10~27 dBA
Highly Durable FDB Bearing System
With a Fluid Dynamic Bearing (FDB) system, the bearing fluid greatly lowers resistance, vibrations and wear. This greatly increase efficiency, and also makes the fan highly durable to use and wear. Compared to market competitors, the Air Fan P120 can deliver lower noise and cooling performance. Stability at the bearing also means a more durable product without comprise in performance.
Proprietary Enhanced Fan Frame
Montech's Proprietary Enhanced Fan Frame has the benefit of reduced turbulence and lower noise. Effectively improving overall efficiency and performance.
2in1 Solution

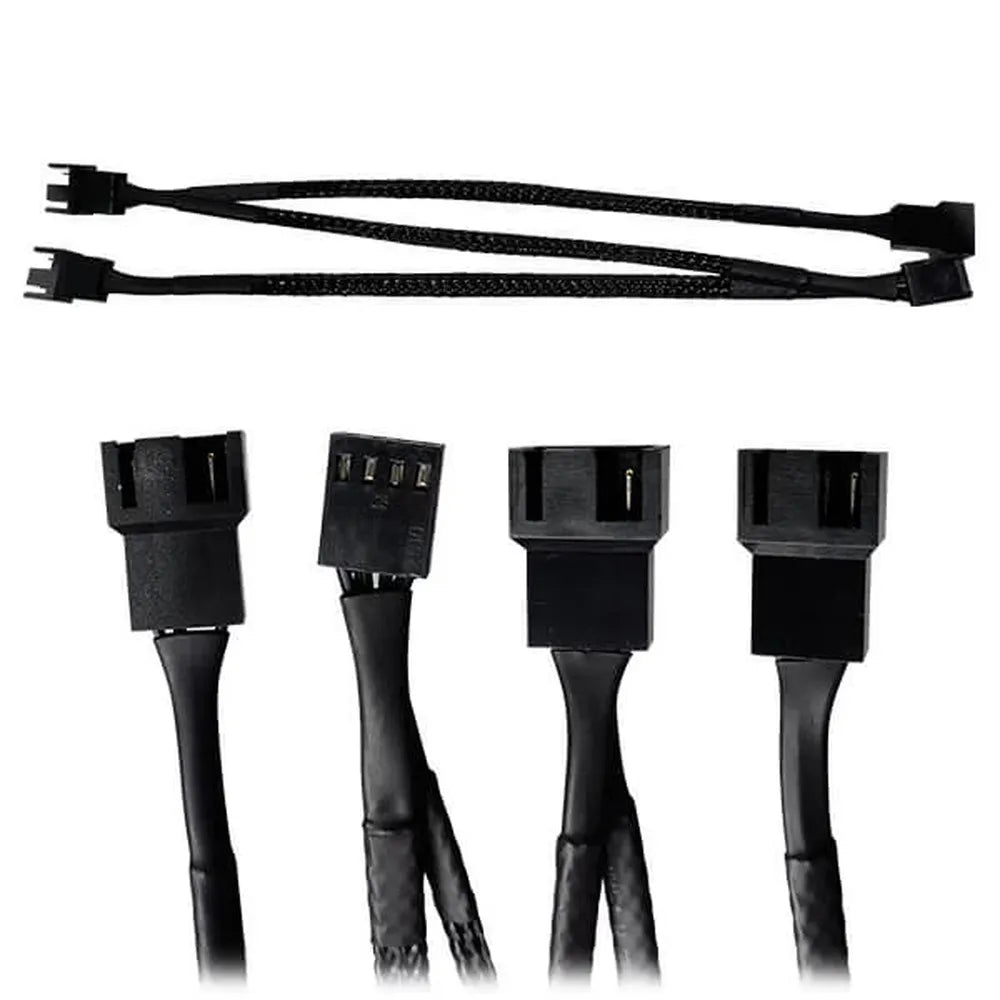

The Air Fan P120 comes as a 2in1 solution. Included in each package is a 1to3 PWM splitter that allows you to plug in to as much as 3 P120's to each 4Pin PWM connector on your mainboard.
Specifications of MONTECH Air Fan P120 120mm Cabinet Fan (Black) (Dual Pack)
| Model | AIR FAN P120 |
| Color | Black |
| Size | 120*120*25mm |
| Speed | 600~1500 RPM ± 10% R.P.M |
| Noise | 10~27 dBA |
| Max. Airflow | 73 CFM(ft3/min) |
| Air Pressure | 1.71 mmH₂O |
| Voltage | DC 12V |
| Rated Voltage | 10.8~13.2V |
| Power Consumption | 1.92W + 10% |
| FAN Connector | 4Pin PWM |
| Content | PWM Fan*2 / 1to3 PWM splitter *1 |
| Warranty | 1 Year |
| Note | ***Features, Price and Specifications are subject to change without notice. |
