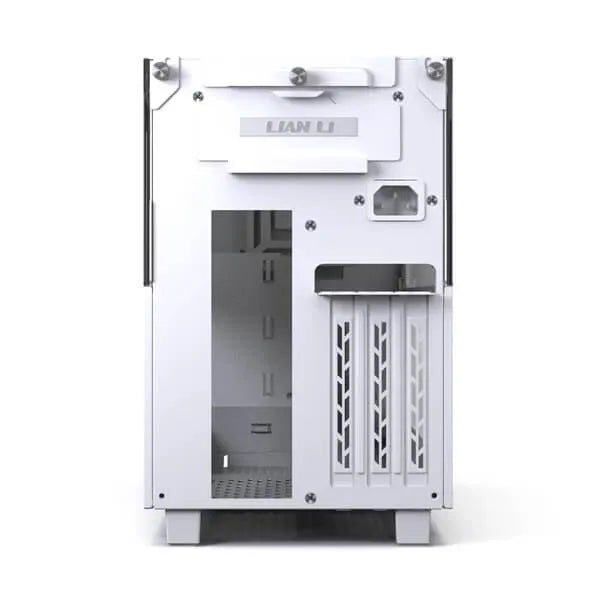

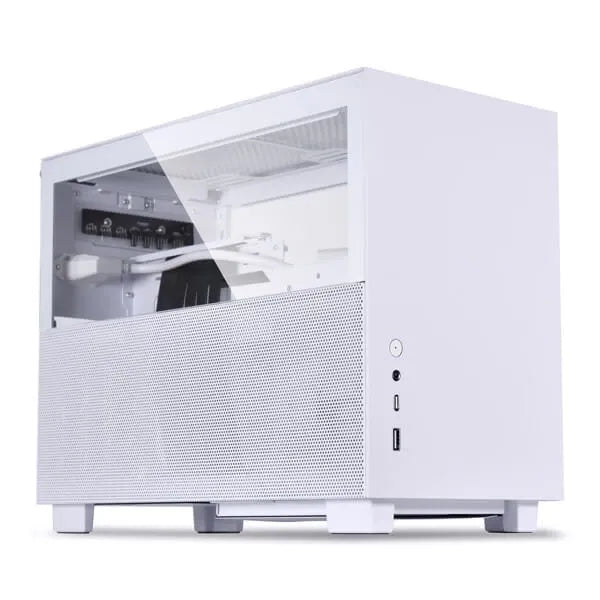

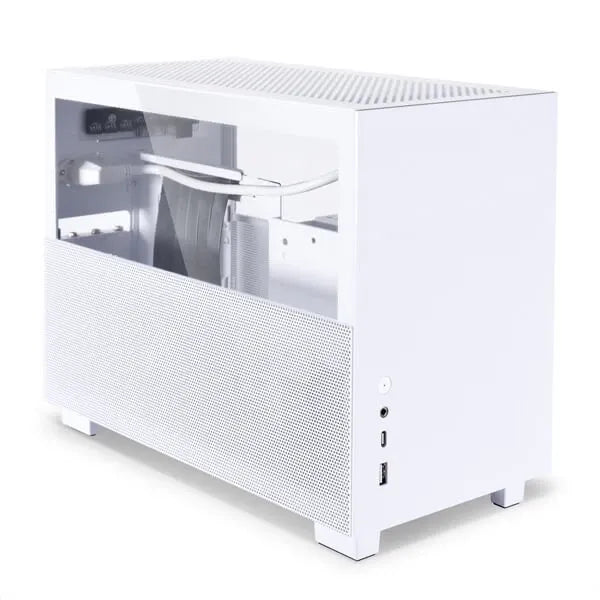

Features of LIAN LI Q58W4 ITX Mini Tower Cabinet With PCIe 4.0 Riser Cable (White)
- Mini-ITX Aluminum Chassis
- Features swappable hinged glass and mesh panels
- Included PCIe 4.0 riser cable for vertically mounted GPU
- Supports SFX PSU and up to 160mm long ATX PSU
- Supports up to 325mm long radiator in certain circumstances
- Supports 4 storage drive mounting locations
- Cable management friendly with tie points and included LED/ fan hub
CRAFTMANSHIP IN WHITE
The mini-ITX chassis of the LIAN LI Q58W4 ITX Cabinet With PCIe 4.0 Riser Cable (White) offers exquisite aluminum craftsmanship guarantees airflow while displaying the components.
SWAPPABLE HINGE PANELS

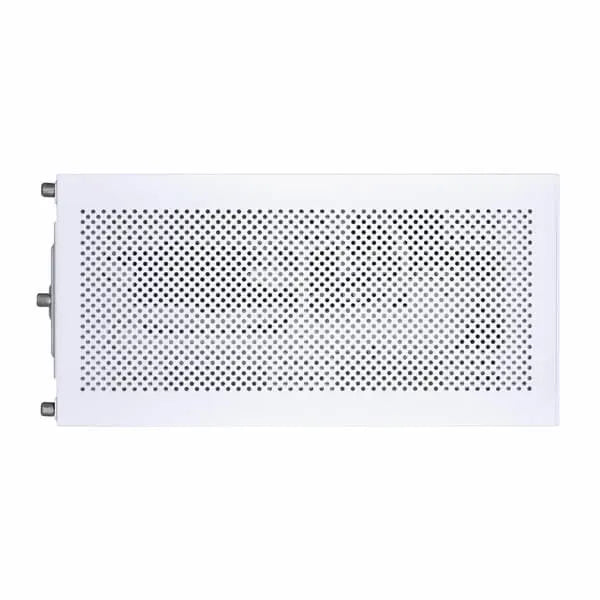

The dual side split hinged panels feature two 3.0mm thick tempered glass panels and two 1.0mm fine mesh panels that are swappable.
The Q58 can accommodate both the airflow and the look of your choice.
MODULAR DESIGN FOR SFX/ATX POWER SUPPLY
Compatible for both SFX and ATX PSU, the Q58 comes with an additional bracket to transform from SFX PSU mode to ATX PSU mode.
DETAILS MAKE PERFECTION
BUILD LIKE A PRO – AVOID GLASS DAMAGES The hinged glass panel features a curve hole at the rear, which allows opening of the panel without removing the thumbscrew, and helps avoid any possible damage caused to the glass by preventing it from leaning on the table.
EFFORTLESS CONNECTION – INCLUDED LED/ FAN HUB
Flip the LIAN LI logo plate at the rear to access the LED/fan hub that supports 3 PWM fan headers and 3 LED headers ( 5V 3 Pin ARGB) without dealing with cable clutter.
ADVANCE KIT – TOOLLESS HOT SWAP SSD TRAY
Exclusively design for the lian li cabinet Q58, a toolless hot swap SSD tray is located at the front top of the case. Simply open the top and front panel to quickly remove or replace the SSD without unplugging any cables.
FLEXIBLE COOLING SUPPORT
In SFX PSU mode, the Q58 has room for a 280mm AIO. Depending on the mounting configuration employed, the actual supported length of the AIO varies.
UNCOMPROMISED STORAGE SPACE
The ingenious use of the room in the Q58 allows for 4 storage drive mounting locations. Drives support includes 4×2.5” SSDs, or 3×2.5” SSDs and 1×3.5” HDD.

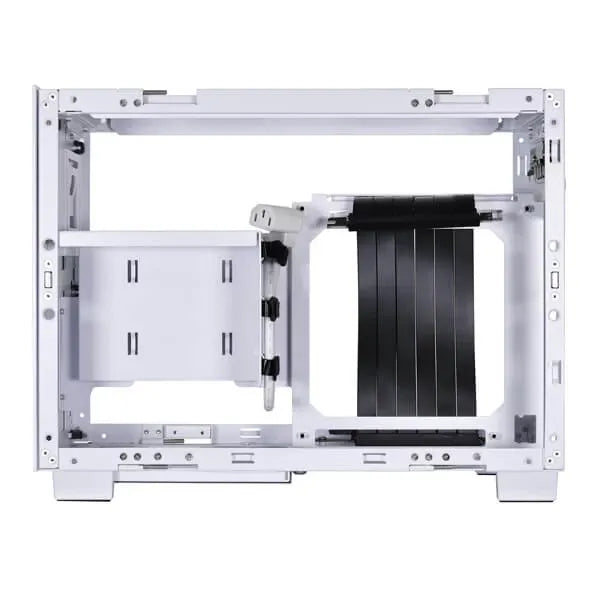

COMPACT YET SPACIOUS GPU SUPPORT WITH RISER CABLE
The Q58 implements a PCIe 3.0 riser cable to vertically mount a GPU up to 3 slots thick and 320mm long.
USB 3.1 TYPE C PORT

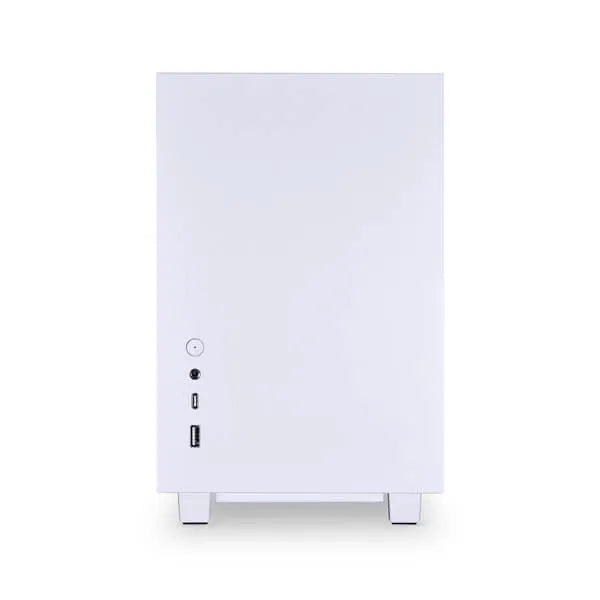

The Q58 I/O ports are located at the front panel and feature a Type C port with efficient transmission speeds.
COMPREHENSIVE CABLE MANAGEMENT
Several Velcro straps and multiple cable tie-down points are provided to tidy up the cables and the bottom fan bracket helps to snuggle the cables into the
Q58. STOP THE DUST

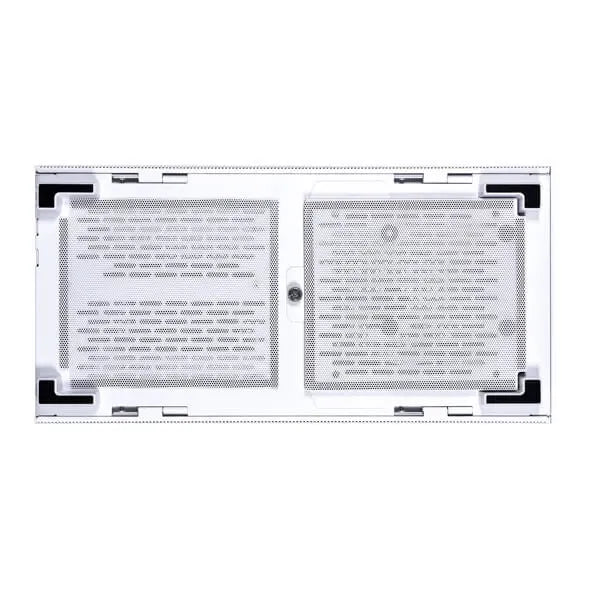

Two magnetic dust filters are attached at the bottom of the chassis and the mesh panel to prevents dust from entering the case.
Best mini pc cabinet at affordable prices at Brain Tech PC!
Specifications of LIAN LI Q58W4 ITX Mini Tower Cabinet With PCIe 4.0 Riser Cable (White)
| DIMENSIONS | (D) 342mm x (W) 170mm x (H) 250mm |
| MATERIALS |
Aluminum Exterior SPCC Steel Interior 3.0mm Black tempered glass side panels |
| MOTHERBOARD SUPPORT | Mini-ITX |
| FAN SUPPORT | Top：2x 120mm or 2x 140mm Bottom：1x 120mm |
| RADIATOR SUPPORT | Top：1x 120 or 240 Bottom：1x 120 |
| PSU SUPPORT | SFX/SFX-L/ATX |
| GPU LENGTH CLEARANCE | Max 320mm |
| CPU COOLER CLEARANCE | Max 70mm |
| DRIVE | 2x 2.5” HDD or 1x 2.5” SSD and 1x 3.5” HDD |
| EXPANSION SLOT | 3 |
| I/O PORTS | 1x USB 3.0, 1x USB 3.1 TYPE-C, 1x HD AUDIO |
| WARRANTY | 1 year |
| Note |
***Features, Price and specifications are subject to change without notice.
|
