Description
Features of LIAN LI ARGB Device Cable Kit

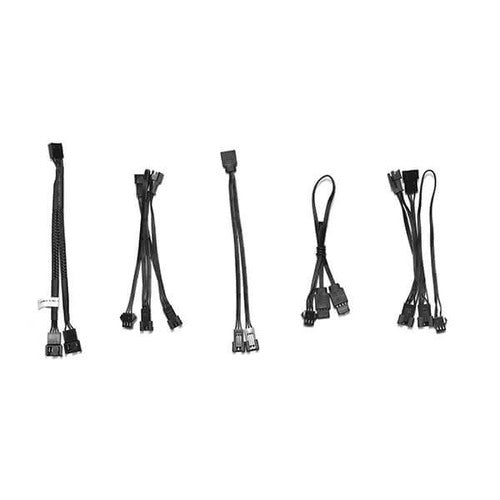

The LIAN LI ARGB Device Cable Kit lets you take control of more LIAN LI ARGB products either via the Uni Hub or via synchronization with the motherboard. With 5 types of cables, 2 of each, the ARGB Device Cable Kit is the solution to connect all the devices required for an outstanding build.
SUPPORTS
Strimer/ Strimer Plus/ Galahad AIO/ ST120/ Bora Digital/ LANCOOL II Side Diffused LED Strip/ O11D XL light bar/ DK-04F&05F light bar

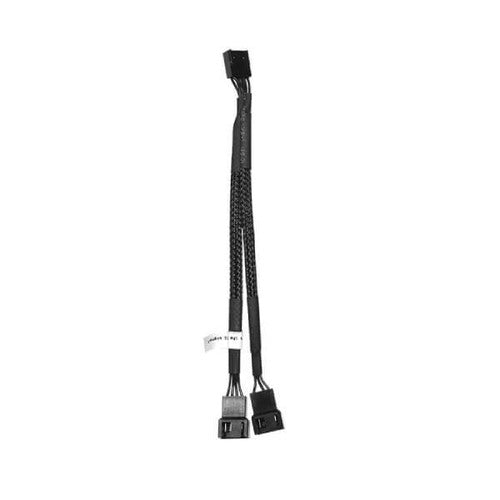

FAN Y CABLE
ONE PWM HEADER TO CONTROL MULTIPLE FAN SPEED
PWM header splitter
Daisy chainable
Black sleeved cable
The Fan Cable supports tow PWM fan to be controlled from one PWM header on the motherboard. Moreover, tow cables can be daisy-chained to connect up to 3 ST120 or Bora Digital fans on a single motherboard FAN header.
Please make sure to set the motherboard header to PWM mode in the BIOS.

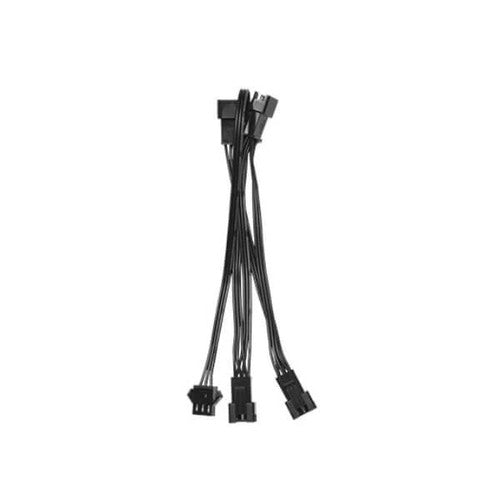

MOTHERBOARD ADAPTOR Y-TYPE CABLE
ONE PWM HEADER TO CONTROL MULTIPLE FAN SPEED
ARGB header for light effect synchronization
Compatible with motherboard supporting ARGB
Control the FAN lighting modes via the motherboard
The Motherboard Adaptor Y-Type Cable is for users wanting to connect the UNI FANs directly to the motherboard, bypassing the UNI HUB.
The cable is compatible with ASUS, MSI, GIGABYTE, and ASROCK addressable RGB motherboard.

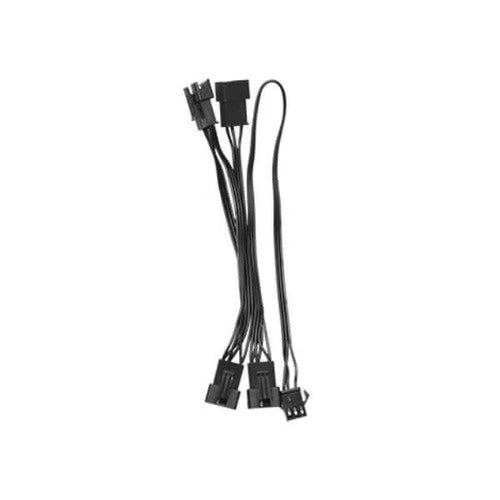

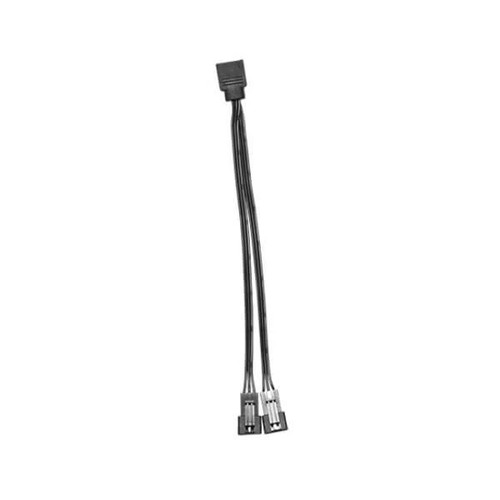

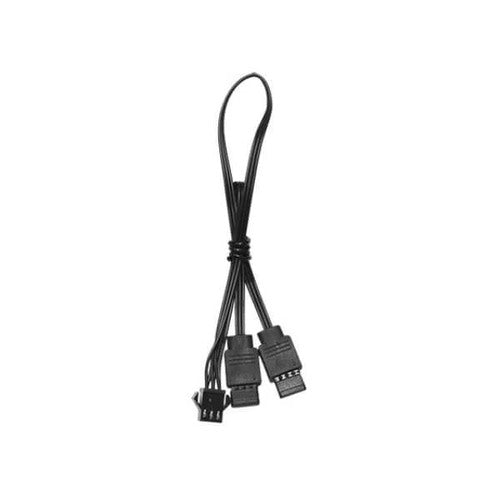

Y-TYPE 3P SIGNAL CABLE LIGHT BAR
EXTENSION CABLE(3P) FAN LED
EXTENSION CABLE(4P)
ARGB header for light effect synchronization
Compatible with all motherboard supporting ARGB
Control the UNI FAN lighting modes via the motherboard
Those three cables are extension ARGB cables to connect to the UNI HUB. Each cable supports different products, depending on which connector fits. Cables could also connect to motherboard directly through Motherboard Adaptor Y-Type Cable.
NOTE: Every single group of UNI HUB supports up to 10W and the number of LEDs cannot exceed 100 pcs. Please find bellow a chart which references how many LEDs each product has.
Please note that it is not recommended to operate all LEDs in white color.
Please be aware, when connecting the Strimer Plus controller to the UNI HUB via a Y-Type 3P signal cable, do not connect other devices to the other pin to avoid in sufficient power.
Note: It may cause Strimer Plus 8/24/TRIPLE 8 PINS LEDs glimmer due to insufficient signal from motherboard when trying to synchronize with the motherboard, during this specific connection.
If user would like to synchronize the Strimer Plus 8/24/TRIPLE 8 PINS LEDs with the motherboard, recommend to connect Strimer Plus controller 5v header directly to the motherboard.
Specifications of LIAN LI ARGB Device Cable Kit
| MODEL | UF-EX ARGB Device Cable Kits | ||||
| CABLE NAME | Fan Y Cable | Motherboard Adaptor Y-Type Cable | Y-Type 3P Signal Cable | Lightbar Extension Cable (3P) | Fan LED Extension Cable (4P) |
| QUANTITY | 2 | 2 | 2 | 2 | 2 |
| CABLE LENGTH | 150mm | 150mm | 250mm / 150mm | 250mm-100-100-100mm | 250mm-100-100-100 mm |
| CONNECTOR |
1×4 pin (male) 1×3 pin (male) |
2×3pin (male) | 2×3pin(ARGB Header) | 4×3 pin (male) | 4×4pin (male) |
| PLUG | 4 pin (female) | 4 pin (female) | 3 pin (female) | 3 pin (female) | 3 pin (female) |
| RATE VOLTAGE | 12v | 5v | 5v | 5v | 5v |
| WARRANTY | 1 year | ||||
| Note | Features, Price, Specifications are subject to change without notice. | ||||
