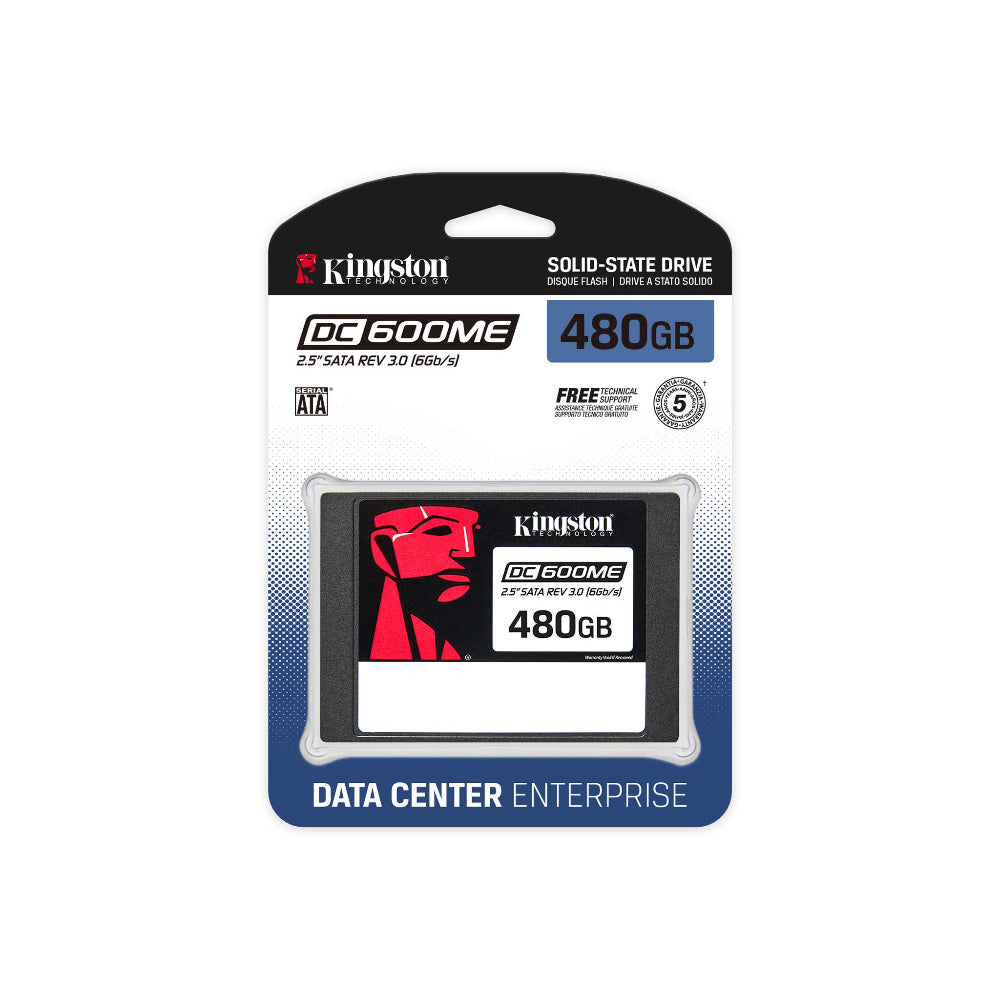

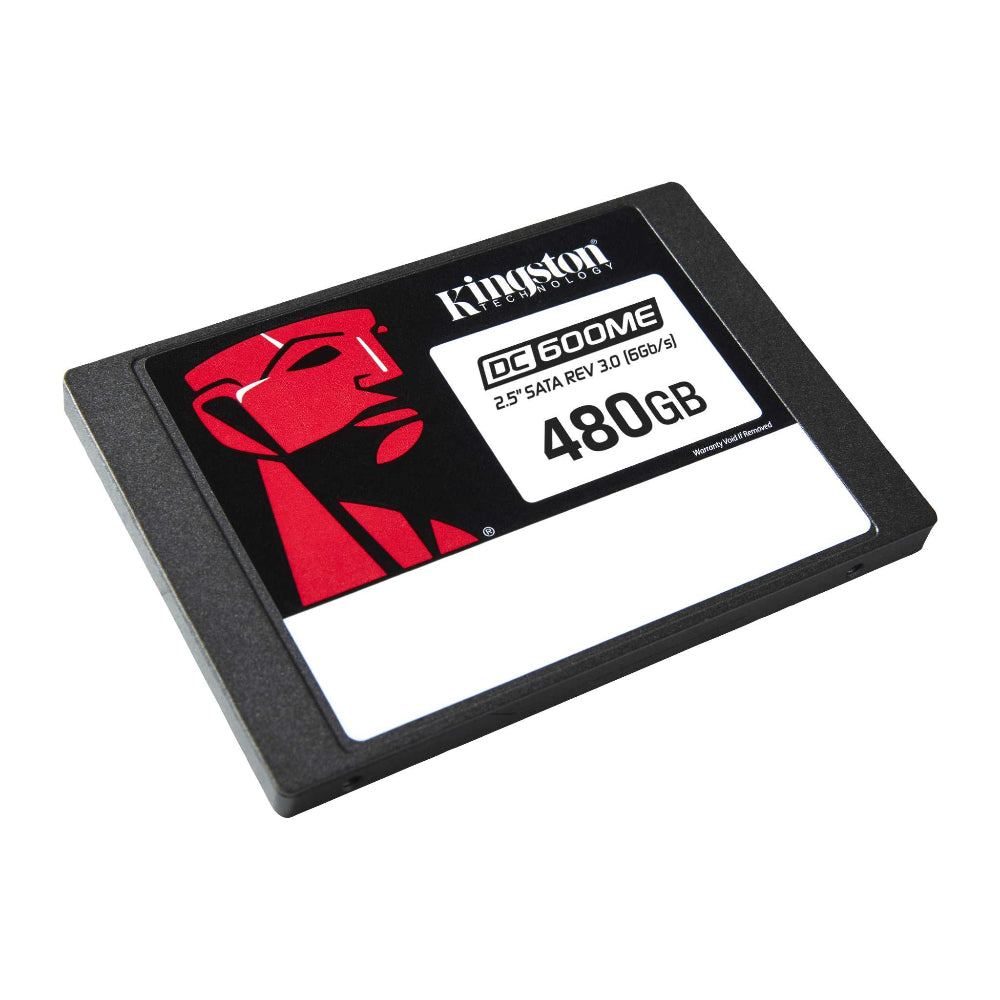

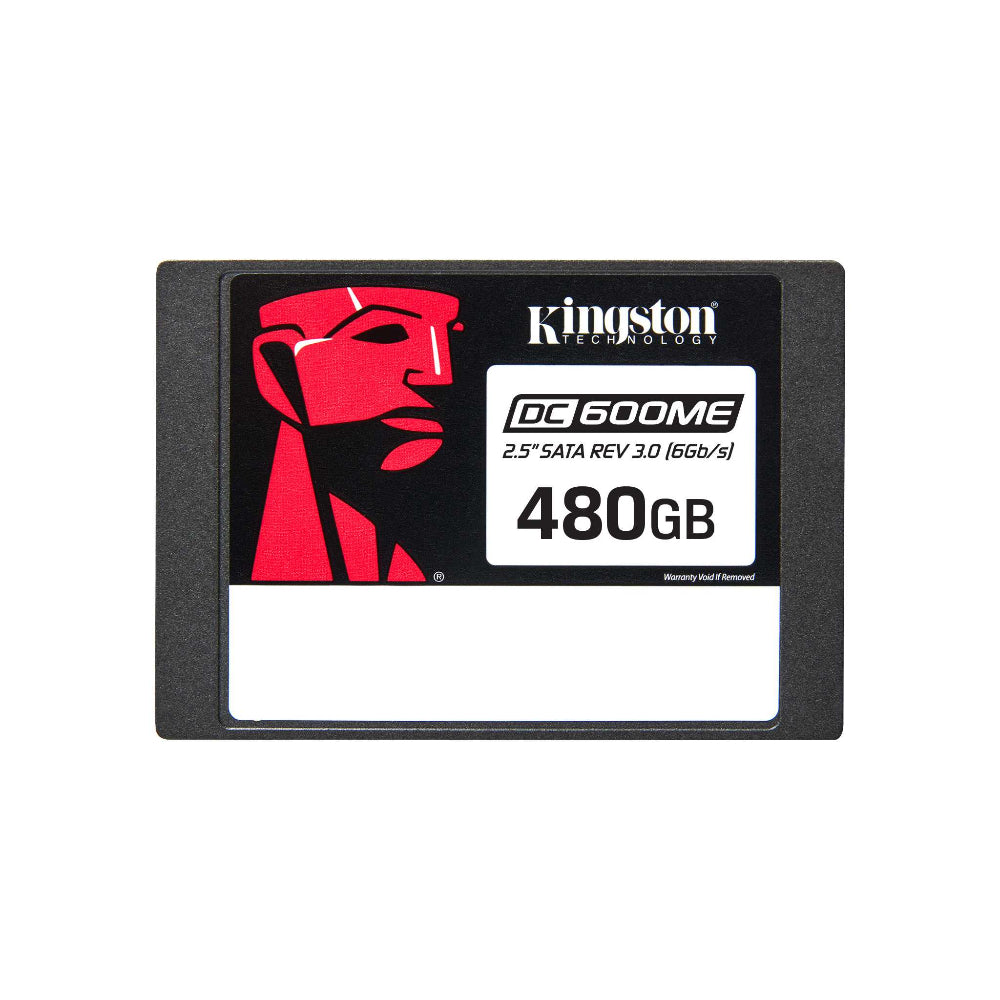

Features of KINGSTON DC600M 480GB 2.5 SATA3 Internal Solid State Drive ( SSD )
Kingston’s DC600M SSD Series provides high-performance storage solutions for data centers, system integrators and more. Delivering consistent latency and reliability, the drives were designed for mixed-use workloads, featuring 3D TLC NAND, hardware-based power loss protection and capacities of up to 7.68TB, making them ideal for enterprise applications. For additional security, DC600ME is available with AES 256-bit encryption and supports TCG OPAL 2.0 security standards.
Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.
DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards.
Capacities available from 480GB–7.68TB1 to meet your data storage requirements.
Specifications of KINGSTON DC600M 480GB 2.5 SATA3 Internal Solid State Drive ( SSD )
| Model | SEDC600M-480G |
| Form factor | 2.5 inch |
| Interface | SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
| Capacities1 | 480GB |
| NAND | 3D TLC |
| DRAM Cache | Yes |
| Sequential read/write | 480GB – 560MBs/470MBs |
| Steady-state 4k random read/write | 480GB – 94,000/41,000 IOPS |
| Quality of service (latency)2,3,4(99.999) | Read/Write 480GB – 180/110 uSec |
| Typical latency - read/write | <200 µs / <30 us2,3,4 |
| Hot-plug capable | Static and dynamic wear levelling |
| Enterprise SMART tools | Reliability tracking, usage statistics, life remaining, wear levelling, temperature |
| Hardware-based power loss protection | Yes |
| Endurance (TBW) 5 | 480GB – 876TBW, 1 DWPD (5 years), 1.66 DWPD (3 years) |
| Power consumption | Idle: 1.30W Average: 1.45W Max read: 1.6W Max write: 3.6W |
| Storage temperature | -40℃ ~ 85℃ |
| Operating temperature | 0℃ ~ 70℃ |
| Dimensions | 69.9mm x 100mm x 7mm |
| Weight | 92.34g |
| Vibration operating | 2.17G Peak (7–800Hz) |
| Vibration non-operating | 20G peak (10–2000Hz) |
| MTBF | 2 million hours |
| UBER | ≤10 -17 |
| Warranty/support | Limited 5-year warranty with free technical support6 |
