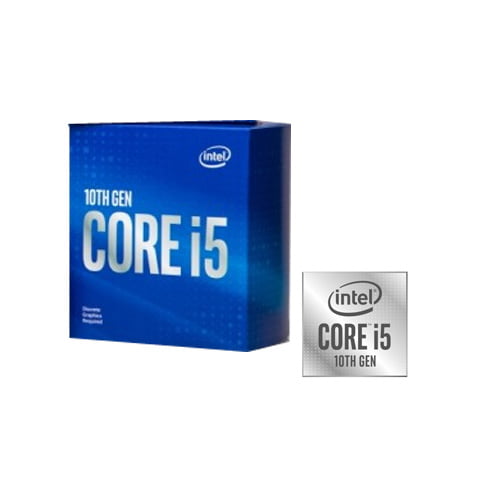

Features of INTEL Core i5 10600K 10th Generation Processor
The Intel i5 -10600K is a 10th generation processor from the Intel Core i5 series, which comes with six CPU cores and twelve processing threads. The processor can easily handle all your works and is capable enough to deliver 100+ FPS in the world's most popular games along with video editing works without any issues.
It has a base clock speed of 4.1 GHz and the six CPU cores can achieve up to 4.8 GHz of turbo boost frequency. Apart from this, the processor is unlocked for overclocking and it also comes with a 12 MB of L3 cache memory, dual-channel DDR4-2666 architecture, and Intel UHD Graphics 630
With a TDP of 125 W, the Core i5 10th Generation 10600K consumes a lot of power, so good cooling is definitely needed. Intel's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 2666 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the machine, Core i5-10600K uses a PCI-Express Gen 3 connection. This processor features the UHD Graphics 630 integrated graphics solution.
Hardware virtualization is available on the Core i5-10600K, which greatly improves virtual machine performance. Additionally, IOMMU virtualization (PCI passthrough) is supported, so that guest virtual machines may directly use host hardware. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, Intel is including the newer AVX2 standard, too, but not AVX-512.
- Series - Core i5 (10th Gen)
- CORES - 6 Cores
- THREADS - 12 Threads
- SPEED - 4.1 GHz
- SPEED (TURBO) - 4.8 GHz
- CACHE - 12 MB
- MAX MEMORY SUPPORT - 128 GB
- INTEGRATED GRAPHICS - Intel UHD Graphics 630
- INCLUDED CPU COOLER - No
- UNLOCKED - Yes
- TDP - 125W
- WARRANTY - 3 Years
Specifications of INTEL Core i5 10600K 10th Generation Processor
| Product Collection | 10th Generation Intel® Core™ i5 Processors |
| Code Name | Products formerly Comet Lake |
| Vertical Segment | Desktop |
| Processor Number | i5-10600K |
| Launch Date | Q2'20 |
| Use Conditions | PC/Client/Tablet |
| Lithography | 14 nm |
| Cores | 6 |
| Threads | 12 |
| Processor Base Frequency | 4.10 GHz |
| Max Turbo Frequency | 4.80 GHz |
| Cache | 12 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 125 W |
| Intel® Turbo Boost Technology 2.0 Frequency | 4.80 GHz |
| Configurable TDP-down Frequency | 3.80 GHz |
| Configurable TDP-down | 95 W |
| Embedded Options Available | No |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-2666 |
| Max Memory Channels | 2 |
| Max Memory Bandwidth | 41.6 GB/s |
| ECC Memory Supported | No |
| Processor Graphics | Intel® UHD Graphics 630 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.20 GHz |
| Graphics Video Max Memory | 64 GB |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI 1.4) | 4096 x 2160@30Hz |
| Max Resolution (DP) | 4096 x 2304@60Hz |
| Max Resolution (eDP - Integrated Flat Panel) | 4096 x 2304@60Hz |
| DirectX Support | 12 |
| OpenGL Support | 4.5 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| Displays Supported | 3 |
| Device ID | 0x9BC5 |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations | Up to 1x16, 2x8, 1x8+2x4 |
| Max PCI Express Lanes | 16 |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Max Technology 3.0 | No |
| Intel® Turbo Boost Technology | 2 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Stable Image Platform Program (SIPP) | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® ME |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
| Sockets Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2015D |
| TJUNCTION | 100°C |
| Package Size | 37.5mm x 37.5mm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
