Description
Features of GIGABYTE Z890 Eagle Wifi DDR5 Intel Motherboard
- GIGABYTE Z890 Eagle Wifi DDR5 Intel Motherboard Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 14+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Con
- trol, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 7
- Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Infinite Memory Performance
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
AORUS AI SNATCH
Automatic overclocking software by AI models.
AI Perfdrive
Provides optimal and customized BIOS preset profile for user.
Premium Compatibility
Four DDR5 slots with XMP memory module support.
WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus
PCIe and M.2 slots with quick release and screwless design.
EZ-Latch Click
M.2 heat sinks with screwless design.
Sensor Panel Link
Onboard video port for hassle-free in-chassis panel setup.
Friendly UI
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Power Monitor
New Power Monitor in HWinfo for real time monitoring on CPU power phases.
Fast Storage
Four M.2 slots, including one PCIe 5.0 x4 slot.
Efficient Thermals
VRM Thermal Armor Advanced and M.2 Thermal Guard L.
Fast Networking
2.5GbE LAN & Wi-Fi 7 (802.11be) with directional ultra-high gain antenna.
Extended Connectivity
USB4 with DisplayPort support via USB-C.
PCIe UD Slot X
PCIe 5.0 x16 slot with 10x greater strength for graphics cards.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Specifications of GIGABYTE Z890 Eagle Wifi DDR5 Intel Motherboard
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

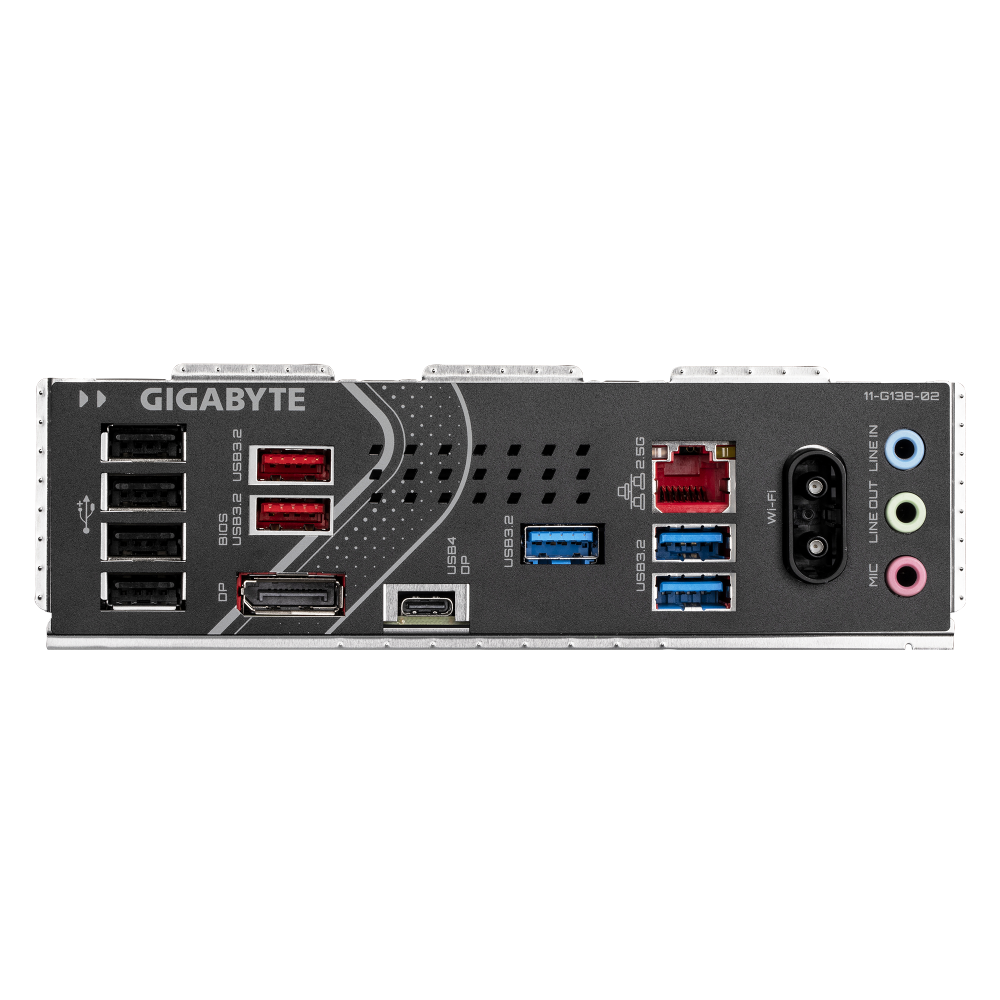

| Back Panel Connectors | 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
