Description

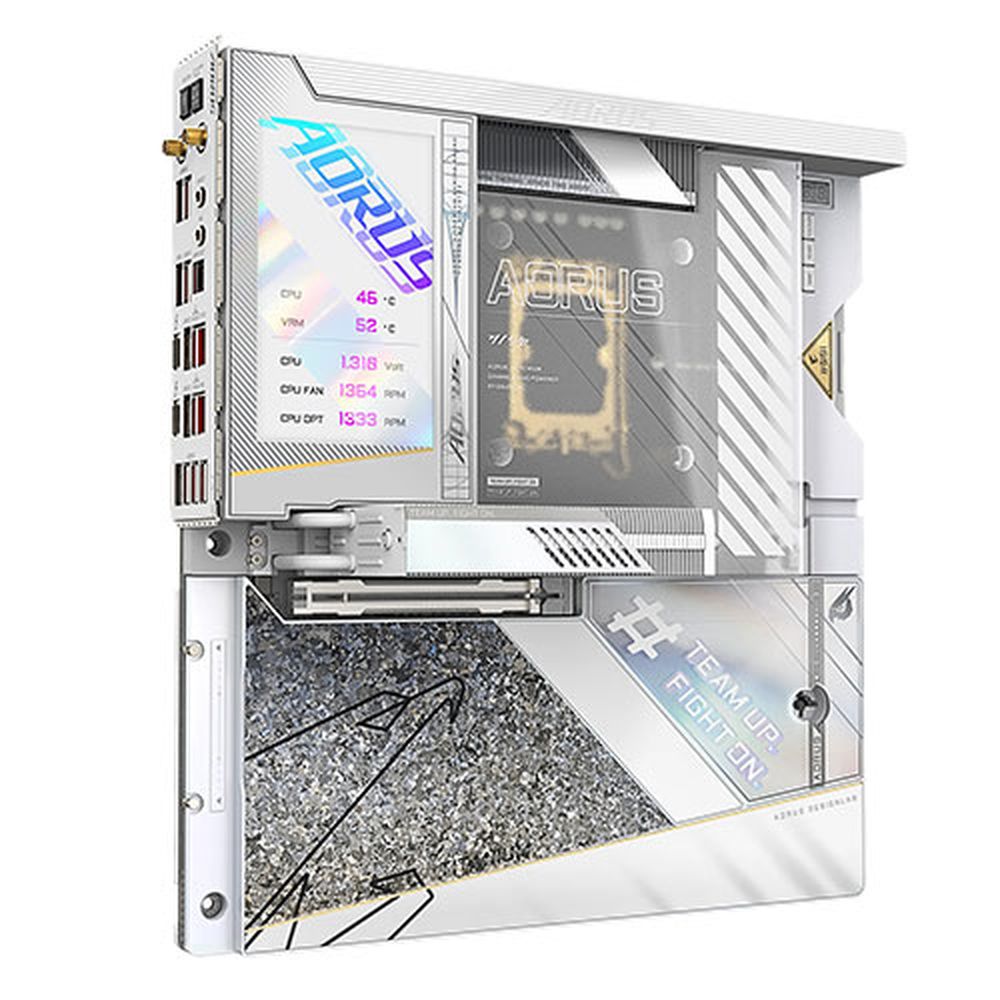

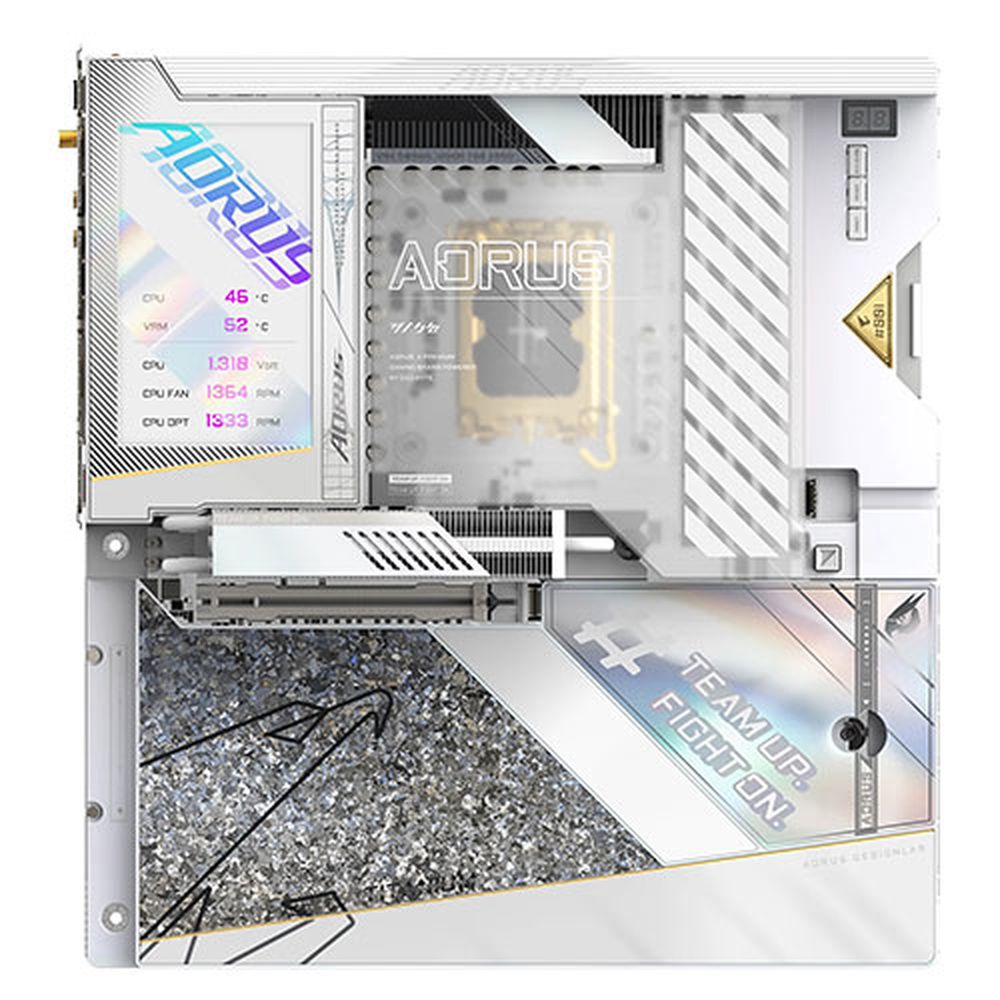

Feature of GIGABYTE Z790 AORUS XTREME X ICE DDR5
Finely Crafted, Beauty Beyond Measure
Anchored in white aesthetics, blended with unique titanium crystallization and iridescent designs, each piece bears a distinctive 99% golden serial number—a symbol of prestige and a tribute to the pinnacle of craftsmanship and aesthetic pursuit.
Forged rare titanium metal blossoms into luxurious titanium crystallization
The surface is massively covered with titanium, the rare and precious high-strength space metal.Through refined craftsmanship, titanium metal is forged to blossom into dazzling and unique titanium crystallization, creating your exclusive luxury.
99% Gold Limited Edition Exclusive Serial Plaque
Produced in a limited quantity worldwide, each product is engraved with a unique 99% golden serial number, further highlighting its uniqueness.
Mist Aesthetics
In the interplay of light and shadow, experience the extraordinary artistic breath that the semi-transparent matte decorative panel brings to the living space.
Xceed in DDR5 performance
GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every Z790 AORUS XTREME X ICE motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.
Xtraordinary power delivery
The Z790 AORUS XTREME X ICE motherboard is equipped with an all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.
Xpect everything UD
GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. The Z790 AORUS XTREME X ICE motherboard is built to last longer and stand stronger.
Xtensively versatile
The Z790 AORUS XTREME X ICE motherboard offers a wide range of versatilities from cutting-edge Wi-Fi 7 support with a redesigned antenna to an array of USB ports.
Specifications of GIGABYTE Z790 AORUS XTREME X ICE DDR5
| Model | |
| Brand | GIGABYTE |
| Model | Z790 AORUS XTREME X ICE |
| Supported CPU | |
| CPU Socket Type | LGA1700 |
| CPU Type | 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Chipsets | |
| Chipset | Intel Z790 Express Chipset |
| Memory | |
| Number of Memory Slots | 4x DDR5 |
| Memory Standard | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O. |
| Maximum Memory Supported | up to 192 GB |
| Channel Supported | Dual channel memory architecture |
| Expansion Slots | |
| PCI Express x16 | 1.x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) , 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Storage Devices | |
| SATA 3Gb/s | 4 x SATA 6Gb/s connectors |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Onboard Video | |
| Onboard Video Chipset | Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller |
| Onboard Audio | |
| Audio Channels | ESS ES9280AC DAC chip + 2 ESS ES9080 chips |
| Audio Chipset | High Definition Audio |
| Onboard LAN | |
| LAN Chipset | Marvell® AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) |
| Second LAN Chipset | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

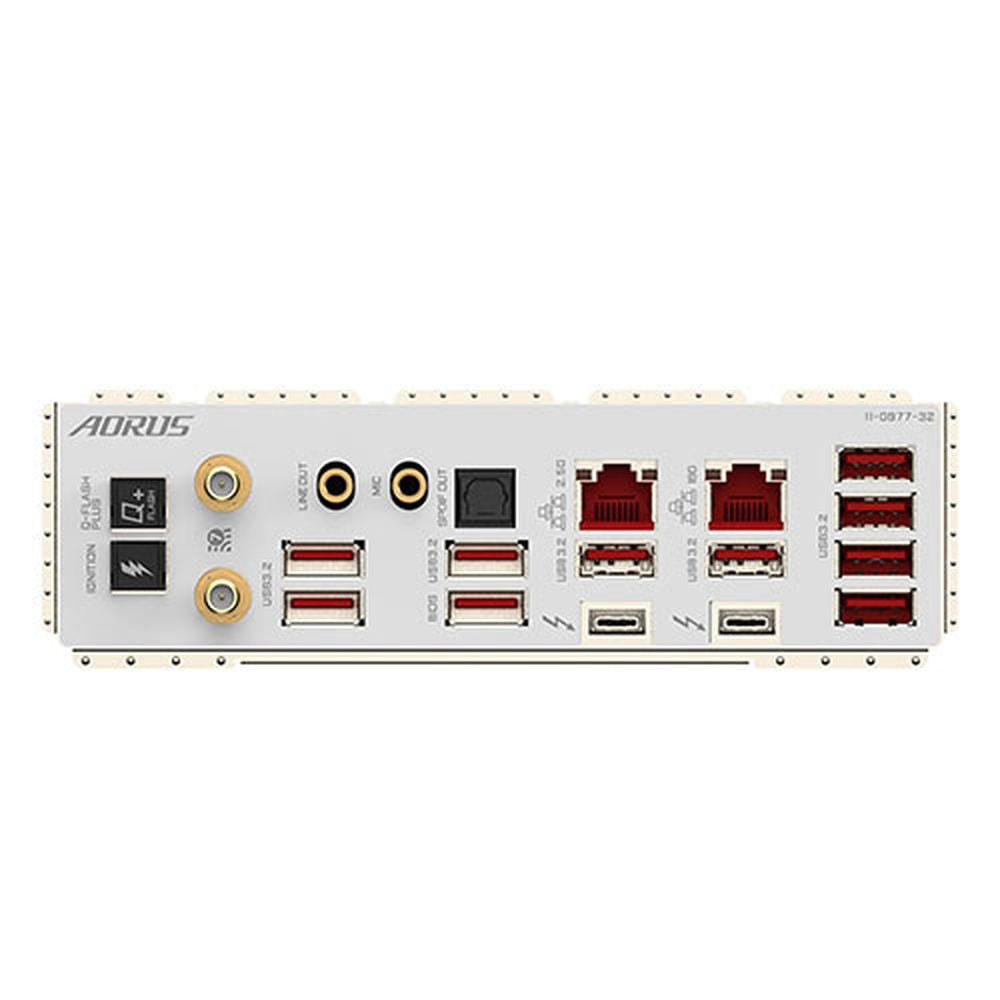

| Rear Panel Ports | |
| USB | 10 x USB 3.2 Gen 2 Type-A ports (red) |
| S/PDIF Out | 1 x optical S/PDIF Out connector |
| Audio Ports | 2 x audio jacks, The mic in jack supports only mono microphone input |
| Video Ports | 2 x Thunderbolt™ 4 connectors (USB Type-C® ports, with USB 3.2 Gen 2 support) |
| Onboard USB | |
| Onboard USB | N/A |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | EATX Form Factor |
| Dimensions | 30.5cm x 28.5cm |
