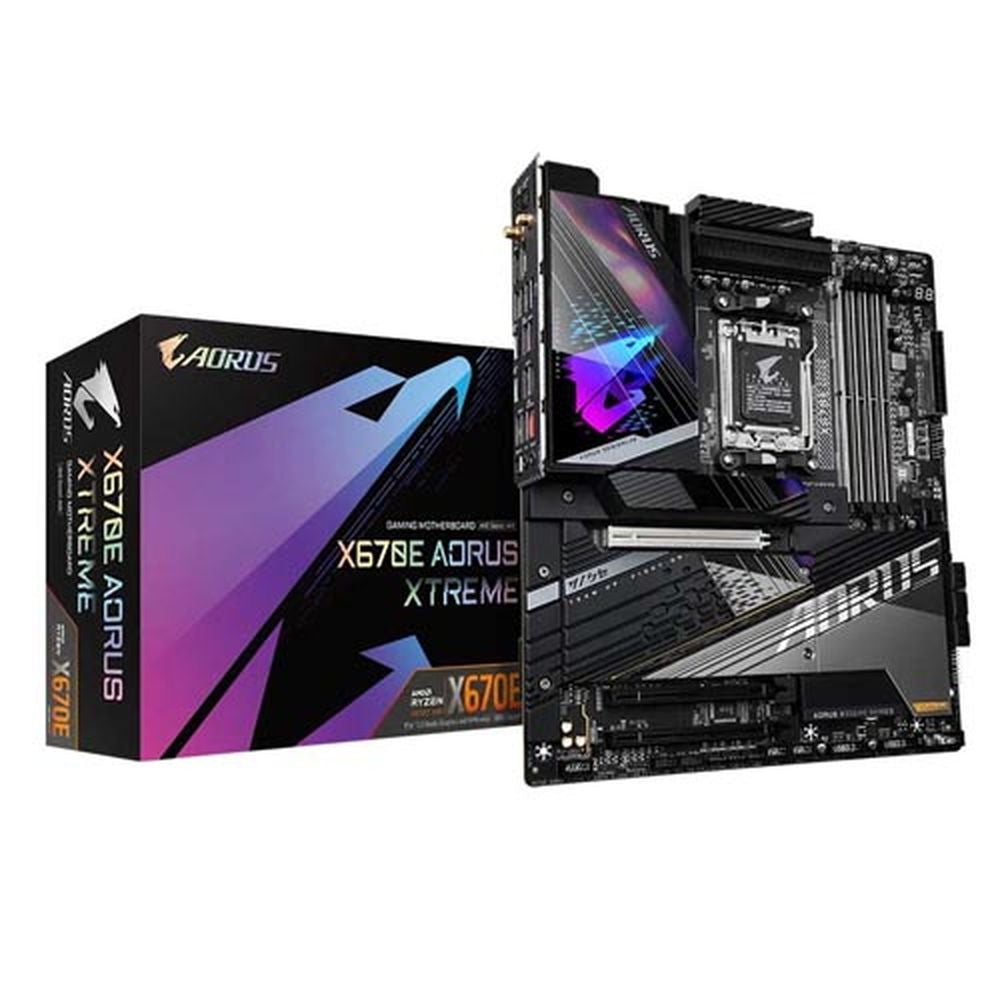

Features of GIGABYTE X670E Aorus Xtreme DDR5 AMD Motherboard
- AMD Socket AM5 : Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance : Direct 18 2 2 Phases Digital VRM Solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support with GIGABYTE X670E Aorus Xtreme
- Next Generation Storage : 4*PCIe 5.0 x4 M.2 Connectors
- Fins-Array III & M.2 Thermal Guard III : To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch Plus : SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Hi-Fi Audio with DTS : X® Ultra : ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC with Front ESSential USB DAC Bundled
- Fast Networks : Marvell® AQtion 10GbE LAN & Intel® Wi-Fi 6E 802.11ax
- Extended Connectivity : DP, HDMI, USB-C® 10Gbps, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications of GIGABYTE X670E Aorus Xtreme DDR5 AMD Motherboard
| CPU | AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD X670 |
| Memory | Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules |
| 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz | |
| * Support for DisplayPort 1.4 version and HDR. | |
| Audio | Realtek® ALC1220-VB CODEC |
| * The front panel line out jack supports DSD audio. | |
| ESS ES9118 DAC chip | |
| Support for DTS:X® Ultra | |
| High Definition Audio | |
| 2/4/5.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Marvell® AQtion AQC113C 10GbE LAN chip |
| Wireless Communication Module | Intel® Wi-Fi 6E AX210 |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.3 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| (Actual data rate may vary depending on environment and equipment.) | |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) | |
| * Actual support may vary by CPU. | |
| * The M2B_CPU and M2C_CPU slots share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU slot is populated, the PCIEX16 slot operates at up to x8 mode. | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) | |
| Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) | |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) | |
| * Actual support may vary by CPU. | |
| 3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support (M2B_CPU/M2C_CPU/M2D_CPU) | |
| * Actual support may vary by CPU. | |
| Chipset: | |
| 6 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| CPU USB 2.0 Hub: | |
| 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset: | |
| 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) | |
| 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| 4 x USB 3.2 Gen 1 ports available through the internal USB headers | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x water cooling CPU fan header | |
| 4 x system fan headers | |
| 4 x system fan/water cooling pump headers | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 1 x CPU cooler LED strip/RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 6 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support | |
| 2 x USB 3.2 Gen 1 headers | |
| 2 x USB 2.0/1.1 headers | |
| 1 x noise detection header | |
| 1 x THB_U4 add-in card connector | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x power button | |
| 1 x reset button | |
| 2 x temperature sensor headers | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Voltage Measurement Points | |
| Back Panel Connectors | 1 x Q-Flash Plus button |
| 1 x Clear CMOS button | |
| 2 x SMA antenna connectors (2T2R) | |
| 1 x DisplayPort | |
| 1 x HDMI 2.0 port | |
| 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support | |
| 1 x USB Type-C® port, with USB 3.2 Gen 2 support | |
| 6 x USB 3.2 Gen 2 Type-A ports (red) | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| Noise detection | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
| Bundled Software | Norton® Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | E-ATX Form Factor; 30.5cm x 26.9cm |
| Warranty | 3 Years |
