Description

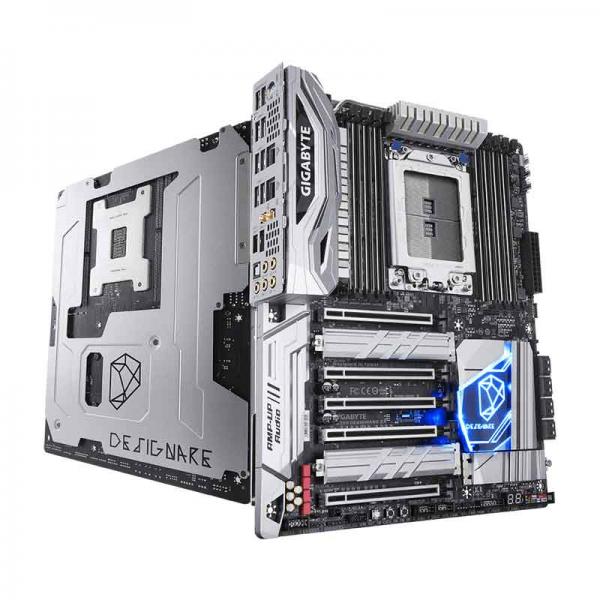

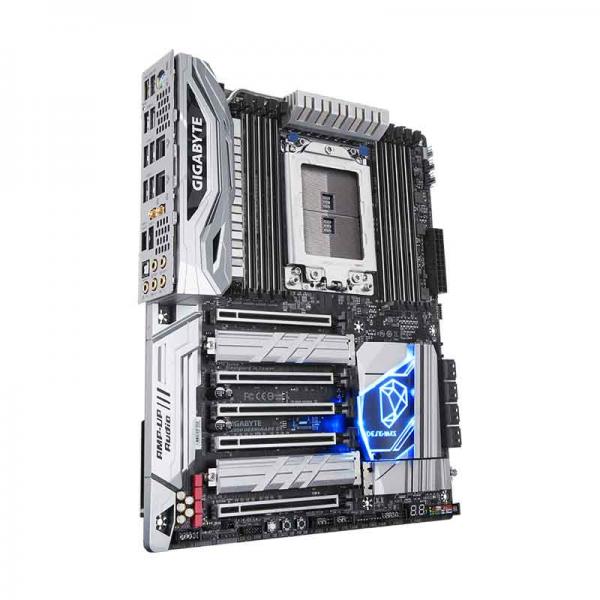

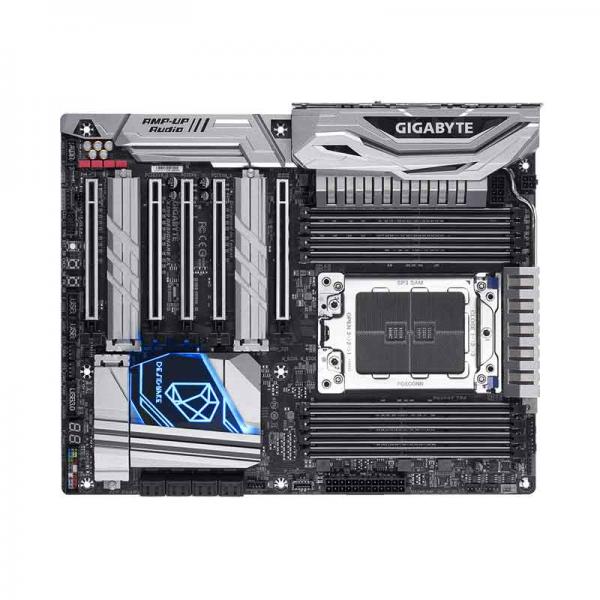

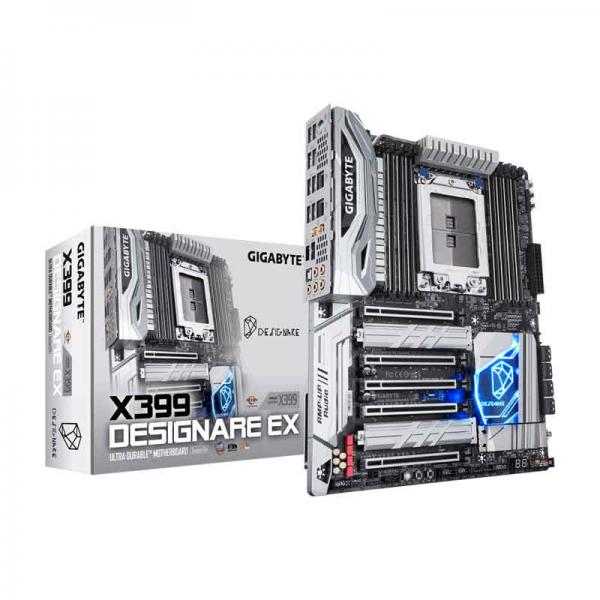

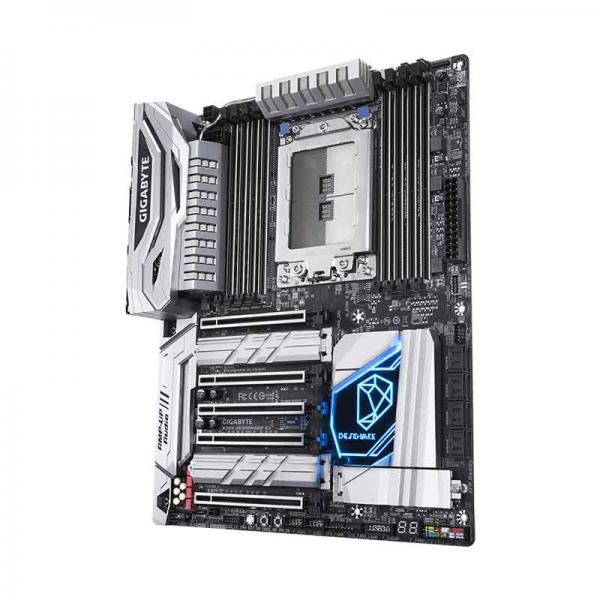

Feature of Gigabyte X399 Designare EX WiFi DDR4
- Supports AMD Ryzen™ Threadripper™ Processors
- Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs, 3600MHz (OC)
- Fast Front and Rear USB 3.1 Type-C™ Interface
- 4-Way Graphics Support with Dual Armor and Ultra Durable™ Design
- Server-Class Digital Power Design & Gold Plated Solid Power Connectors
- Dual Intel GbE LAN with cFosSpeed Internet Accelerator Software
- ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
- Sound BlasterX 720°, the Top-of-the-line Audio Engine Solution for 4K Gaming and Entertainment
- Intel® Dual Band 802.11ac Bluetooth 4.2 – AC 8265 WiFi Module
- RGB FUSION with Multi-Zone LED Light Show design, support Digital LED & RGB LED strips
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface and Thermal Guard
- USB DAC-UP 2 with Adjustable Voltage
- Precise Digital USB Fuse Design for Stronger Protection
- Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
- Base Plated & I/O Shield Armor
- APP Center Including EasyTune™ and Cloud Station™ Utilities
4-Way Graphics with Premium 48 PCIe Lanes Bandwidth
Specifications of Gigabyte X399 Designare EX WiFi DDR4
| CPU |
SocketTR4: AMD Ryzen™ Threadripper™ processor |
| Chipset | AMD X399 |
| Memory |
8 x DDR4 DIMM sockets supporting up to 128 GB of system memory Quad channel memory architecture Support for DDR4 3600 *(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933(O.C.)/ 2667/ 2400/ 2133 MHz memory modules* Recommend to use a 1st Gen. Ryzen™ Threadripper™ processor to achieve 3600MHz (O.C.) speed. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Audio |
Realtek® ALC1220 codec Support for Sound BlasterX 720° High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | 2 x Intel® GbE LAN chips (10/100/1000 Mbit) |
| Wireless Communication module |
Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1 EDR Support for 11ac wireless standard and up to 867 Mbps data rate* Actual data rate may vary depending on environment and equipment. |
| Expansion Slots |
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4)(The PCIEX4 slot conforms to PCI Express 2.0 standard.) |
| Storage Interface |
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)(M2Q_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| Multi-Graphics Technology |
Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies |
| USB |
CPU: 8 x USB 3.1 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x digital LED strip header 1 x digital LED strip power select jumper 2 x RGB (RGBW) LED strip headerss 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C™ header with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 1 x Clear CMOS button 2 x temperature sensor headers 1 x Clear CMOS jumper |

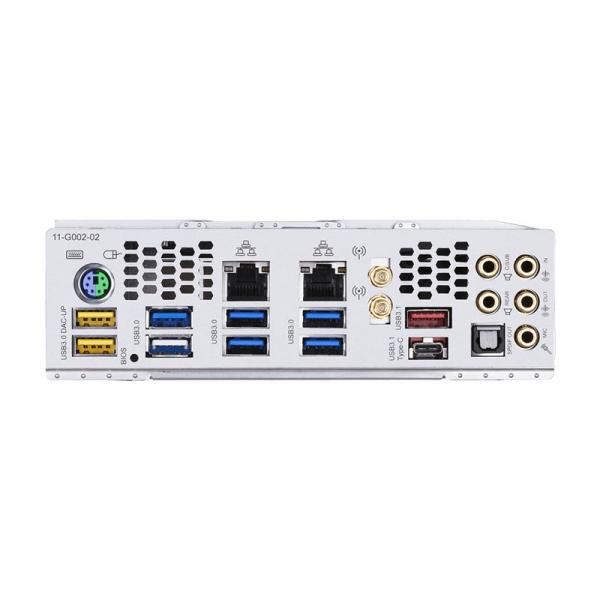

| Back Panel Connectors |
1 x PS/2 keyboard/mouse port 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 8 x USB 3.1 Gen 1 ports 2 x RJ-45 ports 2 x MMCX antenna connectors (2T2R) 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ Support for Q-Flash Plus* The USB flash drive used must be a USB 2.0 flash drive. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenBIOS SetupColor TemperatureCloud StationEasyTuneFast BootGame Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker USB DAC-UP 2 V-TunerSupport for Q-Flash Support for Xpress Install |
| Bundled Software |
Norton® Internet Security (OEM version) XSplit Gamecaster Broadcaster (12 months license) cFosSpeed |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
