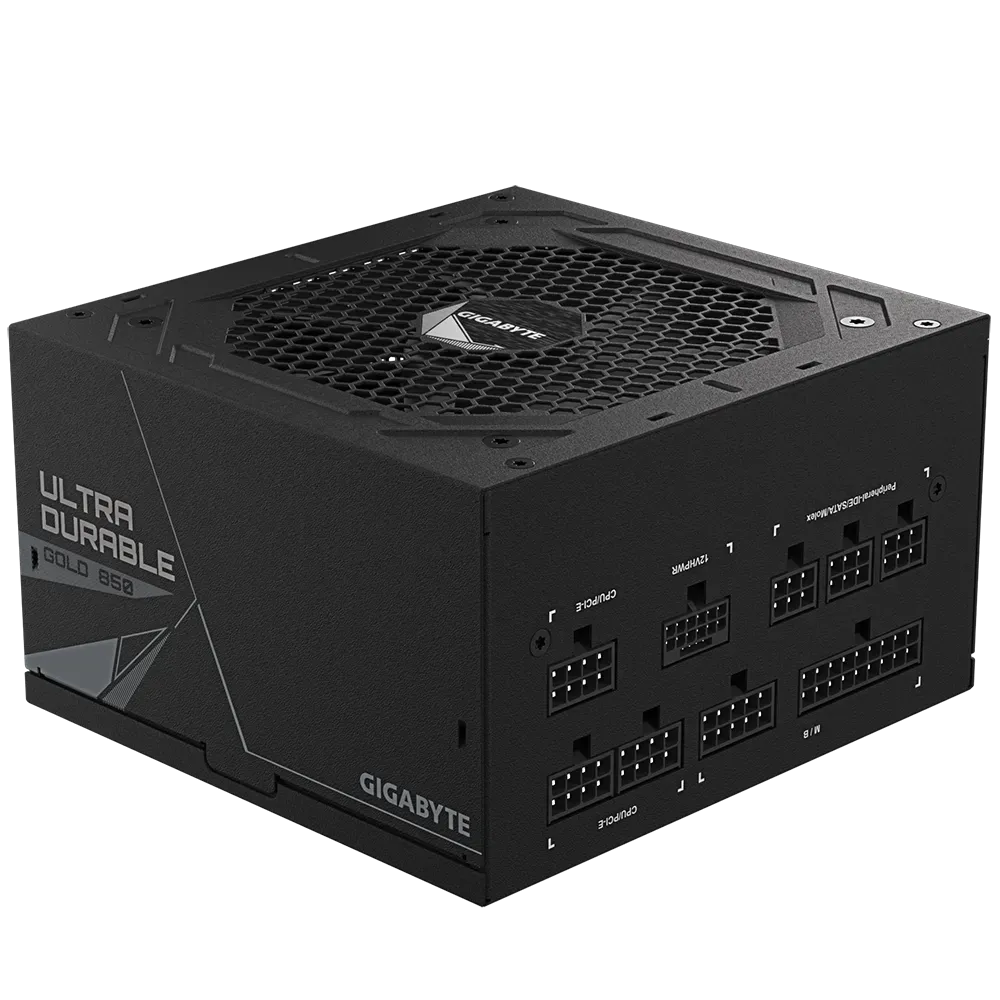

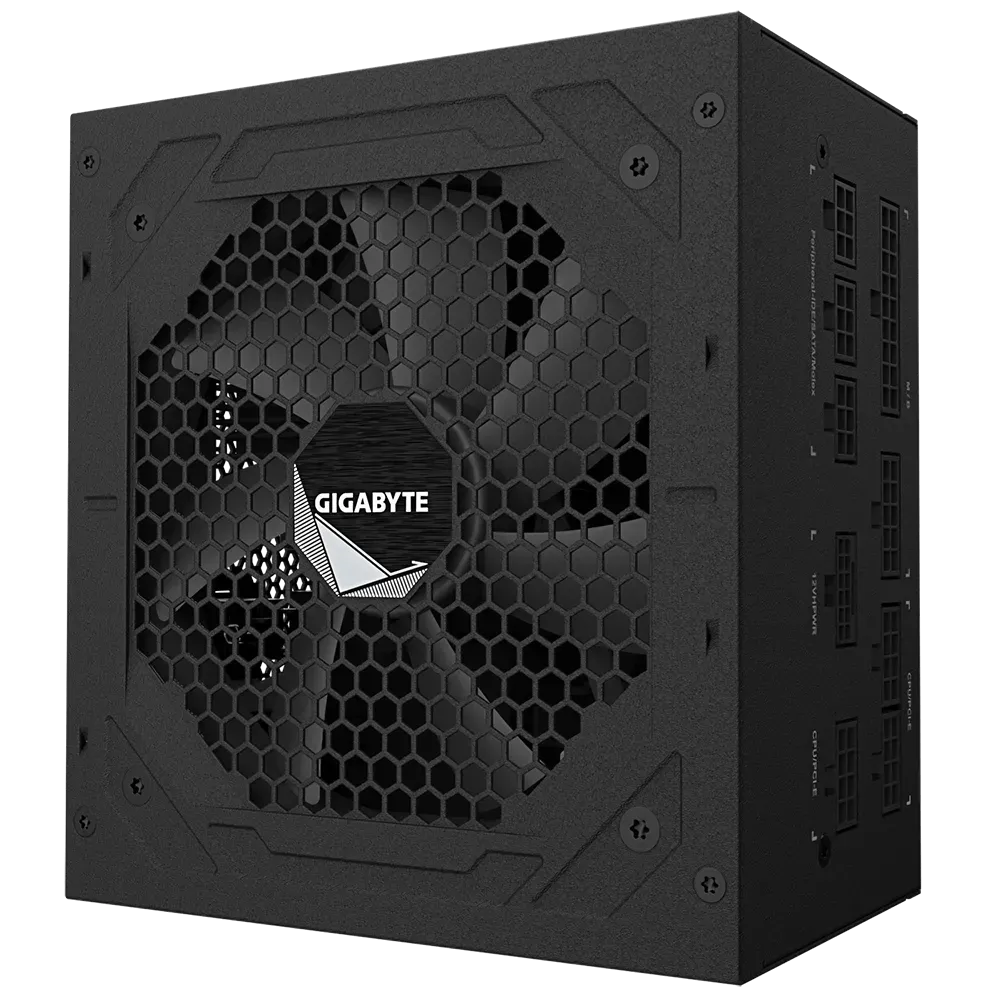

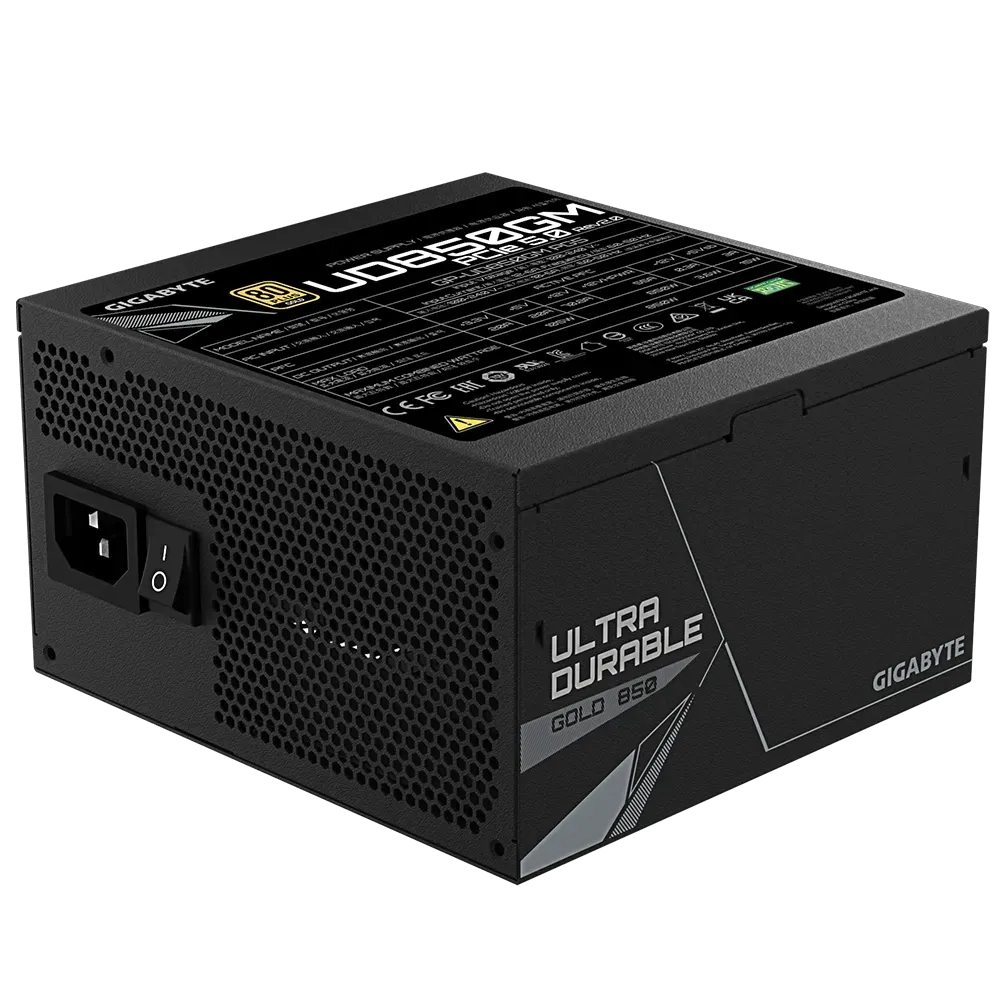

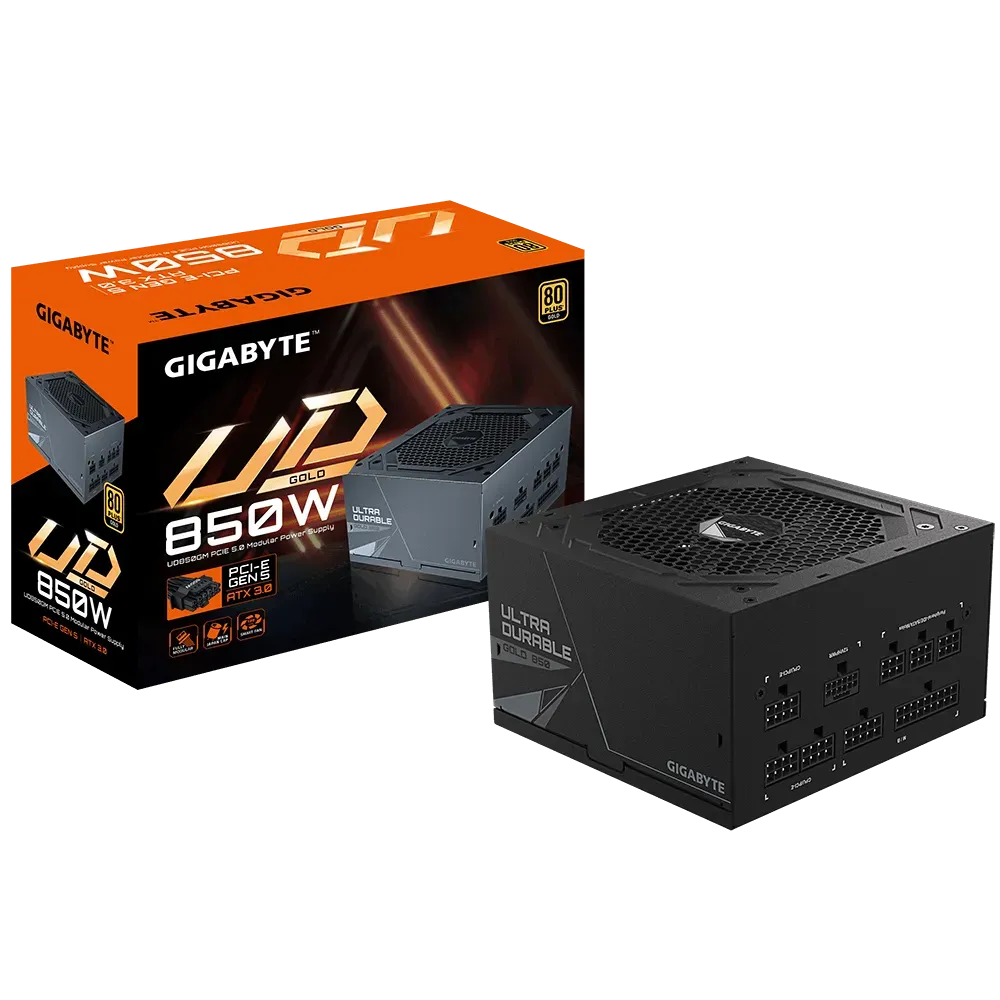

Features of GIGABYTE UD850GM PG5 80+ Gold Fully Modular ATX 3.0 Power Supply
Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
High-quality native 16-pin cable supports 600W output
80 PLUS Gold certified
Fully modular design
Compact design
5 years warranty (Adjusted according to different regions)

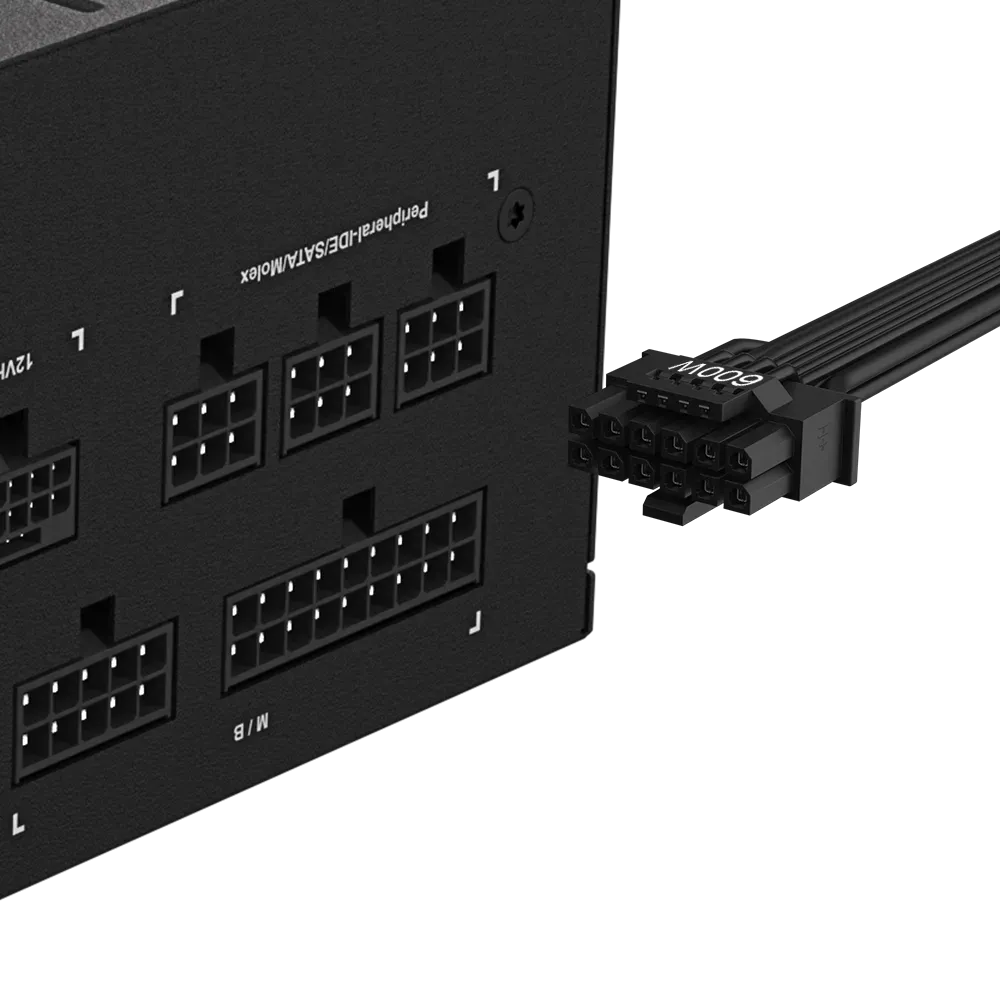

The GIGABYTE UD850GM 850W Power Supply PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

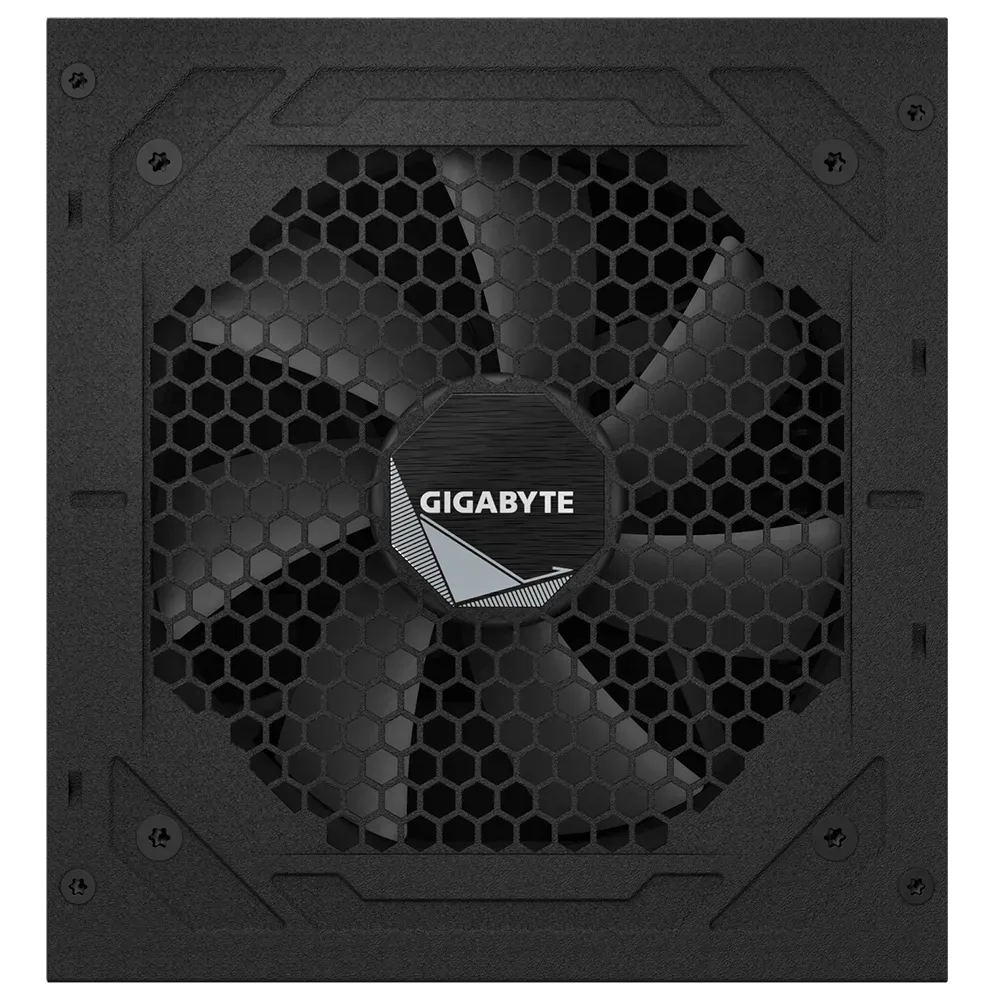

The Gigabyte Power Supply fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

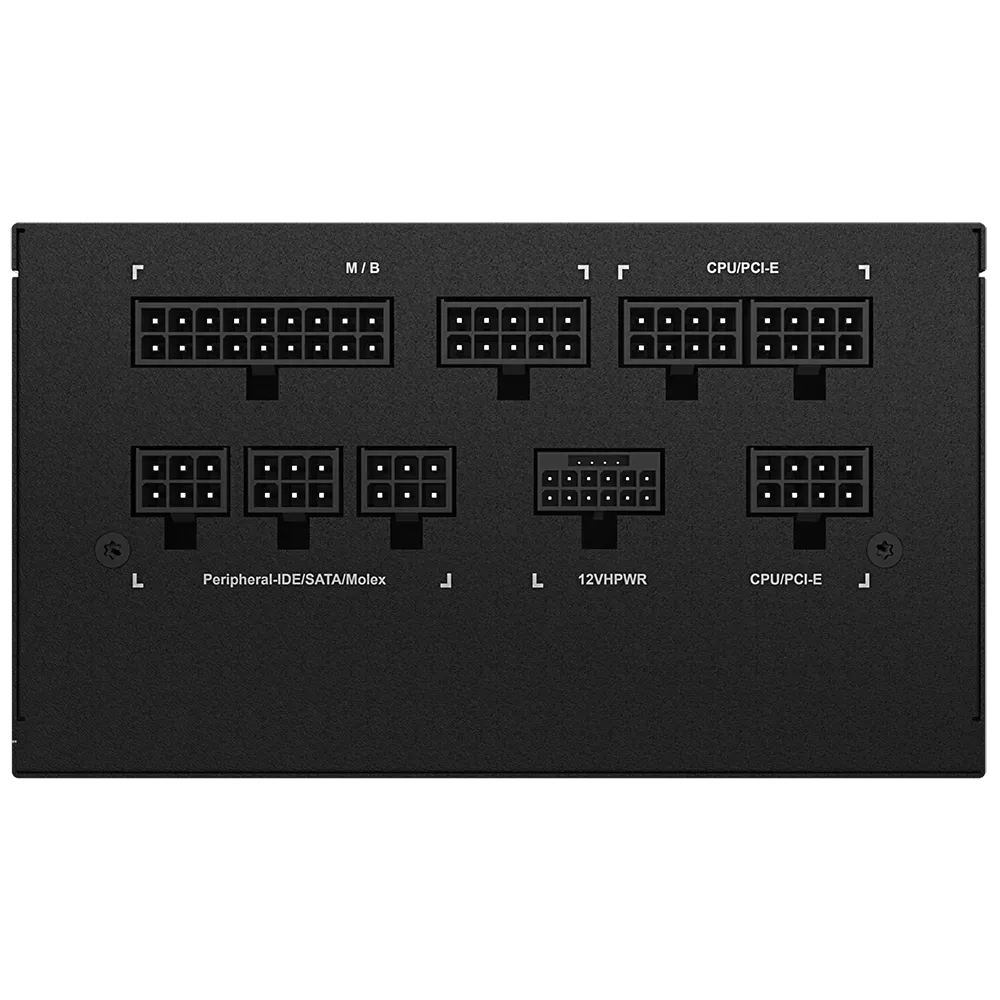

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
Get the best 80 Plus Gold computer smps price from us today!

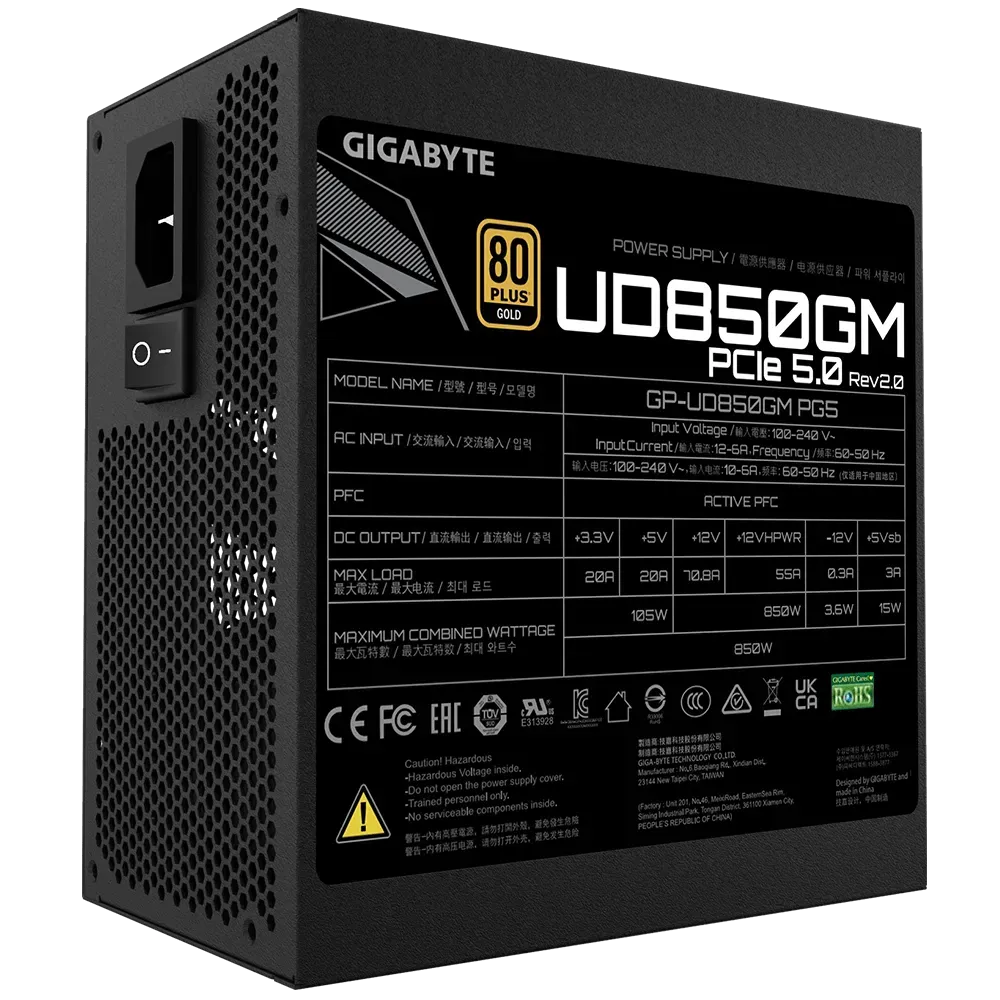

Specification of GIGABYTE UD850GM PG5 80+ Gold Fully Modular ATX 3.0 Power Supply
| Model | GP-UD850GM PG5 |
| Type | Intel Form Factor ATX 12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 850W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing(HYB)fan |
| 80 PLUS | Gold |
| Efficiency | |
| 90% at typical load | |
| MTBF | |
| >100,000 hours | |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 |
| CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 | |
| PCI-e 12+4 Pin x 1: 700mm*1 | |
| PCI-e 6+2 Pin x 4 : 600mm+150mm*2 | |
| SATA x 8 : | |
| 600mm+150mm+150mm+150mm*2 | |
| 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
