Zoom
Description

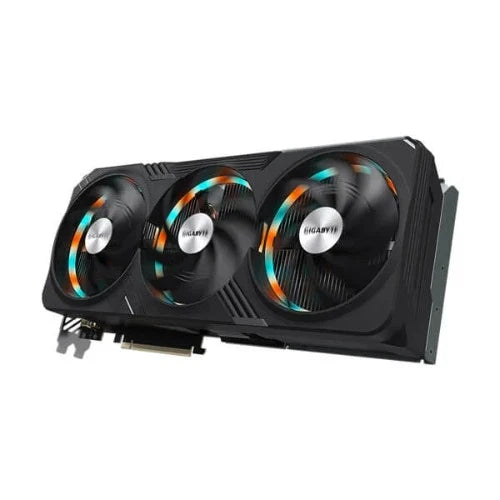

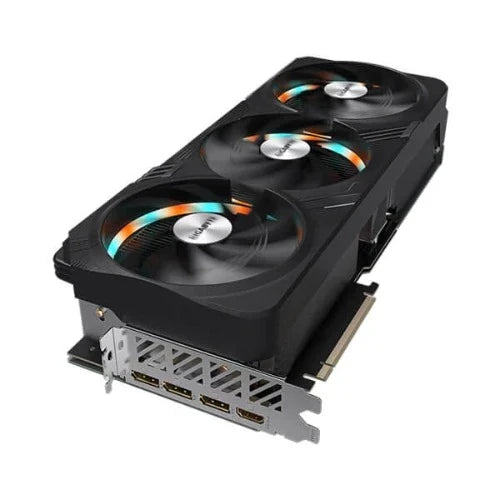

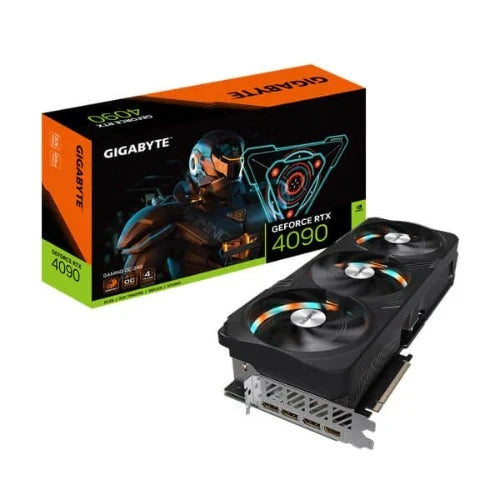

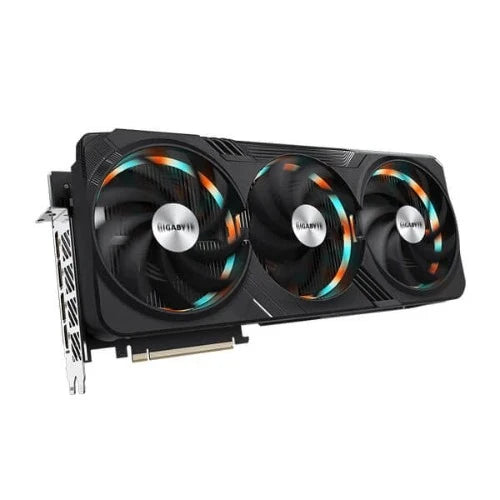

Features of GIGABYTE GeForce RTX 4090 Gaming OC 24GB
- NVIDIA Ada Lovelace Streaming Multiprocessors:
Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX® 4090 graphics card for pc
- Integrated with 24GB GDDR6X 384-bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
- 4 Years Warranty (Online registration required)

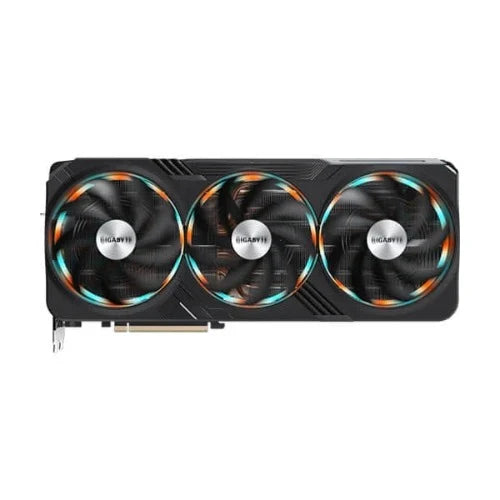

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system of the gigabyte rtx 4090 Gaming OC 24GB Nvidia Graphic Card features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

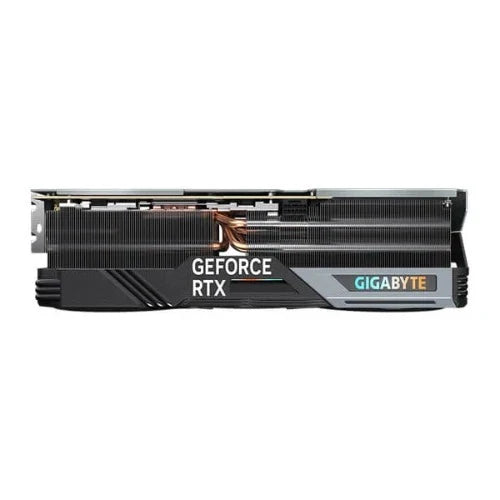

LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

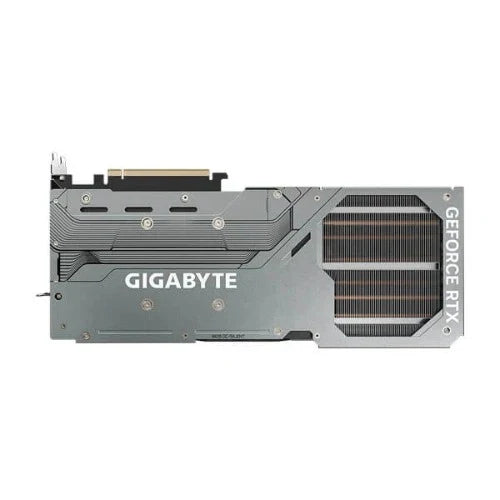

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
POWER INDICATORS
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
ANTI-SAG BRACKET
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
4-YEAR WARRANTY
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
Specifications of GIGABYTE GeForce RTX 4090 Gaming OC 24GB
| Chipset | GeForce RTX™ 4090 |
| Core Clock | 2535 MHz (Reference Card: 2520 MHz) |
| CUDA® Cores | 16384 |
| Memory Clock | 21 Gbps |
| Memory Size | 24GB |
| Memory Bus | 384 bit |
| Memory Type | GDDR6X |
| Card Bus | PCI-E 4.0 |
| Resolution | 7680x4320 |
| Multi-view | 4 |
| Dimension | L=340 W=150.2 H=75.2 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 1000 W |
| Power Connectors | 16 Pin*1 |

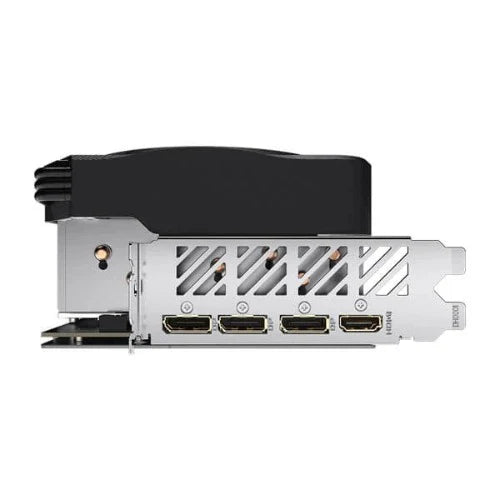

| Output | DisplayPort 1.4 *3 HDMI 2.1 *1 |
| Accessories | 1. Quick guide 2. Warranty registration 3. Anti-sag bracket 4. Anti-sag bracket installation guide 5. One 16-pin to four 8-pin power adaptor |
| Warranty | 3+1 Years Warranty (Online registration required) |
| Note* | Price, feature and specifications are subject to change without notice. |
