Description

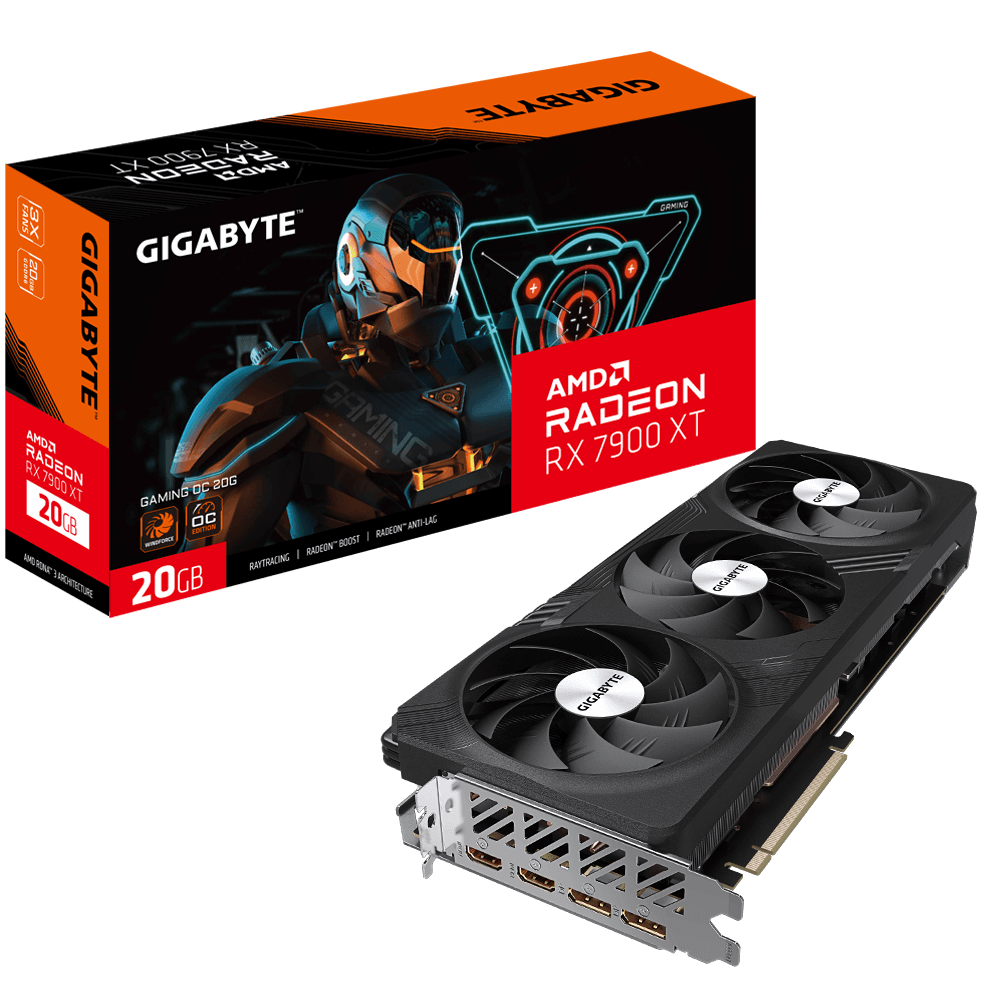

Features of GIGABYTE Radeon RX 7900 XT Gaming OC 16GB AMD Graphic Card
- Powered by Radeon RX 7900 XT
- Integrated with 20GB GDDR6 320-bit memory interface
- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS

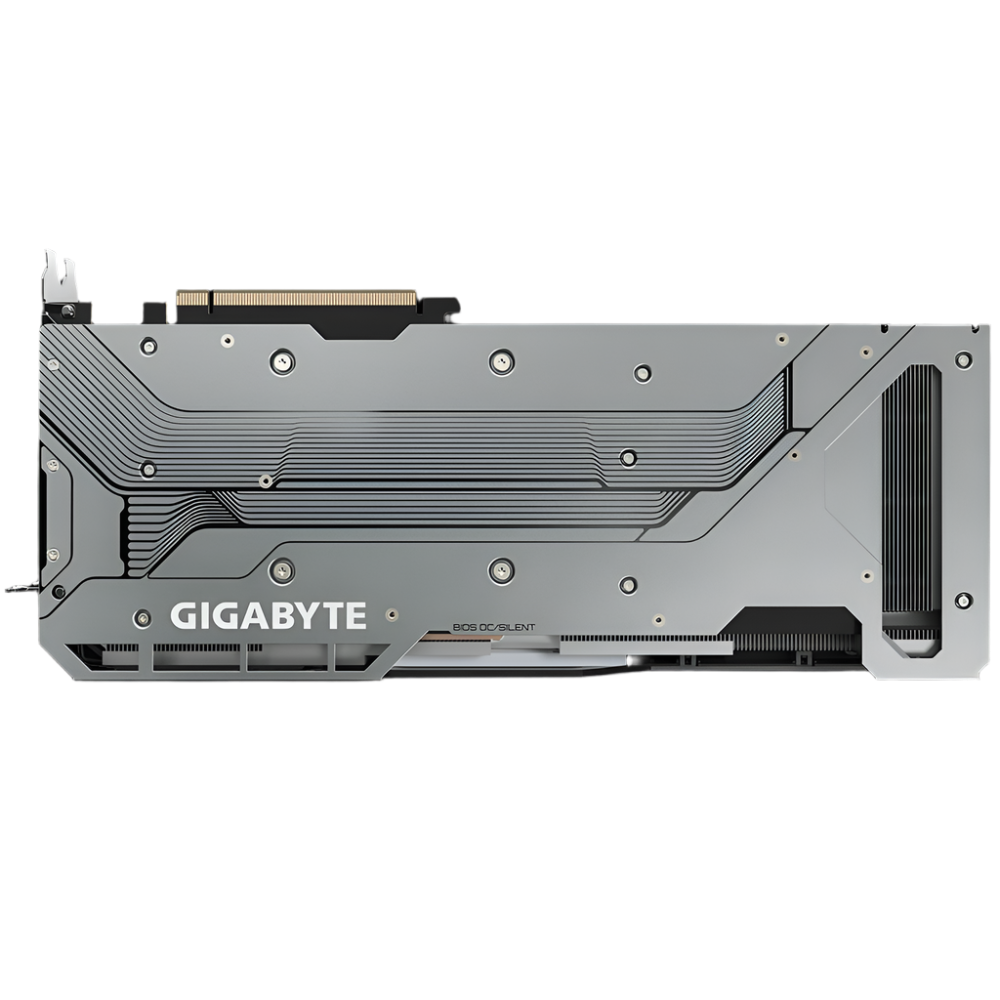

- Protection metal back plate
CORE CLOCK
- Boost Clock : up to 2535 MHz (Reference card: 2400 MHz)
- Game Clock : up to 2175 MHz (Reference card: 2000 MHz)
WINDFORCE COOLING SYSTEM

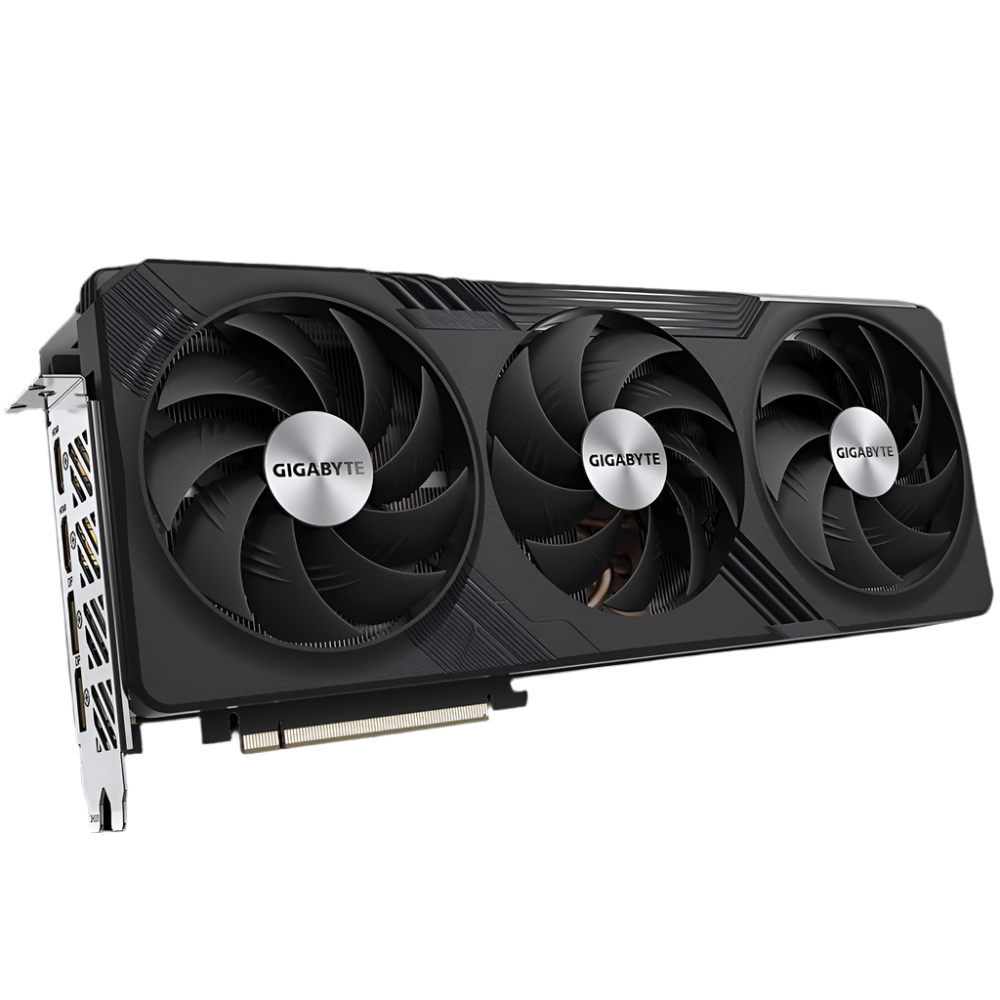

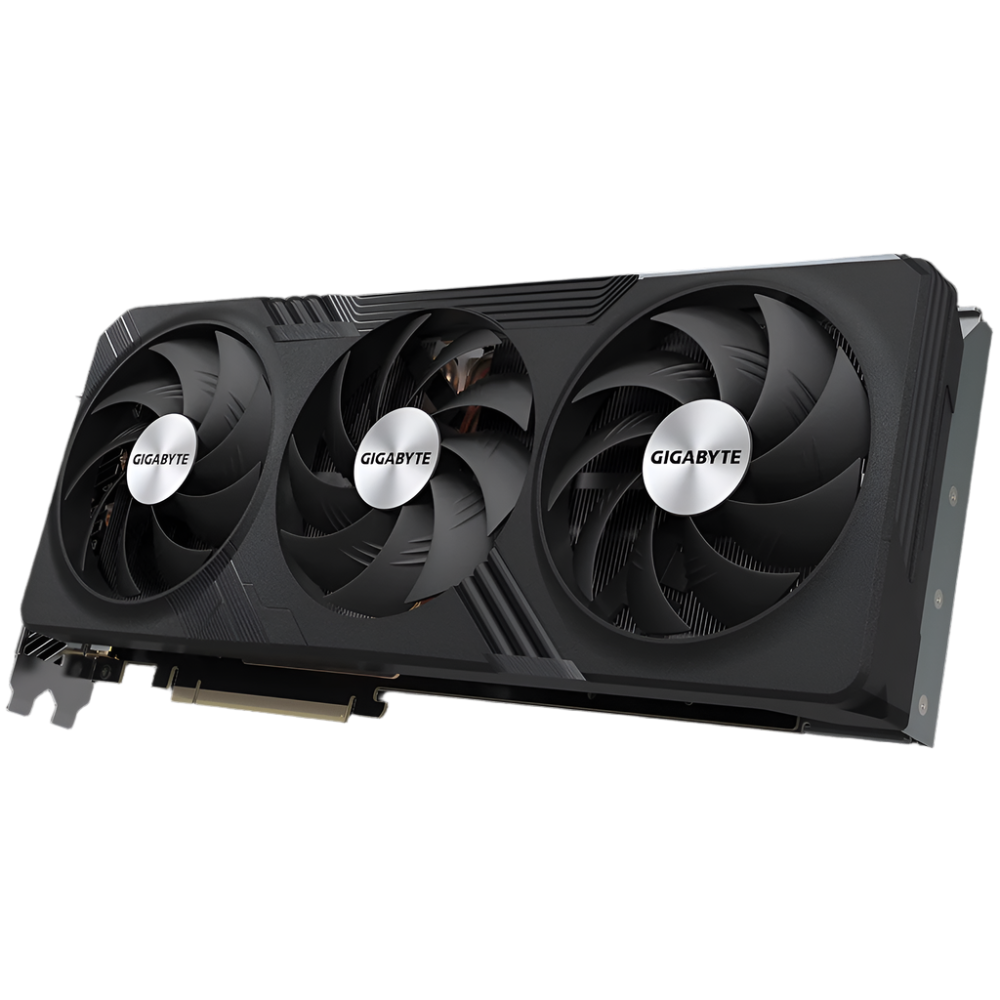

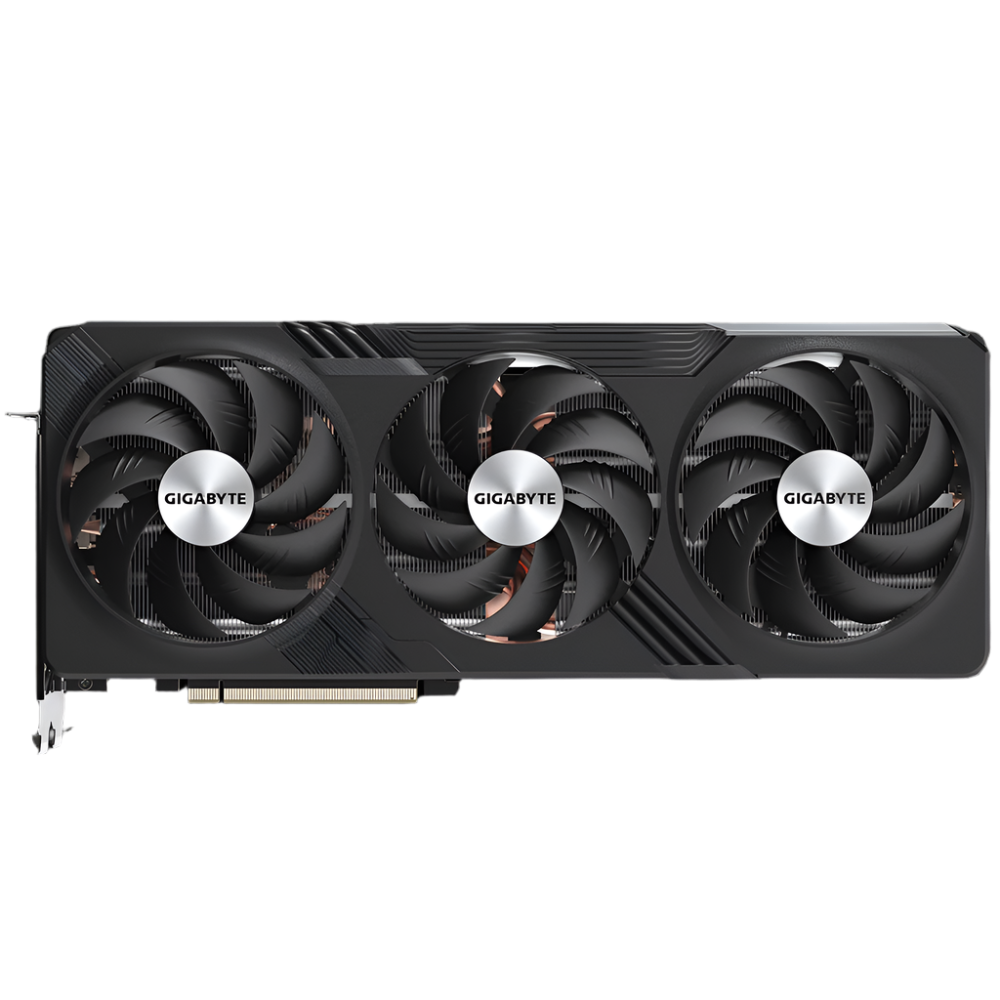

The GIGABYTE Radeon RX 7900 XT Gaming OC 16GB AMD Graphic Card cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

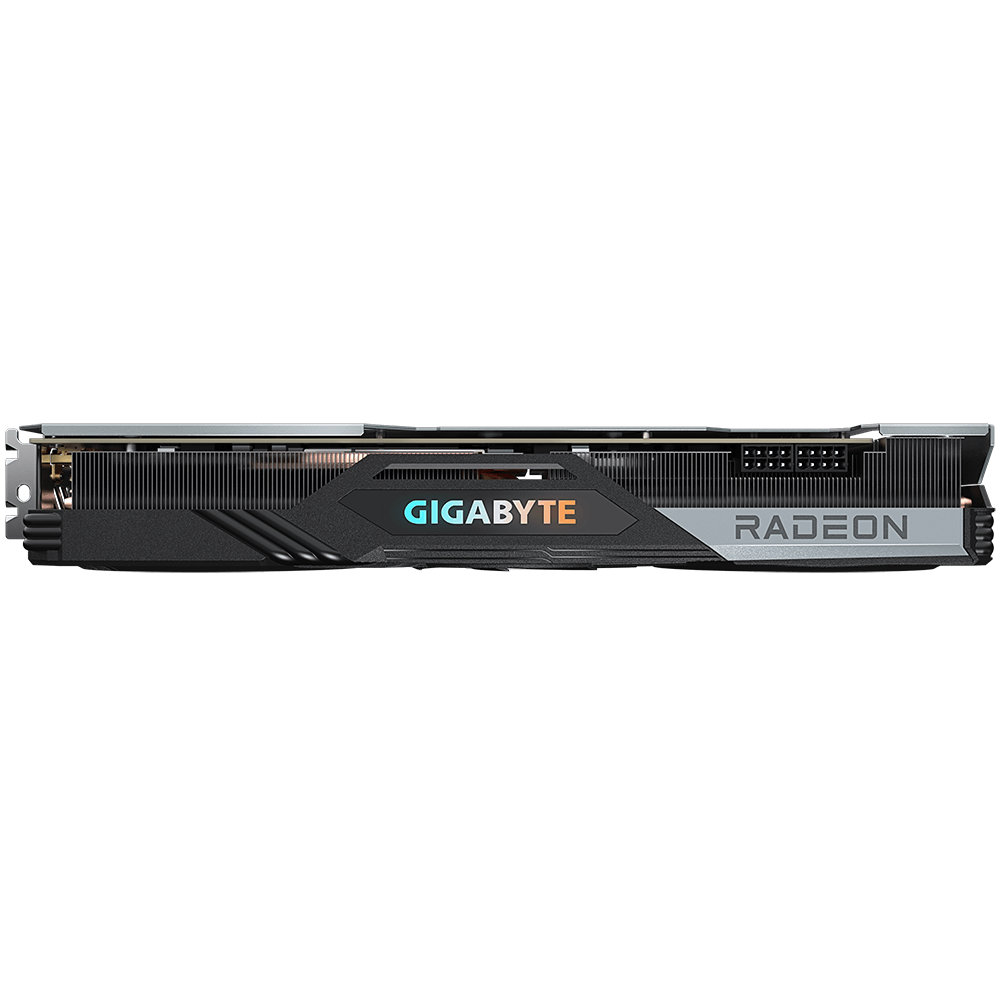

RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
BUILT STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
RDNA 3 Architecture
Featuring an advanced chiplet design, new compute units, and second-generation AMD Infinity Cache technology, AMD RDNA 3 architecture delivers up to 54% more performance per watt than the previous-generation AMD RDNA 2 architecture. New compute units share resources between rendering, AI, and raytracing to make the most effective use of each transistor for faster, more efficient performance than the previous generation.
Chiplet Design
Now with a chiplet design, this GPU delivers up to 15% higher frequencies with up to 54% better power efficiency. It includes the 5nm Graphics Compute Die (GCD) with up to 96 compute units that provide the core GPU functionality. It also includes six of the 6nm Memory Cache Die (MCD), each with up to 16MB of second-generation AMD Infinity Cache technology.
Ultra-Fast Chiplet Interconnect
Unleashing the benefits of 2nd Gen AMD Infinity Cache technology, the chiplets leverage AMD Infinity Links and high-performance fanout packaging to deliver up to 5.3 TB/s of bandwidth.
Expanded Memory and Wider Memory Bus
To meet the growing requirements of today’s demanding titles, the GPU features 20GB of high-speed GDDR6 VRAM running at 20 Gb/s over a 320-bit memory bus.
Dedicated AI Acceleration and 2nd-Generation Raytracing
AI instructions and increased AI throughput deliver up to 2.7 times more performance than the previous AMD RDNA 2 architecture, while 2nd-Gen raytracing technology delivers up to 1.8 times more performance than the previous generation.
DisplayPort 2.1 Support
This graphics card supports DisplayPort 2.1 technology with UHBR 13.5, offering up to 54 Gb/s of display link bandwidth and enabling high-refresh 4K (up to 480 Hz) or 8K (up to 165 Hz) gaming on next-gen displays.
AMD Radiance Display Engine
Provides 12 bit-per-channel color for up to 68 billion colors and higher refresh rate displays compared to AMD RDNA 2 architecture and includes support for DisplayPort 2.1 and HDMI 2.1a.
High-Refresh Gaming
DisplayPort 2.1 provides increased display bandwidth compared to DisplayPort 1.4, with the ability to support up to 900 Hz, 480 Hz and 165 Hz refresh rates for 1440p, 4K, and 8K displays, respectively.
Dual Media Engine
Supports simultaneous encode or decode streams up to 8K60 for HEVC and supports AV1 encode, delivering up to 1.8 times higher engine frequency than AMD RDNA 2 architecture.
AMD FidelityFX
AMD FidelityFX is an open-source image-quality toolkit comprising of seven different solutions available for game developers to implement into their games that are optimized for AMD RDNA, RDNA 2, and RDNA 3 architectures.
Buy Online VGA Cards for PC at Best Prices in India from Brain Tech PC!
Specifications of GIGABYTE Radeon RX 7900 XT Gaming OC 16GB AMD Graphic Card
| Graphics Processing | Radeon™ RX 7900 XT |
| Core Clock | Boost Clock* : up to 2535 MHz (Reference card: 2400 MHz) Game Clock* : up to 2175 MHz (Reference card: 2000 MHz) |
| Stream Processors | 5376 |
| Memory Clock | 20 Gbps |
| Memory Size | 20 GB |
| Memory Type | GDDR6 |
| Memory Bus | 320 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680×4320 |
| Multi-view | 4 |
| Card size | L=331 W=138 H=50 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 800W |
| Power Connectors | 8 Pin*2 |

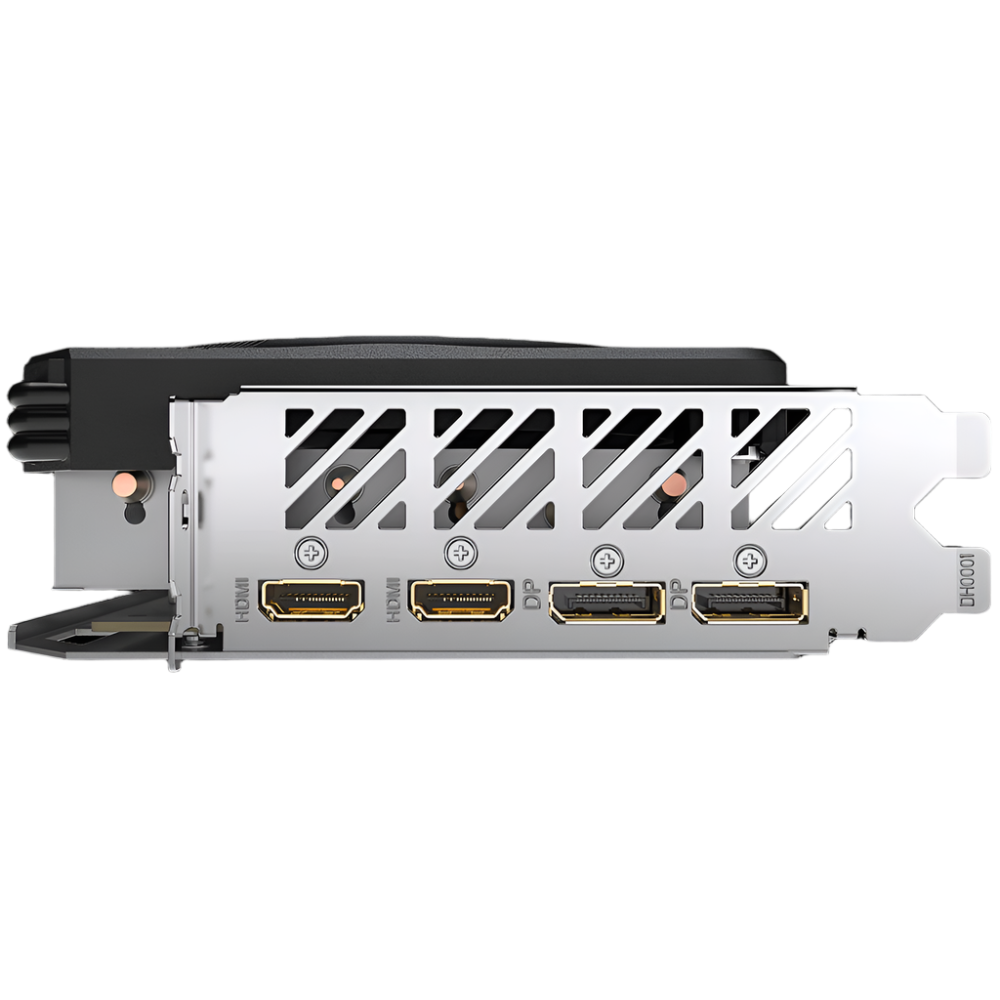

| Output | DisplayPort 2.1 *2 HDMI 2.1 *2 |
| Accessories | 1. Quick guide 2. Anti-sag bracket 3. Anti-sag bracket installation guide |
