Description

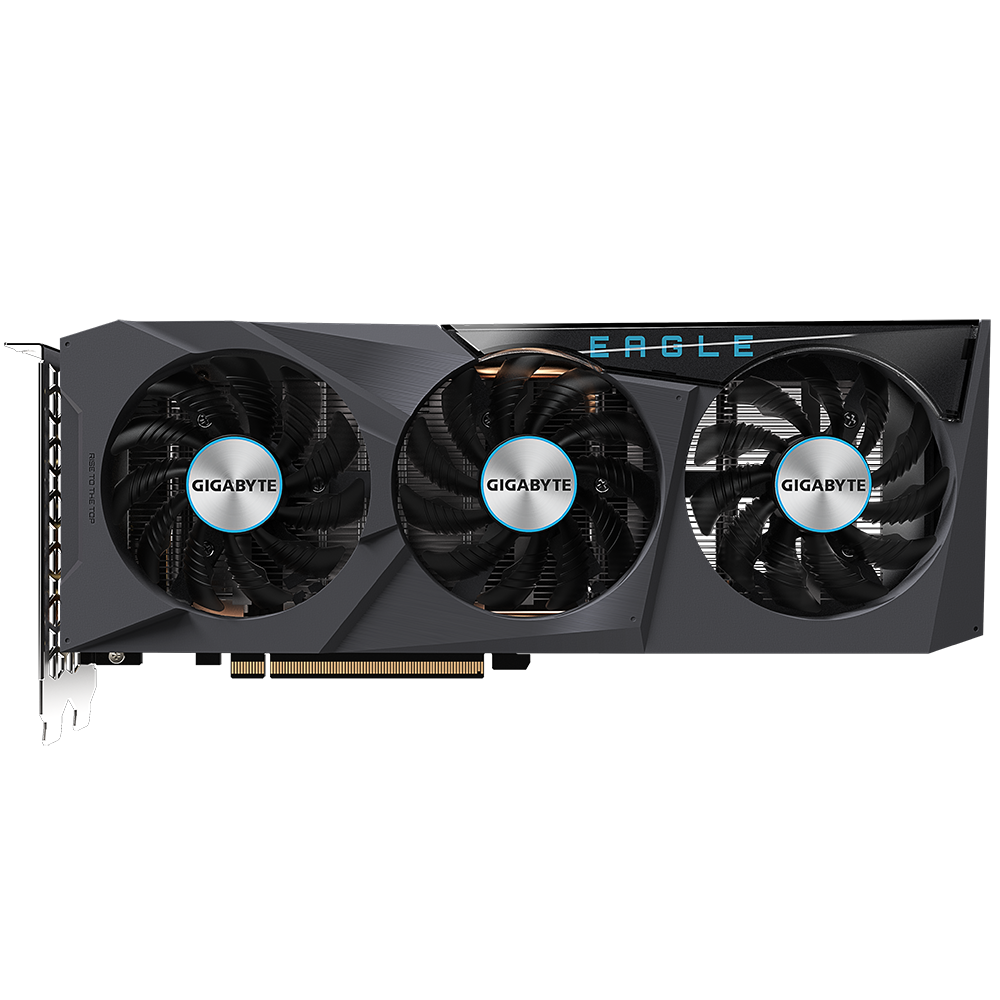

Features of GIGABYTE Radeon RX 6600 Eagle 8GB AMD Graphic Card
- Powered by AMD RDNA™ 2 Radeon™ RX 6600
- Integrated with 8GB GDDR6 128-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- Screen cooling
- Graphene nano lubricant
- Protection back plate
CORE CLOCK
- Boost Clock : up to 2491 MHz
- Game Clock : up to 2044 MHz
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE VGA Card for PC get the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

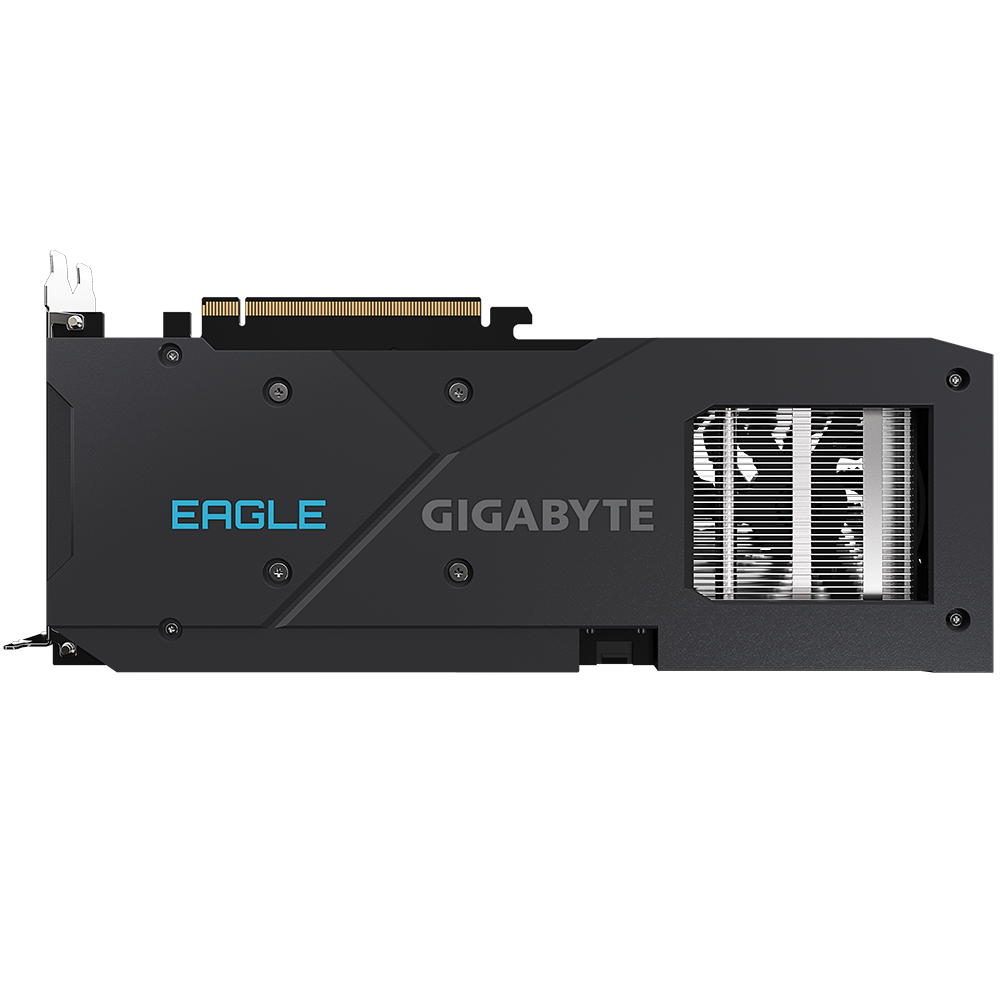

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY
The GIGABYTE Radeon RX 6600 Eagle 8GB AMD Graphic Card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specification of GIGABYTE Radeon RX 6600 Eagle 8GB AMD Graphic Card
| Graphics Processing | Radeon™ RX 6600 |
| Core Clock | Boost Clock* : up to 2491 MHz |
| Game Clock* : up to 2044 MHz | |
| Stream Processors | 1792 |
| Memory Clock | 14000 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 bit |
| Memory Bandwidth (GB/sec) | 224 GB/s |
| Card Bus | PCI-E 4.0 x 8 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=282 W=113 H=41 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 500W |
| Power Connectors | 8 pin*1 |

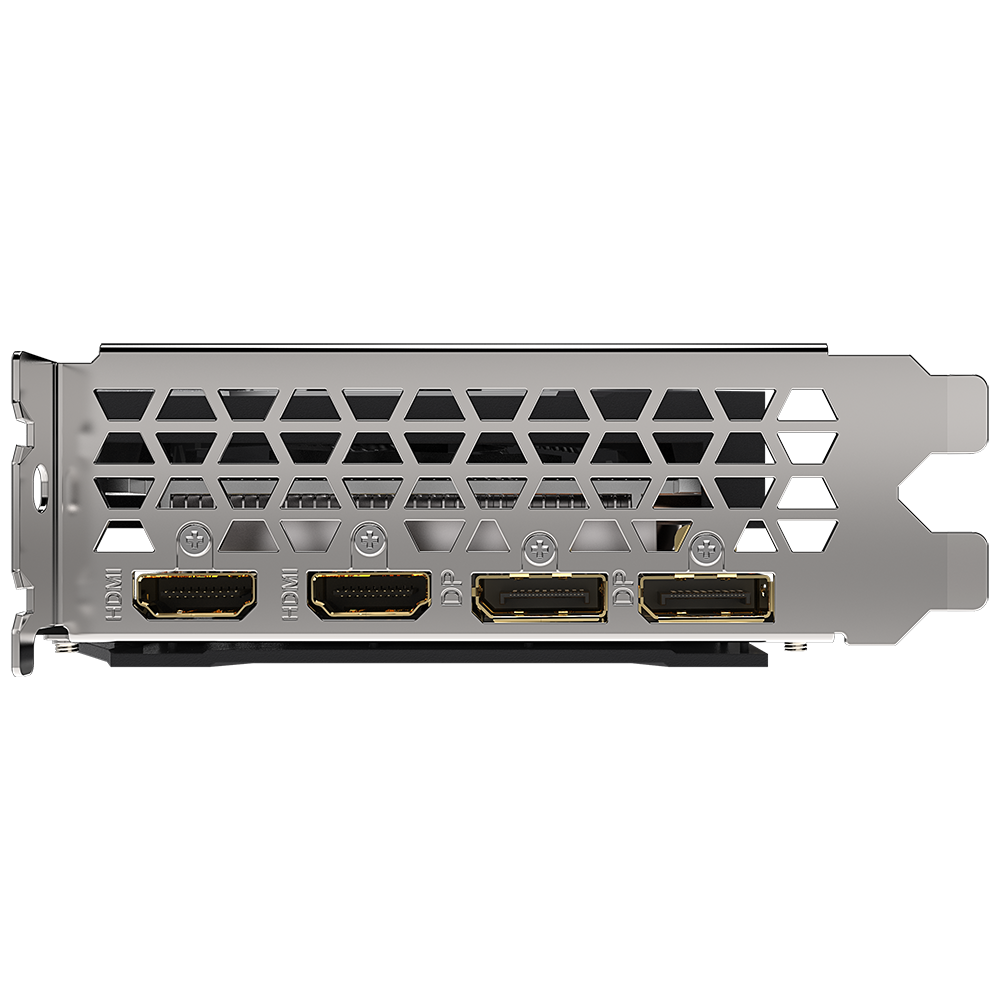

| Output | DisplayPort 1.4a *2 |
| HDMI 2.1 *2 | |
| Accessories | Quick guide |
| Note | * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. |
| * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
