Description

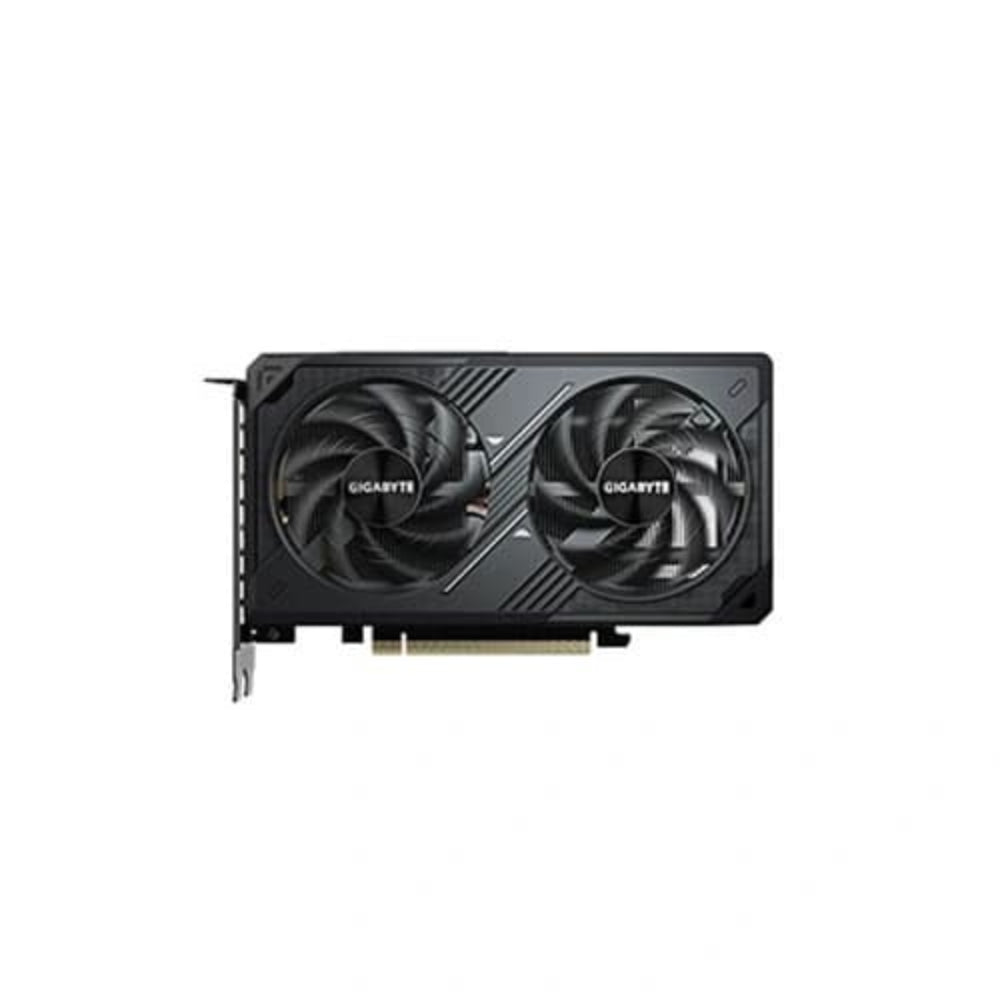

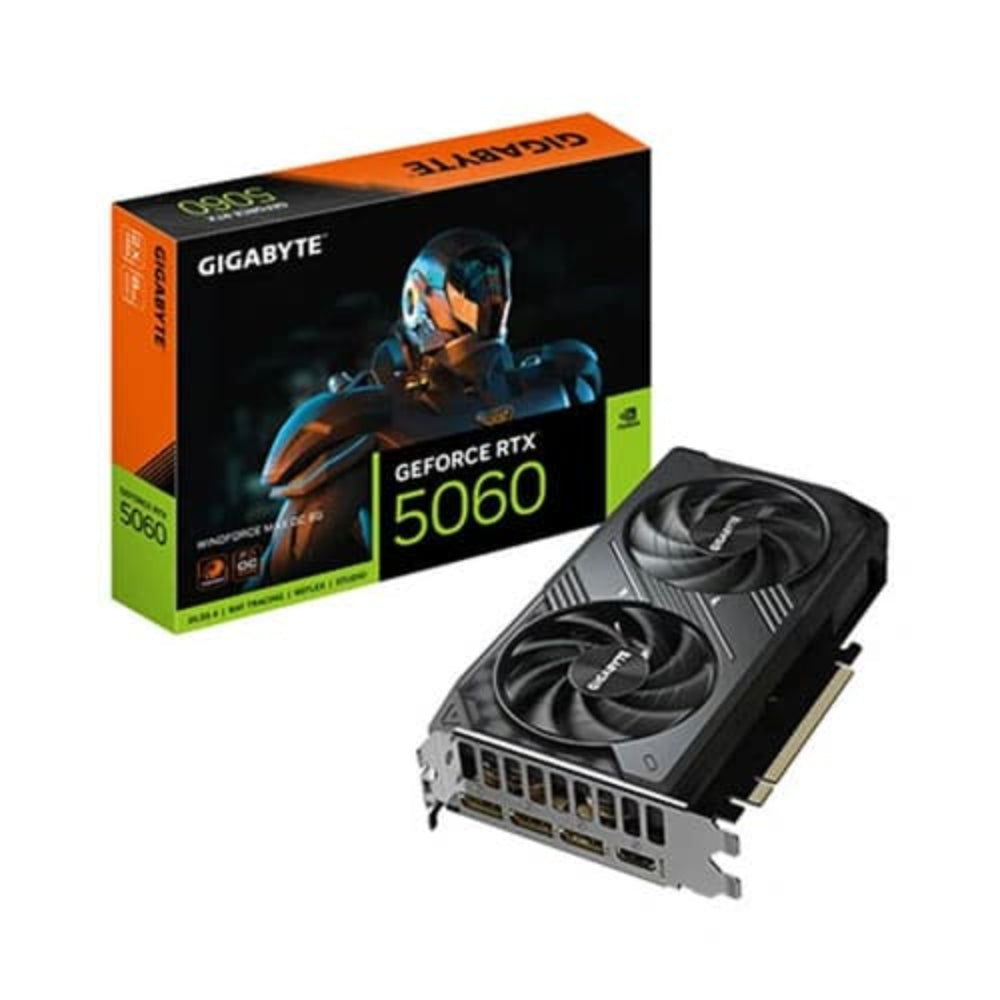

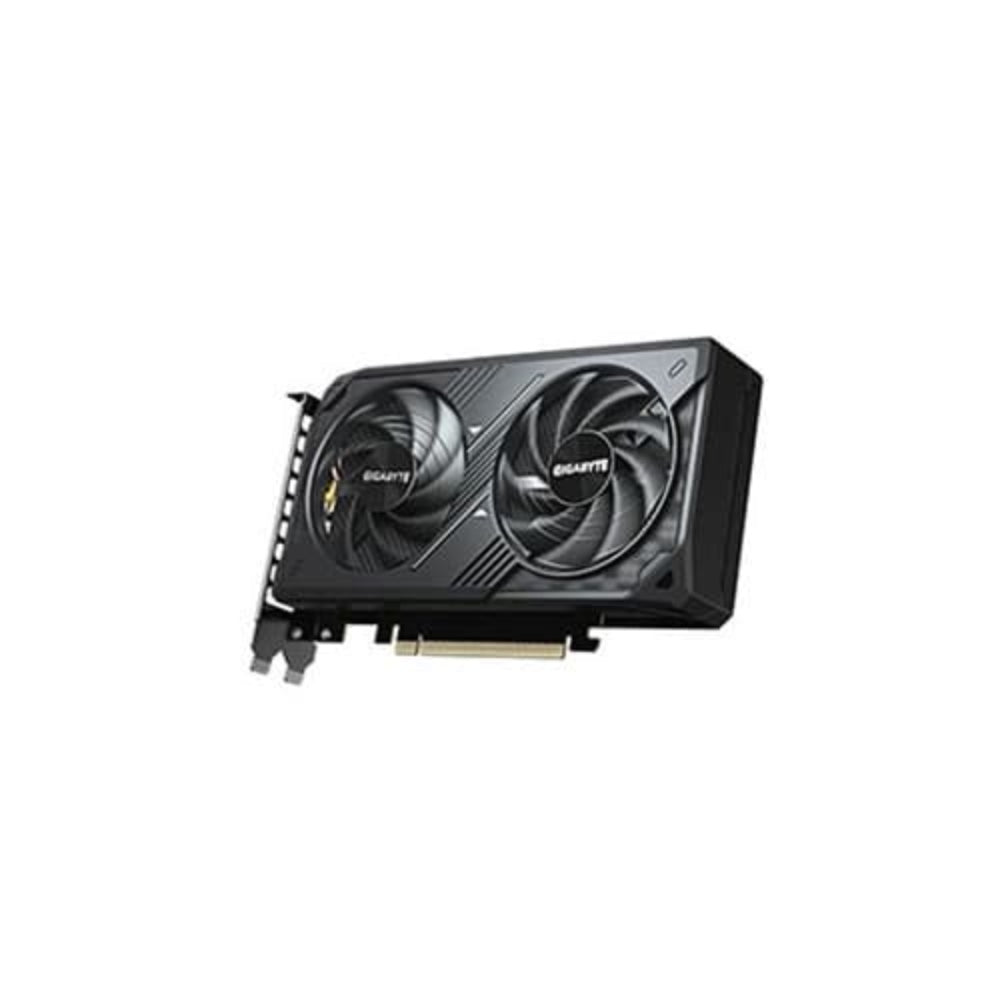

Features of GIGABYTE Geforce RTX 5060 WindForce Max OC 8GB NVIDIA Graphic Card
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5060
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- Reinforced structure
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

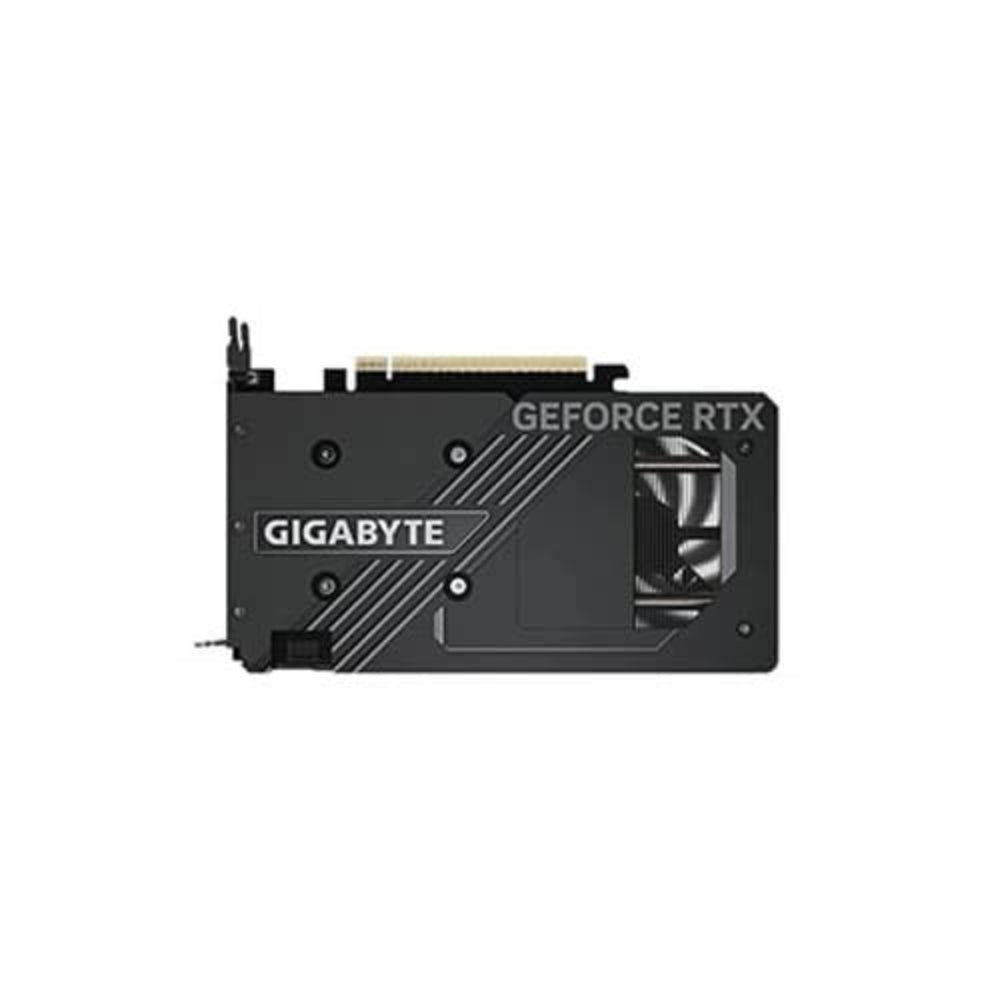

REINFORCED STRUCTURE
The reinforced backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
Specifications of GIGABYTE Geforce RTX 5060 WindForce Max OC 8GB NVIDIA Graphic Card
| Product Code | GV-N5060WF2MAX-OC-8GD |
| Chipset | NVIDIA GEFORCE |
| GPU | RTX 5060 |
| Engine Clock | 2512 MHz (Reference card : 2497MHz) |
| PCI EXPRESS | 5 |
| MEMORY CLOCK | 28 Gbps |
| MEMORY SIZE | 8 GB |
| MEMORY INTERFACE | 128-BIT |
| MEMORY TYPE | GDDR7 |
| OpenGL | 4.6 |
| PORTS | HDMI,DisplayPort |
| DirectX | 12 API |
| RESOLUTION | 7680 x 4320 |
| COOLER | Dual Fan |
| Max Display Support | 4 |
| Recommended PSU | 550W |
| GPU CORE (CUDA CORE) | 3840 |
| POWER CONNECTORS | 1 x 8-pin |
| WARRANTY | 3 Years |
| NOTE** | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only. |
