Description
Features Of GIGABYTE GeForce RTX 4080 Super Windforce V2
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4080 SUPER
- Integrated with 16GB GDDR6X 256-bit memory interface
- WINDFORCE Cooling System
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system of the GIGABYTE GeForce RTX 4080 Super Windforce V2 graphics card for pc features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

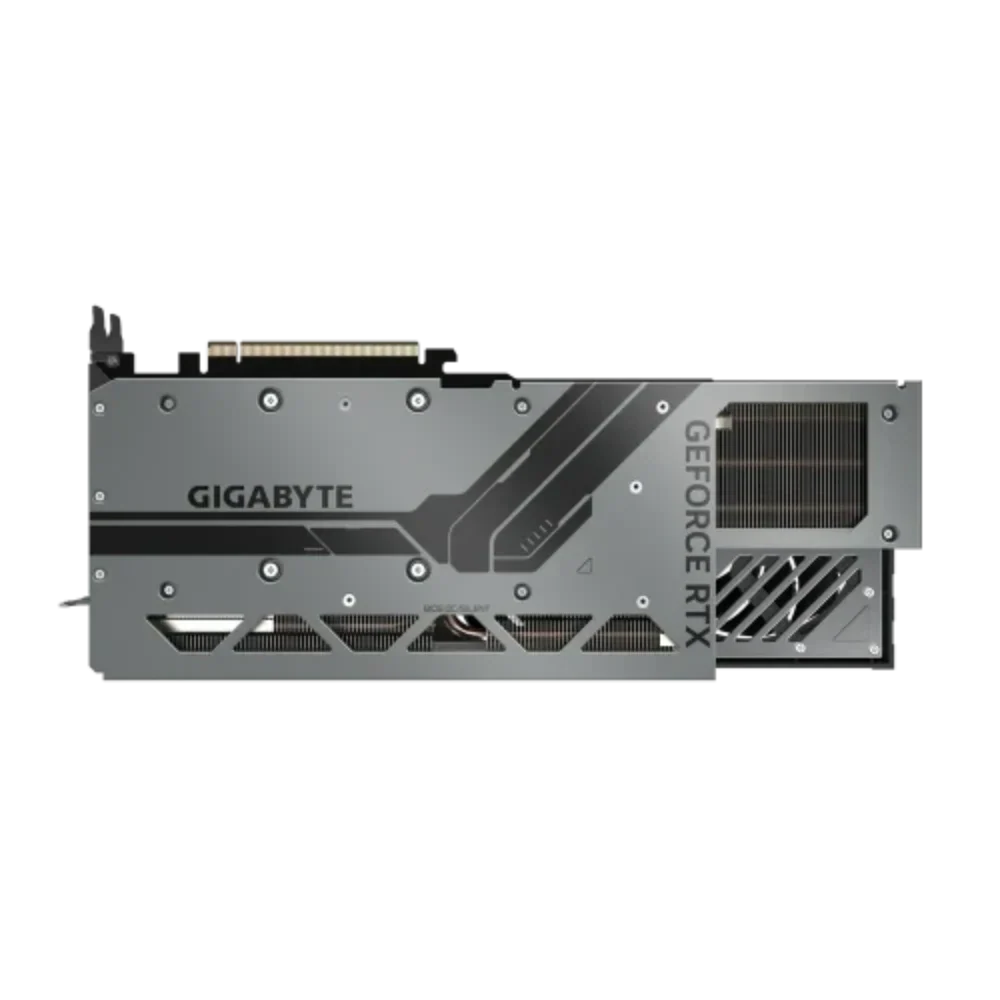

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ANTI-SAG BRACKET
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications Of GIGABYTE GeForce RTX 4080 Super Windforce V2
| Graphics Processing |
GeForce RTX™ 4080 SUPER |
| Core Clock |
TBD |
| CUDA® Cores |
TBD |
| Memory Clock |
23 Gbps |
| Memory Size |
16 GB |
| Memory Type | GDDR6X |
| Memory Bus |
256 bit |
| Card Bus | PCI-E 4.0 |
|
Digital max resolution |
7680x4320 |
| Multi-view | 4 |
| Card size |
L=330 W=136 H=58 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU |
850W |
| Power Connectors | 16 pin*1 |

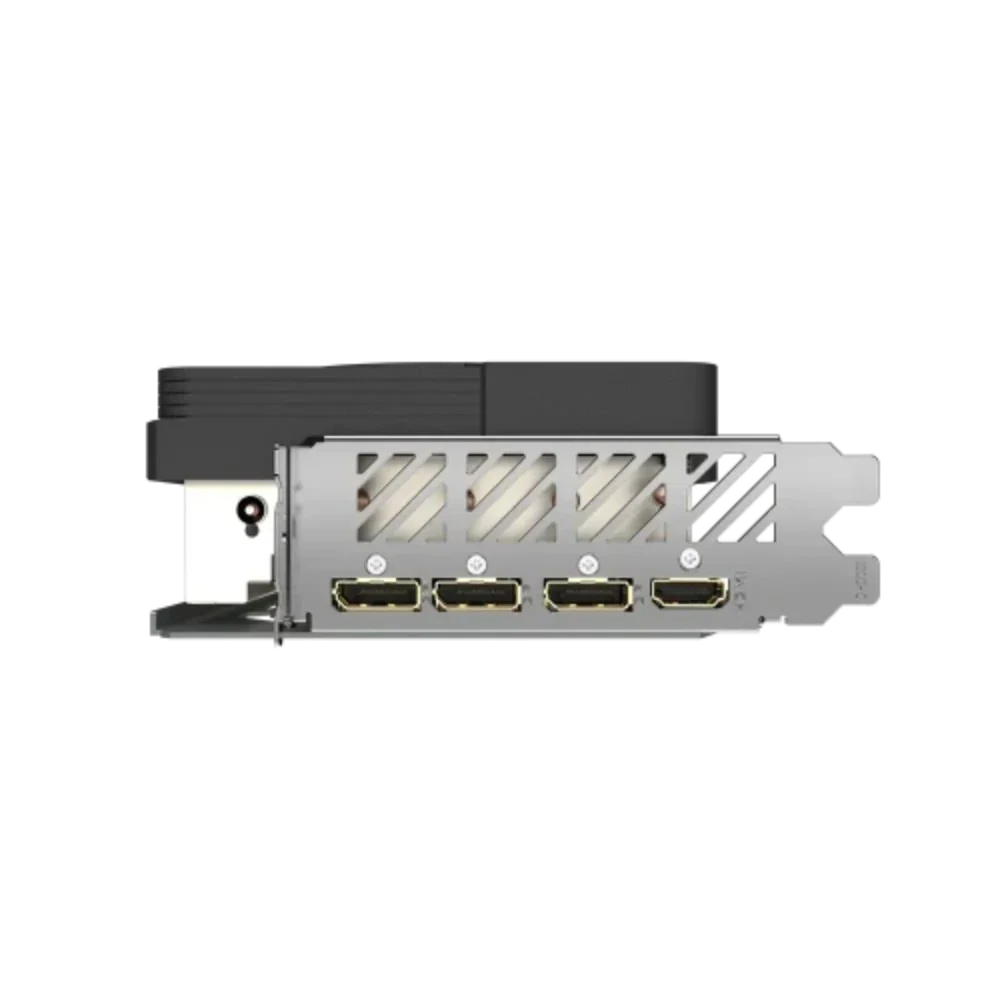

| Output |
DisplayPort 1.4a *3 HDMI 2.1a *1 |
| Accessories |
1. Quick guide 2. Anti-sag bracket 3. Anti-sag bracket installation guide 4. One 16 pin to triple 8-pin power adaptor |
