Description

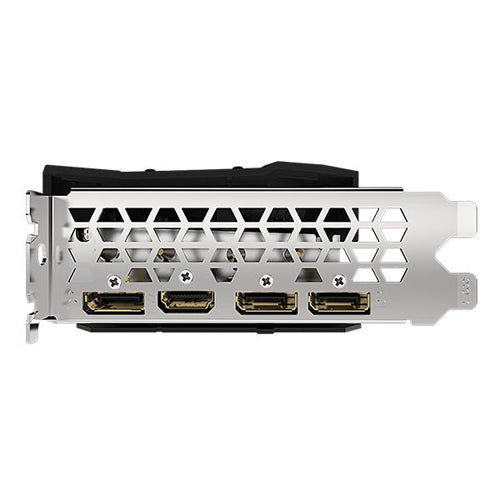

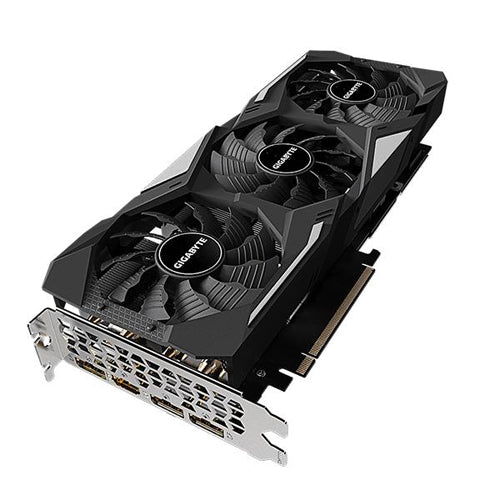

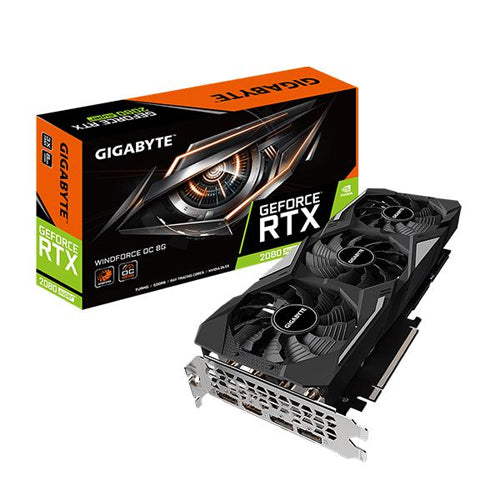

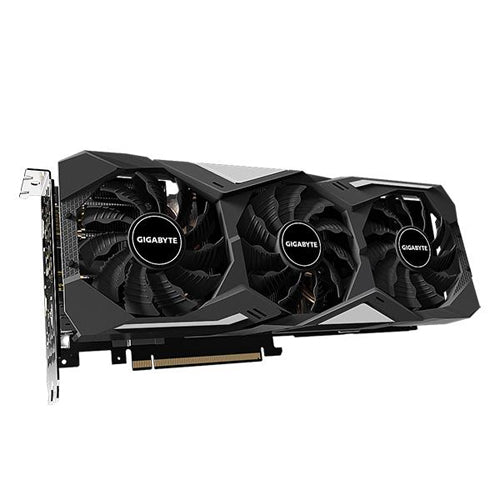

Features of GIGIABYTE GeForce RTX 2080 Super WindForce OC 8GB Nvidia Graphic Card
Powered by GIGIABYTE GeForce RTX 2080 Super WindForce OC 8GB Nvidia vga card for pc
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
Extreme Durability and Overclocking
Protection Metal Back Plate
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 82mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
Extreme durability and overclocking
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.

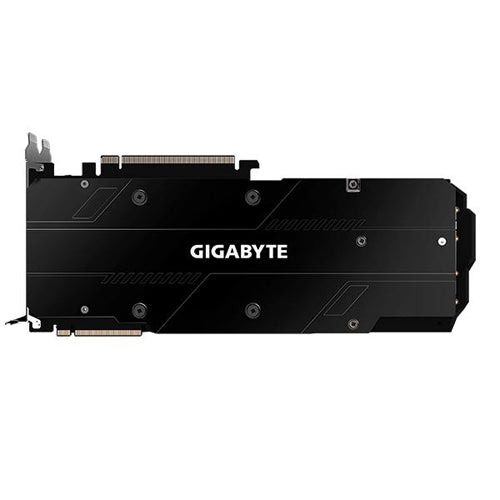

Protection Metal Back Plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
NVIDIA NVLink TM Support
Support for NVIDIA NVLinkTM (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K gaming or VR gaming. You can also adjust the light effect on the bridge with the AORUS Engine.
- Powered by GeForce® RTX 2080 SUPER™
- Integrated with 8GB GDDR6 256-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion 2.0 – synchronize with other AORUS devices
- Metal Back Plate
- 4 Years Warranty (Online registration required)
- 1845 MHz (Reference Card: 1815 MHz
- WINDFORCE 3X COOLING SYSTEM
- UNIQUE BLADE FAN
- 3D ACTIVE FAN
- HEAT PIPES DIRECT TOUCH
- RGB FUSION 2.0
Specifications of GIGIABYTE GeForce RTX 2080 Super WindForce OC 8GB Nvidia Graphic Card
| Brand | GIGABYTE |
| Manufacturer | Gigabyte |
| Model | GV-N208SWF3OC-8GD |
| Model Name | GV-N208SWF3OC-8GD |
| Product Dimensions | 28.6 x 11.4 x 5 cm; 454 Grams |
| Item model number | GV-N208SWF3OC-8GD |
| Hardware Interface | PCI Express x8 |
| Graphics Card Description | GEFORCE RTX2080 SUPER |
| Graphics Card Ram Size | 8 GB |
| Graphics RAM Type | GDDR6 |
| Graphics Card Interface | PCI-Express x16 |
| Graphics Coprocessor | NVIDIA GeForce RTX 2080 |
| Mounting Hardware | GRAPHIC CARD, USERS MANUAL |
| Number Of Items | 1 |
| Wattage | 125 Watts |
| Batteries Included | No |
| Batteries Required | No |
| Number of Ports | 4 |
| Form Factor | ATX |
| Manufacturer | Gigabyte |
| Item Weight | 454 g |
