Description

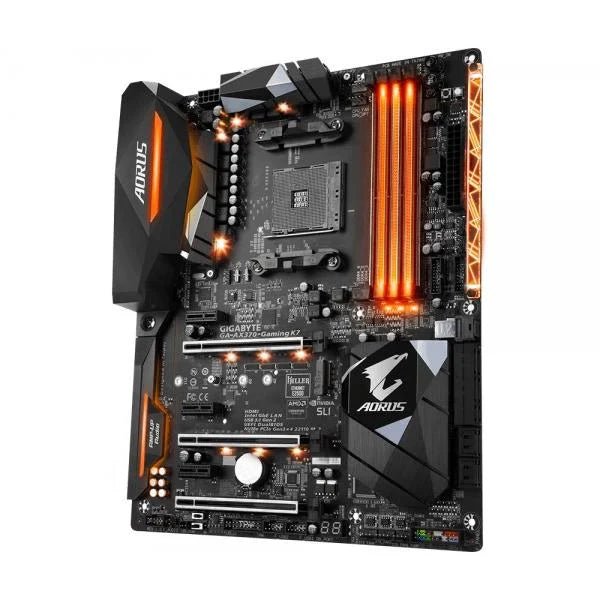

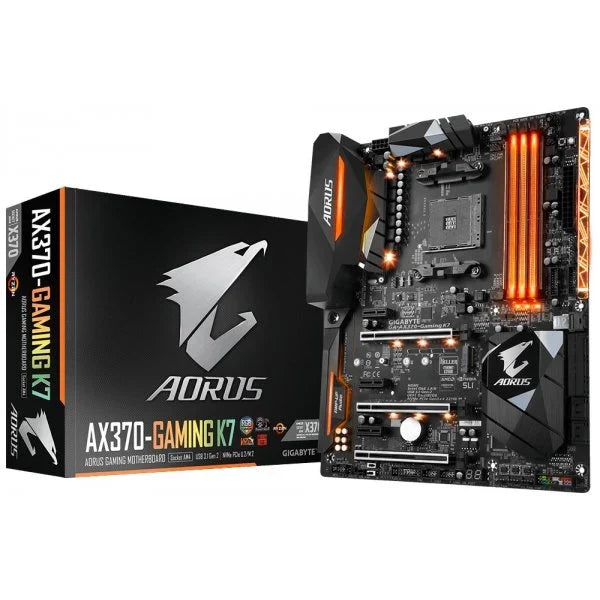

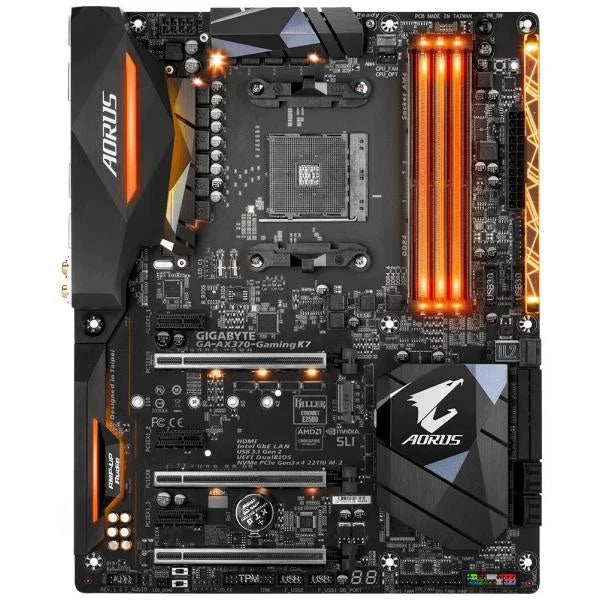

Feature of Gigabyte GA-AX370-Gaming K7 DDR4
- Supports AMD Ryzen™ & 7th Generation A-series/ Athlon™ Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Turbo B-Clock, Built-in Advanced Performance Tuning IC
- Fast 4 USB 3.1 Gen 2 with USB Type-C™ and Type-A
- 2-Way CrossFire™/SLI™ Multi-Graphics Support with Dual Armor and Ultra Durable™ Design
- NVMe PCIe Gen3 x4 U.2 Connector
- Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
- Creative® Sound Blaster X-Fi MB5 support
- Dual ALC 1220 with Front & Rear 120dB SNR HD Audio with Dual Smart Headphone Amps
- Killer™ E2500 Gaming Network + Intel® Gigabit LAN
- USB DAC-UP 2 & 4 Front USB 3.0 Ports with Adjustable Voltage
- RGB FUSION with Multi-Zone LED Light Show design
- Swappable Overlay for Accent LED
- Smart Fan 5 features 9 Temperature Sensors and 8 Hybrid Fan Headers
- 2 External Thermistors Headers with 2 Included Thermistors
- GIGABYTE UEFI DualBIOS™
- APP Center Including EasyTune™ and Cloud Station™ Utilities
GET READY FOR AMD RYZEN™ 3000-SERIES
GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen™ 3000 Processors and are backwards compatible with AMD Ryzen™ 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems.
RGB FUSION
Set the Color that Matches Your Style
Specifications of Gigabyte GA-AX370-Gaming K7 DDR4
| CPU |
AM4 Socket: AMD Ryzen™ processor AMD 7th Generation A-series/ Athlon™ processor |
| Chipset | AMD X370 |
| Memory |
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3600(Extreme O.C.) / 3400(O.C.) / 3200(O.C.) / 2933(O.C.) / 2667* / 2400 / 2133 MHz memory modules* Support for higher than DDR4 2667 MHz may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Onboard Graphics |
Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz* Support for HDMI 1.4 version. Maximum shared memory of 2 GB |
| Audio |
2 x Realtek® ALC1220 codecs Support for Sound Blaster X-Fi MB5 High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN |
1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1) 1 x Rivet Networks Killer™ E2500 LAN chip (10/100/1000 Mbit) (LAN2)* Teaming is not supported. |
| Expansion Slots |
1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.* Actual support may vary by CPU. 1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.* Actual support may vary by CPU.(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with all of the PCI Express x1 slots. The PCIEX4 slot operates at up to x4 mode when all of the PCI Express x1 slots are empty. 3 x PCI Express x1 slots* All of the PCI Express x1 slots share bandwidth with the PCIEX4 slot. The PCIEX4/PCIEX1_2/PCIEX1_3 slot operates at up to x1 mode when the PCIEX1_1 slot is populated; the PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated.(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Storage Interface |
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)* Actual support may vary by CPU. 1 x U.2 connector* When the U.2 connector is populated, the M.2 connector becomes unavailable. 2 x SATA Express connectors 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| Multi-Graphics Technology |
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies* Actual support may vary by CPU. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| USB |
Chipset+ASMedia® USB 3.1 Gen 2 Controller: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel Chipset: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.1 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 2.0/1.1 ports (available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x U.2 connector 1 x M.2 Socket 3 connector 2 x SATA Express connectors 8 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x CPU cooler LED strip/RGB LED strip extension cable header 1 x RGB (RGBW) LED strip extension cable header 2 x temperature sensor headers 1 x Clear CMOS jumper 1 x power button 1 x reset button 1 x Clear CMOS button 1 x OC button 2 x BIOS switches |

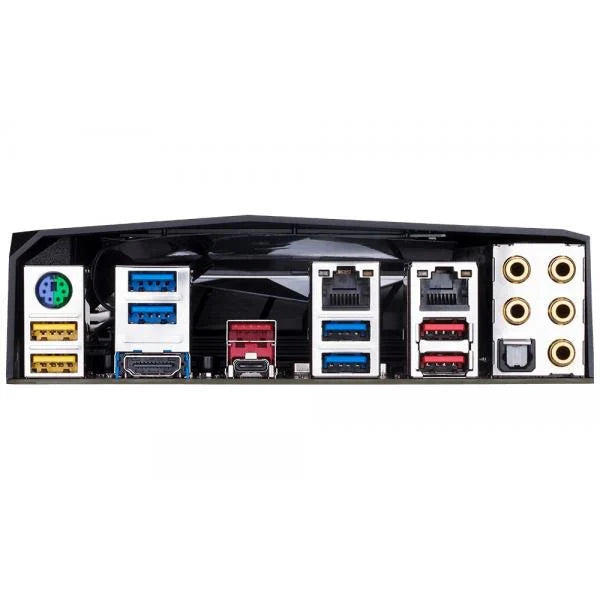

| Back Panel Connectors |
1 x PS/2 keyboard/mouse port 1 x HDMI port 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 3 x USB 3.1 Gen 2 Type-A ports (red) 6 x USB 3.1 Gen 1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control |
| BIOS |
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOS3D OSDAutoGreenBIOS SetupCloud StationColor TemperatureEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSmart KeyboardSmart TimeLockSystem Information ViewerUSB BlockerUSB DAC UP 2V-Tuner Support for Q-Flash Support for Xpress Install |
| Bundle Software | Norton® Internet Security (OEM version) |
| Operating System |
Support for Windows 10 64-bit Support for Windows 7 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
