Description
Feature of Gigabyte GA-A320M-H DDR4
- Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- High Quality Audio Capacitors and Audio Noise Guard
- Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
- GIGABYTE™ UEFI BIOS
- All New GIGABYTE™™ APP Center, Simple and Easy Use

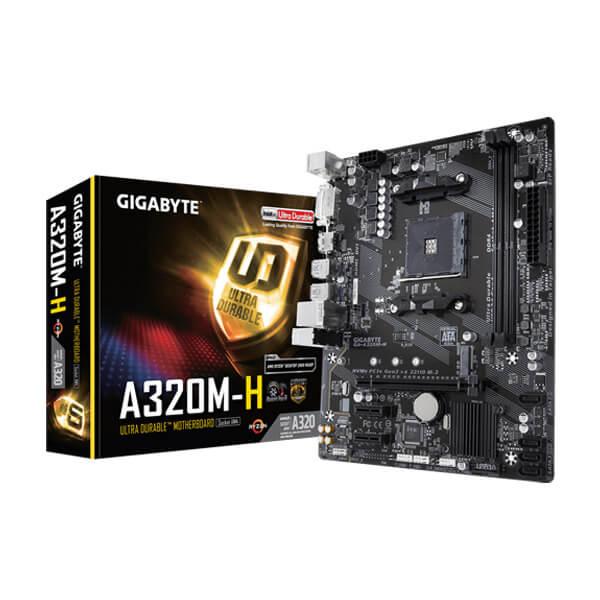

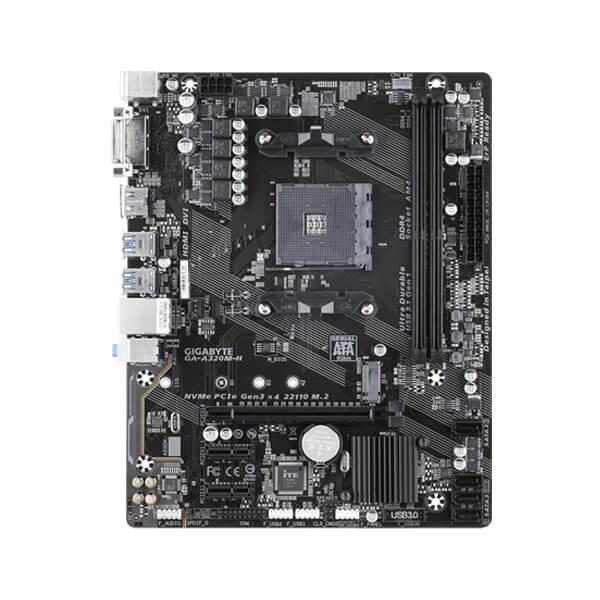

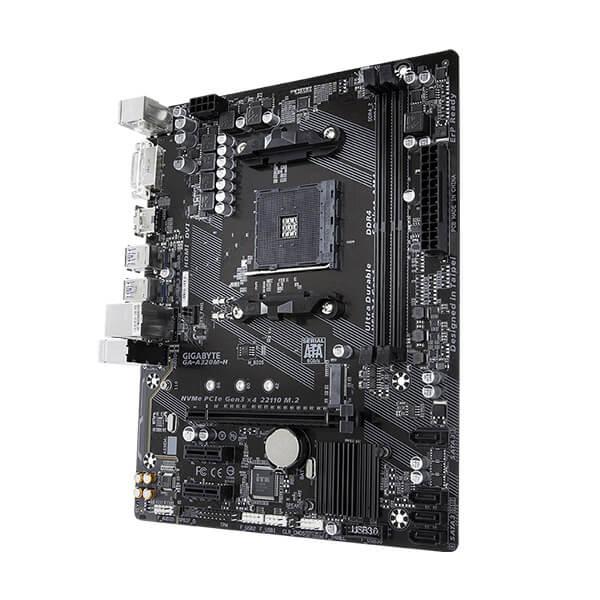

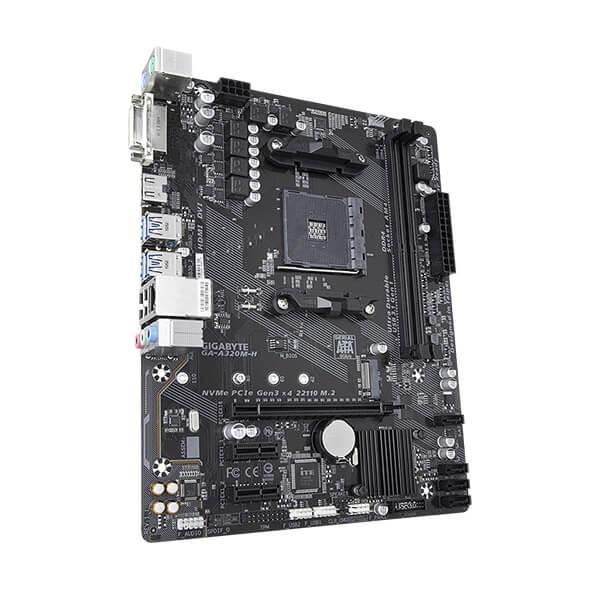

GIGABYTE GA-A320M-H DDR4 AM4 motherboards are ready to support the latest AMD Ryzen™ 3000 Processors and are backwards compatible with AMD Ryzen™ 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems.
Hybrid Digital VRM with Low RDS(on) MOSFETs
GIGABYTE Ultra Durable™ motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy saving which are beneficial for both end-users and the environment without impacting system performance.
Realtek GbE LAN with cFosSpeed Internet Accelerator Software
Realtek Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
Specifications of Gigabyte GA-A320M-H DDR4
| CPU |
AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD A320 |
| Memory |
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules* Actual support may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz* Support for HDMI 1.4 version. Maximum shared memory of 2 GB * Actual support may vary by CPU. |
| Audio |
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots |
1 x PCI Express x16 slot, running at x16 (PCIEX16)* Actual support may vary by CPU.(The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Storage Interface |
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)* Actual support may vary by CPU.* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. |
| USB |
Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |

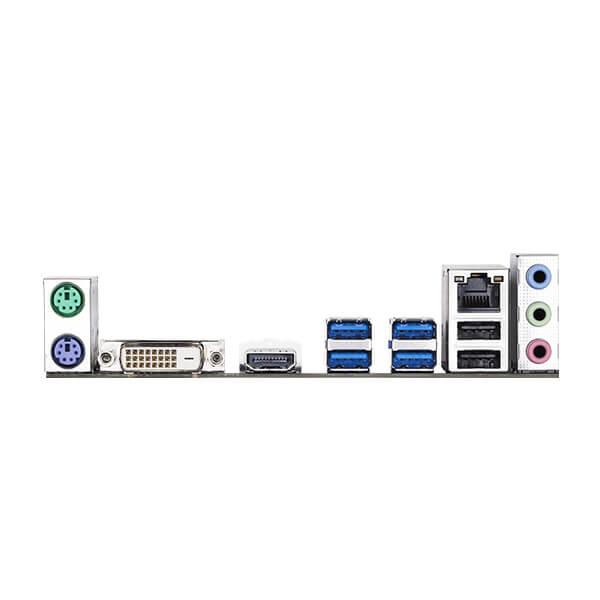

| Back Panel Connectors |
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control* Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOS3D OSDAutoGreenCloud StationEasyTuneFast BootGame BoostON/OFF ChargeSmart BackupSmart Keyboard Smart TimeLock System Information Viewer USB BlockerSupport for Q-Flash Support for Xpress Install |
| Bundle Software |
Norton® Internet Security (OEM version) cFosSpeed |
| Operating System |
Support for Windows 10 64-bit Support for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
| Form Factor | Micro ATX Form Factor; 24.4cm x 19.5cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
