Description

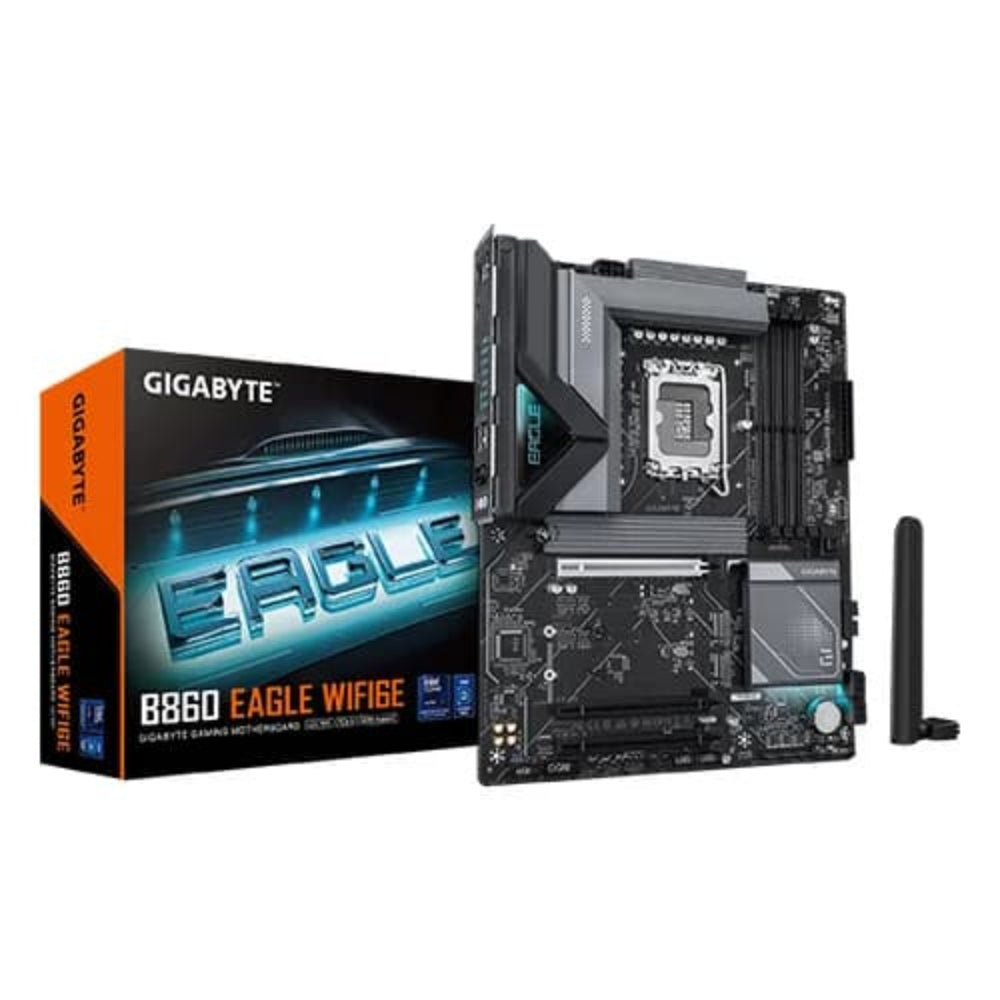

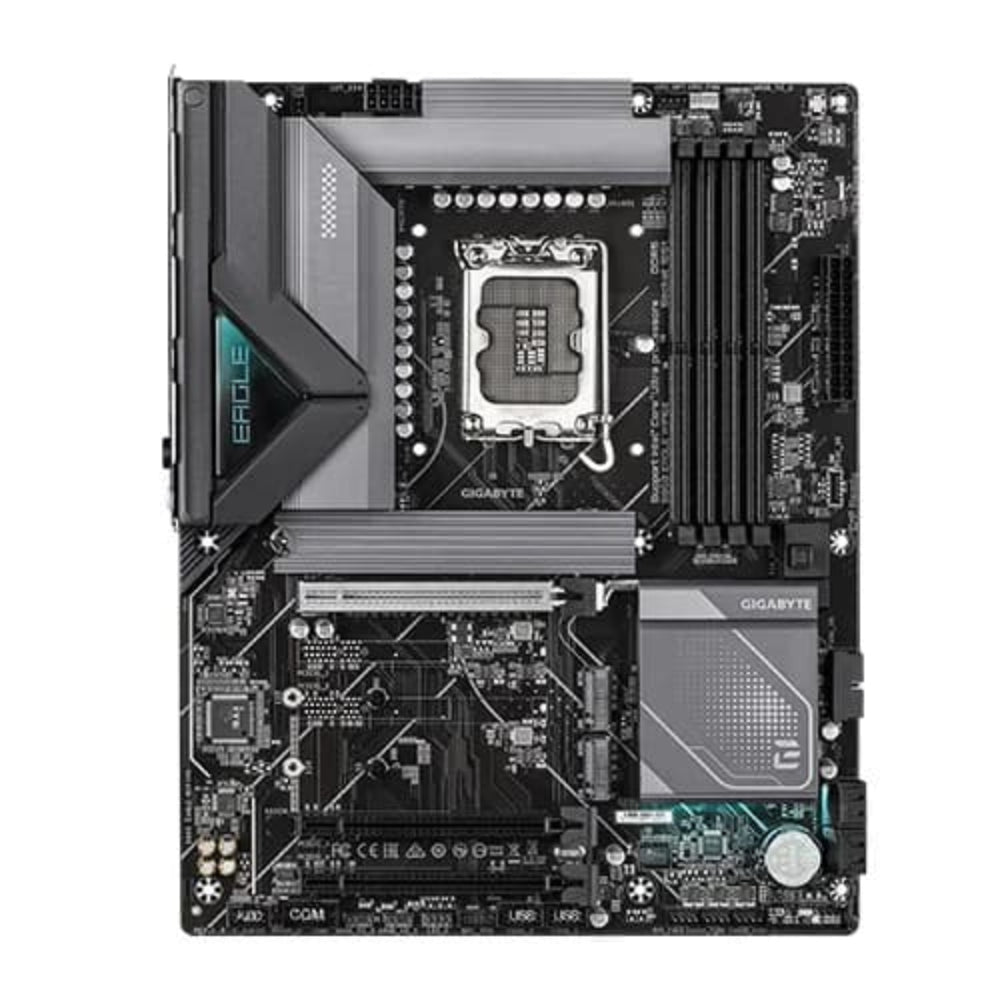

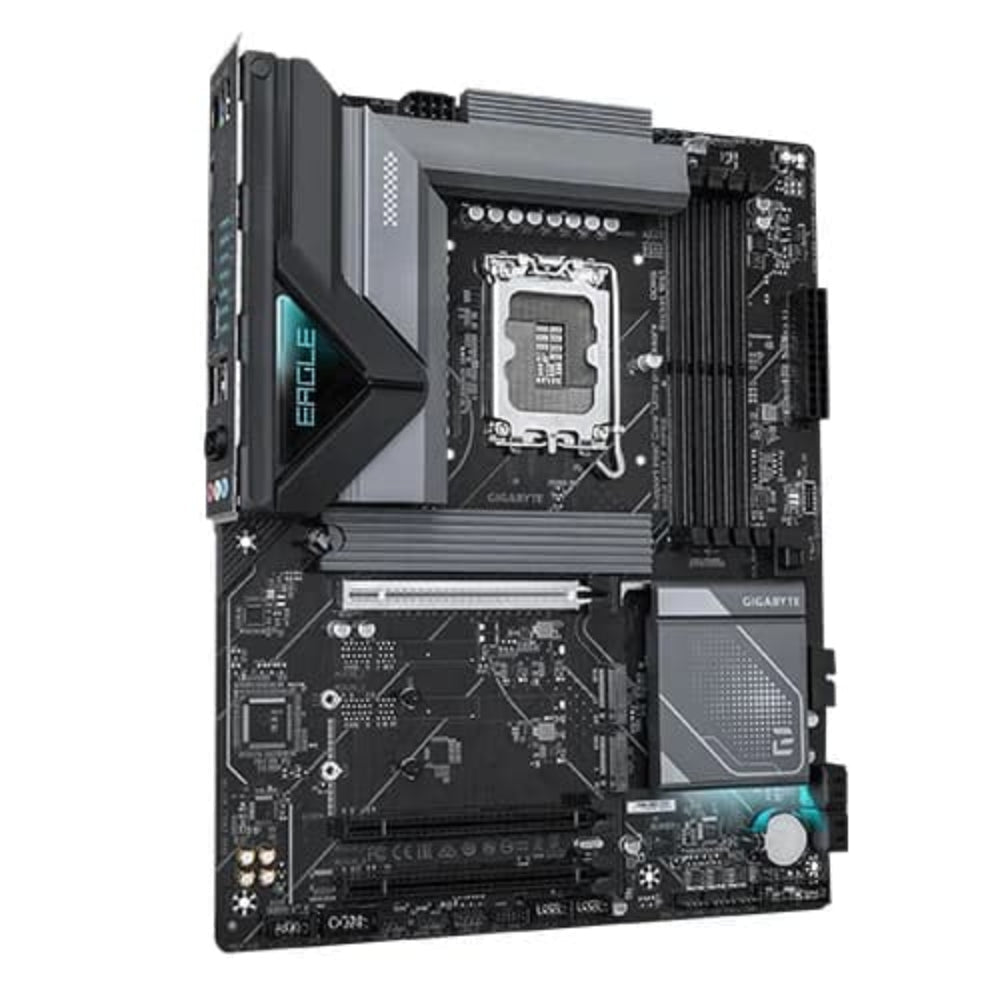

Features of GIGABYTE B860 Eagle WIFI6E DDR5 Intel Motherboard
- Supports Intel® Core Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E
- Extended Connectivity : HDMI, DisplayPort
Infinite Memory Performance
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Steady Power
Better Play EAGLE Series, steady power keeps your computing smooth.
Comprehensive Thermal
EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Born from Ultra Durable
Technology embodies our commitment to excellence, providing users with a platform that's not only powerful but also built for longevity and reliability. EAGLE series motherboards are engineered to endure and excel.
Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.
Specifications of GIGABYTE B860 Eagle WIFI6E DDR5 Intel Motherboard
| Model | B860-EAGLE-WIFI6E |
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | B860 |
| Memory Speed | up to 9066 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Graphics Port | 1 x HDMI Port,1 x DisplayPort |
| Expansion Slots |
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4) |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

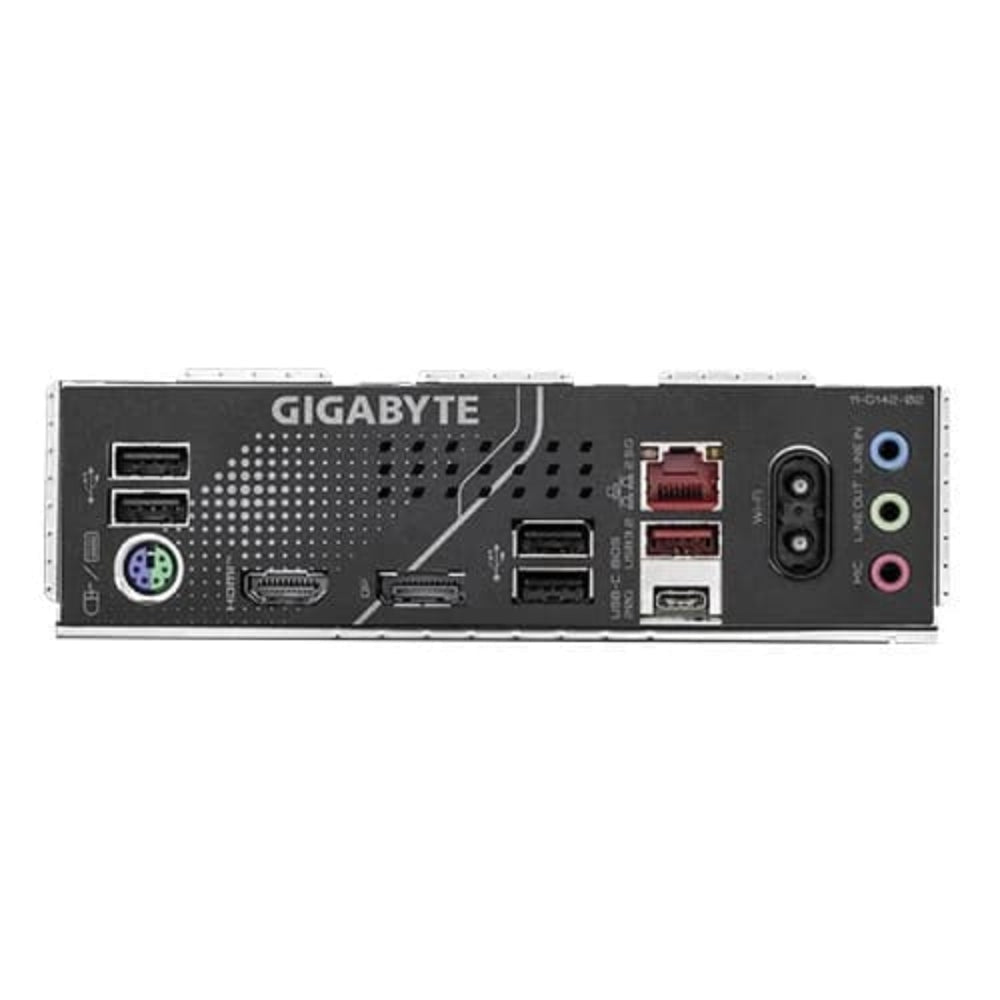

| Back Panel I/O Ports |
1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU. |
| Internal I/O Connector |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
