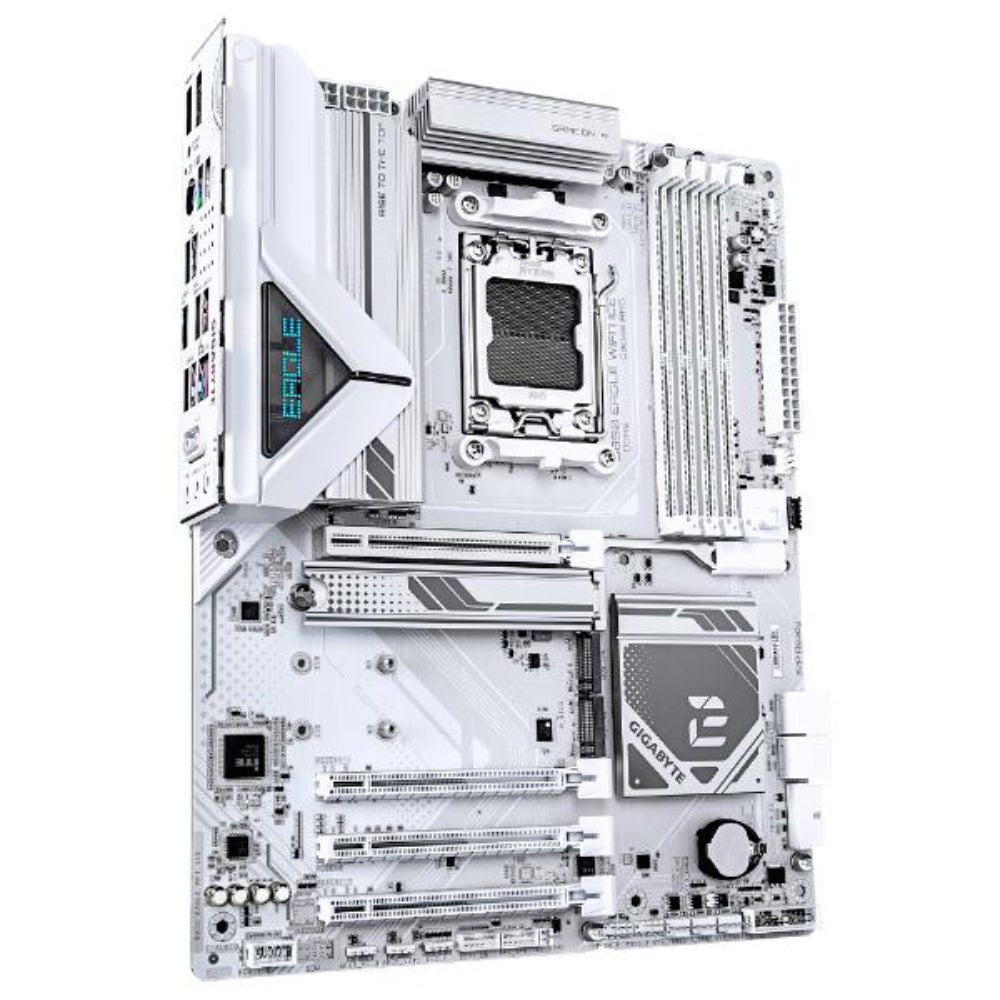

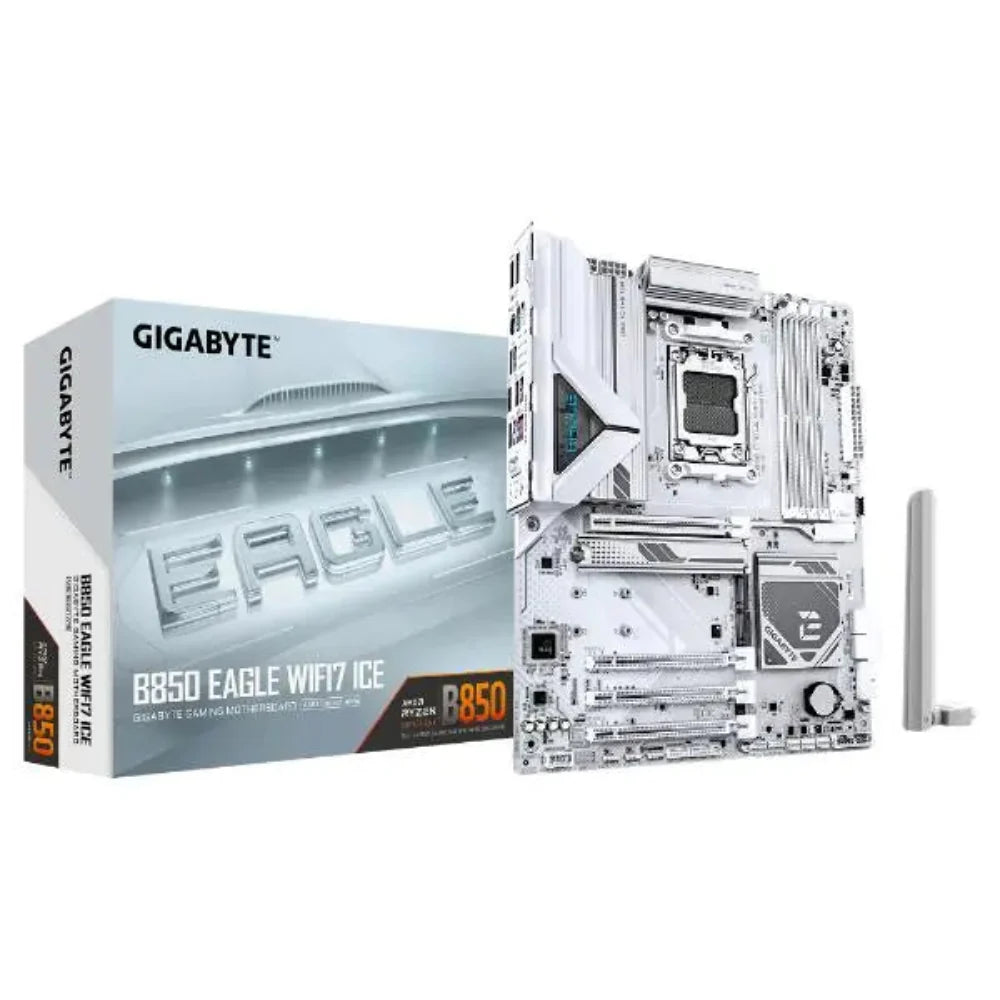

Features of GIGABYTE B850 Eagle ICE Wifi7 DDR5 AMD Motherboard
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital 8+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Displayport
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
X3D Turbo Mode
Boost the performance of your Ryzen 9000 processor with a single click by enabling Gigabyte’s X3D Turbo Mode through the BIOS. This setting can enhance frame rates by up to 18% and works with both X3D and non X3D processors.
D5 Bionic Corsa
One-click optimizing and overclocking, an advanced PCB design, and AI-driven advanced BIOS optimization help you to get the most performance out of your system.
Comprehensive Thermal Design
Large VRM heatsinks help to maintain optimal performance under heavy loads. M.2 Thermal Guard technology quickly dissipates heat from your SSDs to help avoid speed throttling. Additionally, the rear panel features small cooling vents. You can also control AIO fan speeds through the BIOS.
Smart Fan 6
Monitor the cooling performance of your build with Smart Fan 6, a free suite dedicated to ensuring your components run properly. Temperature sensors are located around the board, along with hybrid fan headers, giving you optimal control and cooling. When the optimal temperature is met, the fans automatically stop, promoting fan lifespan.
DIY Friendly
M.2 EZ-Latch Click, M.2 EZ-Latch Plus, and PCIe EZ-Latch Plus designs simplifies SSD and graphics card installation. The EZ Debug Zone helps you to quickly diagnose and troubleshoot issues. The stainless steel reinforced PCIe x16 slot provides better support for heavy expansion cards.
Hi-Fi Audio
Built with gaming and media enthusiasts in mind, the EAGLE WIFI7 ICE uses high-quality components and an audio noise guard to create deep and immersive audio experience.
RGB Fusion
Illuminate your rig with an abundance of color with RGB Fusion Software. Giving you a variety of effects and colors to choose from, you can turn your system into the centerpiece of your gaming room.
Easy BIOS Update
With GIGABYTE Q-Flash Plus, you can update the BIOS without having to install a CPU, memory, or graphics card. Simply download and save a new BIOS file onto a USB flash drive, then plug it into the designated port before pressing the dedicated Q-Flash Plus button.
Specification of GIGABYTE B850 Eagle ICE Wifi7 DDR5 AMD Motherboard
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B850 |
| Memory | Support for DDR5 8200(O.C) down to 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity). Dual channel memory architecture. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for AMD EXPO™ & Extreme Memory Profile (XMP) memory modules. |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:1 x DisplayPort, max resolution 3840x2160@144 Hz (DP 1.4, HDR). 1 x HDMI port, max resolution 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR). (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & Bluetooth | Realtek® Wi-Fi 7 RTL8922AE802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard * Wi-Fi 7 requires Windows 11 SV3. No support for Windows 10. |
| Expansion Slots | CPU:1 x PCI Express x16 slot (PCIEX16)Ryzen™ 9000/7000 Series: PCIe 5.0 x16 mode Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8 mode Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4 mode Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 at x4 (PCIEX4) 2 x PCI Express x16 slots, supporting PCIe 3.0 at x1 (PCIEX1_1, PCIEX1_2) * PCIEX1_1/2 slots share bandwidth with SATA3 0/1 connectors. |
| Storage Interface | CPU:1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000) or PCIe 4.0 x4/x2 (Ryzen 8000) 1 x M.2 (M2B_CPU): PCIe 4.0 x4/x2 Chipset:1 x M.2 (M2C_SB): PCIe 4.0 x2 SATA & RAID:4 x SATA 6Gb/s connectors RAID 0, 1, 5, 10 support for NVMe SSDs (RAID 5 requires Ryzen 9000) RAID 0, 1, 10 support for SATA devices |
| USB | CPU:1 x USB Type-C® (back panel), USB 3.2 Gen 1 2 x USB 3.2 Gen 2 Type-A (red, back panel) Chipset:1 x USB Type-C® (internal header), USB 3.2 Gen 1 4 x USB 3.2 Gen 1 (2 back, 2 internal) 4 x USB 2.0/1.1 (back panel) Chipset+USB 2.0 Hub:4 x USB 2.0/1.1 (internal headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power 1 x 8-pin & 1 x 4-pin ATX 12V power 1 x CPU fan, 1 x CPU fan/water pump, 3 x system fan, 1 x system fan/water pump headers 3 x addressable RGB Gen2 LED, 1 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors Front Panel, Front Audio headers 1 x USB Type-C® header (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers 1 x TPM header 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper |

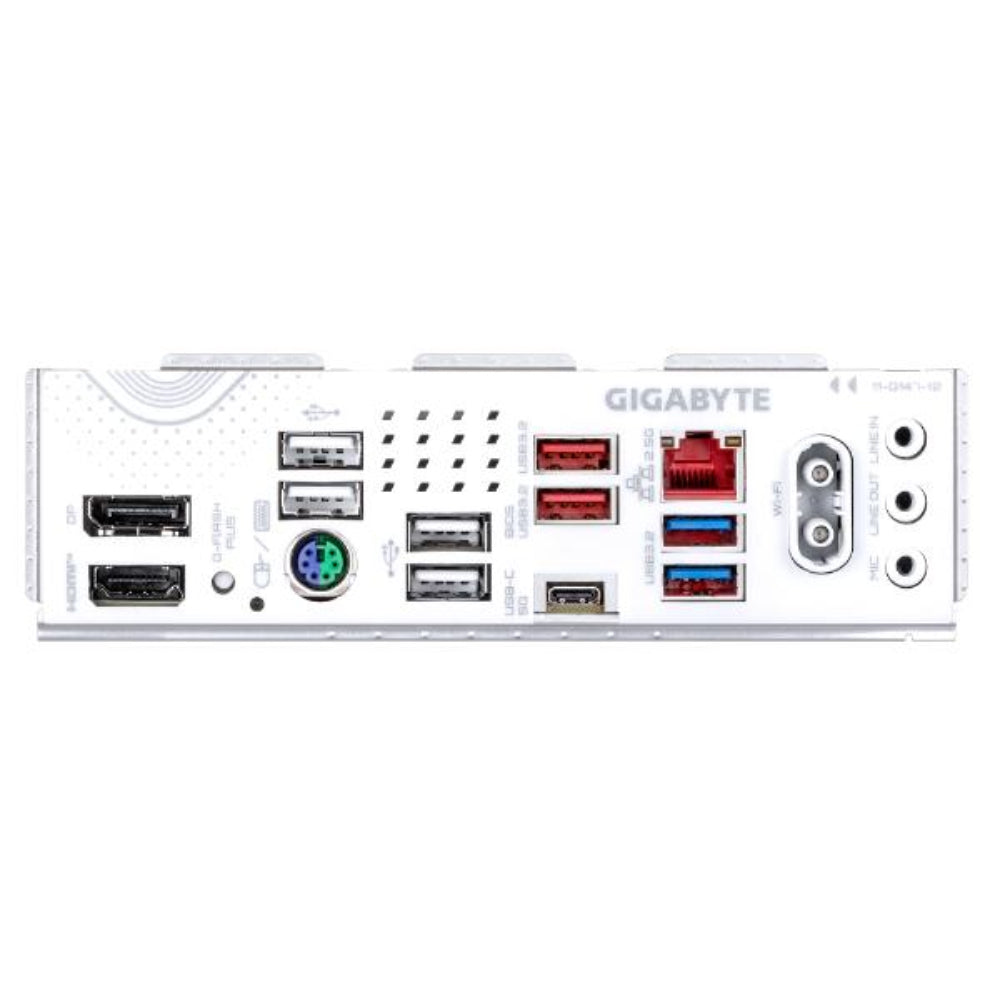

| Back Panel Connectors | 1 x DisplayPort, 1 x HDMI port 1 x Q-Flash Plus button 4 x USB 2.0/1.1, 1 x PS/2 port 2 x USB 3.2 Gen 2 Type-A (red) 1 x USB Type-C® (USB 3.2 Gen 1) 1 x RJ-45 LAN port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection; Fan fail warning; Fan speed control |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version); LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
