Description
Feature of GIGABYTE B660 Aorus Elite AX DDR4 Intel Motherboard
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- WIFI 6E 802.11ax 2T2R & BT5 with AORUS Antenna
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard
- Rear and Front USB3.2 Type-C® for Fast and Versatile Connections
- Pre-installed IO Shield for easy and quick installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

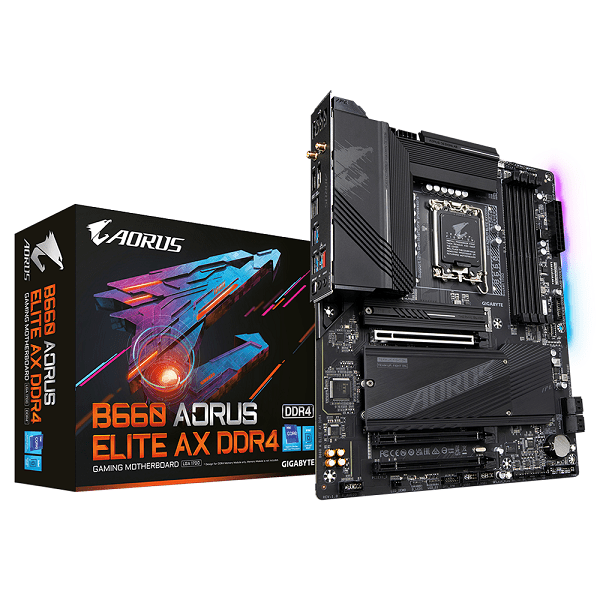

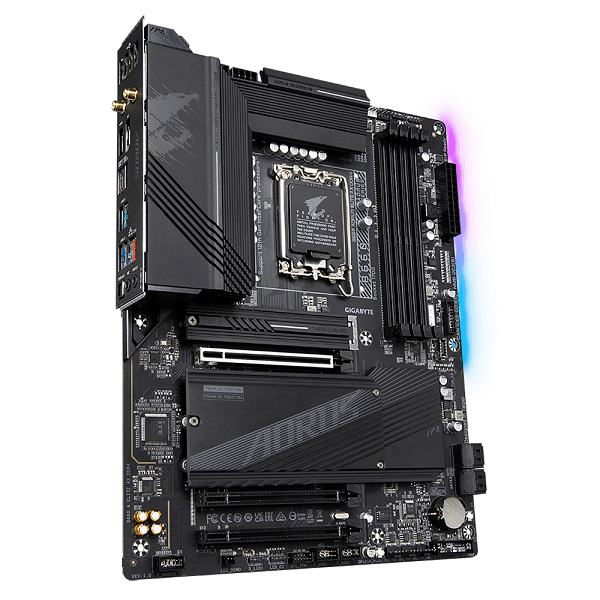

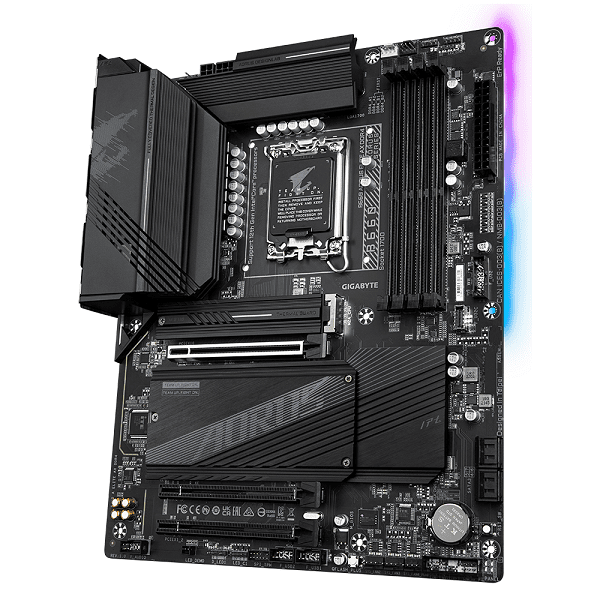

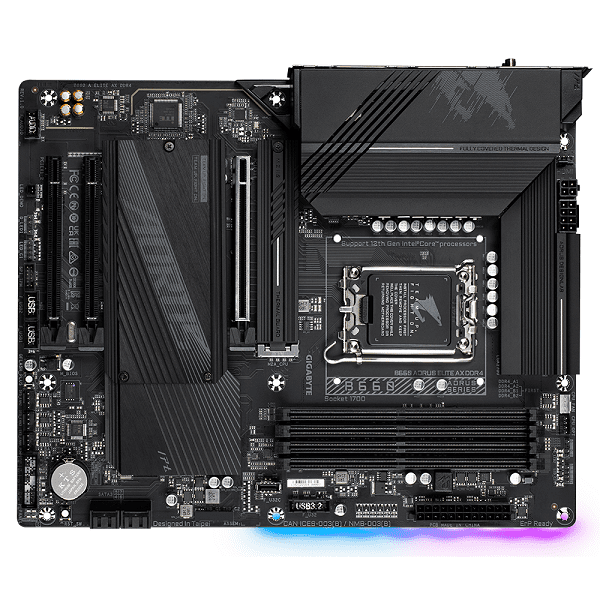

B660 AORUS ELITE AX DDR4
Ever wonder why your system underperforms? You may be surprised how a motherboard could critically bottleneck the system performance, especially when it falls short on both the power and thermal design. With a limited budget, it is even more important to spend it wisely. Introducing AORUS ELITE motherboards, featuring the best-in-class digital power design, the best-in-class full-metal heatsink, and the best-in-class DDR4 XMP compatibility. It only takes a small step-up to be the best-in-class. Build Smart. Go ELITE.
UNPARALLELED PERFORMANCE
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE B660 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.​
ADVANCED THERMAL SOLUTION
GIGABYTE B660 Aorus Elite AX Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming
CONNECTIVITY
GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Specifications of GIGABYTE B660 Aorus Elite AX DDR4 Intel Motherboard
|
CPU
|
1. LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
| 2. L3 cache varies with CPU | |
| * Please refer to “CPU Support List” for more information. | |
| Chipset | 1. Intel® B660 Express Chipset |
|
Memory
|
1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules |
| 2. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| 3. Dual channel memory architecture | |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 6. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
|
Onboard Graphics
|
Integrated Graphics Processor-Intel® HD Graphics support: |
| 1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| 2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| (Graphics specifications may vary depending on CPU support.) | |
|
Audio
|
1. Realtek® Audio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software. | |
| 4. Support for S/PDIF Out | |
| LAN | 1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module
|
Intel® Wi-Fi 6E AX211 |
| 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| 2. BLUETOOTH 5.2 | |
| 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| * Actual data rate may vary depending on environment and equipment. | |
|
Expansion Slots
|
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| (The PCIEX16 slot conforms to PCI Express 4.0 standard.) | |
| 1. 2 x PCI Express x1 slots | |
| (The PCIEX1 slots conform to PCI Express 3.0 standard.) | |
|
Storage Interface
|
CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| 2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) | |
| 3. 4 x SATA 6Gb/s connectors | |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Intel® Optane™ Memory Ready | |
| * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. | |
|
USB
|
Chipset: |
| 1. 2 x USB Type-C® ports with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) | |
| 2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 3. 2 x USB 3.2 Gen 1 ports, available through the internal USB header | |
| Chipset+USB 3.2 Gen 1 Hub: | |
| 1. 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset+2 USB 2.0 Hubs: | |
| 1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
|
Internal I/O Connectors
|
1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x 4-pin ATX 12V power connector | |
| 4. 1 x CPU fan header | |
| 5. 1 x water cooling CPU fan header | |
| 6. 3 x system fan headers | |
| 7. 1 x system fan/water cooling pump header | |
| 8. 2 x addressable LED strip headers | |
| 9. 2 x RGB LED strip headers | |
| 10. 3 x M.2 Socket 3 connectors | |
| 11. 4 x SATA 6Gb/s connectors | |
| 12. 1 x front panel header | |
| 13. 1 x front panel audio header | |
| 14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 15. 1 x USB 3.2 Gen 1 header | |
| 16. 2 x USB 2.0/1.1 headers | |
| 17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 18. 1 x reset button | |
| 19. 1 x Q-Flash Plus button | |
| 20. 1 x reset jumper | |
| 21. 1 x Clear CMOS jumper | |
|

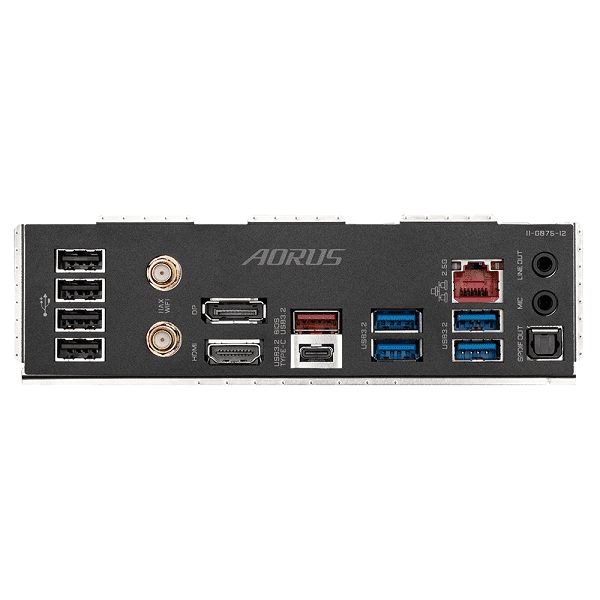

Back Panel Connectors
|
1. 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| 2. 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 3. 4 x USB 3.2 Gen 1 ports | |
| 4. 4 x USB 2.0/1.1 ports | |
| 5. 2 x SMA antenna connectors (2T2R) | |
| 6. 1 x DisplayPort | |
| 7. 1 x HDMI 2.0 port | |
| 8. 1 x RJ-45 port | |
| 9. 1 x optical S/PDIF Out connector | |
| 10. 2 x audio jacks | |
| I/O Controller | 1. iTE® I/O Controller Chip |
|
H/W Monitoring
|
1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
|
BIOS
|
1. 1 x 256 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
|
Unique Features
|
1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash Plus | |
| 3. Support for Q-Flash | |
| 4. Support for Xpress Install | |
|
Bundled Software
|
1. Norton® Internet Security (OEM version) |
| 2. LAN bandwidth management software | |
|
Operating System
|
1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit | |
| Form Factor | 1. ATX Form Factor; 30.5cm x 24.4cm |
