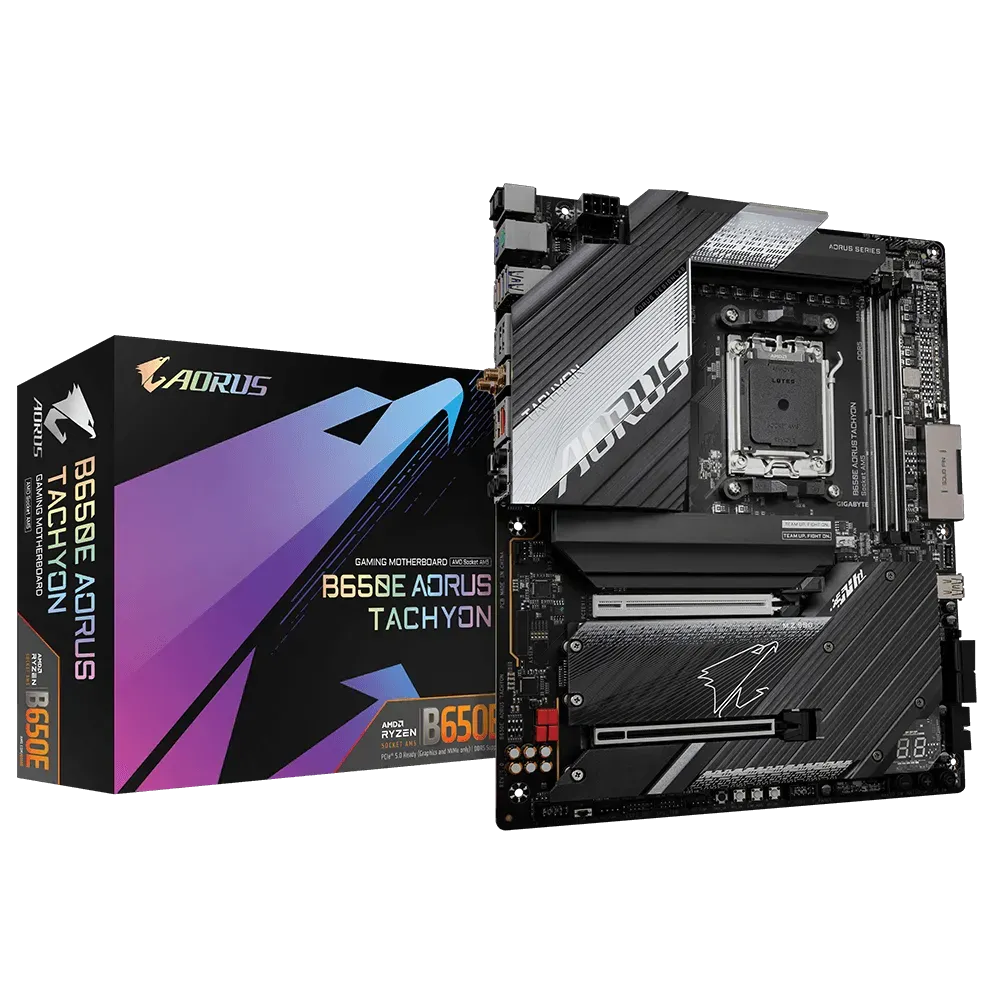

Features of GIGABYTE B650E Aorus Tachyon Wifi DDR5 Intel Motherboard
To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.
VRM design uses 100% full tantalum polymer capacitors for better transient response and less mechanical interference with extreme overclocking cooling device.
Dual 8 pin CPU power connectors with metal shielding provide maximal current input to processor.
AORUS is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their AORUS motherboard.
With 2-DIMM daisy chain memory trace layout, B650E AORUS TACHYON can achieve the shortest memory DIMM distance between CPU, therefore reach the highest memory clock and the lowest latency.
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
GIGABYTE AM5 MB supports both AMD EXPO™ and/or Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.
Define and create your own SPD profile into Native, EXPO and XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.
• One empty SPD profile can be defined by users and carry to next computer
• Quick memory performance simulation based on user input clock and timing parameters
• Profile save and load function to share your memory parameters online
• One empty SPD profile can be defined by users and carry to next computer
• Quick memory performance simulation based on user input clock and timing parameters
• Profile save and load function to share your memory parameters online
Specification of GIGABYTE B650E Aorus Tachyon Wifi DDR5 Intel Motherboard
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Chipset | AMD B650 |
| Memory | Support for DDR5 8400(OC)/ 8266(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
| Audio | Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard |
| Expansion Slots |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector. |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+ASMedia® USB 3.2 Gen 2 Controller: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 2.0/1.1 ports available through the internal USB header |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x system fan/water cooling pump headers 1 x CPU cooler LED strip/RGB LED strip header 1 x addressable LED strip header 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted PlatformModule header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x noise detection header 2 x temperature sensor headers Voltage Measurement Points 1 x power button (PW) 1 x reset button (RST) 1 x Clear CMOS button (CMOS) 1 x Cold Reset button (RTY) 1 x Protection Mode button (LIMP_MODE) 1 x CPU Ratio Up button (CLK+) x CPU Ratio Down button (CLK-) 1 x BIOS switch (BIOS_SW) 1 x OC Trigger switch (TGR_SW) 1 x Reserved switch (RSV_SW) |

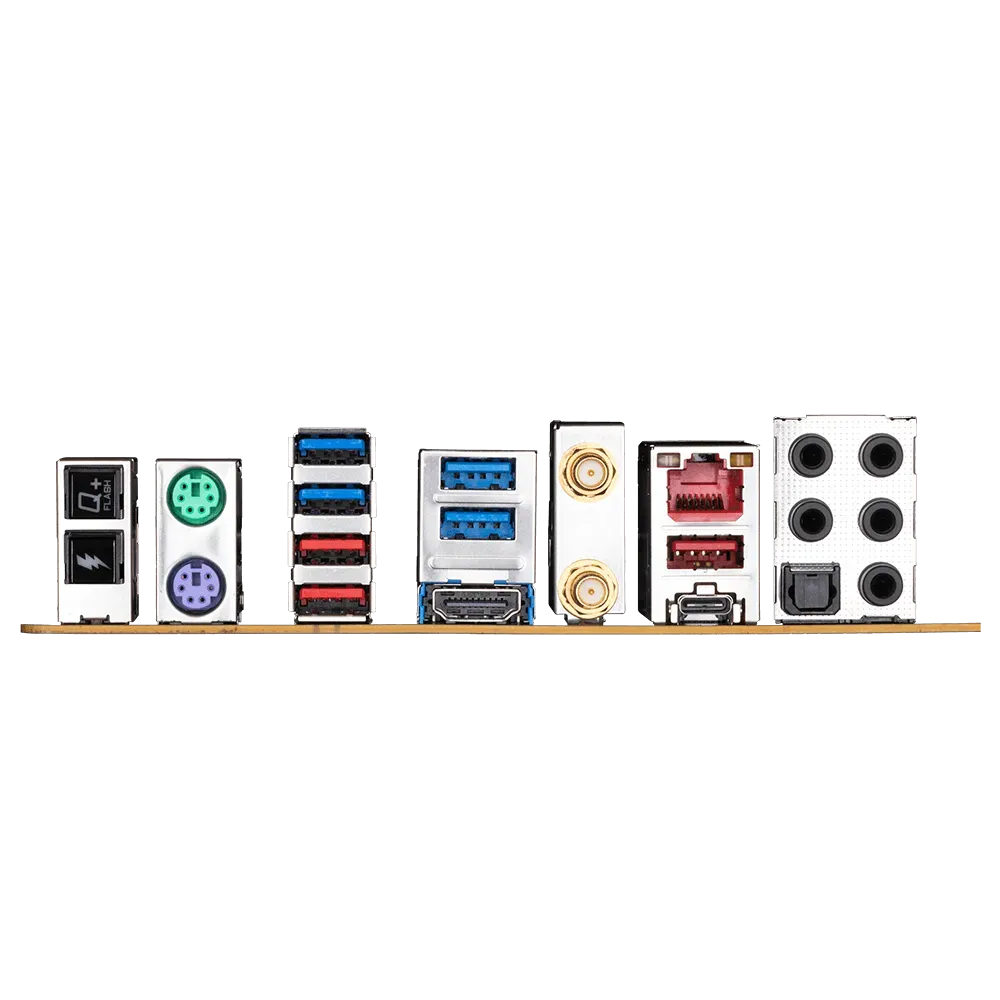

| Back Panel Connectors | 1 x Q-Flash Plus button 1 x OC Ignition button 1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS | 2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
