Description
Features Of GIGABYTE Aorus P750W 750W

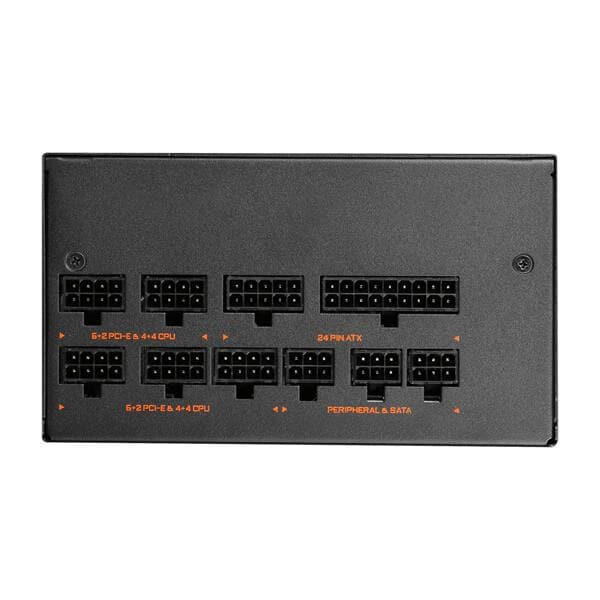

- Fully Modular Design
- High quality 100% Japanese Capacitors
- 135mm 2 ball bearing smart fan with fan stop function
- GIGABYTE Aorus P750W 750W 80 PLUS Gold certified: above 90% efficiency at 50% load
- Single +12V rail
- OCP/OTP/OVP/OPP/UVP/SCP protection
High Quality 100% Japanese Capacitors
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

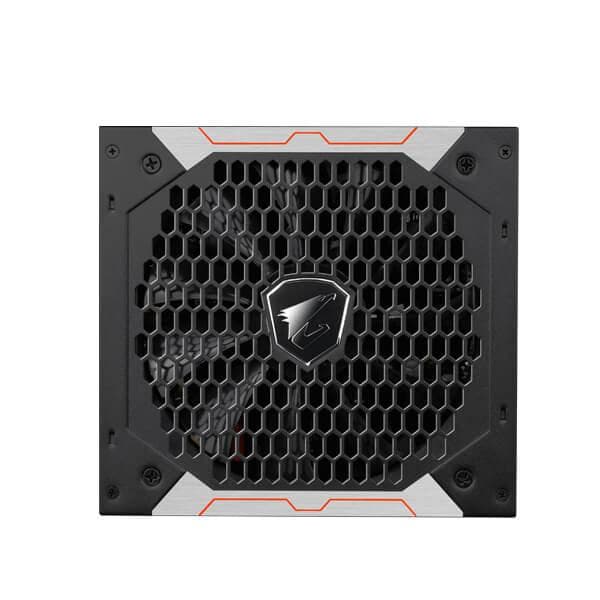

135mm Smart Fan
Gigabyte Power Supply Fan speed will be adjusted according to the system load. And the fan will stop when the system is idle or under low load (less than 20% load). The 2 ball bearing structure provides longer life time.
80 Plus Gold Certified
750W Power Supply 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
Protection
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Get the best 80 Plus Gold computer smps price from us today!
Specifications Of GIGABYTE Aorus P750W 750W
| Model | GP-AP750GM |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 10A |
| Input Frequency | 47-63 Hz |
| Output Capacity | 750W |
| Dimension | 150 x 160 x 86mm |
| Fan Type | 135mm Double ball bearing fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100ms ~ 150ms |
| Hold Up Time | > 16m sec at full load (115V) |
| Cable Type | Flat, All black |
| Connectors |
ATX/MB 20+4 Pin x 1 : 650mm CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1 PCI-e 6+2 Pin x 4 : 750mm*2 , 650mm+150mm*1 SATA x6 + 4 Pin Peripheral x2 : 550mm+100mm+100mm+100mm*1 450mm+100mm+100mm+100mm *1 4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1 4 Pin Floppy x 1 : 100mm |
| Warranty | 10 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
