Description

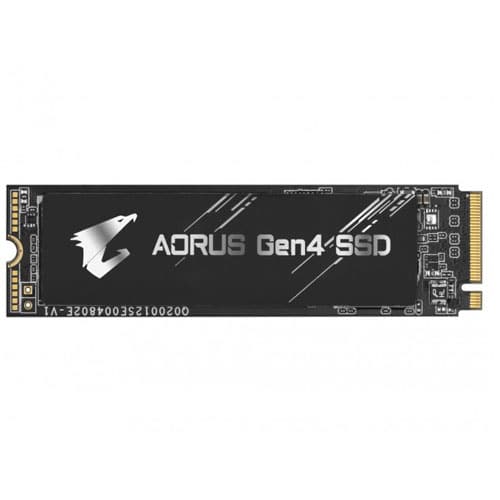

Features of GIGABYTE Aorus 2TB NVMe Gen4 Internal Solid State Drive (SSD)
World First PCIe 4.0x4 Controller
The World First PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.
Selected High Speed 3D TLC NAND Flash (800MT/s)
The selected and high quality NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on gigabyte ssd AORUS Gen 4 SSD far exceeds that of PCIe 3.0x4 devices for superior storage performance.
Xtreme Storage Performance
With the new PCIe 4.0 controller, GIGABYTE Aorus 2TB 2.5 SATA Gen 4 internal ssd delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,400MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.
SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.
Specifications of GIGABYTE Aorus 2TB NVMe Gen4 Internal Solid State Drive (SSD)
| Interface | PCI-Express 4.0×4, NVMe 1.3 |
| Form Factor | M.2 2280 |
| Total Capacity | 2000GB |
| Warranty | Limited 5-years or 1800TBW |
| NAND | 3D TLC NAND Flash |
| External DDR Cache | DDR4 2GB |
| Sequential Read speed | Up to 5000 MB/s |
| Sequential Write speed | Up to 4400 MB/s |
| Random Read IOPS | up to 750k |
| Random Write IOPS | up to 700k |
| Dimension | 80.5 x 11.4 x 23.5 mm |
| Mean time between failure (MTBF) | 1.77 million hours |
| Power Consumption (Active) | Average: R : 6.5W; W : 6.6W |
| Power Consumption (Idle) | 21.1mw |
| Temperature (Operating) | 0°C to 70°C |
| Temperature (Storage) | -40°C to 85°C |
| Note | * Test system configuration: configuration may vary by models, we will choose the latest platform for verification. |
| * Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0. | |
| * Speeds based on internal testing. Actual performance may vary. | |
| * TBW (Terabyte Written):Terabytes Written” is the total amount of data that can be written into an SSD before it is likely to fail. | |
| * 1GB = 1 billion bytes. Actual useable capacity may vary. | |
| * 5 years or 1800TBW, whichever comes first. |
