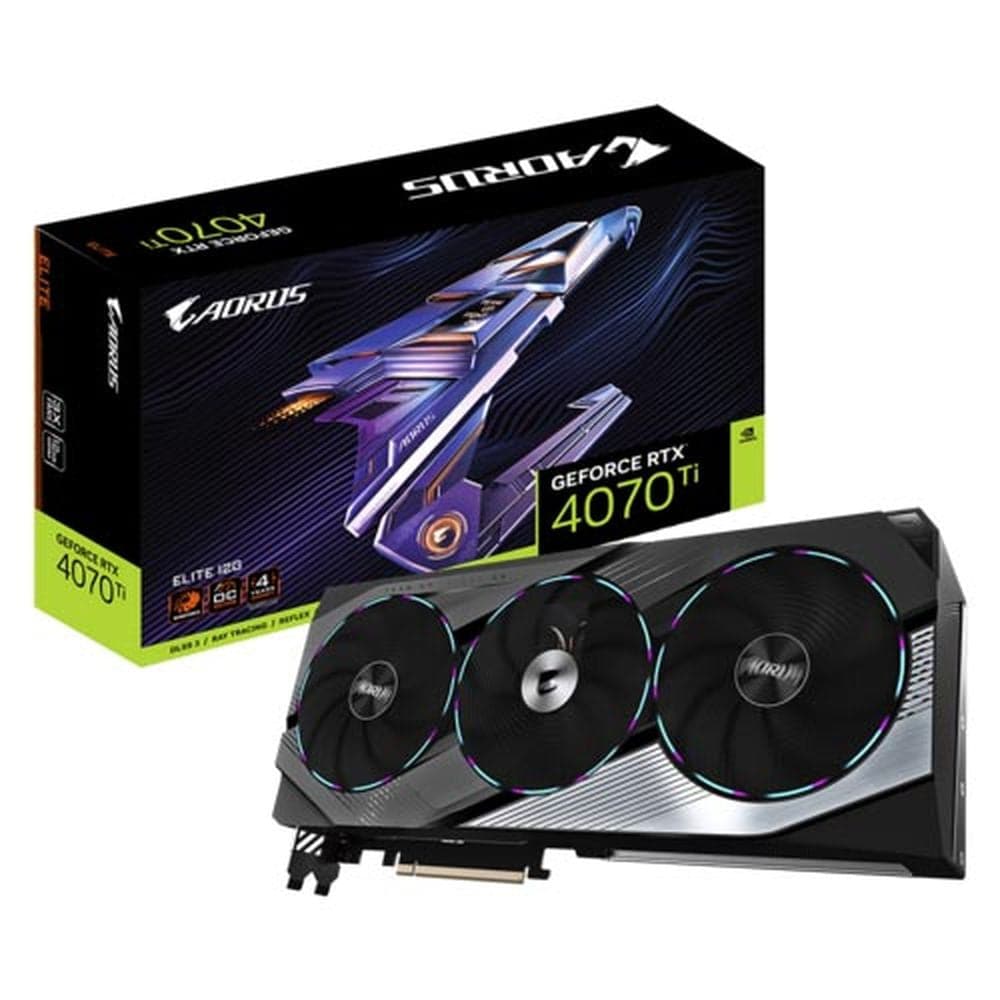

Features of GIGABYTE Aorus Elite GeForce RTX 4070 Ti 12GB Nvidia Graphic Card
WINDFORCE COOLING SYSTEM
The GIGABYTE Aorus Elite GeForce RTX 4070 Ti 12GB Nvidia graphics card for pc cooling system features three 108mm newly designed bionic shark fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
COOLING, UPSCALED. AORUS BIONIC FAN TECH
The sharks’ dermal denticles surrounding their body grant them significant advantages in fluid dynamics. Now AORUS features new Bionic Fan Tech that mimics the scale micro-surfacing and efficiently increases airflow by reducing micro turbulence.
DOUBLE BALL BEARING
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
DIRECTLY. SO FAST.
LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
THE OTHER WAY AROUND.
ALTERNATE SPINNING
Each fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimizing the offset occurred between airflows.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
CHANNELED AIRFLOW.
ANGULAR FIN DESIGN
The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.
MAKE ROOM FOR THE AIRFLOW.
SCREEN COOLING
To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.
RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4070 Ti
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
- 4 Years Warranty (Online registration required)
Specifications of GIGABYTE Aorus Elite GeForce RTX 4070 Ti 12GB Nvidia Graphic Card
| Graphics Processing | GeForce RTX™ 4070 Ti |
| Core Clock | 2655 MHz (Reference card: 2610 MHz) |
| CUDA® Cores | 7680 |
| Memory Clock | 21 Gbps |
| Memory Size | 12 GB |
| Memory Type | GDDR6X |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680×4320 |
| Multi-view | 4 |
| Card size | L=342 W=153 H=70.6 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 750W |
| Power Connectors | 16 pin*1 |
| Output | DisplayPort 1.4a *3 |
| HDMI 2.1 *1 | |
| Accessories | 1. Quick guide |
| 2. Warranty registration | |
| 3. Anti-sag bracket | |
| 4. Anti-sag bracket installation guide | |
| 5. One 16-pin to three 8-pin power adaptor | |
| 6. AORUS Metal sticker |
