Description

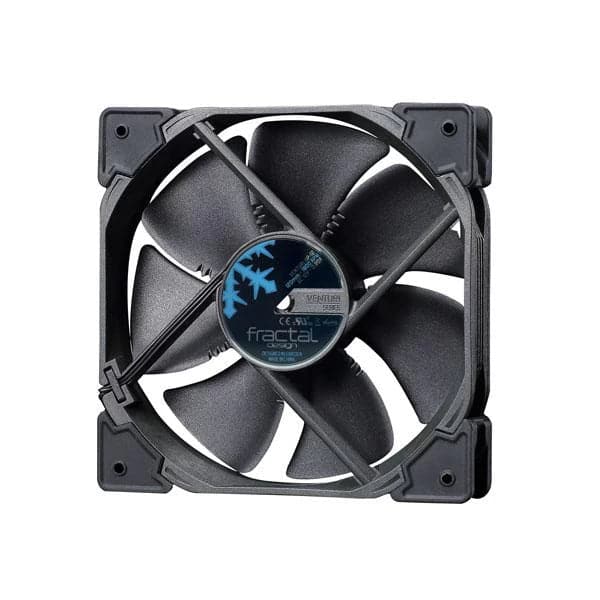

Features of FRACTAL DESIGN Venturi HP-12 120mm PWM
The FRACTAL DESIGN Venturi HP-12 PWM fans are optimized for high-restriction airflow scenarios, making them an excellent choice for usage on large heatsinks, on radiators, or in other highly restrictive scenarios
- True FDB-bearings provides silent operation and a long lifespan
- Counter-balanced magnet reduces axial tension on the bearing
- Integrated vibration-dampening corners
-
Made from high-grade glass fiber reinforced thermoplastic polymer
-
Ground-breaking airflow, perfect for low-restriction usage scenarios
-
Aerodynamical stator struts reduce noise and unwanted turbulence
-
Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts
-
The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation
Designed for strength and silence
These fans can move an amazing amount of air through restricted environments compared to other fans at the same, minimal noise level.
The Venturi High Pressure Series PWM fans are ideal for anyone looking for a perfect balance between high performance and low noise built from sturdy, high quality materials.
Smart PWM support starting at 400 RPM
Featuring PWM control with a very wide speed range, starting at only 400 RPM (400 +/- 100 RPM), ideal for CPU heat sinks or radiators, where the motherboard can control the fan speed based on the CPU temperature.
-
Ideal for CPU heat sinks or radiators
-
Comes with a PWM Y-cable, for connecting additional fans to a single PWM header on your motherboard or PWM fan controller
FDB-bearings
True FDB-bearings, providing silent operation and long lifespan
Balanced magnet
Counter-balanced magnet reduces axial tension on the bearing
Vibration dampening
Integrated vibration-dampening corners, made from solid high-quality synthetic rubber
Specifications of FRACTAL DESIGN Venturi HP-12 120mm PWM
| Size | 120 x 120 x 25 mm |
| Screw hole pattern | 105 x 105 mm |
| Fan connector | 4-pin |
| Bearing | FDB |
| Number of blades | 7 |
| Rotational speed | 1800 RPM |
| Noise level | 31.7 dB (A) |
| Airflow (CFM) | 61.4 |
| Airflow (m3/h) | 104.3 |
| Static pressure | 2.3 mm H2O |
| Fan input power | 1.0 W |
| Fan max input current | 0.2 A |
| Fan input voltage | 12 V |
| Fan starting voltage | 6 V |
| LED input power | 1.50 W |
| LED max input current | 0.30 A |
| LED input voltage | 5 V |
| Low (0-20%) PWM speed | 400 RPM |
| Low PWM noise level | < 10 dB (A) |
| Low PWM airflow | 15.4 CFM |
| Low PWM airflow (m3/h) | 26.2 |
| Low PWM static pressure | 0.45 mm H2O |
| MTBF | 150,000 hours |
| Fan weight | 179 g |
| Cable length | 500 mm |
| Cable type | Braided all-black ribbon wire |
| Other |

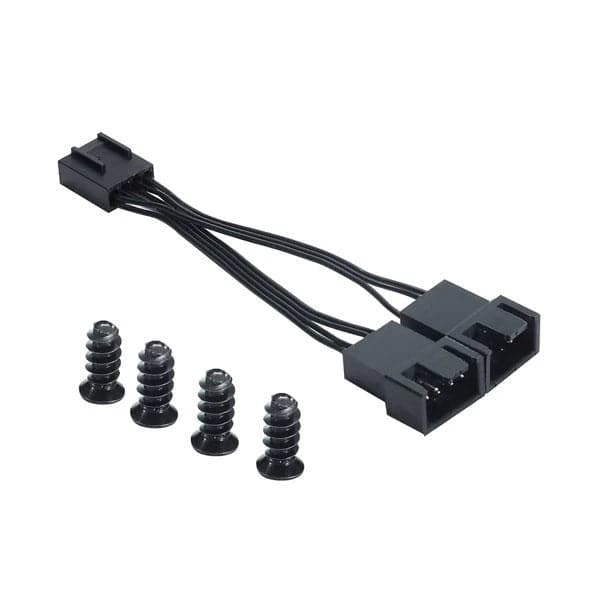

Package contents = Venturi Series fan, Screw pack with 4 metal screws, 1->2 PWM signal splitter cable Package weight = 225 g Package dimensions (Including hanging tab) = 180 x 122 x 30 mm Package dimensions (Excluding hanging tab) = 147 x 122 x 30 mm Product code (Black) = FD-FAN-VENT-HP12-PWM-BK |
| Warranty | 3 years |
| Note* | Price, feature and specifications are subject to change without notice. |
