Description

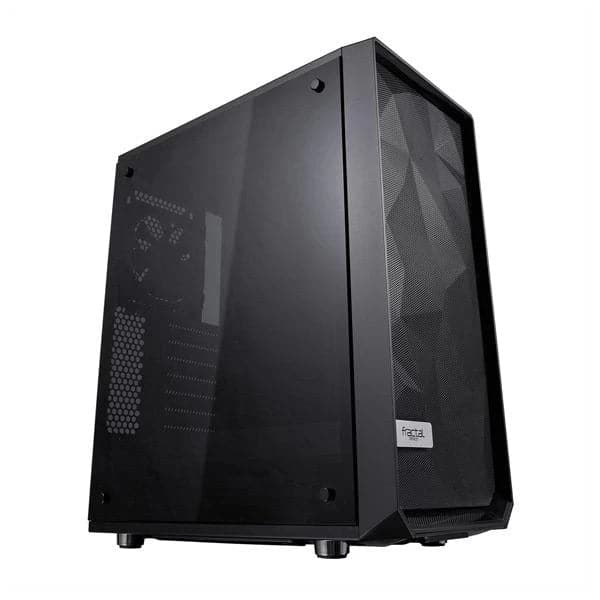

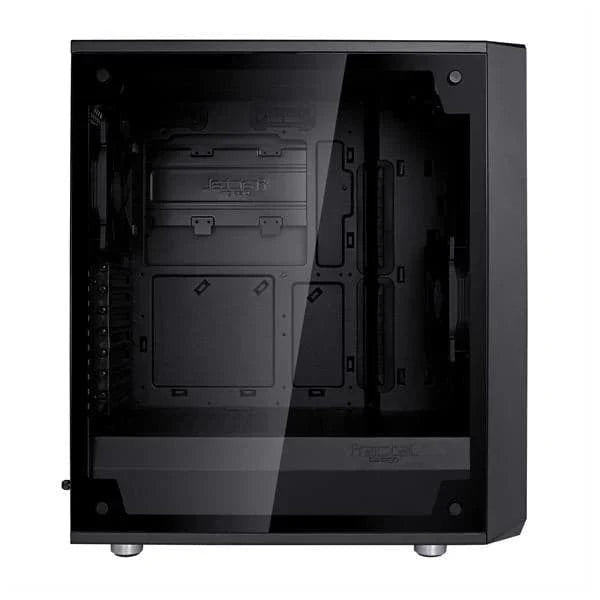

Features of FRACTAL DESIGN Meshify C Dark ATX Mid Tower Cabinet (Black)
Meshify strikes an aggressive pose in the Fractal Design cabinet lineup with unparalleled cooling performance and a defiant look. Like black diamond facets, the angular asymmetry of the FRACTAL DESIGN Meshify C ATX Cabinet carves a space uniquely its own in high-airflow design.
- Streamlined high-airflow design
- Performance and capacity of a larger tower in a compact mid-tower size
- Angular mesh front panel maximizes air intake
Style meets substance
An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C has a remarkably compact footprint with the high-end component support of a larger tower, and with seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.
Streamlined high-airflow design
-

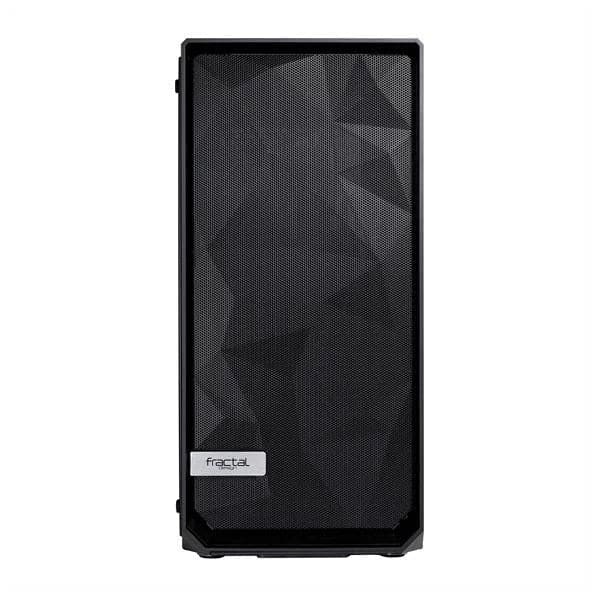

Angular mesh front panel maximizes air intake
-
Two pre-installed Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
-

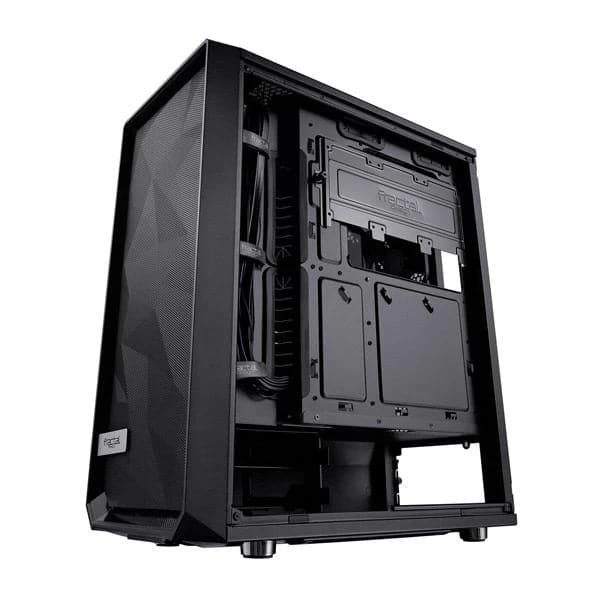

Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
-

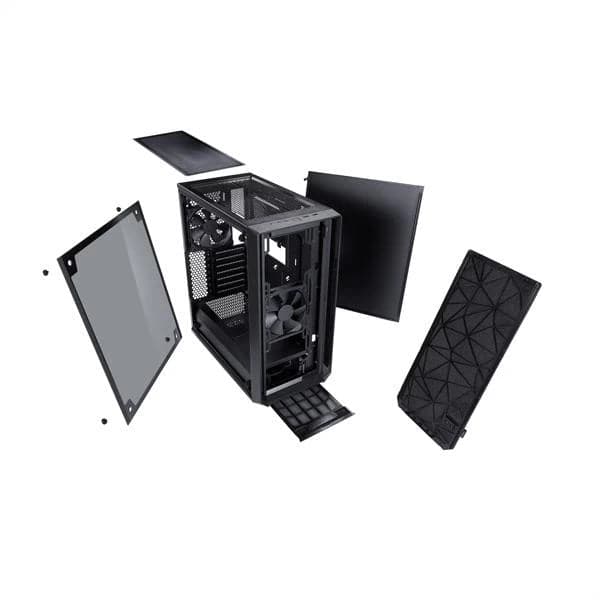

Easy-to-clean filters on the front, top, and base with full PSU coverage and convenient front access
Easy-to-clean-filters
Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
Stealthy design
Distinctive styling with stealthy black-on-black aesthetic
Three SSD positions
Flexible storage options with room for up to five drives in total and three SSD positions
Open to suggestions
-
Flexible storage options with room for up to five drives
-

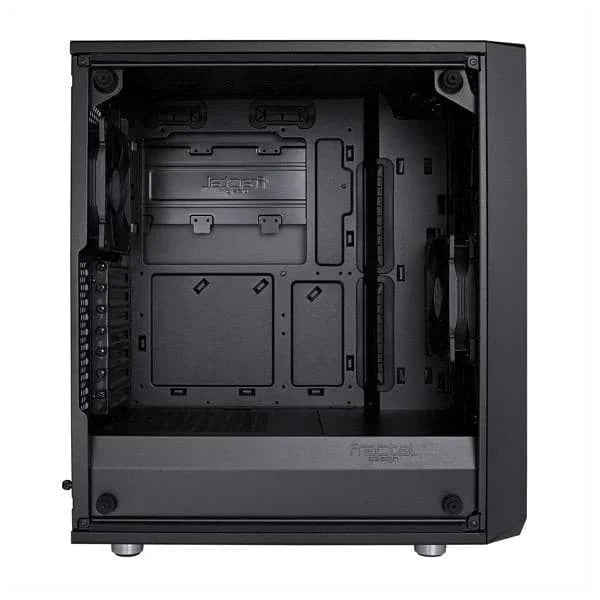

Full-length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
-
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
-
Three dedicated SSD mounting options
Room for flexibility
Conceal up to five storage devices with an adjustable and removable drive cage beneath the PSU shroud plus dedicated SSD mounts behind the motherboard tray.
-
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
-
Flexible storage options with room for up to five drives
-
The performance and capacity of a larger tower in a remarkably compact mid-tower size
Improved air cooling
Seven total fan positions allow for extensive air cooling. Two Fractal Design Dynamic X2 GP-12 fans come preinstalled for maximum airflow, minimal noise and 100,000 hour life expectancy.
-
Whatever your liquid cooling ambitions may be, Meshify C can make it happen with support for radiators up to 360 mm in the front and 240 mm up top
-
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
-
Even the largest enthusiast-class GPUs leave plenty of room for thick triple-fan rads in the front. The adjustable drive cage can be moved or removed to fit even the longest heavy-duty PSUs
Specifications of FRACTAL DESIGN Meshify C Dark ATX (Black)
| Product code | FD-CA-MESH-C-BKO-TG |
| 3.5" or 2.5" Drive capacity | 2 |
| Dedicated 2.5" drive capacity | 3 |

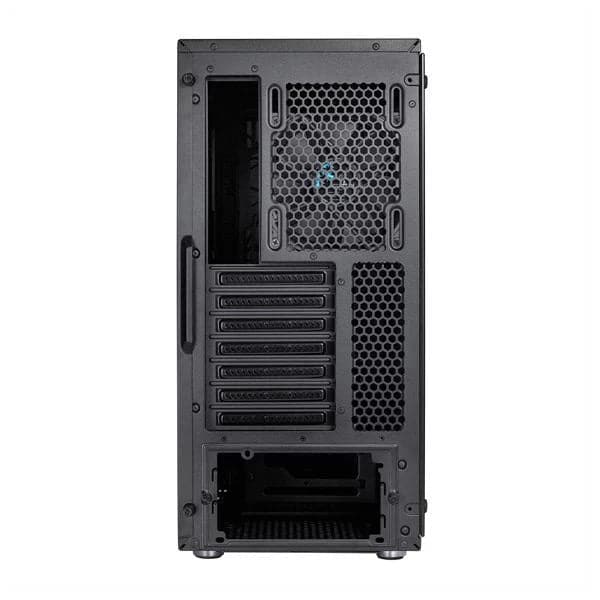

| Expansion slots | 7 |

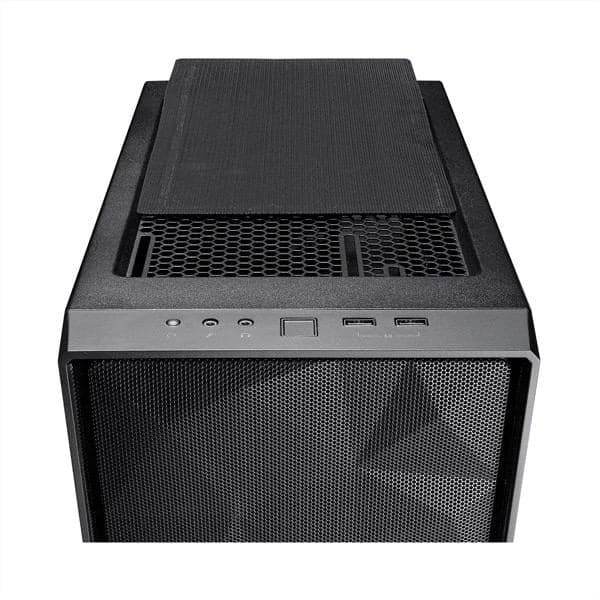

| Front ports | 2x USB 3.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 7 |
| Front fan | 3x 120 mm or 2x 140 mm (1x Dynamic X2 GP-12 included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm (1x Dynamic X2 GP-12 included) |
| Bottom fan | 1x 120 mm |
| Dust filters | Bottom fan + PSU, Front fans, Top fans |
| Cable routing grommets | Yes |
| Fixed velcro straps | Yes |
| Captive thumbscrews | Both side panels, SSD brackets |
| Left side panel | Tempered glass panel |

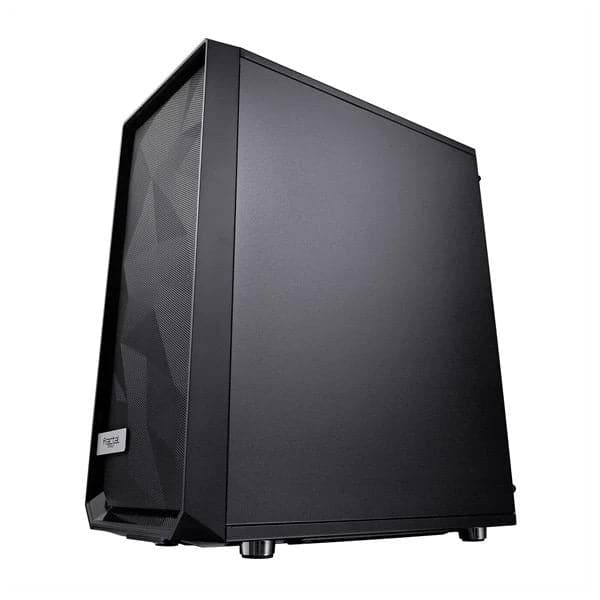

| Right side panel | Steel |
| Compatibility | |
| Power supply type | ATX |
| Motherboard compatibility | ATX, mATX, ITX |
| Front radiator | 120/240/360 mm, 140/280 mm |
| Top radiator | 120/240 mm (max component height on motherboard 40 mm) |
| Rear radiator | 120 mm (max width 125 mm) |
| PSU max length | 175 mm |
| GPU max length | 315mm with front fan mounted |
| CPU cooler max height | 172 mm |
| Cable routing space | 15-35 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 395 x 212 x 440 mm |
| Case dimensions w feet/protrusions/screws | 409 x 217 x 453 mm |
| Net weight | 6.5 kg |
| Package dimensions (LxWxH) | 543 x 295 x 484 mm |
| Package weight | 7.9 kg |
| Volume | 36.5 liters |
| Warranty | 2 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
