Description

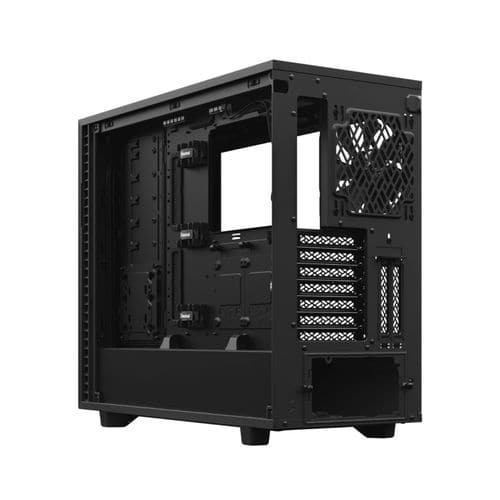

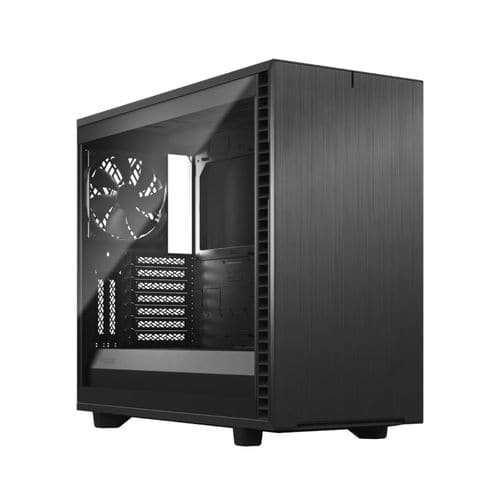

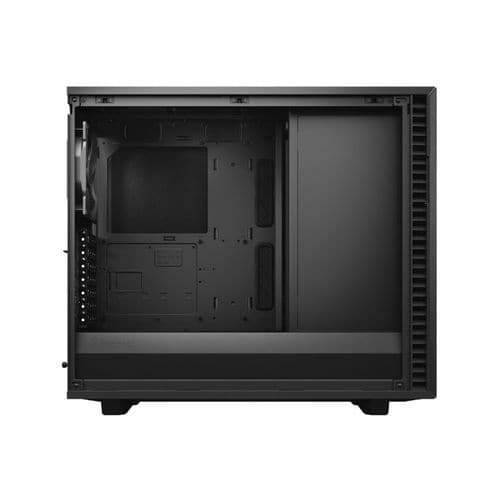

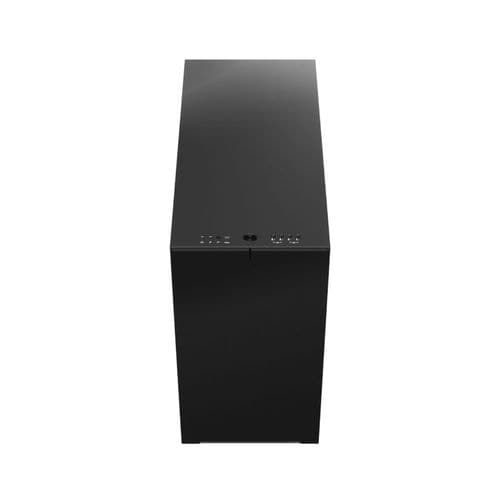

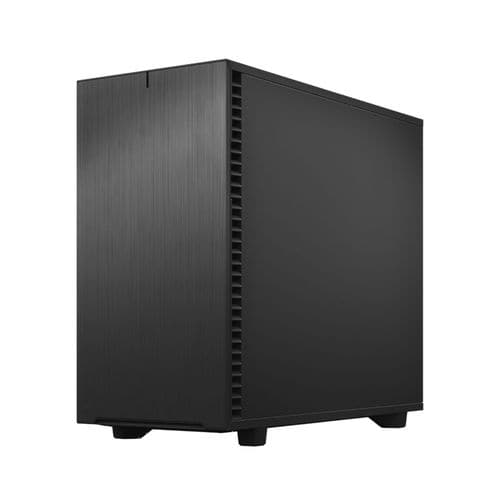

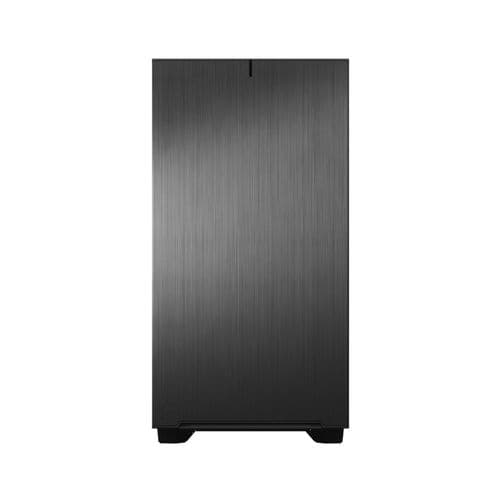

Features of FRACTAL DESIGN Define 7 Light Tint EATX Mid Tower Cabinet (Gray)
The Fractal Design Cabinet is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.
- • New chassis design opens up to fully expose the case interior
- • Anodized aluminum front panel with reversible dual-handed hinges
- • Multibracket converts unused fan positions to HDD, SSD or pump mounts
- Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
- Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
- Convert to Storage Layout for up to 14 HDDs along with 4 dedicated SSD mounts and one ODD bay (6 HDD/SSD + 2 SSD brackets + 1 multi-bracket included)
- The single 5.25" ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
- Silence-optimized construction with industrial sound-damped front, top, and side panels
- Top panel effortlessly swaps from sound-damped solid steel to filtered ventilation
- New chassis design opens up to fully expose the case interior for totally unhindered installation and cable routing
- Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
- Outstanding cooling capacity with a total of 9 x 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
- Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
- Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
- Redesigned HDD cage for easier installation and improved transportation security
- Tool-less, top-latching panels allow quick access while preventing accidental drops
- Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
- Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
Open and interchangeable

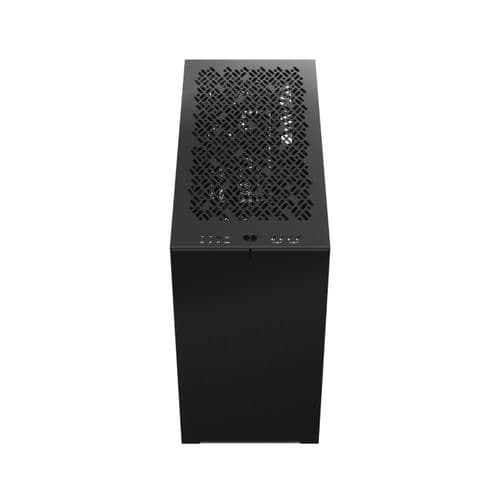

Swap in the ventilated panel to add three filtered fan positions;
remove the entire top to build and route with zero hindrance
Superior airflow by design
Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.
-
Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions in EATX Cabinet
-
Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
-
The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
Open layout for massive headroom
You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.
-
Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
-
Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base
Superlative storage
Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts
-
6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
-
2 dedicated SSD brackets included with 4 positions total
-
Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
-
Sturdy new HDD cage design with vibration damped trays
Exceptionally silent
Silence-optimized construction with industrial sound-damped front, top, and side panels
Cable management
Integrated cable guides with Velcro ties simplifies cable management behind the board
Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Type-C interface
Five front USB ports including one USB Type-C with speeds up to 10 Gbps
Versatile new Multibracket
The included Multibracket lets you convert
any unused fan position to an HDD, SSD or pump mount.
Specifications of FRACTAL DESIGN Define 7 Light Tint EATX Mid Tower Cabinet (Gray)
| Dimension : | 547 x 240 x 475 mm |
| Max GPU Length : | Storage layout: 315 mm - Open layout: 491 mm (467 mm w/ front fan) |
| Max PSU Length : | 250 mm (with HDD cage installed) |
| Max CPU Cooler Height : | 185 mm |
| Expansion Slot : | 7 + 2 |
| DVD Drive Bay : | NA |
| 3.5 : | 6 included, 14 positions total |
| 2.5 : | 6 included, 14 positions total |
| USB 2.0 Port : | 2 x USB 2.0 |
| USB 3.0 Port : | 2 x USB 3.0 |
| Case Window : | Tempered glass |
| Form Factor : | E-ATX (max 285 mm) / ATX / mATX / mITX |
| Radiator Compatibility : | Front radiator Up to 360/280 mm Top radiator Up to 360/420 mm Rear radiator 120 mm Bottom radiator Up to 240/280 mm |
| Warranty : | 2 Years |
