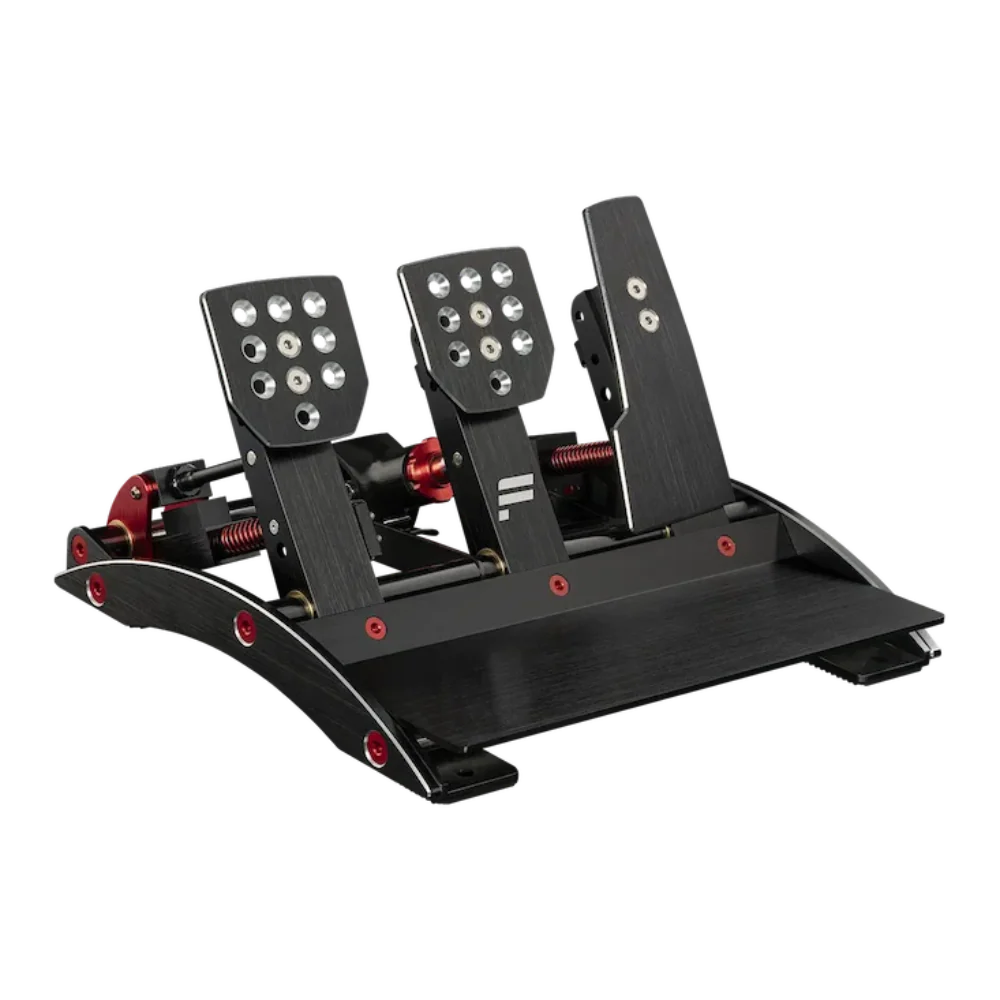

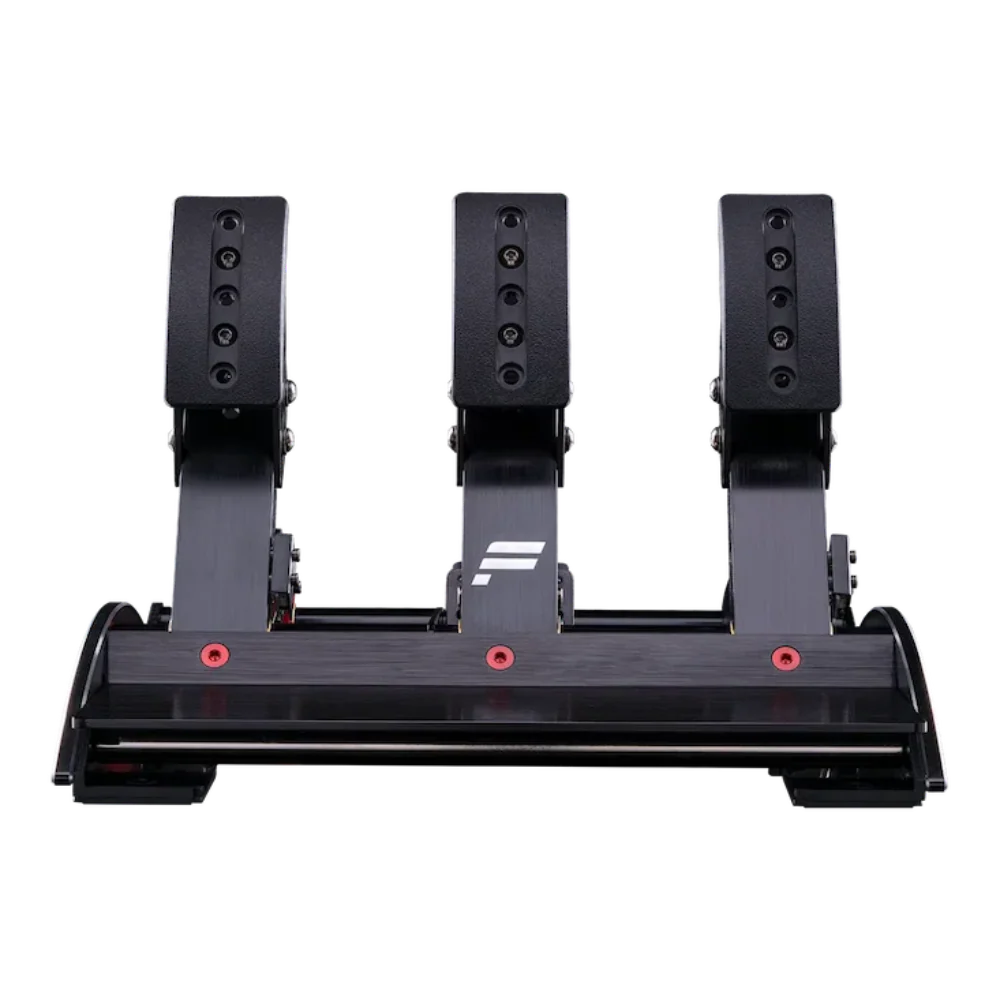

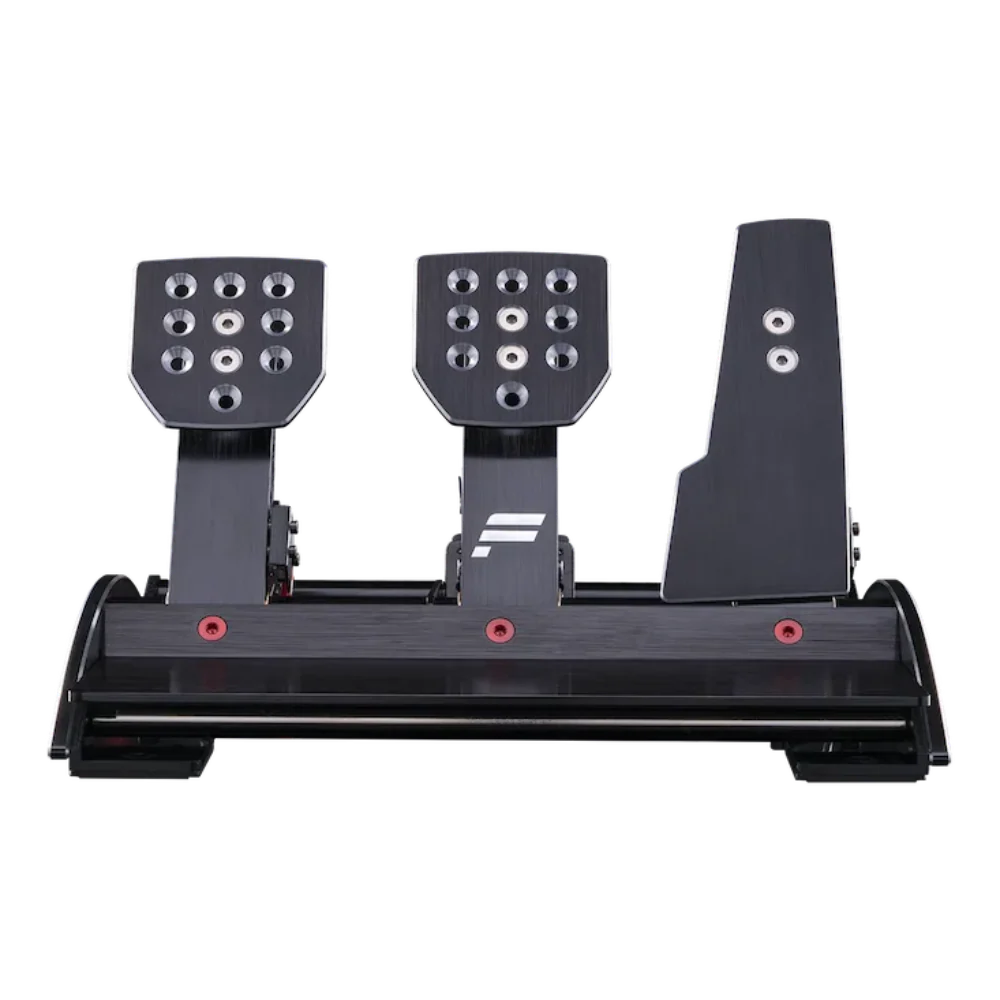

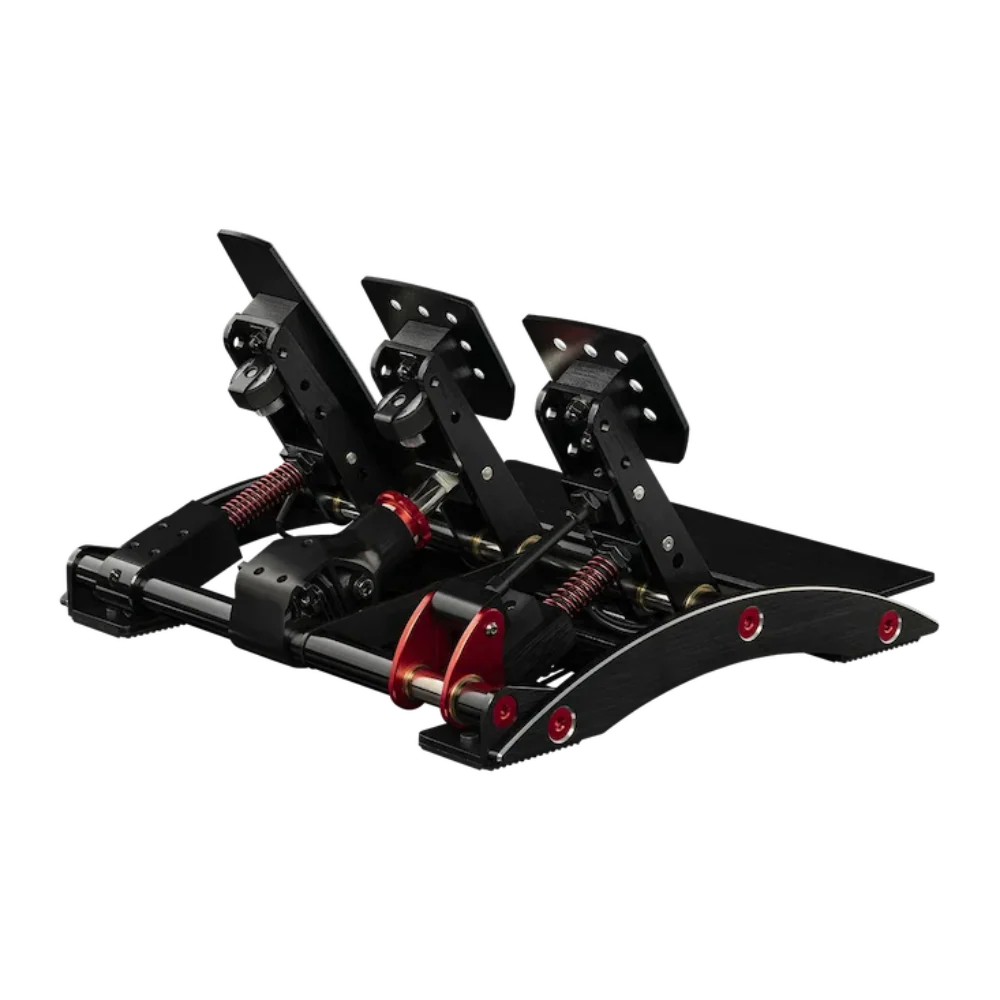

Features of FANATEC Clubsport V3 Pedals
Nothing will make you faster than a set of good pedals. We are using the latest and most advanced technology to give you that competitive edge.
Advanced Technology.
Nothing will make you faster than a set of good pedals. We are using the latest and most advanced technology to give you that competitive edge.
90 kg adjustable load cell.
The custom made load cell is extremely durable and much more precise than the previous generation. You can apply a realistic and strong pressure, and precisely control the brake with muscle tension, just like in a real car.
New pedal plates.
The new D-shape pedal plates and the new pedal extensions allow pedal plate angle adjustment and the angle of the whole pedal arm.
Proven design.
The third generation of the ClubSport pedals is still using the simple but proven design of its legendary predecessors.
Maximum adjustability.
There are countless ways to adjust these pedals ergonomically according to your racing style and preferences.
Contactless Hall sensors.
The electronics have been completely revised and the magnetic Hall sensors of the gas and clutch feature 4x the resolution of the previous generation V2 pedals. Each axis can be calibrated through the wheel or using the driver.
Adjustable brake stiffness.
The completely new design of the brake pedal allows stiffness and travel adjustment without using any tools.
Special Notes
-
Please note that the vibration function on gas and brake is not supported by all games. On PC it can be implemented with plug into our driver / third party software if the games sends the telemetry data.
-
Max resolution depending on the connection:
-
through PWT / PWTS / CSR / CSR Elite wheel: 8 bit (256 values) on all axes
-
through CSW B V1 / CSW B V2 / CS WB V2.5 / CSL E WB / CSL E WB+ / CSL E WB V1.1 / CSL E RW PS4: 12 bit (4096 values) / P WB DD1 & DD2 on all axes
-
USB direct connection (PC): 12 bit (4096 values) on all axes
-
Specifications of FANATEC Clubsport V3 Pedals
| Model | CSP_V3 |
| Sensor Type | Magnetic and contactless sensors |
| Sensor Locations | Gas and clutch |
| Brake Type | Pressure sensitive brake |
| Load Cell Rating | 90 kg |
| Brake Adjustment | Adjustable brake stiffness and travel |
| Adjustment Method | Tool-free adjustment |
| Resolution | 12-bit |
| Axis Resolution | 4096 values on all axes |
| Race Plates | Alternative D-shape curved race plates |
| Pedal Extension | Included |
| Pedal Extension Function | Adjusts pedal plate angle and pedal arm angle |
| Brake Sensitivity Adjustment | Adjustable through wheel tuning menu |
| Throttle Vibration Motor | Indicates rear wheel spin and oversteer |
| Brake Vibration Motor | Simulates ABS and locking tires |
| SDK Support | Fanatec Wheel SDK supported |
| Gas Pedal Spring System | Quick spring exchange design |
| Included Springs | Two springs with different strengths |
| Optional Damper Kit | Available for gas and brake |
| Damper Adjustment | Hydraulic damping adjustable with knob |
| Platform Compatibility | Depends on connected Wheel Base/Racing Wheel |
| Construction | Full metal construction |
| Material | CNC-machined aluminum |
| Adjustability | Pedal plate position, angle, spring strength, brake sensitivity, brake travel |
| Color Kit Compatibility | Compatible with colour kits for customization |
| Compatiblity | Compatible to any Fanatec Wheel Base or Fanatec Racing Wheel with RJ12 Pedals connector. To connect Fanatec Wheels with PS/2 Pedal Socket, you need the additional PS/2 to RJ12 cable. Compatible to ClubSport Pedals V3 Brake Performance Kit Compatible to ClubSport Pedals V3 Damper Kit (throttle and brake pedal) Dedicated plug for the ClubSport Handbrake The pedals are not compatible to the ClubSport USB Adapter. Please use the included USB connector (PC only). |
| Platforms | PC: If you connect it to a Fanatec Wheel Base / Racing Wheel it will be compatible to all racing games. For that case, please check the compatibility details on the product page of the connected product. It will work with any racing wheel, also of any other brand (Logitech, Thrustmaster, etc), if the pedals are connected to PC via USB and if the game supports a second controller. E.g. these PC games support a second USB controller: iRacing Assetto Corsa Project Cars GTR 2 Race 07 rFactor Live for Speed ...and many others Consoles: This pedal set can be used on gaming consoles, if connected through a Fanatec Wheel Base / Racing Wheel. Please check the information on the product page of the Fanatec product through which they will be connected to the console. It will not work on consoles using the direct USB Connection or a ClubSport USB Adapter. |
| What's Included | ClubSport Pedals V3 3x Pedal Extensions 3x D-shape pedal plates 1x Strong spring throttle (black) 1x Strong spring clutch (black) 1x RJ12 connection cable (150cm) 1x USB connection cable (180cm) 1x Lithium grease bottle 1x Quick Guide |
| Warranty | 3-Year Warranty |
