Features of EVGA Supernova 1300G+ 80+ Gold ATX 2.0 Fully Modular Power Supply ( 1300W )
Introducing the SuperNOVA 1300 G+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating. These power supplies pick up where the award-winning EVGA 1600 G2 and 1300 G2 power supplies left off and continue the tradition of EVGA quality and performance.
Additionally, the SuperNOVA G+ power supplies feature a cleaner internal layout to increase airflow, a Variable Resistor module (to increase voltage stability), two DC to DC modules for more efficient power switching on all models, EVGA ECO Mode, a full suite of power supply protections, and EVGA's World-Leading Global 10-Year Warranty on all G+ power supplies. The EVGA SuperNOVA G+ power supplies sets the new Gold standard for performance and value.
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads

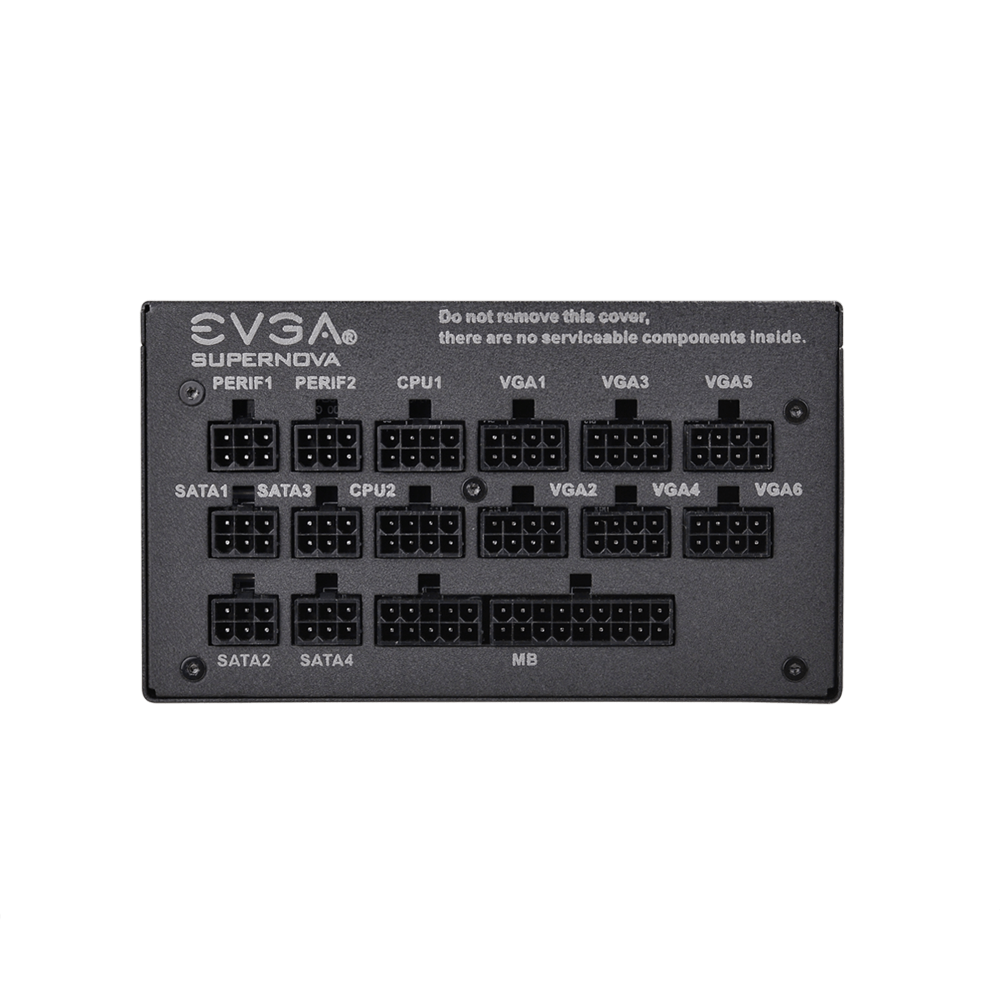

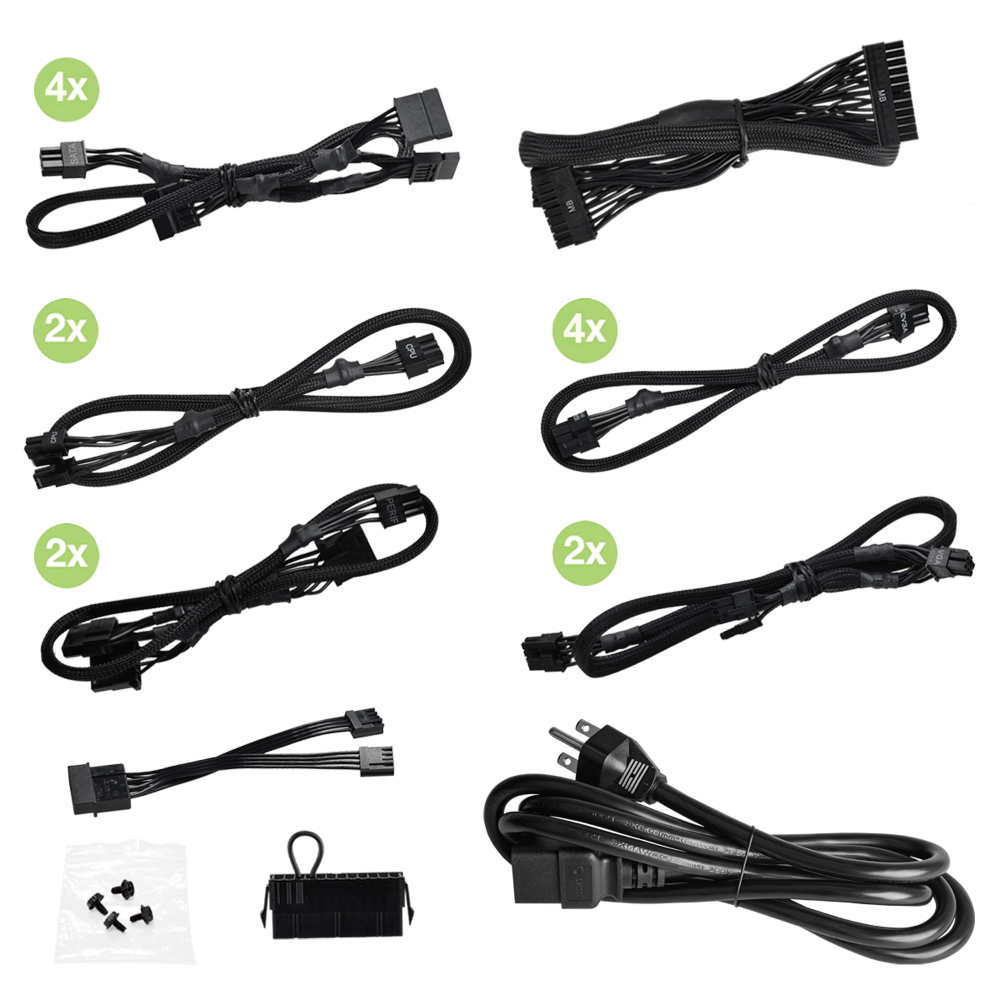

- Fully Modular to reduce clutter and improve airflow
- 100% Japanese Capacitors ensure long-term reliability
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
- DC-DC Converter improves 3.3V/5V stability
- 135mm Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
Specifications of EVGA Supernova 1300G+ 80+ Gold ATX 2.0 Fully Modular Power Supply ( 1300W )
| Product Name | Supernova 80+ Gold 1300W Fully Modular 10YR Warranty |
| Manufacturer Part Number | 220-GP-1300-X1 |
| Product Type | Power Supply |
| Number of +12V Rails | 1 |
| Product Family | SuperNOVA |
| Modular | Yes |
| Specification Compliance | ATX12V/EPS12V |
| Energy Efficiency Certification | 80 Plus Gold |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE)Restriction of Hazardous Substances (RoHS) |
| Form Factor | Internal |
| Product Model | 1300 G+ |
| Efficiency | 0.92 |
| Input Voltage | 120 V AC230 V AC |
| Output Power | 1300 W |
| Output Voltage | 3.3 V DC5 V DC 12 V DC |
| Number of Fans | 1 |
| Environmentally Friendly | Yes |

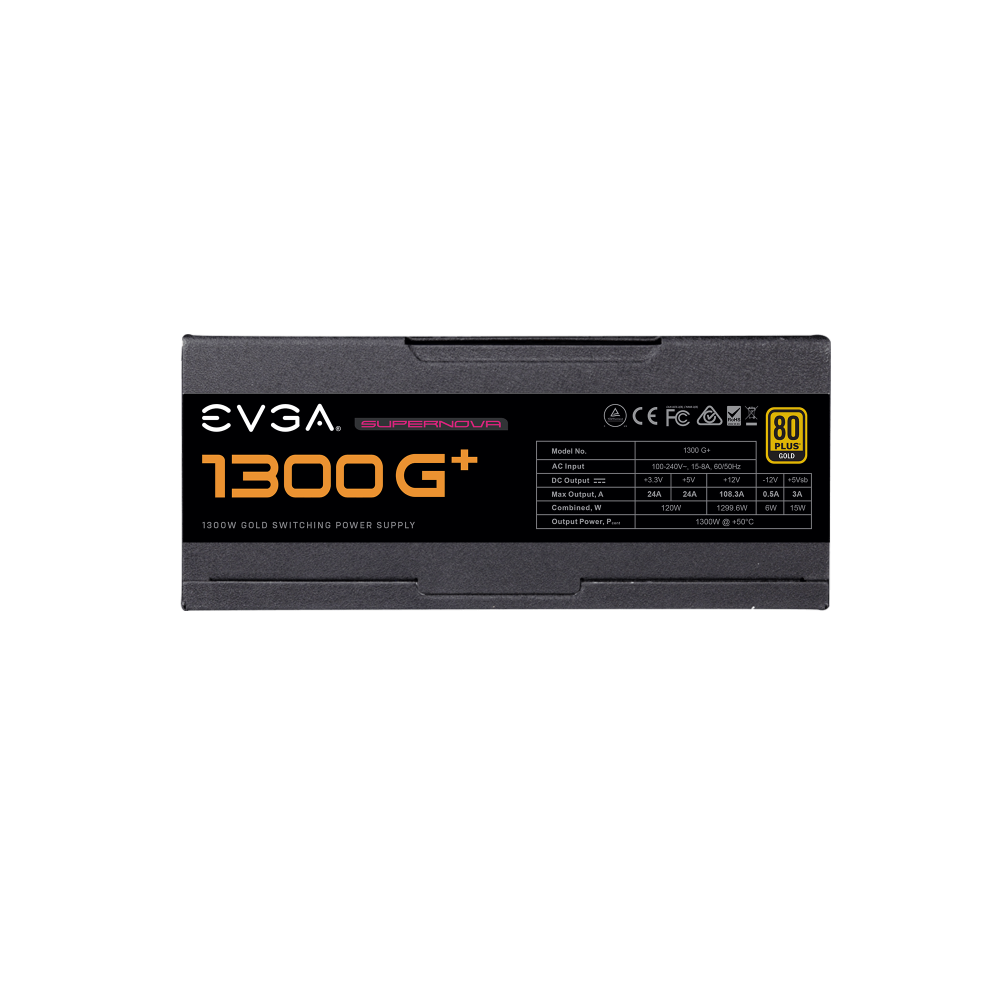

| Output Voltage Detail | 3.3 V DC @ 24 A5 V DC @ 24 A 12 V DC @ 108.3 A 12 V DC @ 500 mA 5 V DC @ 3 A |
| Country of Origin | Taiwan |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 7.9" |
| Output Current | 24 A108.30 A 500 mA 3 A |
| Product Line | SuperNOVA |
| Limited Warranty | 10 Year |
