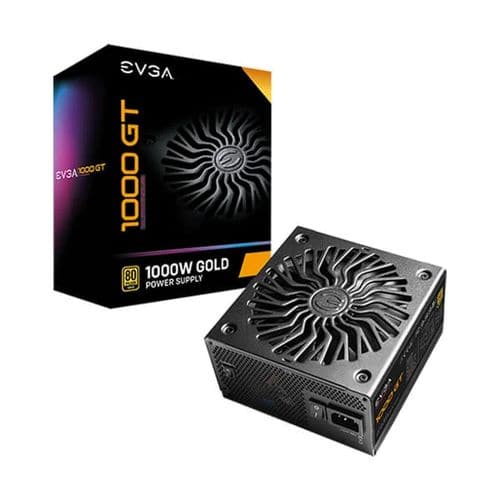

Features of EVGA SuperNova 1000 GT
The EVGA SuperNOVA 1000 GT 1000W Power Supply is your next choice in a fully modular, compact 150mm length & width power supply with 100% Japanese capacitors.
- EVGA Power Supply is 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- 100% Japanese Capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
- OVP Over Voltage Protection
- OCP Over Current Protection
- OPP Over Power Protection
- SCP Short Circuit Protection
- UVP Under Voltage Protection
- Dual OTP Over Temperature Protection on the Primary and Secondary PCB
80 PLUS GOLD EFFICIENCY
80 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.
FLUID DYNAMIC BEARING
The EVGA SuperNOVA CT Uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.
SINGLE +12V OUTPUT
Provides a stable output for compatibility with the latest hardware.

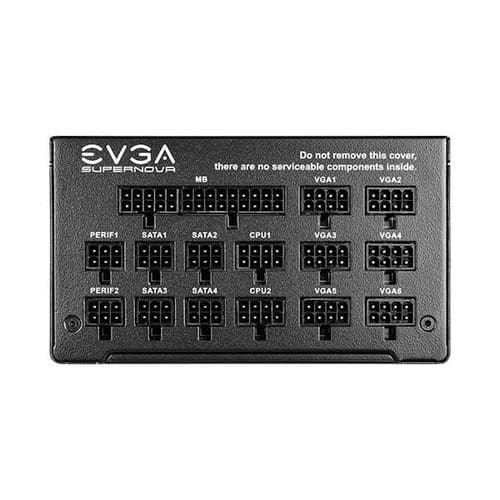

FULLY MODULAR DESIGN
Choose the cables you need to make cable management simple and clean.
Get the best 80 Plus Gold cpu power supply price from us today!
Specifications of EVGA SuperNova 1000 GT

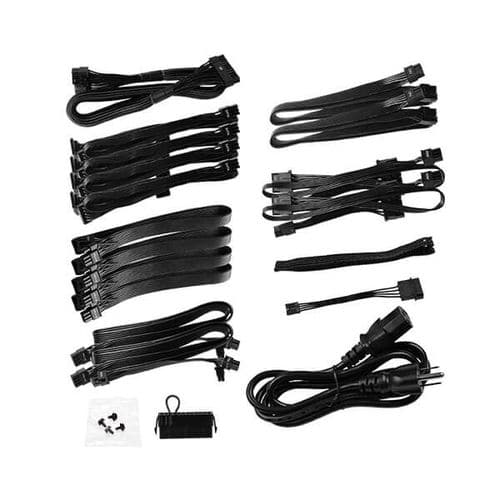

| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 700mm (m) |
| PCIe Cable | 2x 700mm (m), 3x 700mm, 850mm (m) |
| SATA Cable | 4x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm (m) |
| Floppy Adapter | 1x Molex to FDD Adapter |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | Full |
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin(4+4) |
| PCIe | 8x 8pin(6+2) |
| SATA | 12x |
| Four-Pin Peripheral | 4x |
| Floppy | 1x |
| Input Voltage | 100-240V~ |
| AC Input | 12-6A |
| Input Frequency Range | 60/50Hz |
| Efficiency | 90% or Higher Typical |
| Total | 1000W |
| Max Output |
130W Max Output:- 25A Rail:- +3.3V / +5V 1000W Max Output:- 83.3A Rail:- +12V 15W Max Output:- 3A Rail:- +5Vsb 3.6W Max Output:- 0.5A Rail:- -12V |
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Gross Weight | 8.80 lbs |
| Size | 86mm (H) x 150mm (W) x 150mm (L) |
| Approvals |
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
| Warranty | 10 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
