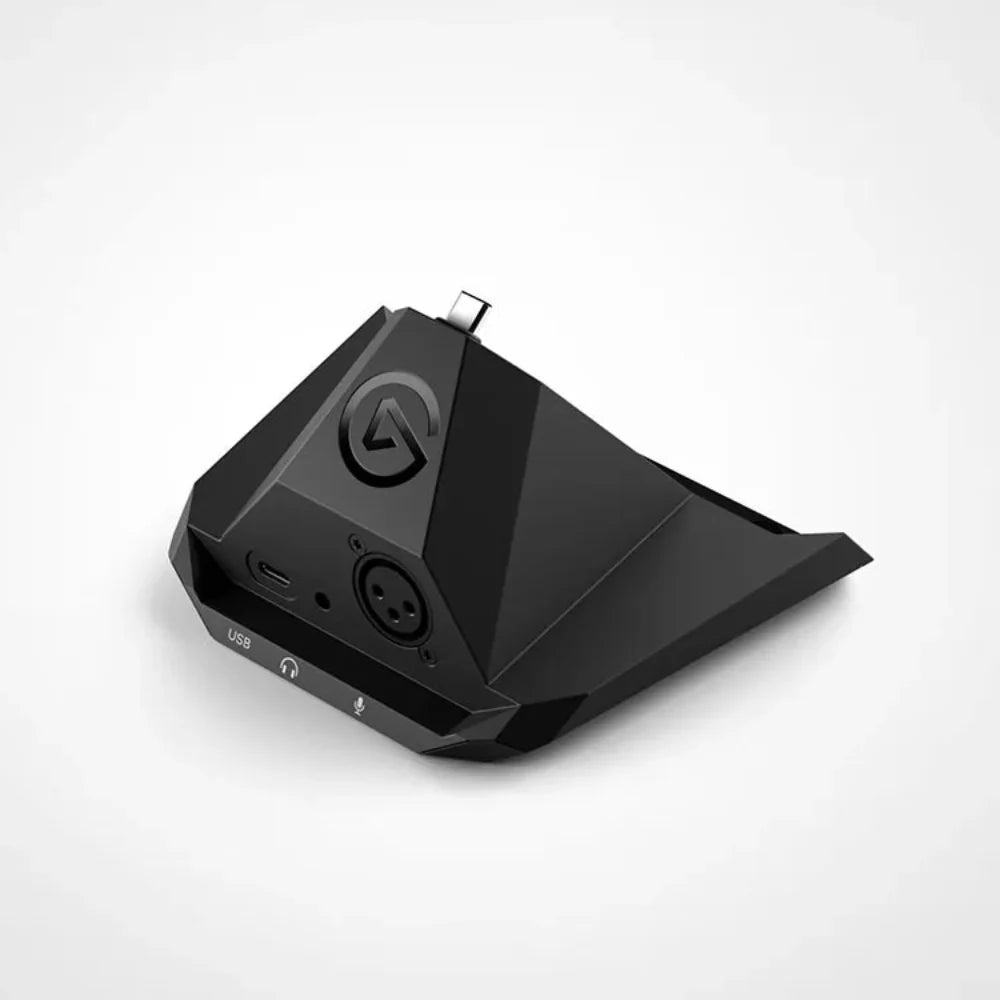

Features of ELGATO MK.2 XLR Dock For Stream Deck +
MINI PROFILE BIG-TIME SOUND
Not to be underestimated, XLR Dock does everything a professional audio interface can do—and then some.
And so much more
Stream Deck + and XLR Dock bring all your audio controls together—not just hardware, but also your apps. Turn to adjust effects or push to talk in Discord. Tap to adjust headphone volume. Even monitor audio in real time. Everything is customizable and it’s all in one place.
The Pro in the Processor
Your voice flows through Clipguard, onboard DSP, and VST effects in one continuous signal path. So you get studio-grade sound with super-responsive monitoring, but none of the routing complexity.
ONE APP FOR ALL YOUR AUDIO
Wave Link gives you full control over your Wave hardware, but that’s just the start. Apply and customize effects, add a soundboard to voice chat, create a separate recording mix, and so much more. Everything you need for professional sound, all in one place.
A snap to assemble
Short on DIY skills? No problem. XLR Dock installs in a few easy steps using only a Phillips screwdriver.
Specifications of ELGATO MK.2 XLR Dock For Stream Deck +
| Model Number | 10GBQ9901 |
| Item Code | CRMX0176 |
| RESOLUTION | 24bit |
| SAMPLE RATE | 48kHz |
| FREQUENCY RESPONSE (XLR INPUT) | Max gain deviation 20Hz - 20kHz < 0.3dB |
| FREQUENCY RESPONSE (HEADPHONE, 32 OHM) | Max gain deviation 20Hz - 20kHz < 0.3dB |
| DYNAMIC RANGE | 137dB |
| CONNECTORS | Microphone (XLR, Mono), Headphone (3.5 mm Jack, Stereo), Host I/O (USB-C) |
| POWER CONSUMPTION | 900 mA max |
| DIMENSIONS | 115 x 137 x 76 mm | 5.39 x 4.53 x 2.99 in (D x W x H) |
| REQUIRED HARDWARE | Stream Deck + (sold separately) |
