Features of DEEPCOOL CH160 WH MITX Mini Tower Cabinet (White)
DeepCool CH160 WH is a Small Form Factor Ultra-Portable High Airflow M-Itx computer cpu case. It Can support up to 172mm Height CPU Air Cooler, up to 305mm GPU Length, The Internal Layout Provides a Lot of Flexibility for Drives and PSU Options
The CH160 is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The internal layout provides a lot of flexibility for drives and PSU options.
HIGH AIRFLOW PANELS
Mesh panels surround the CH160 WH from numerous sides and create a high- airflow, small-form-factor case like no other
FULL SIZED AIR COOLING
Lack of air cooler support in small mini-ITX cases is a thing of the past. The
deepcool cabinet CH160 WH can support giant air coolers up to 172mm in height!
NO ADDED GPU LATENCY
Designed to accommodate most 3-slot dual-fan GPUs that are shorter than 305mm in length and can be directly inserted into the motherboard without the assistance of a riser cable-no added GPU latency concerns!
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH160 WH can support any of them up to 140mm
QUALITY OF LIFE IMPROVEMENTS

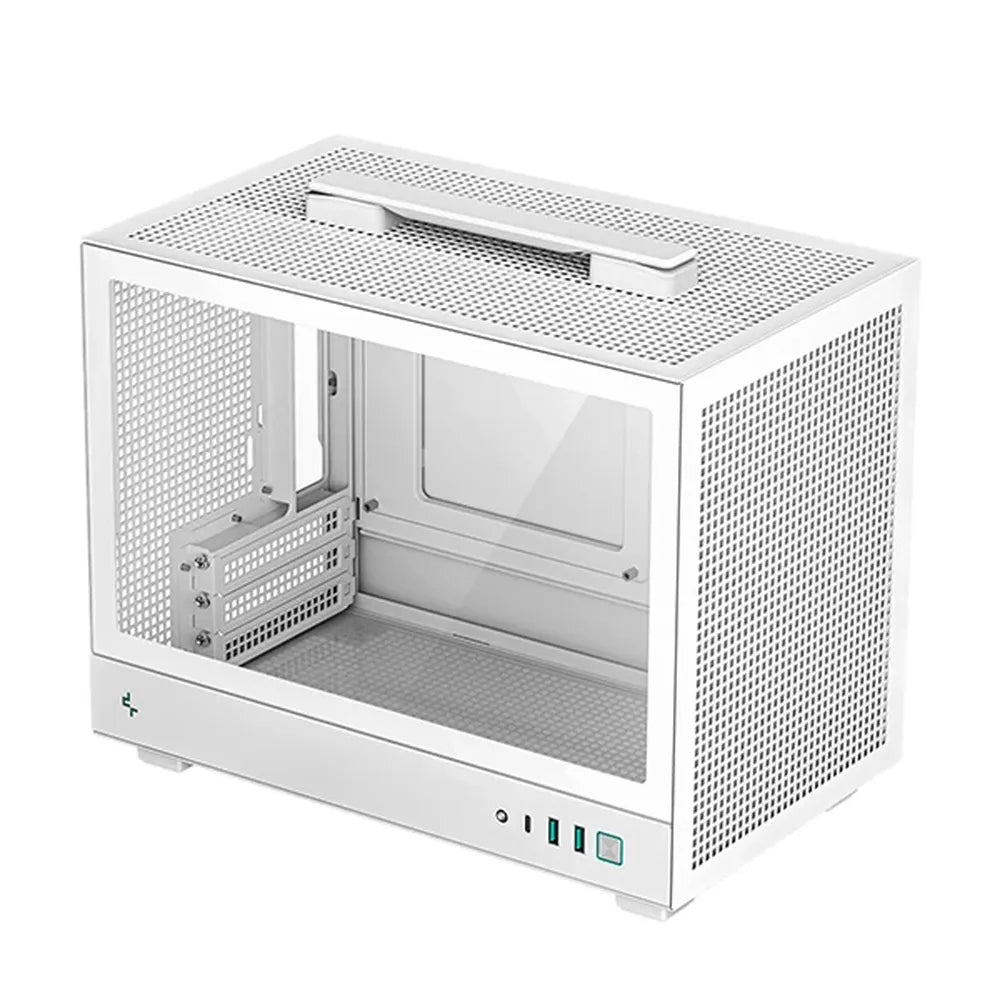

Equipped with options such as removable fan brackets, where the front fan bracket can be utilized to support both an SSD and an HDD drive; three removable dust filters for ease of cleaning; a nice and sturdy carrying handle, two USB 3.0, a Gen2 Type-C, and a hybrid audio port, the CH160 WH makes everything a little easier
The CH160 is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The internal layout provides a lot of flexibility for drives and PSU options.
Specification of DEEPCOOL CH160 WH MITX Mini Tower Cabinet (White)
| Model | CH160 |
| P/N | R-CH160-WHNGI0-G-1 |
| Color | White |
| Product Dimensions | 336×200×283.5mm(L×W×H) |
| Net Weight | 3.3Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | USB3.0×2、Audio×1、Gen2 Type-C×1 |
| 3.5" Drive Bays | 1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) |
| 2.5" Drive Bays | 1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) |
| Expansion Slots | 3 Slots |
| Pre-Installed Fans | None |
| Fan Support | Front: 1×120 mm(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) Top: 2×120mm Rear: 1×120mm |
| Radiator Support | None |
| CPU Cooler Height Limit | 172mm |
| GPU Size Limit | Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
| Power Supply Type | ATX PS2(maximum length: 140mm)/ SFX / SFX-L |
| Warranty | 1 Year |
| Note | *** Image use for reference only *** Features, Price, Specifications are subject to change without notice. |
