Description
Features of DEEPCOOL CG540 ARGB EATX Mid Tower Cabinet (Black)
- ON FULL DISPLAY
- SHINE BRIGHT
- EXPANSIVE COOLING CAPACITY
- COMPLETE STORAGE

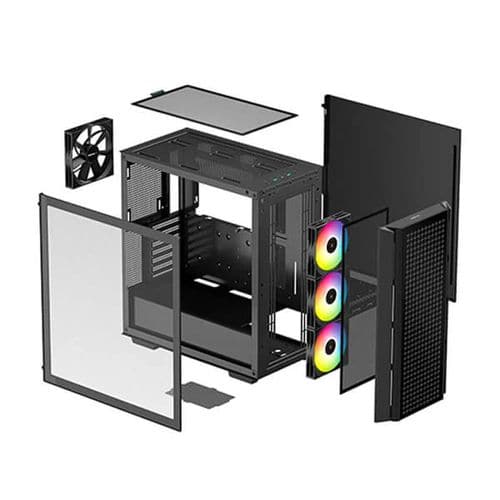

- EASY ACCESS SIDE PANELS
- CLEAN AND TIDY
- INDEPENDENT PCIE SLOT BAFFLES
- FRONT I/O PANEL

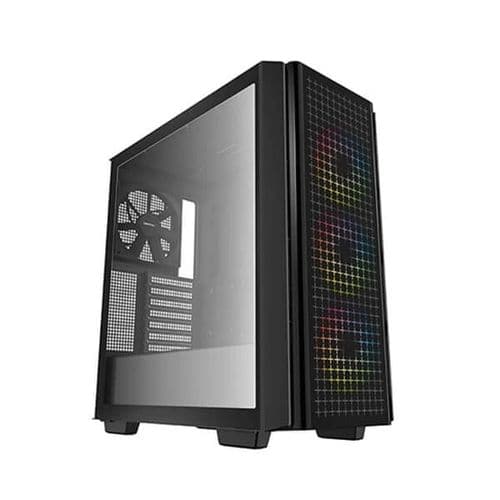

ON FULL DISPLAY
deepcool CG540 computer cpu case tempered glass side and front panels lined with optimized ventilation for proper airflow performance.
SHINE BRIGHT

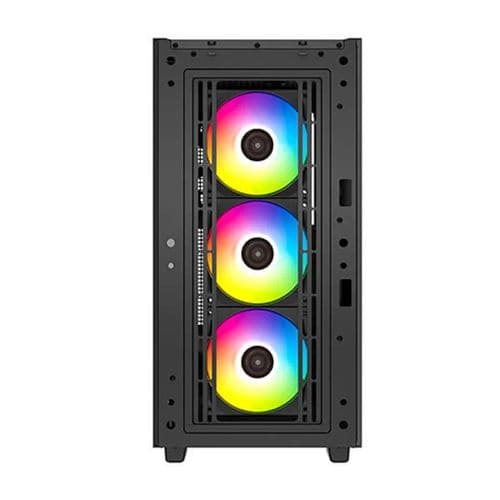

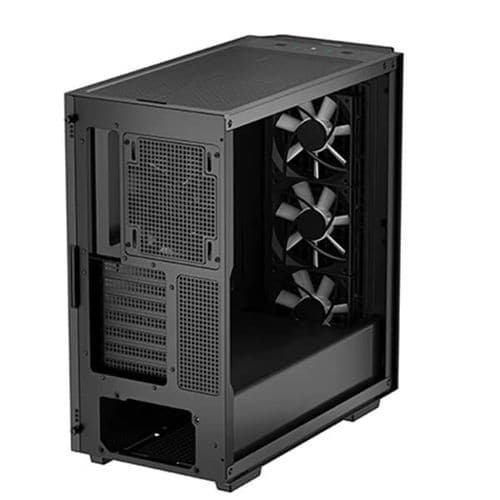

Three pre-installed 120mm DEEPCOOL CG540 ARGB EATX Cabinet fans installed in front illuminate through the designed tempered glass.

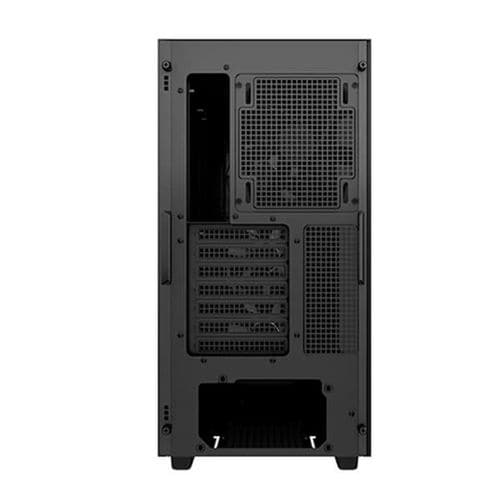

An additional 140mm black fan is featured in the rear for increased airflow.
An additional 140mm black fan is featured in the rear for increased airflow.
EXPANSIVE COOLING CAPACITY
deepcool cabinet CG540 support up to 6x 120mm or 5x 140mm case fans, and multiple radiator configurations for 360mm installed in front and 280mm up top.
COMPATIBILITY
– Max CPU Cooler Height: 175mm
– Max GPU Length: 380mm
– Max PSU Length: 160mm
COMPLETE STORAGE

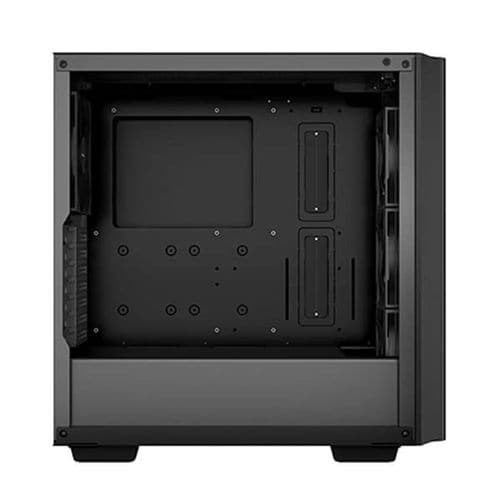

Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud for ample storage discreetly tucked away.

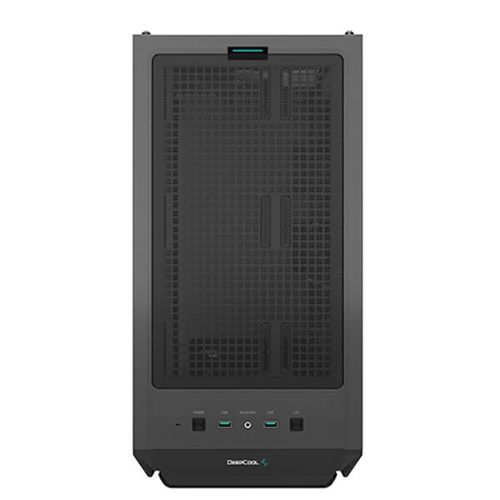

EASY ACCESS SIDE PANELS
Quickly get to your internal components with simple slide and latch side panels and a solid tempered glass window to highlight your system.
CLEAN AND TIDY
Easy-to-clean magnetic dust filters.
INDEPENDENT PCIE SLOT BAFFLES
Remove and reuse for simpler setup.

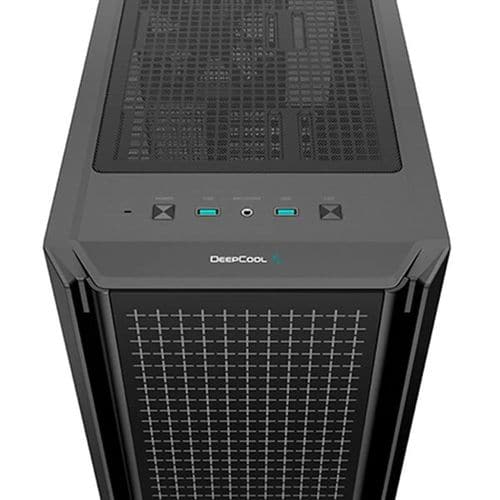

FRONT I/O PANEL
Along with two USB 3.0 ports and a combination audio/mic jack, the reset button is custom configured to control preset lighting effects on the three pre-installed ARGB fans.
Specifications of DEEPCOOL CG540 ARGB EATX Mid Tower Cabinet (Black)
| P/N Code | R-CG540-BKAGE4-G-1 |
| Net Weight | 7.5Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Mico-ATX / ATX / E-ATX |
| Front I/O Ports | USB3.0×2、Audio×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Front: 3×120mm Rear: 1×140mm |
| Fan Support | Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120 / 1×140mm |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm |
| CPU Cooler Height Limit | 175mm |
| GPU Length Limit | 380mm |
| Power Supply Type | ATX PS2（maximum length: 160mm） |
| Product Dimensions | 455×230×470mm(L×W×H) |
| Warranty | 1 Year |
| Note | ***Features, Price and specifications are subject to change without notice. |
