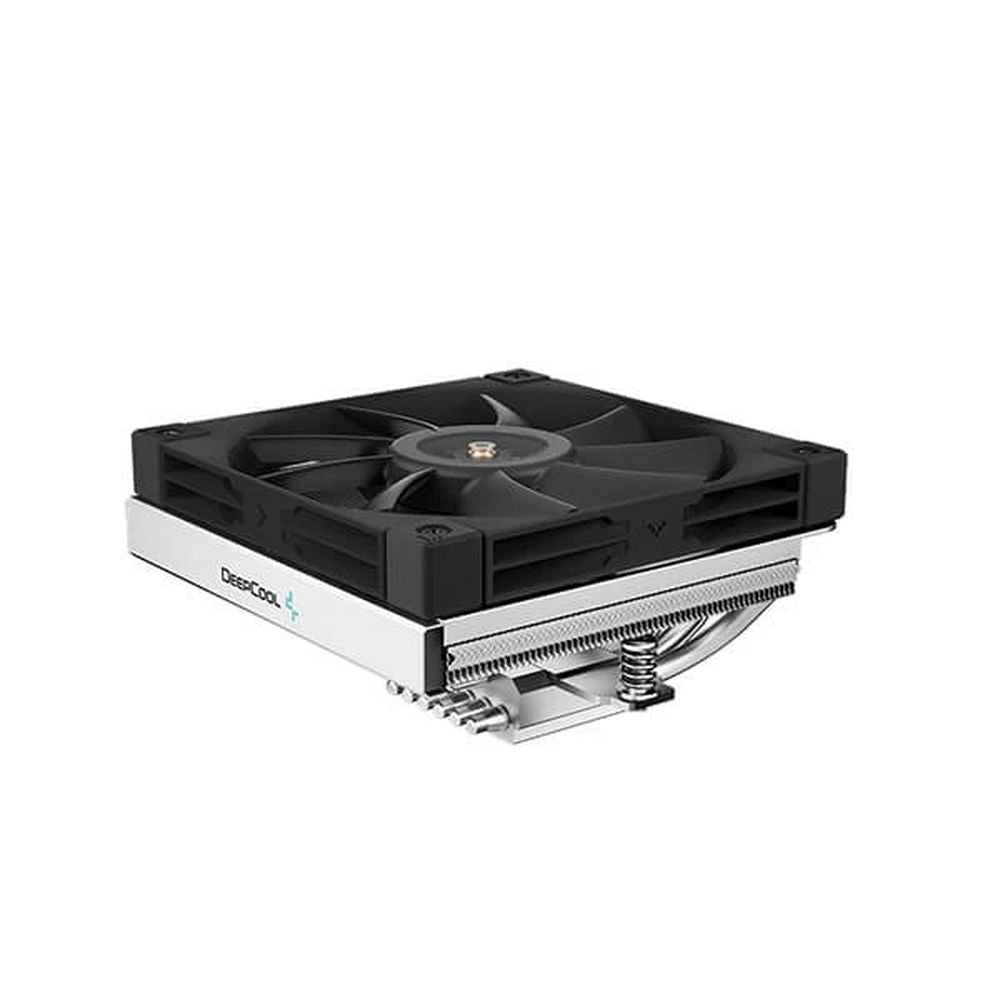

Features of DEEPCOOL AN600 Single Tower 120mm CPU Air Cooler ( Black )
- Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.
- Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below.
- Fully compatible with SFF mITX systems with 40mm of RAM clearance.
- A low-noise adapter cable is included to further reduce fan noise.
The Deepcool AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.
Keeping Things Cool

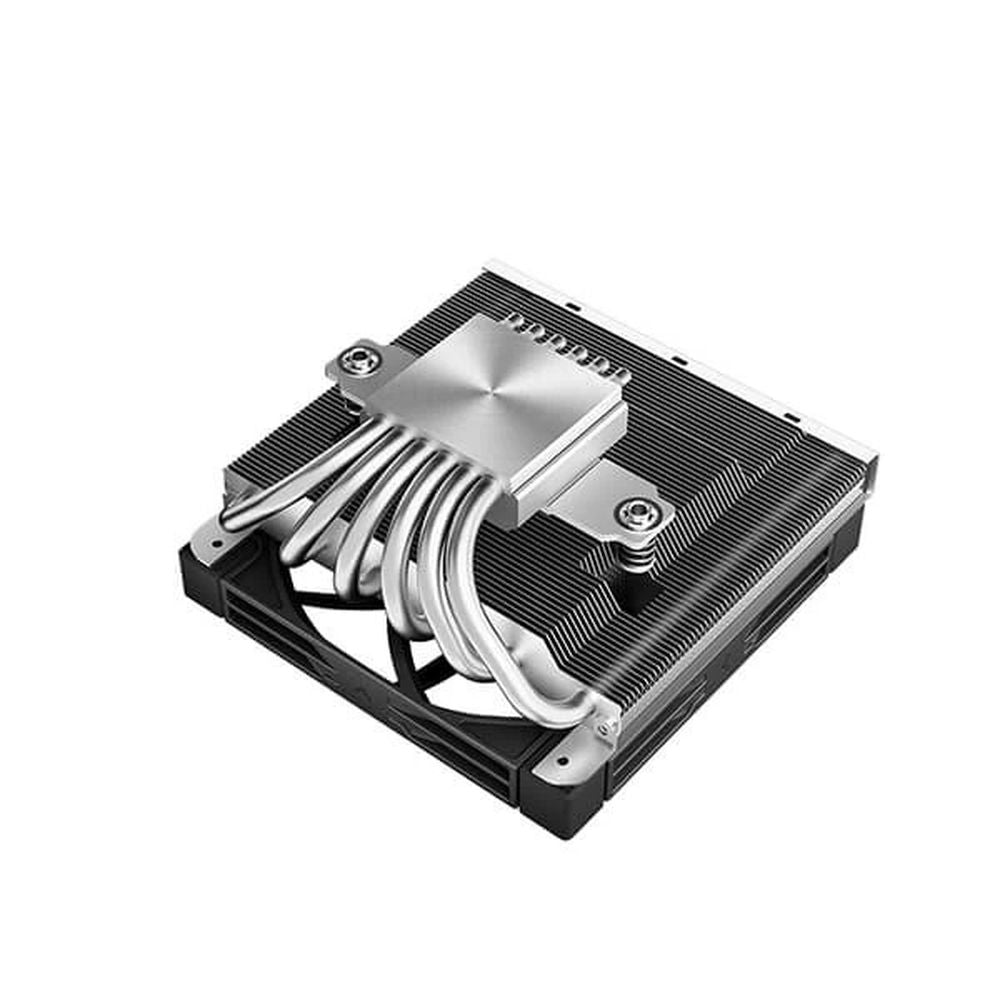

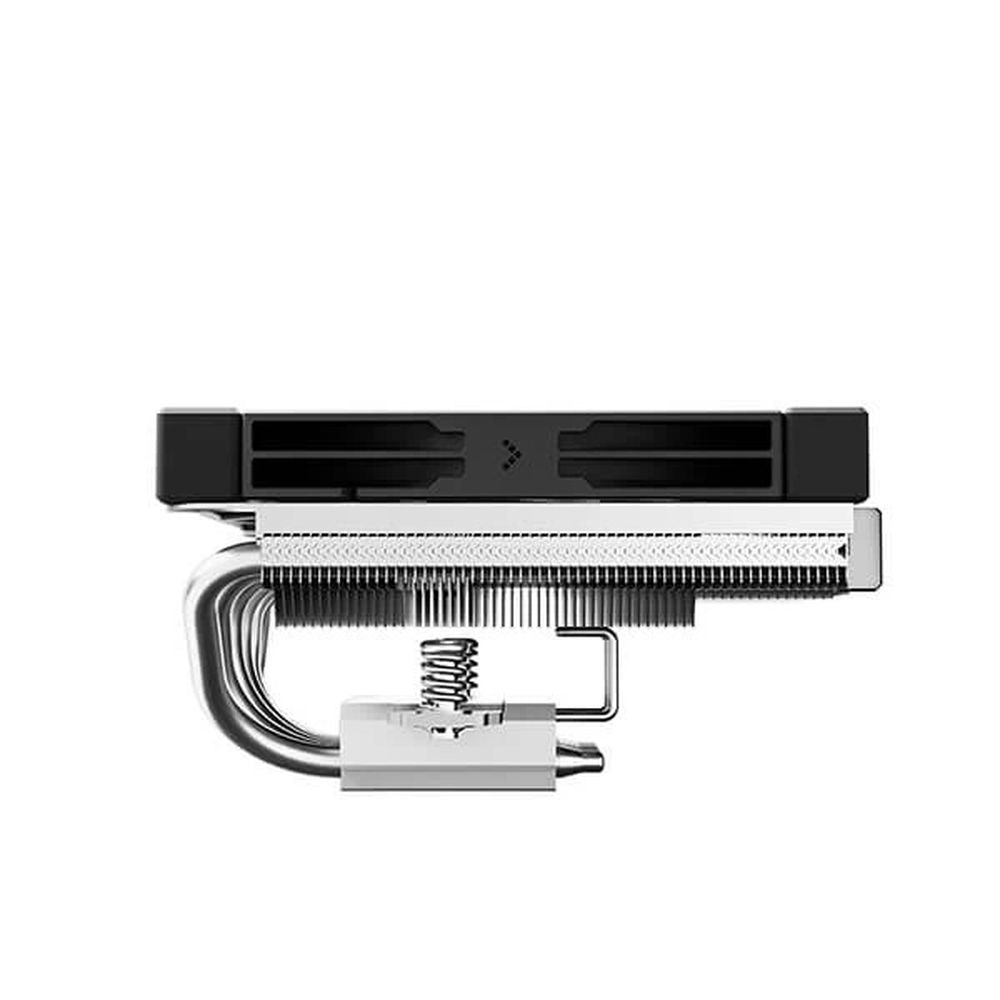

Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the Deepcool AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.
More Than A CPU Cooler

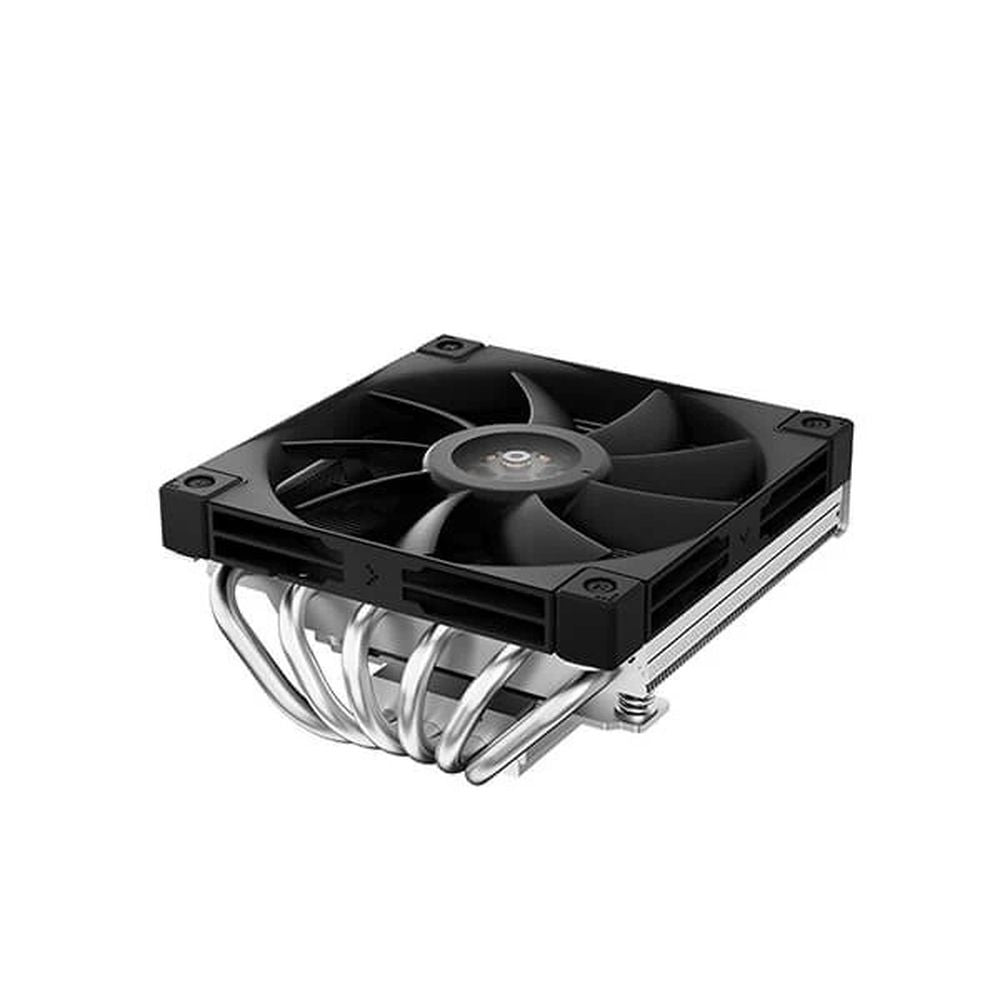

Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6-phase fan motor ensures all of this is accomplished while staying under 24.2 dB(A). A low-noise adapter cable is included.
Simplified Support

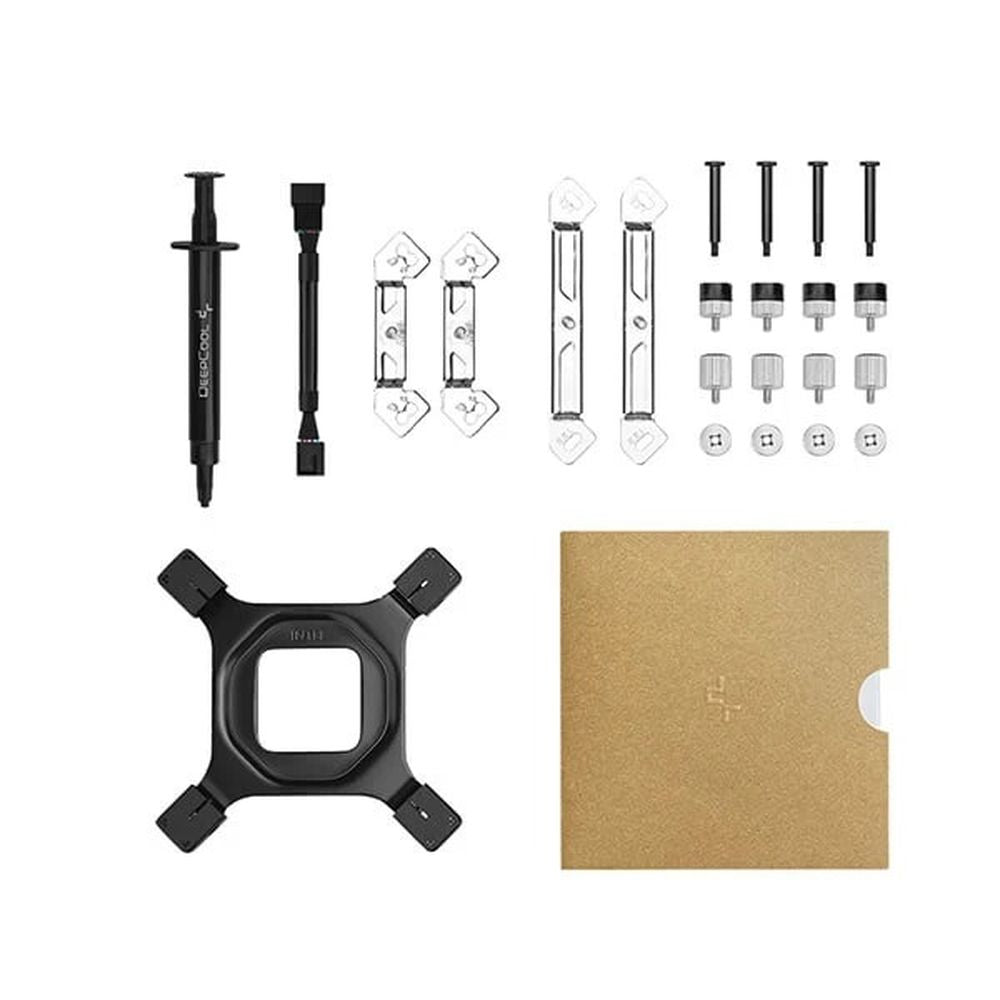

The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
Cool, Quiet, and Powerful
The DEEPCOOL AN600 Single Tower 120mm CPU Air Cooler ( Black ) has visible 6-phase fan motor ensures maximum cooling potential is achieved while staying under 30 dB(A). A low-noise adapter cable is included.
Specifications of DEEPCOOL AN600 Single Tower 120mm CPU Air Cooler ( Black )
| Model | AN600 |
| P/N | R-AN600-BKNNMN-G |
| Application For | Intel: LGA1700/1200/1151/1150/1155 AMD: AM5/AM4 |
| Product Dimensions | 122×120×67 mm(L×W×H) |
| Heatsink Dimensions | 121×120×52 mm(L×W×H) |
| Net Weight | 628 g |
| Heatpipe | Ø6 mm×6 pcs |
| Fan Dimensions | 120×120×15 mm(L×W×H) |
| Fan Speed | 500~1850 RPM±10% |
| Fan Airflow | 61.56 CFM |
| Fan Air Pressure | 1.97 mmAq |
| Fan Noise | ≤24.4 dB(A) |
| Fan Speed (with LSP) | 500~1250 RPM±10% |
| Fan Airflow (with LSP) | 41.51 CFM |
| Fan Air Pressure (with LSP) | 1.19 mmAq |
| Fan Noise (with LSP) | ≤20 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.27 A |
| Fan Power Consumption | 3.24 W |
| LED Type | White LED |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
