Features of CORSAIR TX550M
The CORSAIR Power Supply provide industrial build quality, 80 PLUS Gold efficiency, extremely tight voltages and a semi-modular cable set.
- 6th generation Intel Core processor Ready (Intel Skylake and Z170 motherboards)
- ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems
- 80 PLUS Gold efficiency, delivering 90% energy efficiency at real world load conditions
- Active PFC with full range AC input (100-240 VAC)

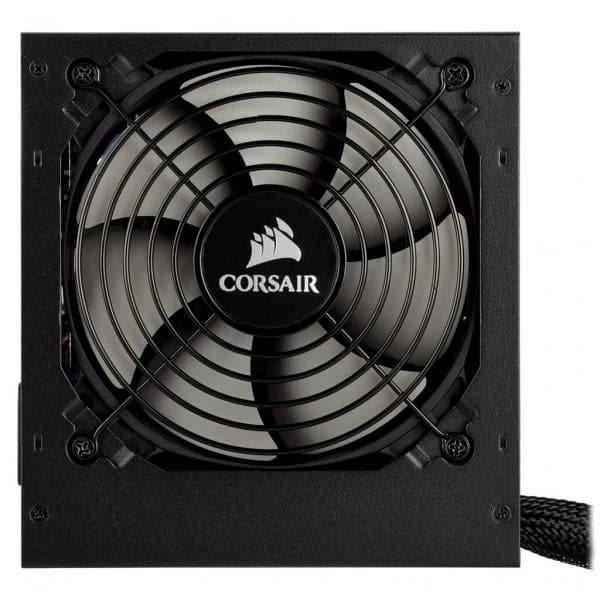

- 120mm rifle bearing fan
- Engineered to meet maximum power output at a server-grade 50°C temperature rating
- Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components
- Safety and Agency Approvals: FCC, ICES, CE, UL, CUL, RCM, TÜV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC.
Gold-certified efficiency and semi-modular cabling for low energy use and easy installation
TX Series semi-modular power supplies are ideal for basic desktop systems where low energy use, low noise, and simple installation are essential. All of the capacitors are 105°C rated, Japanese brand, to ensure solid power delivery and long term reliability. 80 PLUS Gold efficiency reduces operating cost and excess heat. Flat, sleeved black modular cables with clearly-marked connectors make installation fast and straightforward, with good-looking results.
80 PLUS Gold-certified Efficiency
The super-efficient operation of the TX Series 550W Power Supply semi-modular results in lower energy use and lower operating costs. Since it generates less heat, the fan doesn’t need to work as hard, and you’ll enjoy near silent operation.

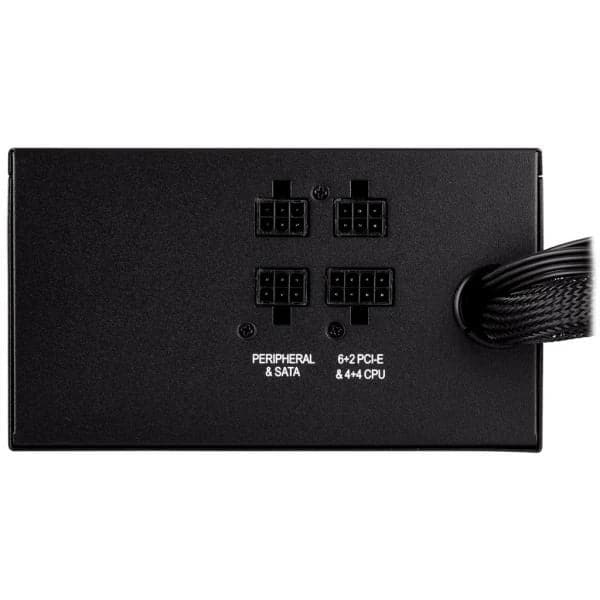

Modular cabling with clearly marked connectors
The flat, sleeved black cables are semi-modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.
Corsair Engineering and Quality Control
Every CORSAIR power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the TX-M Series semi-modular, because you need confidence and reliability regardless of your build budget.
Get the best 80 Plus Gold cpu power supply price from us today!
Specifications of CORSAIR TX550M
| Wattage | 550 W |
| Series | TX-M Series |
| Certification | 80+ Gold |
| Modular | Semi Modular |
| PCIe Connector (6+2) | 2 |
| SATA Connector | 5 |
| Peripheral (4-Pin) | 4 |
| Weight | 1.7 Kg |
| MTBF | 100,000 Hours |
| 80 Plus | Gold |
| Power | 550 Watts |
| Fanless Mode | No |
| Fan bearing technology | Rifle Bearing |
| Fan Size (mm) | 120mm |
| C-Link Digital | No |
| Continuous output rated temperature (°C) | 50°C |
| Dimensions | 150mm x 86mm x 140mm |
| Modular | Semi Modular |
| Sleeved Cables | Low-Profile, All Black |
| ATX Connector | 1 |
| EPS Connector | 1 |
| Floppy Connector | 1 |
| Four Pin Peripheral Connector | 4 |
| PCIe Connector | 2 |
| SATA Connector | 5 |
| Plug Type | UK |
| Warranty | 7 Years |
