Description

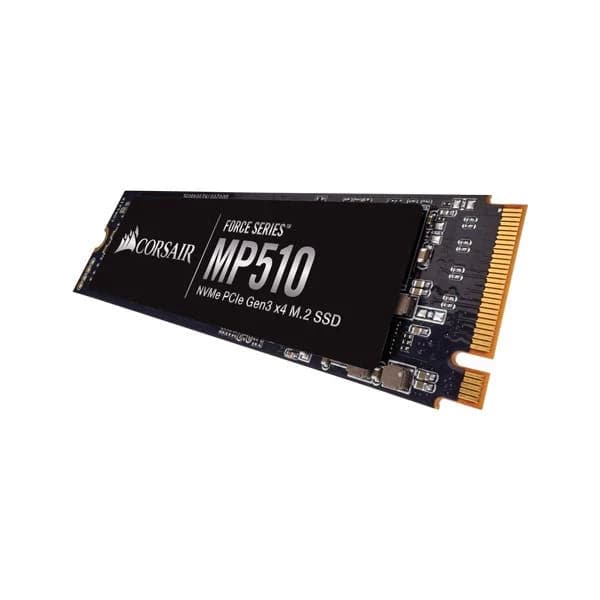

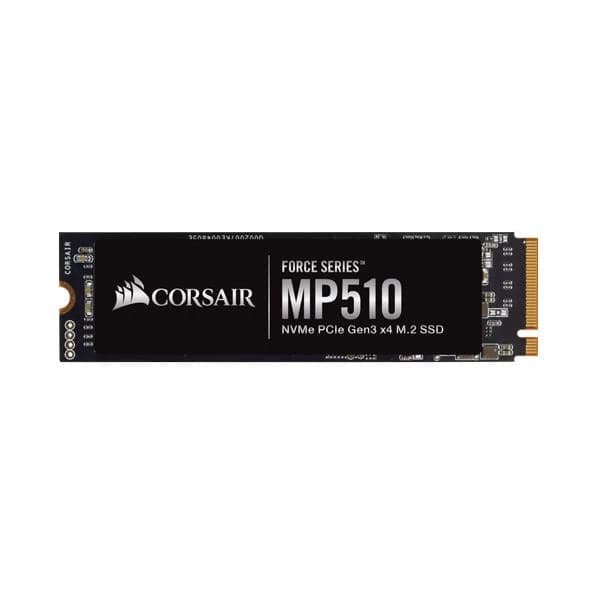

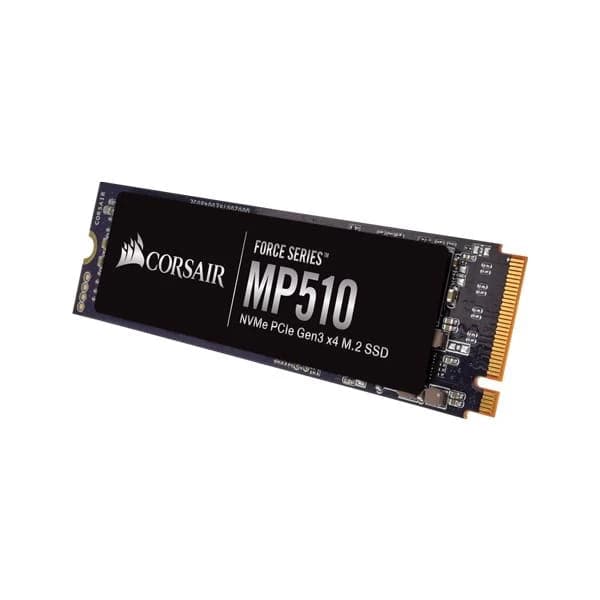

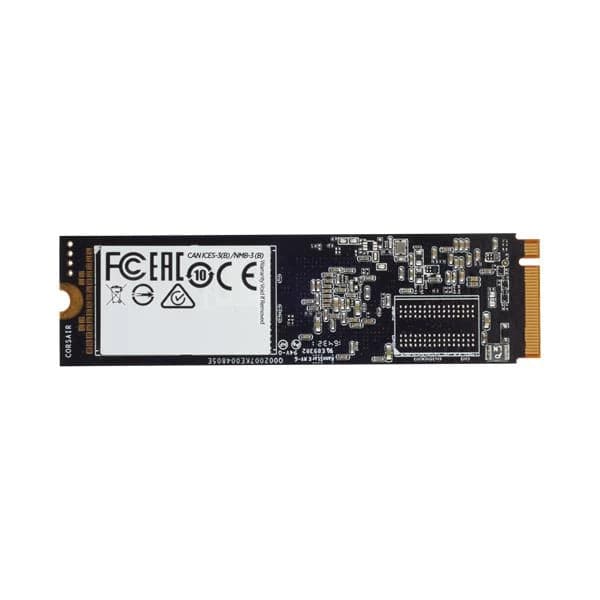

Features of CORSAIR Force MP510 960GB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
The CORSAIR Force MP510 NVMe PCIe Gen3 x4 M.2 SSD provides extreme storage performance with blazing fast read speeds of up to 3,480MB/sec.
EXTREME STORAGE PERFORMANCE
All-new extreme data performance controller delivers up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times.
HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE
For simple connection and maximum bandwidth.
HIGH-DENSITY 3D TLC NAND
Provides the ideal mix of performance, endurance and value to keep your drive performing at its best for years.
COMPACT M.2 2280 FORM FACTOR
Ultra-compact M.2 2280 size fits directly into your notebook or motherboard with no additional cables or connectors.
COMPREHENSIVE FIVE-YEAR CORSAIR WARRANTY
Long-term reliability and industry leading customer support for peace of mind.
Discover the perfect balance of performance and affordability with our unbeatable Corsair SSD.
Specifications of CORSAIR Force MP510 960GB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
| SSD Unformatted Capacity | 960 GB |
| SSD Smart Support | Yes |
| Weight | 0.055kg |
| SSD Interface | PCIe Gen 3.0 x4 |
| SSD Max Sequential Read CDM | Up to 3,480MB/s |
| SSD Max Sequential Write CDM | Up to 3,000MB/s |
| Max Random Write QD32 IOMeter | Up to 570K IOPS |
| Max Random Read QD32 IOMeter | Up to 610K IOPS |
| NAND Technology | 3D TLC NAND |
| Voltage | 3.3V, +/- 5% |
| Endurance | 1,700 TBW |
| TBW | 1700 |
| MTBF | 1,800,000 Hours |
| DEVSLP | L1.2 < 2mW |
| Encryption | AES 256-bit Encryption |
| Storage Temperature | -40°C to +85°C |
| SSD Operating Temperature | 0°C to +70°C |
| SSD Shock | 1500 G |
| Storage Humidity | 93% RH (40° C) |
| Operating Humidity | 90% RH (40° C) |
| Vibration | 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G |
| Form Factor | M.2 2280 |
| Dimension | 80mm x 22mm x 3mm |
| Application Consumer | Client |
| Warranty | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
