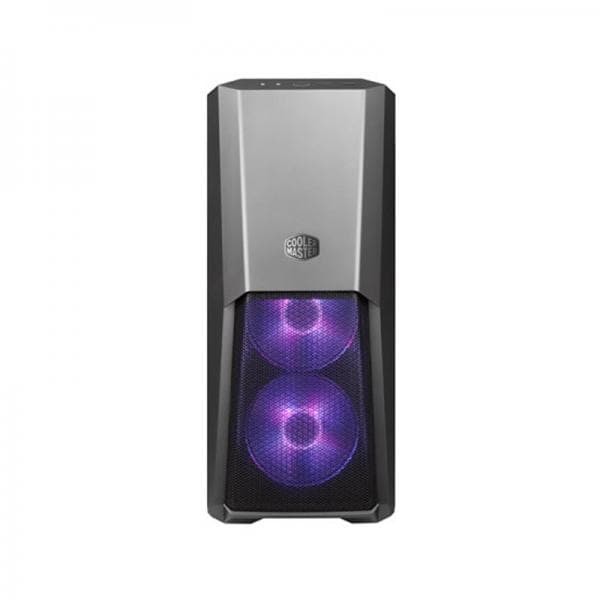

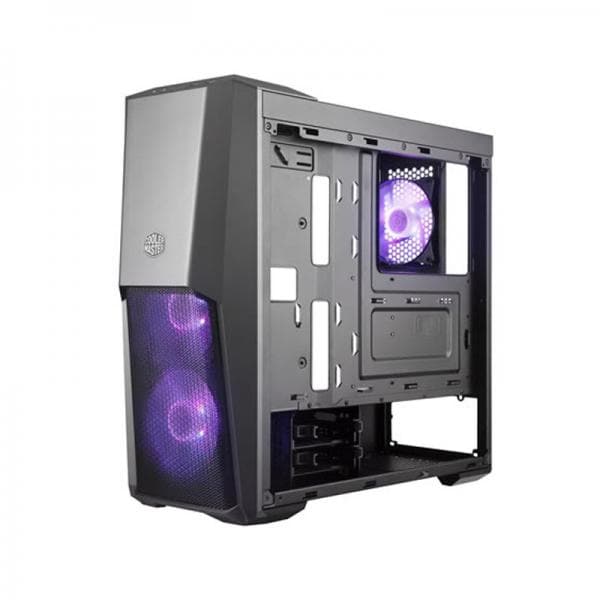

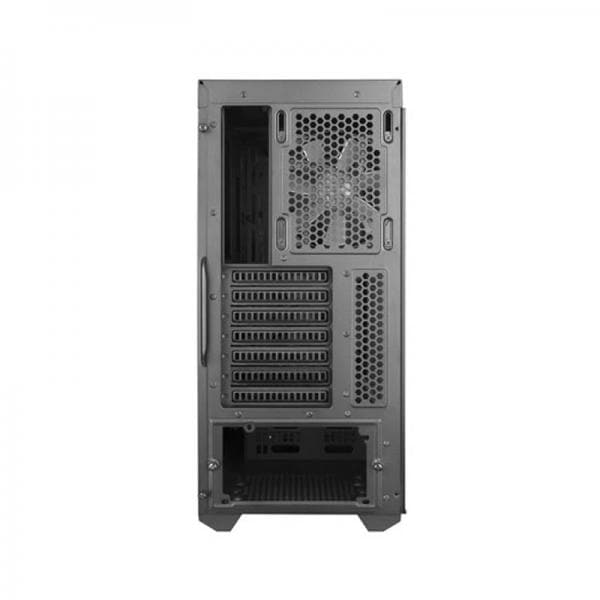

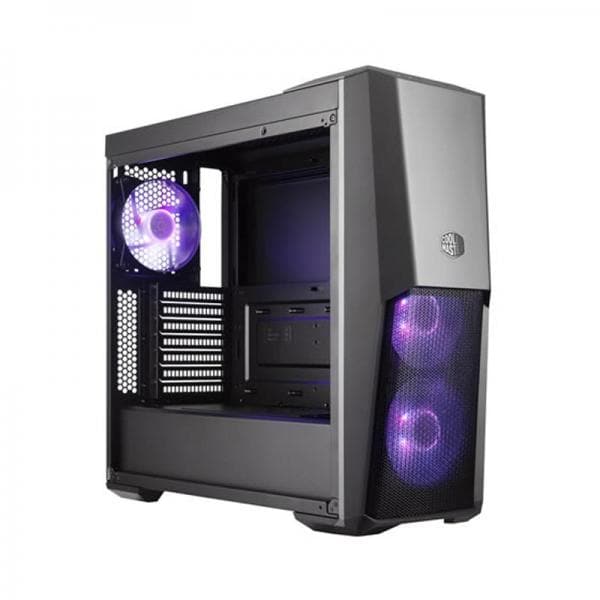

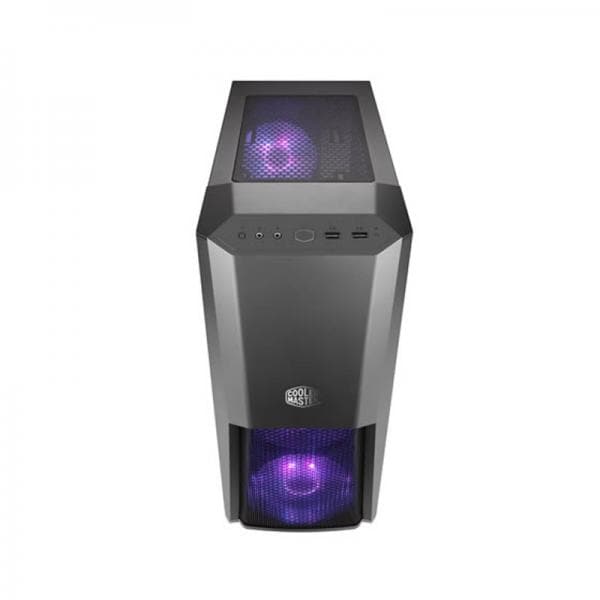

Features of COOLER MASTER Masterbox MB500 ATX Mid Tower Cabinet (Black)
TEMPERED GLASS SIDE PANEL

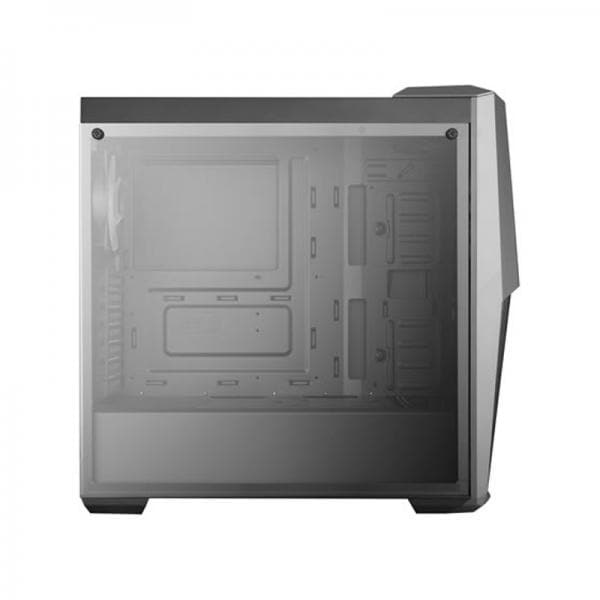

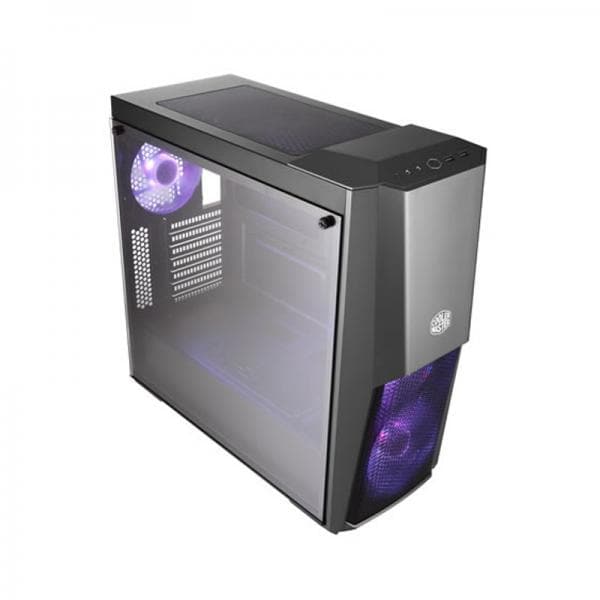

With the Coolermaster, Show off your build in style through the 4mm thick edge to edge tempered glass side panel.
EXCELLENT THERMAL PERFORMANCE
Optimized airflow of Case due to the semi-meshed front panel and ventilation holes on top of the case.
FAN AND RADIATOR SUPPORT
The front supports up to three 120mm- or two 140mm fans and up to a 360mm radiator, with a maximum thickness of 50mm without fans. The Rear supports a 120mm fan or radiator, and the top up two 120mm fans. It comes with two pre-installed 120mm RGB fans in the front and a single 120mm RGB fan in the rear. All to ensure you don't have to compromise on performance.
MAIN COMPONENTS CLEARANCE
The MB500 ATX Cabinet supports CPU-Coolers up to a height of 160mm, Graphic Cards up to a length of 400mm, and Power Supplies up to a length of 180mm.
EXPANDING THE POSSIBILITIES
The spacious interior fits all standard motherboards for your gaming needs. Black coating and an included PSU cover that allows for easy, simple configurations for your gaming build. Let your configuration stand out with an all-black background.
Specifications of COOLER MASTER Masterbox MB500 ATX Mid Tower Cabinet (Black)
| Model Number | MCB-B500D-KGNN-S00 |
| Available Color(s) | Black |
| Materials | Steel, Plastic, Tempered Glass |
| Dimensions (LxWxH) | 494 x 211 x 475mm |
| Motherboard Support | ATX, Micro ATX, Mini ITX |
| Expansion Slots | 7 |
| 3.5″ Drive Bays | 2 |
| Drive Bays 2.5″ SSD | 2 (Max. 4) |
| I/O Panel | 2x USB 3.0, Audio In & Out (supports HD audio) |
| Pre-installed Fans – Front | 2x 120mm RGB LED Fan |
| Pre-installed Fans – Rear | 1x 120mm RGB LED fan |
| Fan Support – Front | 3x 120mm, 2x 140mm |
| Fan Support – Top | 2x 120mm |
| Fan Support – Rear | 1x 120mm |
| Radiator Support – Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support – Rear | 120mm |
| Clearance – CPU Cooler | 163mm / 6.41″ |
| Clearance – GFX | 400mm |
| Clearance – PSU | 180mm/7.1″ |
| Cable Routing – Behind Motherboard Tray | 15-23mm / 0.59-0.90″ |
| Dust Filters | Front, Bottom |
| Power Supply Support | Bottom mount, ATX |
| EAN Code | 4719512067345 |
| UPC Code | 884102039867 |
| Size | Mid Tower |
| Series | MasterBox Series |
