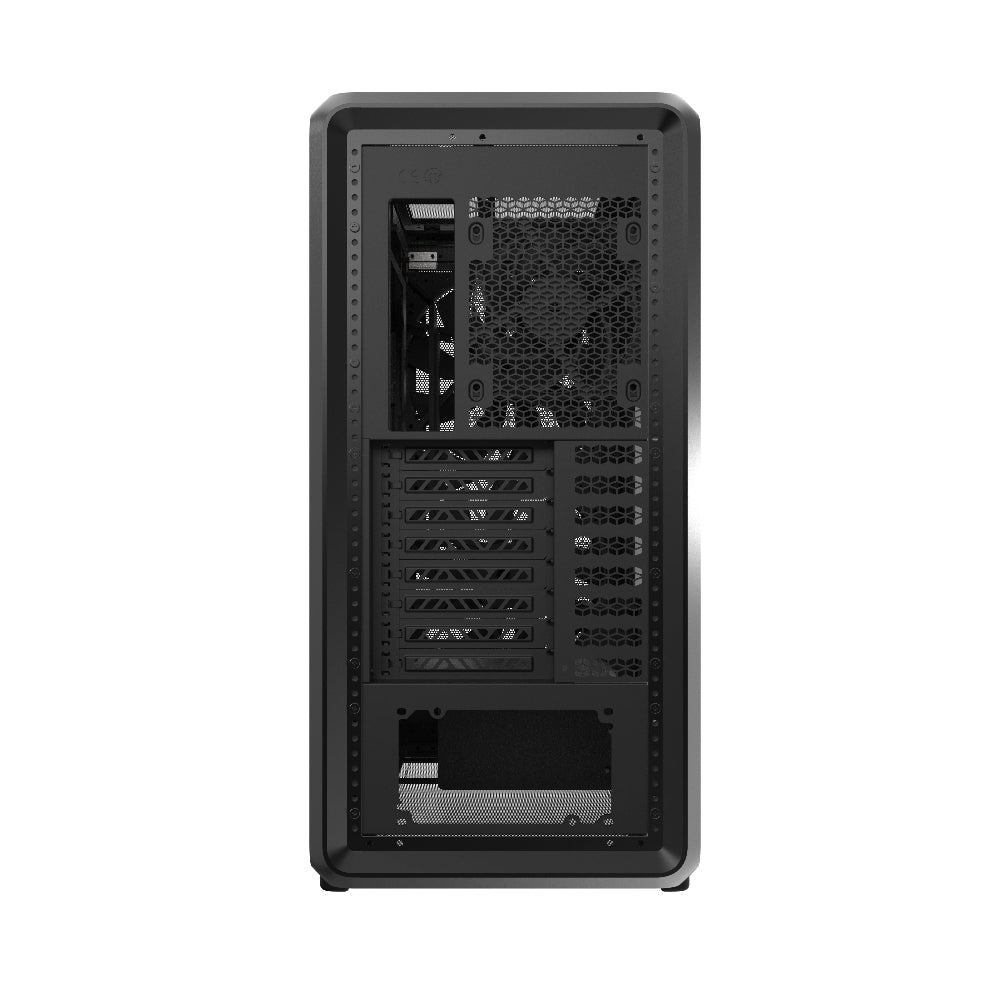

Features of COOLER MASTER Master Frame 500 Mesh ARGB EATX Mid Tower Cabinet ( Black )
The MasterFrame 500 Mesh is a premium open-frame mid-tower chassis built for high-performance components, advanced cooling setups, and limitless customization. Embracing the FreeForm 2.0 design philosophy, it supports ATX to E-ATX motherboards and provides full access to modular design files. With enhanced mesh panels for improved airflow, it empowers builders, modders, and creators to push the boundaries of PC design.
FreeForm 2.0 Exo-structure
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Versatile & Maker-Driven
Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.
Flexible Motherboard Support
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Extensive Cooling Support
Can house up to eight fans and multiple radiator sizes (up to 360mm), ensuring superior thermal performance.
Tool-Free Panel Removal
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
- Dimensions (L x W x H): 471 x 261 x 544mm (Incl. Protrusions), 471 x 244 x 514mm (Excl. Protrusions)
- Power Supply Support: ATX
- 3.5" Drive Bays: 0
- 2.5" / 3.5" Drive Bays (Combo)1 (Bottom)
- Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay(or SSD) (remark Toolfree quantity): 1x 2.5 or 1x 3.5
Preinstalled Fan

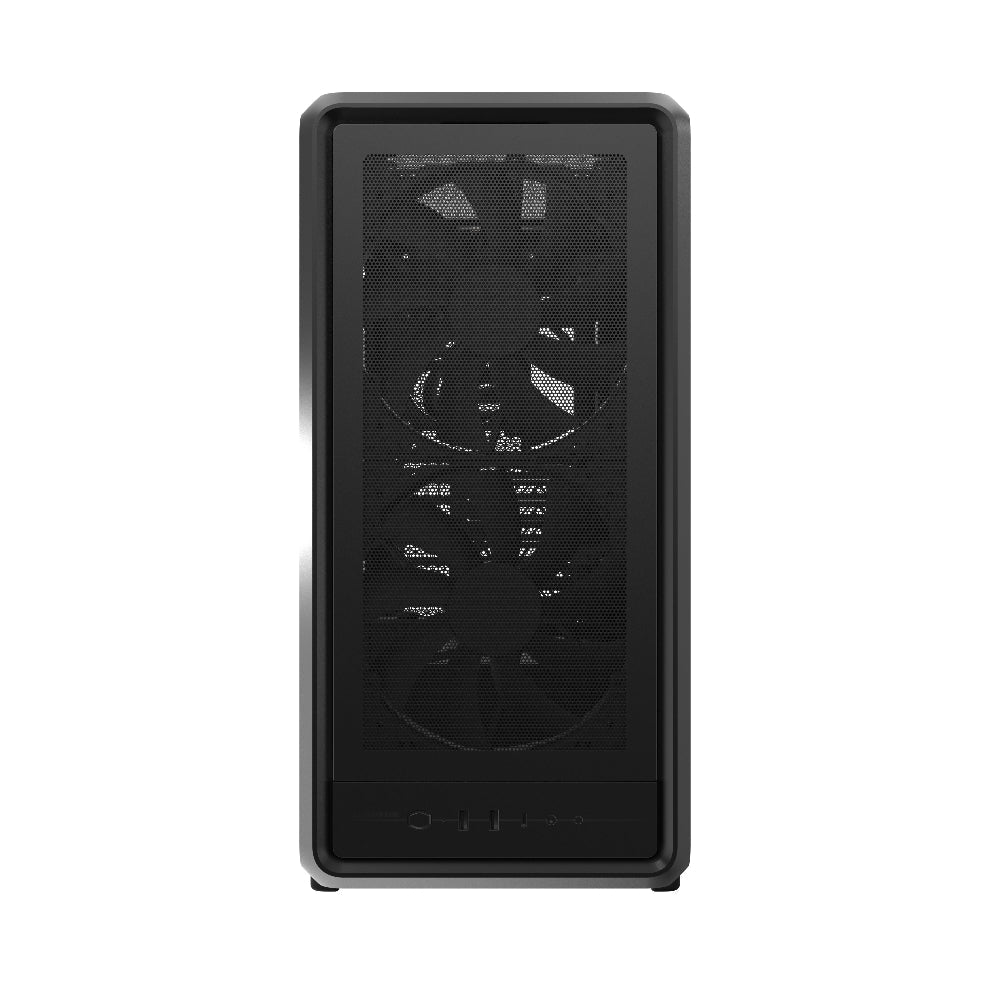

- Front : 2x SickleFlow 200mm (ARGB)
- Rear : 1x 120mm (ARGB)
Fan Support:
- Front: 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm
- Top: 3x 120mm, 2x 140mm, 2x 180mm , 1x 200mm
- Rear: 1x 120mm
- Bottom: 3x 120mm, 3x 140mm
Radiator Support:
- Front: 120 / 140 / 240 / 280 / 360 mm
- Top: 120 / 140 / 240 / 280 / 360 mm
- Rear: 120 mm
Specifications of COOLER MASTER Master Frame 500 Mesh ARGB EATX Mid Tower Cabinet ( Black )
| Model Number | MF500M-KHNN-S01 |
| Exterior Color | Black |
| Materials | Exterior: SGCC Steel, Aluminum Side Panel (Left / Right): Tempered Glass |
| Dimensions (L X W X H) | Incl. Protrusions: 471 x 261 x 544 mm Excl. Protrusions: 454 x 261 x 514 mm Volume (excluding protrusions): 60.9 L |
| Hardware support | Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support) Power Supply Support: ATX PCI Expansion Slots: 8 |
| Drive Bays | 3.5" Drive Bays: 0 2.5" / 3.5" Drive Bays (or SSD): 1 (Bottom) |
| Pre-installed Drive Bay | 3.5" Drive Bay (remark Tool-free quantity) / 2.5" Drive Bay(or SSD)(remark Tool-free quantity): 1x 2.5 or 1x 3.5 |

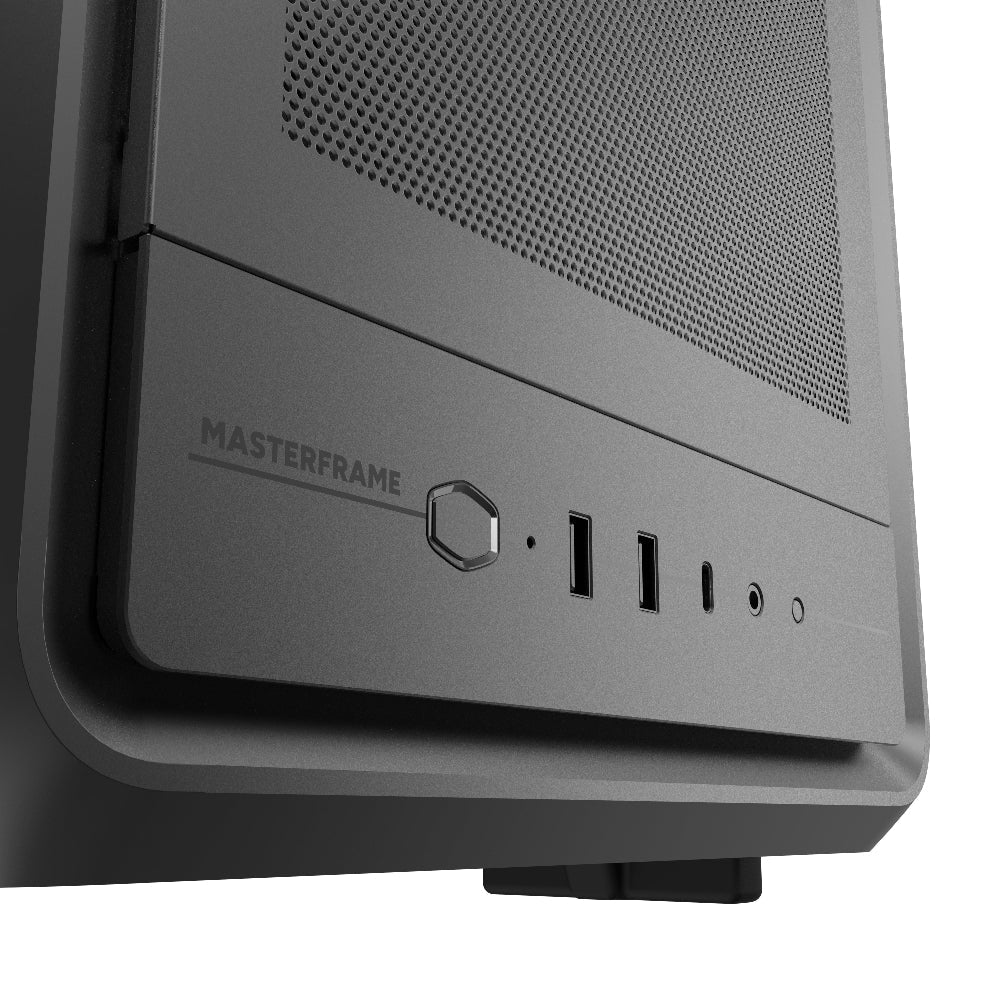

| I/O Panel | USB Ports: 2x USB 3.2 Gen 1 Type-A 1x USB 3.1 Gen 2x2 Type-C Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic) |

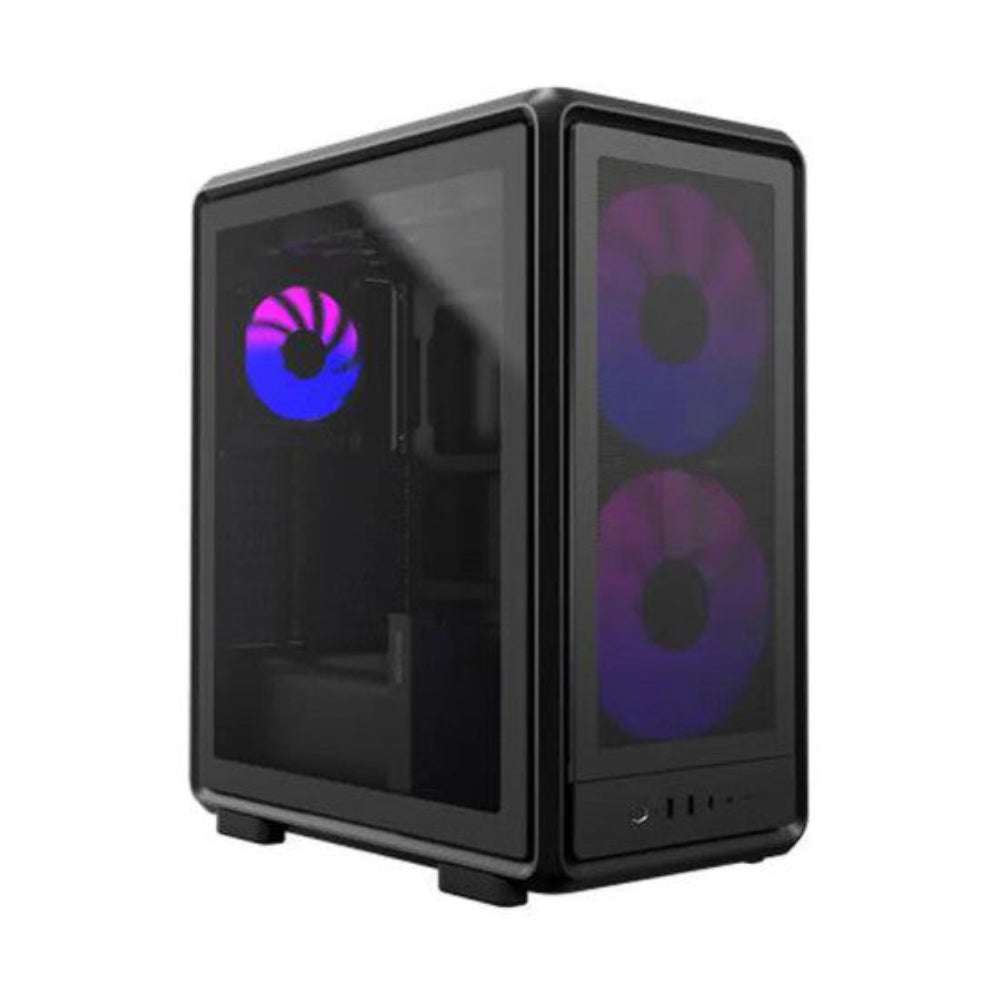

| Pre-Installed Fans | Front: 2x SickleFlow 200mm (ARGB) Rear: 1x 120mm (ARGB) |
| Fan Support | Front: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm Top: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm Rear: 1x 120mm Bottom: 1x 120mm |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360 mm Top: 120 / 140 / 240 / 280 / 360 mm Rear: 120 mm |
| Dust Filters | Removable Filters: Mesh Only |
| Clearances | CPU Cooler: 190 mm Power Supply: 235 mm Graphics Card: 390 mm |
| Cable Routing | Behind MB Tray: 43 mm |
| Included Accessories | GPU Support Bracket |
| Warranty | 2 Years |
| Note* | Price, features and specifications are subject to change without notice. |
