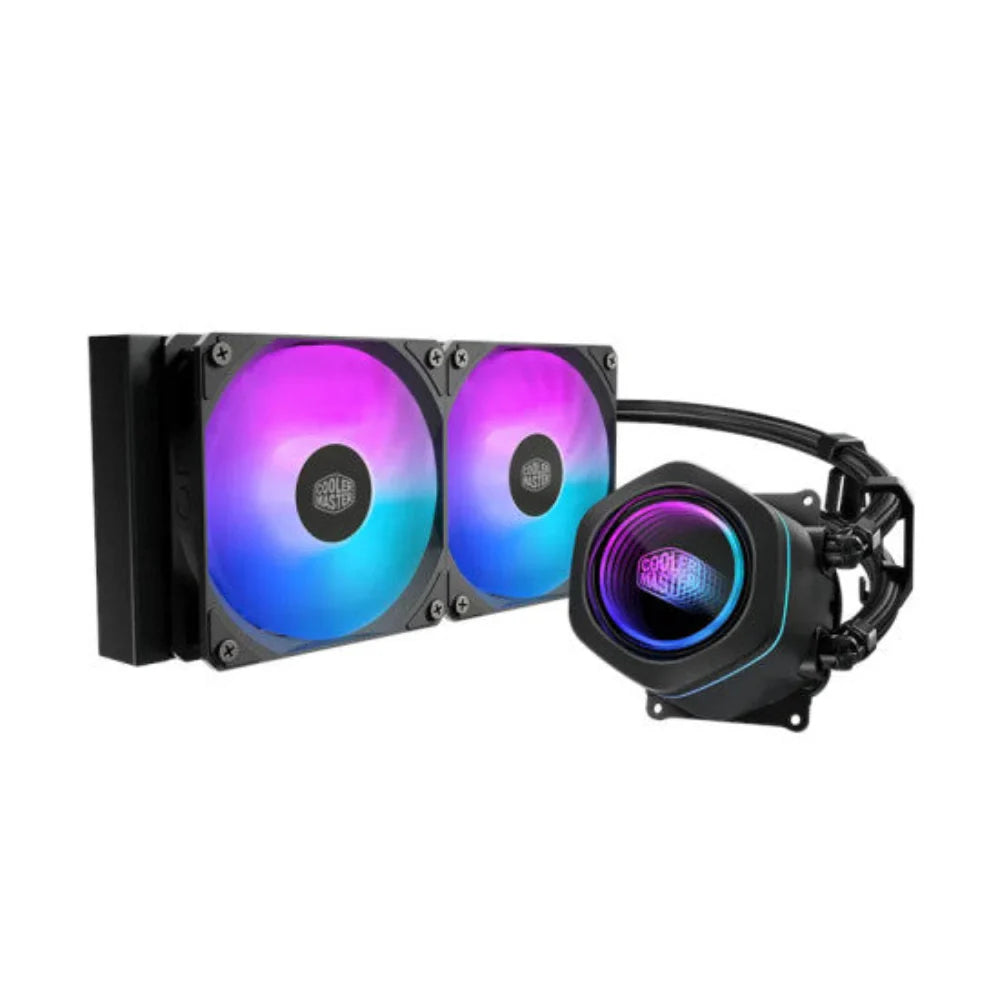

Features of COOLER MASTER Masterliquid Core NEX 240mm ARGB CPU Liquid Cooler ( Black )
Introducing the redesigned MasterLiquid Core Nex Series from Cooler Master. Built on the trusted foundation of the MasterLiquid series, the Core Nex brings improved cooling performance with its upgraded dual chamber pump and wider CPU compatibility for flexible PC builds. With the infinity mirror pump cover design, upgraded fans, and optimized tubing for easy installation, the MasterLiquid Core Nex Series is a smart and stylish cooling solution for mainstream users looking to step up their setup.
An infinity mirror pump cover design brings stylish lighting and a modern touch to your build
Featuring a rotatable pump cover that allows users to customize the orientation for the perfect look.
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.
Fully automated production and assembly of the pump with fully recorded production history
400 mm tubing allows for effortless cooler installation in any orientation.
With pre-installed fans, streamlined cabling, pre-applied thermal paste, and pre-mounted brackets, setup is quick, clean, and effortless
Broad compatibility with both Intel and AMD CPU sockets
Specification of COOLER MASTER Masterliquid Core NEX 240mm ARGB CPU Liquid Cooler ( Black )
| Product Series | MASTERLIQUID CORE NEX SERIES |
| Product Number | MLX-D24M-A18PA-R1 |
| Exterior Color | Black |
| CPU Socket | Intel: Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 AMD: AMD® AM5 / AM4 |
| Radiator Material | Aluminum |
| Radiator Dimensions | 277 x 119.6 x 27 mm (10.9 x 4.71 x 1.1 inch) |
| Tube Length | 400 mm |
| Pump Dimension | 83.6 x 78.5 x 62.9 mm (3.3 x 3.1 x 2.5 inch) |
| Pump Profile | Addressable RGB |
| Pump Speed | 3200 ±10% RPM |
| Pump MTTF | > 35,0000 hours |
| Pump Noise Level | 25 dB(A) |
| Pump Connector | 3-Pin ARGB + 4 Pin PWM |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 7.2 W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch) |
| Fan Quantity | 2 PCS |
| Fan LED Type | Addressable RGB |
| Fan Speed | 650 ~ 1750 RPM ± 10% |
| Fan Airflow | 122.4 m³/h (71.9 CFM) |
| Fan Noise Level | 27.2 dB(A) |
| Fan Pressure | 1.86 mm H2O |
| Fan Bearing Type | Rifle |
| Fan MTTF | > 40,000 hours |
| Fan Connector | 7-Pin PWM + ARGB |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.26 A |
| Fan Safety Current | 0.37 A |
| Power Consumption | 3.12 W |
| Warranty | 5 Years |
| Note* | Price, feature and specifications are subject to change without notice |
