Description

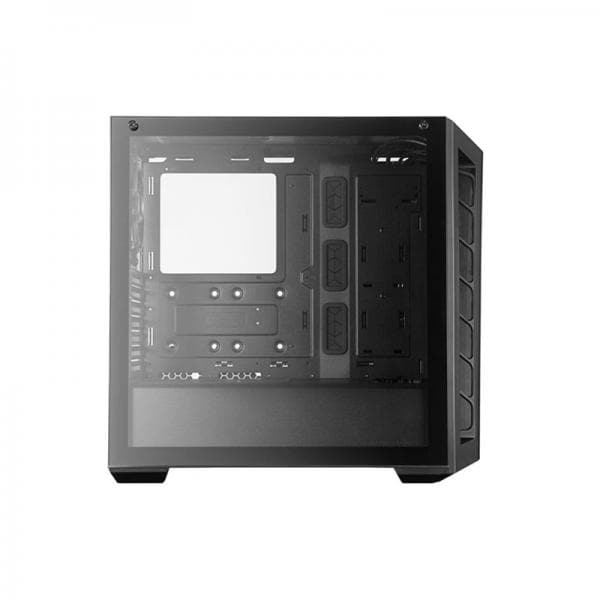

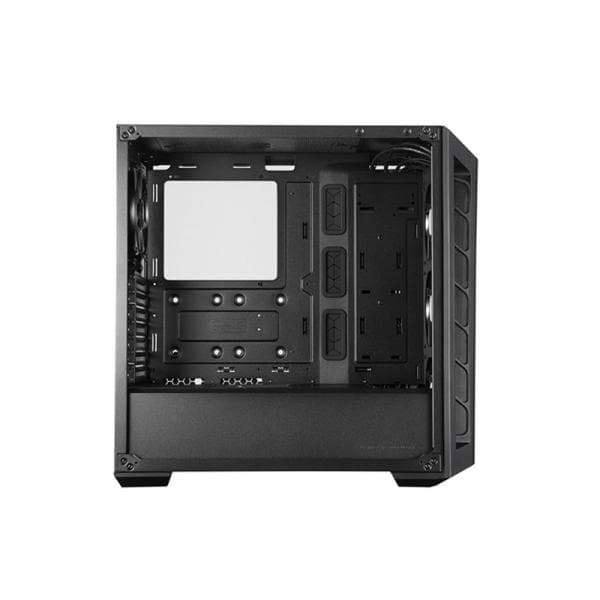

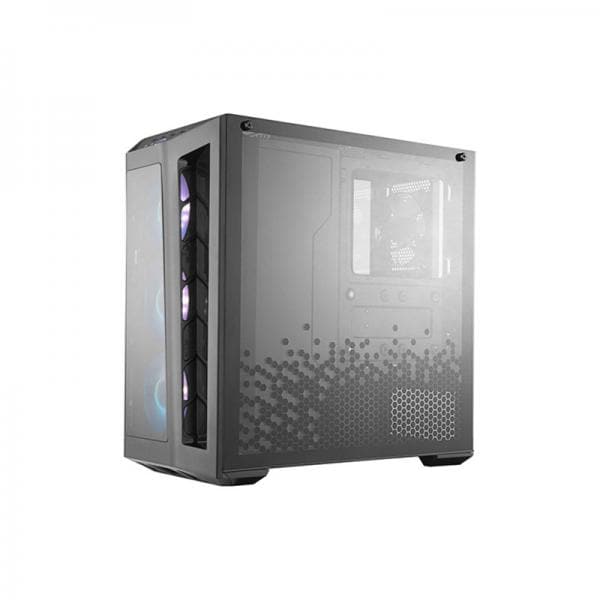

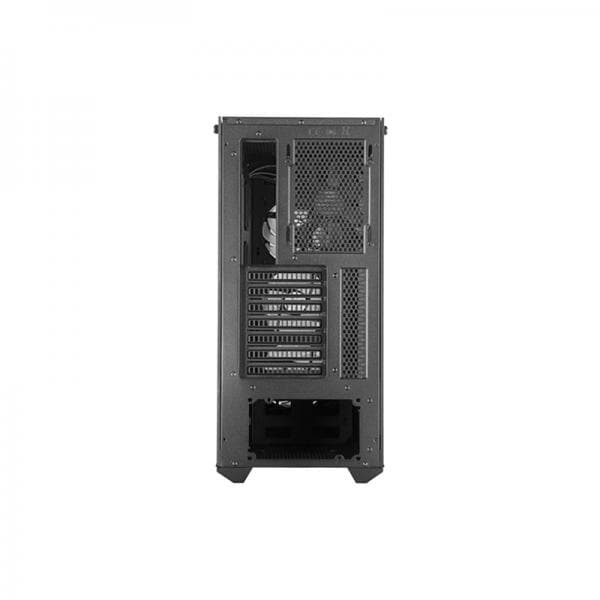

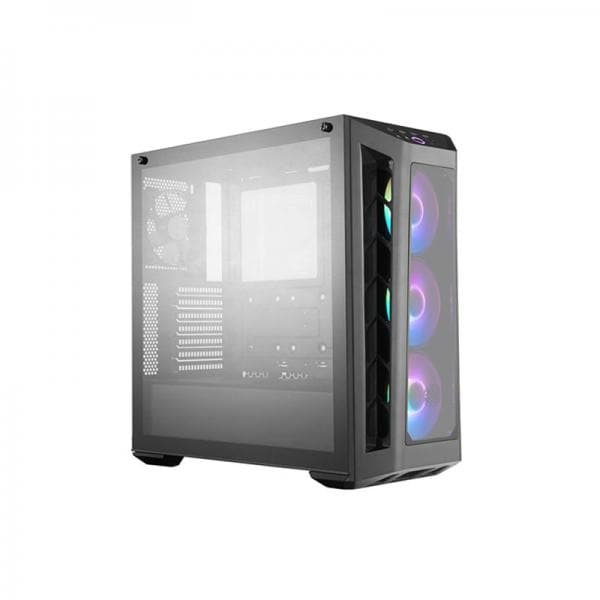

Features of COOLER MASTER Masterbox MB530P ARGB ATX Mid Tower Cabinet (Black)

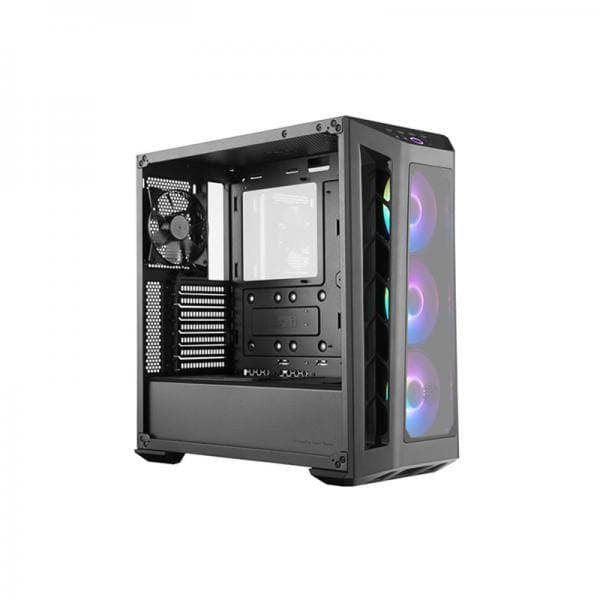

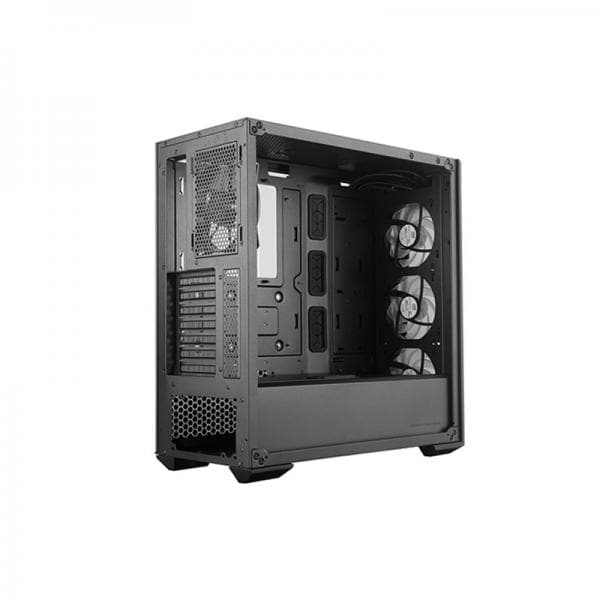

COOLER MASTER MASTERBOX MB530P CABINET from Cooler Master features 3 Tempered glass panels, ARGB fans, cable covers, and routing space. The front and side panels of the COOLER MASTER MASTERBOX MB530P Case offers a clear view of the ARGB fans and system configuration. The aggressive intake on either side of the front panel helps to feed fresh air to cool the interior. The Addressable RGB lighting fans can be synced with ARGB certified motherboards from Gigabyte, MSI, ASUS, and Asrock for a comprehensive lighting system. The advanced fan and radiator support of the COOLER MASTER MASTERBOX MB530P CABINET help to mount up to three 120mm fans or up to 140mm fans and radiator sizes up to 360mm on the front.
The top panel of the COOLER MASTER MASTERBOX MB530P ATX Cabinet can support two more 120mm or 140mm fans or a 140mm radiator with a rear 120mm fan or radiator support for cooling the system needs. A PSU shroud, a cable cover, and some behind the motherboard provides an excellent option for a clean system. The GFX cables can be routed through the PSU shroud rubber grommet. The spacious interior gives expanding possibilities to fit all standards of motherboards. The COOLER MASTER MASTERBOX MB530P CABINET supports CPU coolers with long heights up to 165mm and 410mm length GPUs with a power supply length of up to 180mm. The I/O panel of the Cooler Master has two USB 3.0 ports and two USB 2.0 ports with HD Audio in and out ports with an included ARGB controller.

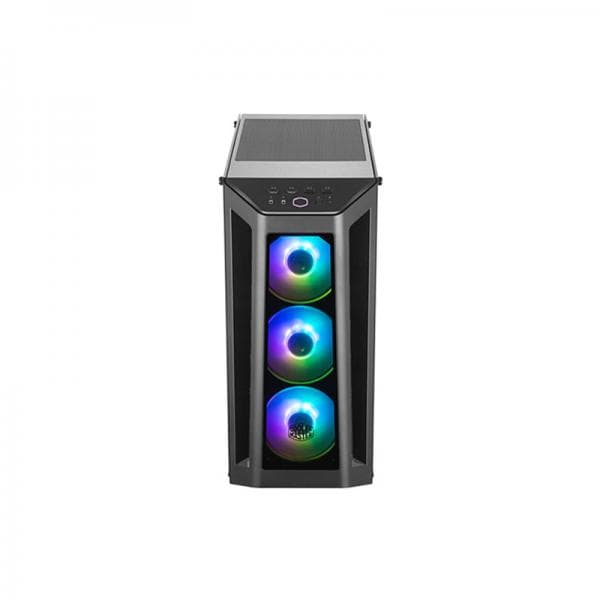

AGGRESSIVE INTAKES
Large intakes on each side of the front panel feed air to cool the interior.

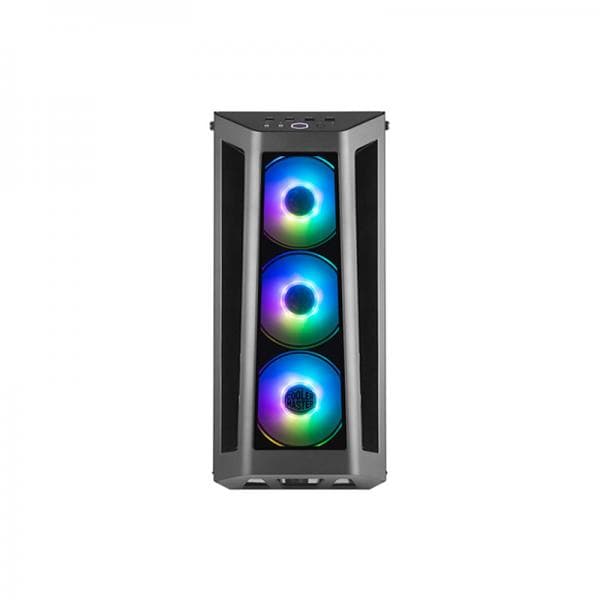

ADDRESSABLE RGB LIGHTING
Sync the ARGB fans by connecting the ARGB cable directly to the motherboard or to the I/O panel with the included 2 to 3 ARGB splitter. Certified compatible with: ASUS, Gigabyte, MSI, and ASRock motherboards for a comprehensive lighting system.
FAN AND RADIATOR SUPPORT
Front: Three 120mm or two 140mm* fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.Rear: One 120mm fan or radiator. All to ensure you don't have to compromise on performance.* 2 x 140mm fans in front can only be mounted behind the front plate.

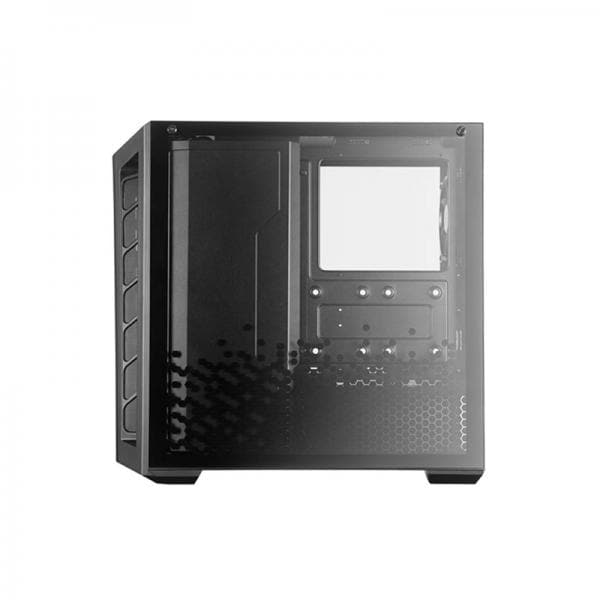

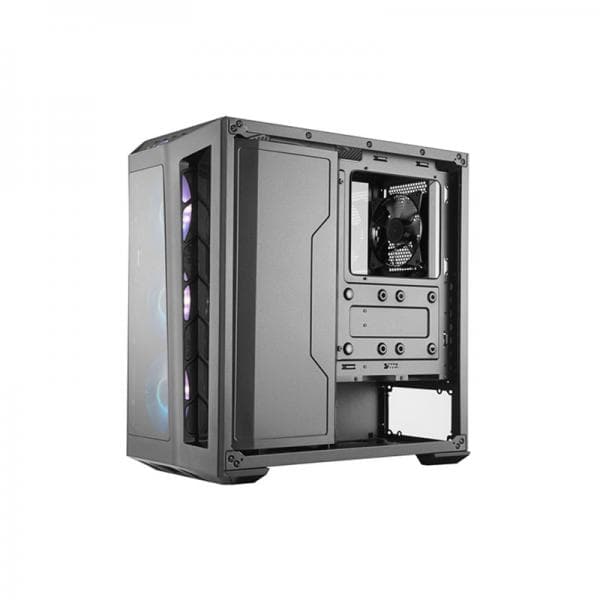

CABLE COVER AND ROUTING SPACE
A PSU shroud1, cable cover2, and 18~25mm width of space3behind the motherboard provides options to keep systems clean; GFX cables can also be routed directly through the PSU shroud rubber grommet
MAIN COMPONENTS CLEARANCE
The MasterBox MB530P case supports CPU coolers up to a height of 165mm, graphics cards up to a length of 410mm, and power supplies up to a length of 180mm.
Specifications of COOLER MASTER Masterbox MB530P ARGB ATX Mid Tower Cabinet (Black)
| Product Name | MasterBox MB530P |
| Model number | MCB-B530P-KHNN-S01 |
| Available Color | Black |
| Materials | Steel, Plastic, Tempered Glass |
| Dimensions (L x W x H) | 489 x 229 x 469mm |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 7 |
| 5.25" Drive Bays | N/A |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 4 |
| I/O Panel | USB 3.0 x 2, USB2.0 x2,Audio In / Out, ARGB control button |
| ARGB Controller | 1 x ARGB Controller included |
| ARGB Cable | 2 to 3 ARGB Splitter cable included |
| Pre-installed Fan(s) | Front: 120mm ARGB AB fans x 3 (9 blades fan 1200rpm) |
| Rear: 120mm Non-Led fan x 1 (7 blades fan 1200rpm) | |
| Fan Support | Front: 120mm x 3 / 140mm x 2 |
| Top: 120mm x 2 / 140mm x 2 | |
| Rear: 120mm x 1 | |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360mm |
| Top: 120 / 240mm | Top: 120mm x 2 / 140mm x 2 |
| Rear: 120mm | Rear: 120mm x 1 |
| Clearances | CPU Cooler: 165mm / 6.49" |
| PSU: 180mm / 7.08" | |
| Graphics card: 410mm / 16.14" | |
| Cable Routing | Behind M/B Tray space: 18-25mm |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Warranty | 2 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
