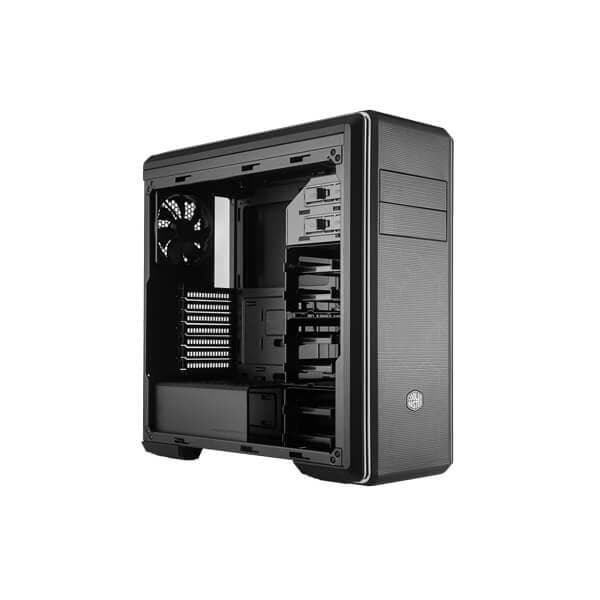

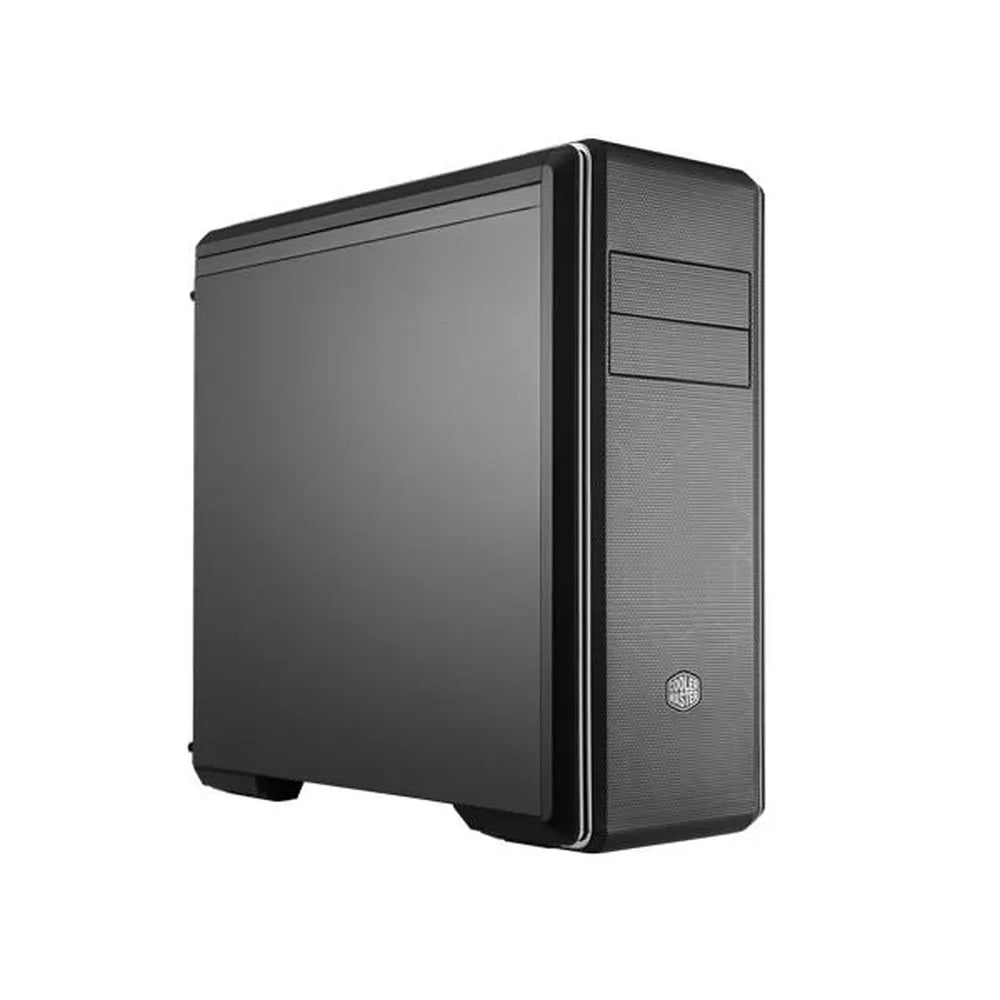

Features of COOLER MASTER Masterbox CM694 EATX Mid Tower Cabinet (Black)

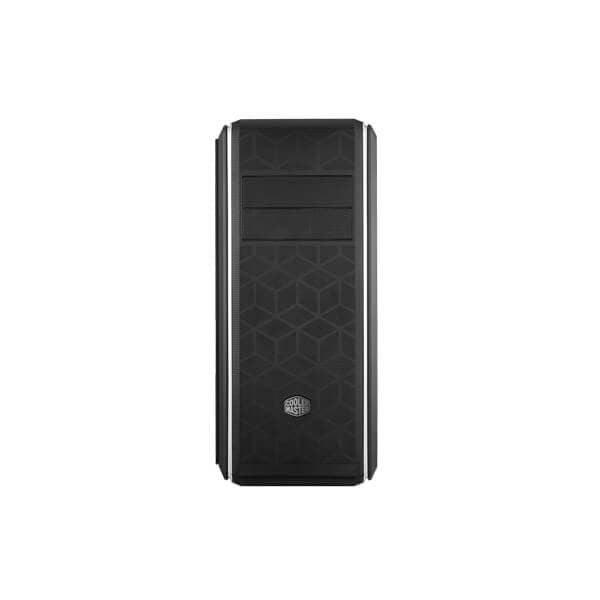

CURVED MESH
The top and front panel are entirely mesh, featuring the iconic CM690 curve and Cooler Master's signature rhombus pattern. The fine mesh on the Cooler Master Masterbox CM694 EATX Cabinet (Black) achieves optimal airflow while also filtering out dust with a single layer.

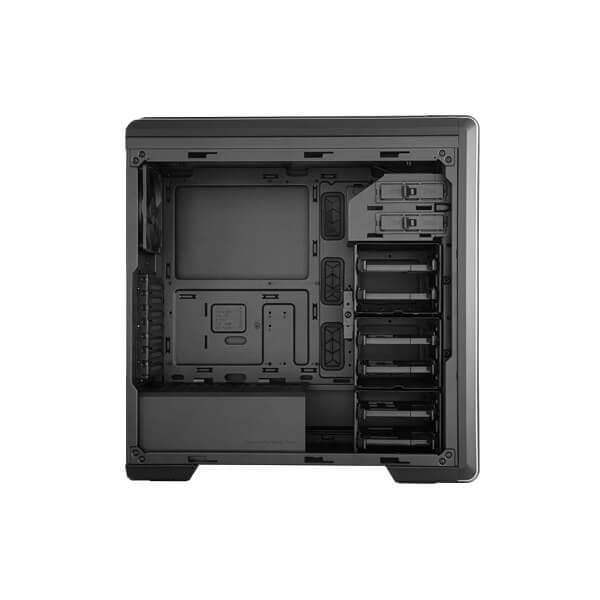

MODULAR DRIVE CAGES
3 Drive Cages can be individually added, removed, or repositioned to make room for longer graphics cards and/or top & front radiators.
GRAPHICS CARD STABILIZER
Graphics cards installed within the Cooler Master are reinforced by an arm, ensuring the safe delivery and transportation of systems.
RICH CONNECTIVITY (I/O PANEL)
COOLER MASTER Masterbox CM694 EATX Mid Tower computer cpu case (Black) has the dust-proof I/O Panel features rubber shields, 2 x USB 3.0 ports, a USB 3.1 (Gen 2) Type-C port, and a 4 pole headset jack.
Specifications of COOLER MASTER Masterbox CM694 EATX Mid Tower Cabinet (Black)
| Model Number | Cooler Master Masterbox CM694 EATX Mid Tower Cabinet (Black) (MCB-CM694-KG5N-S00 (TG)) |
| Series | MasterBox Series |
| Size | Mid Tower |
| Colour | Black |
| Materials | Steel, Plastic, Mesh |
| Dimension |
493 x 224 x 506 mm (incl. Protrusions) 482 x 224 x 477 mm (excl. Protrusions) |
| Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX |
| Expansion Slots | 7 |
| 5.25" Drive Bays | 2 |
| 2.5" / 3.5" Drive Bays (Combo) | 6 (3x drive cages) |
| 2.5" Drive Bays | 8 (2 + 6 combo) |
| I/O Panel |
2 x USB 3.0 Type A 1 x USB 3.1 Type-C 1 x 3.5mm Headset Jack (Audio+Mic) |
| Pre-Installed Fans |
FRONT – 2 x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector) REAR – 1 x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector) |
| Fan Support |
FRONT – 3 x 120mm / 2 x 140mm (wo/ODD), 2 x 120mm / 2 x 140mm (w/ODD) TOP – 3 x 120mm, 2 x 140mm REAR – 1 x 120mm |
| Radiator Support |
FRONT - 120mm, 140mm, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage) TOP - 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility) REAR - 120mm |
| Clearance |
CPU COOLER - 171mm GFX - 410mm/16.1", 350mm (with stabilizer), 280mm (with stabilizer + drive cage) PSU - 276mm, 160mm (drive cage rear position) |
| Power Supply Support | Bottom mount, ATX PS2 |
| Dust Filters | Top, Front, Bottom |
| Cable Routing | 27-29mm |
| Warranty | 2 Years |
| Note | Price, feature and specifications are subject to change without notice. |
